Makino V33I-5XB 5-Axis CNC Vertical Machining Center SPECIFICATIONS: CNC CONTROL Makino Professional 5 CNC # AXIS 5 TABLE DIAMETER (ROUND) 7.87″ MAX TABLE LOAD CAPACITY 66 lb X-AXIS (LONGITUDINAL TRAVEL) 25.59″ Y-AXIS (CROSS TRAVEL) 12.79″ Z-AXIS (VERTICAL TRAVEL) 13.78″ A-AXIS (SPINDLE HEAD TILT)(±25°) 130° C-AXIS TABLE ROTATION POSITIONING 360° FEED RATES (X, Y, & Z AXIS) 787 in/min. RAPID TRAVERSE RATE (X, Y, & Z AXIS) 787 in/min. SPINDLE SPEED RANGE 20,000 RPM AUTOMATIC TOOL CHANGER CAPACITY (ATC) 145 AUTOMATIC TOOL CHANGER STYLE Free Standing TOOL CHANGE TIME 4.8 sec. MAX TOOL LENGTH 9.8″ MAX TOOL DIAMETER 3.15″ MAX TOOL WEIGHT 15.4 lb MACHINE HOURS 6832 ELECTRICS 460/3/60 DIMENSIONS 160″ x 200″ x 160″ WEIGHT 18,000 LBS Max Workpiece Size: 9.8″ø x 5.31″ EQUIPPED WITH: Makino Professional P-5 CNC Control, 7.87″ Full Contouring 5-Axis Trunnion Style Table, 20000 RPM Spindle, 145 Station Free Standing Tool Changer, Spindle Chiller, Mist Collector, Tooling Package, Chip Conveyor and Coolant System. FEATURES: The V33i-5XB features a specially designed tilt-trunnion table with combined B- and C-axes to provide die/mold shops with a full 5-axis simultaneous milling answer for intricate 3-D shapes. The table provides the highest accuracies and repeatability available in the industry with less lost motion and higher stiffness and rigidity than comparative 5-axis machines. TheV33i-5XB provides one-setup access to complex, multiple-sided parts, reducing handling and costs. It also facilitates access to undercut areas, oddly positioned features and complex geometries—all with optimum, shorter tool lengths. This creates the best tool life and surface finish characteristics in the marketplace. The machine can also be used in the more traditional “2+3” mode for blending and matching complicated multi-plane surfaces typical of die/mold production.

Makino V33I-5XB 5-Axis CNC Vertical Machining Center SPECIFICATIONS: CNC CONTROL Makino Professional 5 CNC # AXIS 5 TABLE DIAMETER (ROUND) 7.87″ MAX TABLE LOAD CAPACITY 66 lb X-AXIS (LONGITUDINAL TRAVEL) 25.59″ Y-AXIS (CROSS TRAVEL) 12.79″ Z-AXIS (VERTICAL TRAVEL) 13.78″ A-AXIS (SPINDLE HEAD TILT)(±25°) 130° C-AXIS TABLE ROTATION POSITIONING 360° FEED RATES (X, Y, & Z AXIS) 787 in/min. RAPID TRAVERSE RATE (X, Y, & Z AXIS) 787 in/min. SPINDLE SPEED RANGE 20,000 RPM AUTOMATIC TOOL CHANGER CAPACITY (ATC) 145 AUTOMATIC TOOL CHANGER STYLE Free Standing TOOL CHANGE TIME 4.8 sec. MAX TOOL LENGTH 9.8″ MAX TOOL DIAMETER 3.15″ MAX TOOL WEIGHT 15.4 lb MACHINE HOURS 6832 ELECTRICS 460/3/60 DIMENSIONS 160″ x 200″ x 160″ WEIGHT 18,000 LBS Max Workpiece Size: 9.8″ø x 5.31″ EQUIPPED WITH: Makino Professional P-5 CNC Control, 7.87″ Full Contouring 5-Axis Trunnion Style Table, 20000 RPM Spindle, 145 Station Free Standing Tool Changer, Spindle Chiller, Mist Collector, Tooling Package, Chip Conveyor and Coolant System. FEATURES: The V33i-5XB features a specially designed tilt-trunnion table with combined B- and C-axes to provide die/mold shops with a full 5-axis simultaneous milling answer for intricate 3-D shapes. The table provides the highest accuracies and repeatability available in the industry with less lost motion and higher stiffness and rigidity than comparative 5-axis machines. TheV33i-5XB provides one-setup access to complex, multiple-sided parts, reducing handling and costs. It also facilitates access to undercut areas, oddly positioned features and complex geometries—all with optimum, shorter tool lengths. This creates the best tool life and surface finish characteristics in the marketplace. The machine can also be used in the more traditional “2+3” mode for blending and matching complicated multi-plane surfaces typical of die/mold production.

Makino A51NX 4-AXIS DUAL PALLET HMC

Makino A51NX 4-AXIS DUAL PALLET HMC Pallet size: 15.7” x 15.7” Travels: 22” x 25” x 25.2” in Z Rapid Feed rates: X,Y, Z: 2,362 ipm Max. feed rates: X,Y,Z: 1,968 ipm B1: 47 rpm Max. work piece: 1,100 lbs. Spindle HP: 50 Spindle taper: Cat 40 Spindle ranges: 2 Spindle rpm: 14,000 Spindle torque: 240 Nm ATC capacity: 60 Dimensions: 98” x 135” x 106” x 17,200 lbs. EQUIPPED WITH: Fanuc Professional 5 controls Hosnic Chip conveyor Coolant thru spindle Full 4th axis 1G axis acceleration One piece way covers Step down transformer Broken Tool Detection

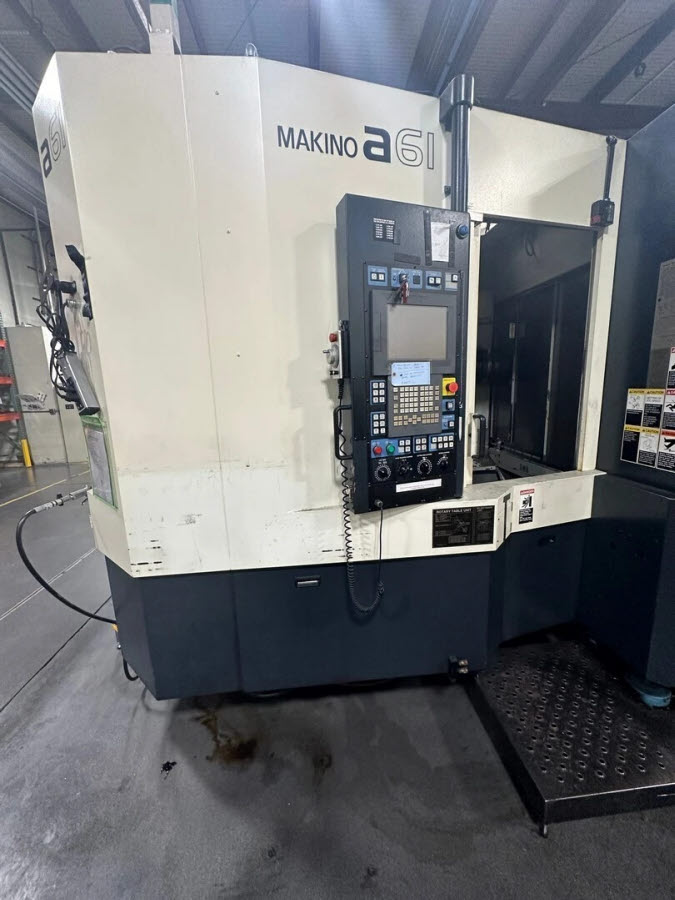

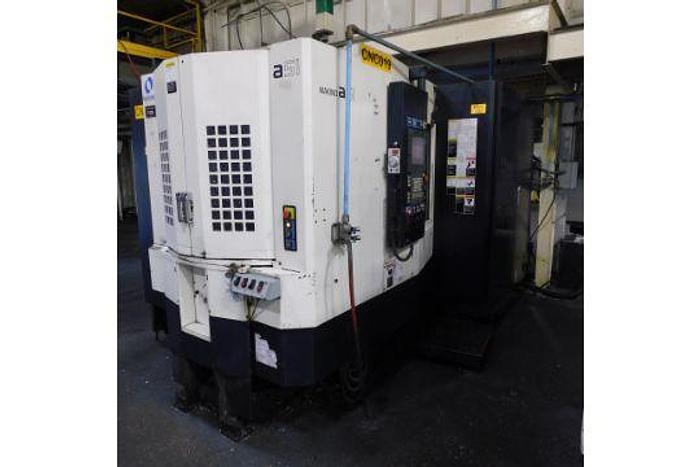

2006 MAKINO a61 4-Axis Horizontal Machining Center Specifications: Pallet Size………… 19.7″ X 19.7″ (2) Pallet Indexing…….. Full 4th / Fully Contour Max Pallet Load…….. 1, 100 Lbs. X Axis Travel………. 28.7″ Y Axis Travel………. 25.6″ Z Axis Travel………. 28.7″ Spndl Nost To Pallet… 2.76″ – 31.5″ Spindle Motor………. 30 Hp Spindle Speed………. 12, 000 Rpm Spindle Taper………. Cat40 Pallet Change Time….. 8 Sec. Rapid Traverse (X, Y, Z). 1, 960 Ipm Max Cutting Feedrate… 1, 960 Ipm Tool Capacity………. 60 Atc Maximum Tool Weight…. 26.4 Lbs. Tool To Tool Time…… .9 Sec. EQUIPPED WITH: Professional 5 Cnc Control Fully Contouring / Full 4th Axis 12,000 Rpm Spindle Thru Spindle Coolant (310 Psi) 60 Atc Chip Conveyor Tool Life Management Renishaw Mp700 Spindle Probe Renishaw Nc4 N0n-Contact Laser Data Server Expanded Work Offsets 48, Expanded Editing 200 Tool Offsets Type B Data Server 600 Macro Common Variables High Speed Skip Function Increased Program Storage 1280m

2006 MAKINO a61 4-Axis Horizontal Machining Center Specifications: Pallet Size………… 19.7″ X 19.7″ (2) Pallet Indexing…….. Full 4th / Fully Contour Max Pallet Load…….. 1, 100 Lbs. X Axis Travel………. 28.7″ Y Axis Travel………. 25.6″ Z Axis Travel………. 28.7″ Spndl Nost To Pallet… 2.76″ – 31.5″ Spindle Motor………. 30 Hp Spindle Speed………. 12, 000 Rpm Spindle Taper………. Cat40 Pallet Change Time….. 8 Sec. Rapid Traverse (X, Y, Z). 1, 960 Ipm Max Cutting Feedrate… 1, 960 Ipm Tool Capacity………. 60 Atc Maximum Tool Weight…. 26.4 Lbs. Tool To Tool Time…… .9 Sec. EQUIPPED WITH: Professional 5 Cnc Control Fully Contouring / Full 4th Axis 12,000 Rpm Spindle Thru Spindle Coolant (310 Psi) 60 Atc Chip Conveyor Tool Life Management Renishaw Mp700 Spindle Probe Renishaw Nc4 N0n-Contact Laser Data Server Expanded Work Offsets 48, Expanded Editing 200 Tool Offsets Type B Data Server 600 Macro Common Variables High Speed Skip Function Increased Program Storage 1280m

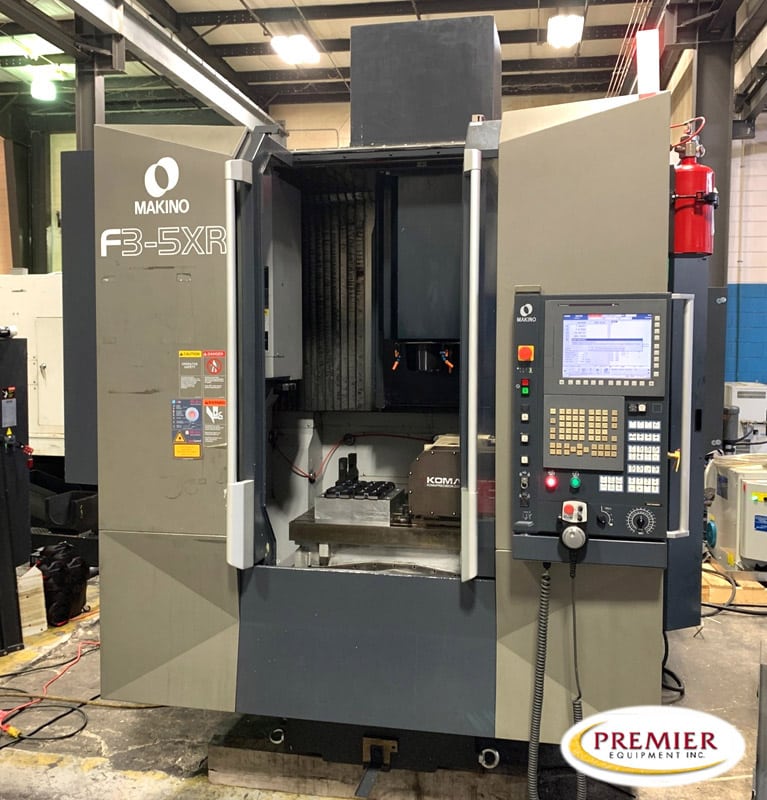

Makino F3-5XR with Koma Tilting-Rotary Table

Makino F3-5XR with Koma Tilting-Rotary Table 5-Axis CNC Vertical Machining Center Specifications (subject to buyer verification): Table Size: 33.46” x 19.68” Table Load Capacity: 1433 lbs Max Work Size on Table: 33.46” x 19.68” x 17.72” Table Top to Spindle Face: 5.9”min./ 23.63” X Axis Travel: 25.59″ Y Axis Travel: 19.68″ Z Axis Travel: 17.72″ Magazine Capacity: 30 ATC Spindle Nose: HSK-A63 Spindle Speed: 20,000 RPM Main Motor: 29.5 HP (15 min) / 24 HP (cont) Equipped With (subject to buyer verification): Makino Professional 5 30 ATC ChipBlaster High Pressure Coolant Chip Conveyor Komo Tilting-Rotary Table

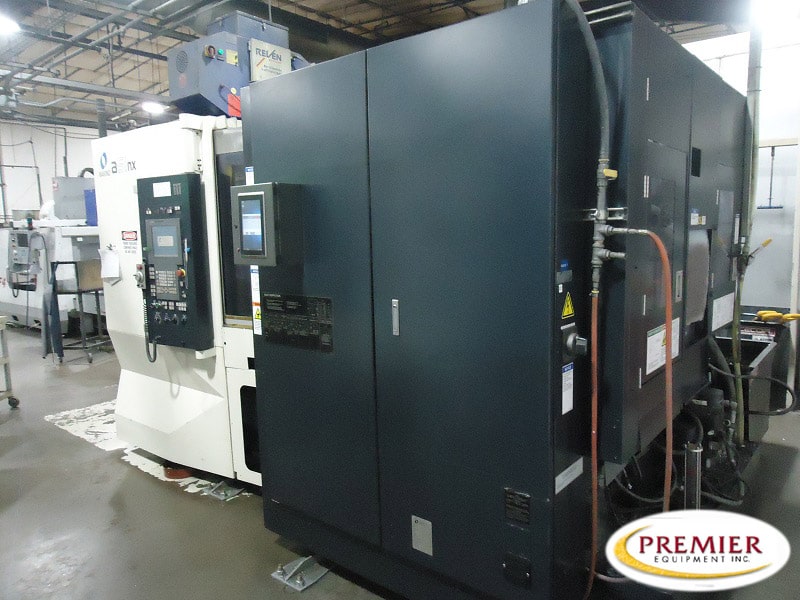

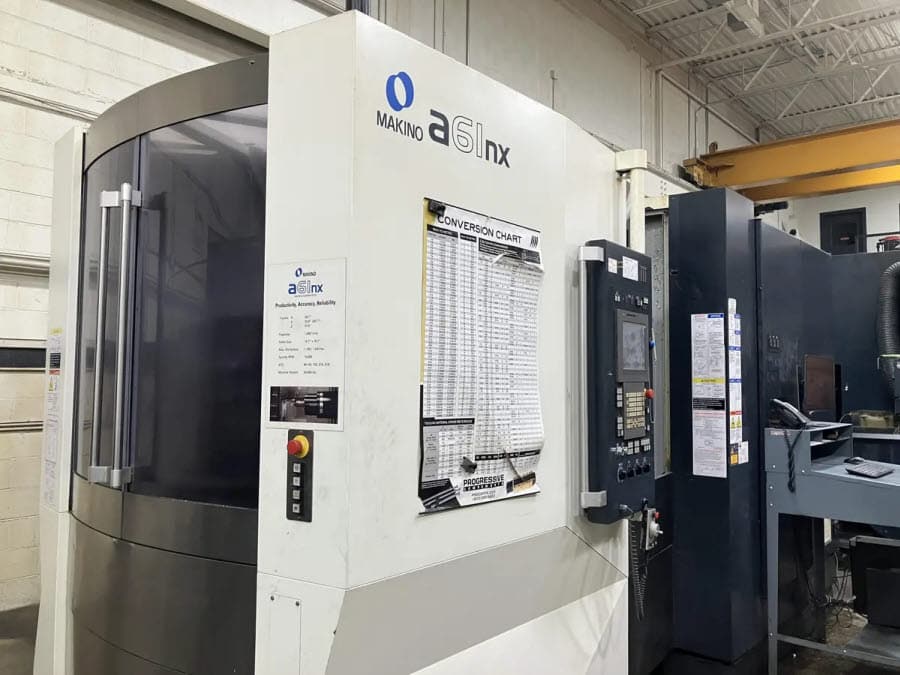

Makino A61NX CNC Horizontal Machining Center

Makino A61NX CNC Horizontal Machining Center Specifications (subject to buyer verification): Pallet: 19.7″ x 19.7″ X Axis Travel: 28.7″ Y Axis Travel: 25.6″ Z Axis Travel: 31.5″ Spindle RPM: 14,000 rpm Rapid Traverse: 2,362ipm Cutting Feedrate: 1,968ipm Maximum Workpiece: 31.5″ x 39.4″ Maximum Payload: 1,100 lbs ATC Capacity: 134 ATC Tool to Tool: 0.9 sec Chip to Chip: 2.5 sec Maximum Tool Length: 20.1″ Maximum Tool Diameter: 6.7″ Maximum Tool Weight: 26.4 lbs Equipped With (subject to buyer verification): Pro 5 Control 14k RPM 302 N-m torque spindle CAT 40 NC Rotary Table TSC Flow Switch 300 PSI Thru Spindle Coolant and Air ?? Lift Up Chip Conveyor 134 ATC – Matrix JV40 Chip Blaster Mist Buster Renishaw OMP400 Spindle Probe 600 Macro Common Variables & High-Speed Skip NC4 laser ATLM BTS Increased memory to max 16,400’ w/ 1,000 registered programs Extra 48 work offsets Memory type C options 200 Tool Offset Pairs All available manuals and tooling

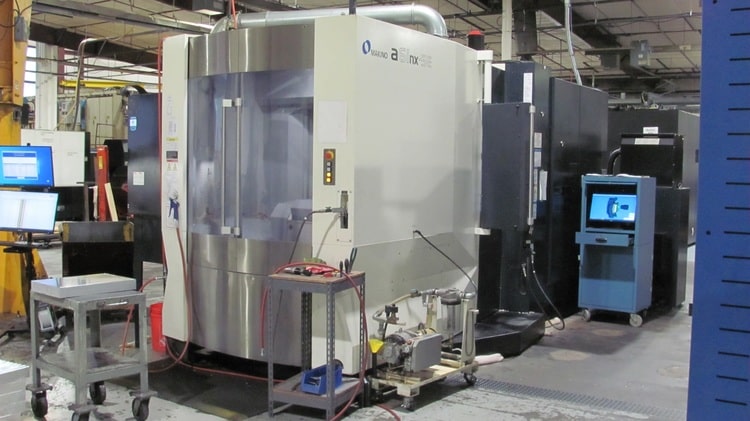

Makino A61NX 5E (5-Axis) CNC Horizontal Machining Center

Makino A61NX 5E (5-Axis) CNC Horizontal Machining Center Specifications (subject to buyer verification): Pallet Size (Metric Type) ………………………………………………….. 400 mm x 400 mm 15.7″ x 15.7″ Note: This pallet is for the a61nx-5E ONLY and is not compatible with other 400mm machines Axis Travel X, Column Longitudinal …………………………………. 730 mm 28.7″ Axis Travel Y, Spindle Vertical ………………………………………… 730 mm 28.7” Axis Travel Z, Table Cross ………………………………………………. 680 mm 26.8″ Axis Travel B, C axis casting rotation …………………………………. 290° (-110° to +180°) Axis Travel C, Pallet rotation …………………………………………….. Unlimited Spindle Nose to B axis center ……………………………………………. 100 – 780mm 3.9″- 30.7″ Floor Space (W x D) w/o Accessories ………………………………… 2,910 x 5,187 mm 114.5” x 204.2” Weight with ATC 60 ……………………………………………………….. 11,000 kg 24,250 lbs Workzone Limitation (see limitation drawing)…………………….. 700 mm dia x SR400 27.5” dia x SR15.7” Optional Core Cooled 24k Aero-Structure Spindle Spindle Nose ……………………………………………………………. HSK63A only Tooling ……………………………………………………………. HSK63A Tool Clamp Force (mechanical) ………………………………………… 18.0 kN (HSK63A) 4,050 lbs. Spindle Speed Range ……………………………………………………….. 50-24,000 RPM Spindle Orientation ……………………………………………… Electric Servo Control Spindle Acceleration Time (to 24,000 rpm) ……………………….. 2.0 sec / 2.0 sec (deceleration) Drive Motor 25% ED Rating (14,000~24,000 rpm) ……………………. 80 kW AC 107 HP AC Continuous ………………………………………………………… 60 kW AC 80 HP AC Equipped With (subject to buyer verification): Professional 5 CNC Control 24k Structural Package HSK Pots for Spindle RMP600 Workpiece Measuring (Renishaw) Renishaw NC4s Laser ATLM

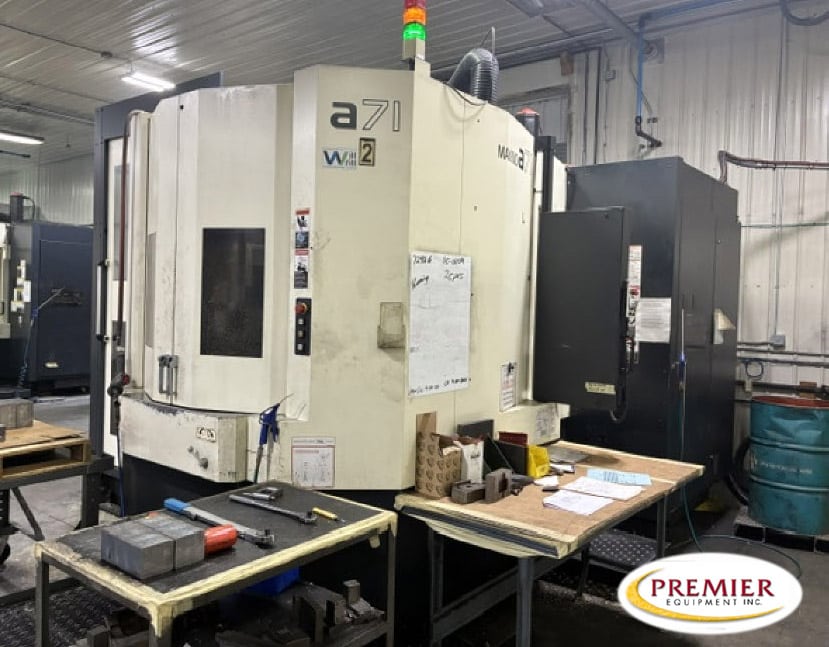

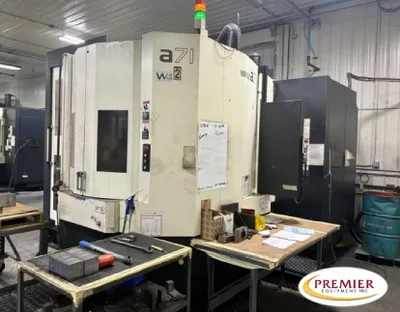

MAKINO A71 Used CNC HMC Machining Centers, Horizontal Specifications: Pallet Size: 19.7″ x 19.7″ X-Axis Travel: 28.7″ Y-Axis Travel: 28.7″ Z-Axis Travel: 31.5″ Max. Payload: 1,540 lbs. Max. Workpiece Size: 31.5″ x 39.4″ Max. Workpiece Weight: 1,543 lbs. Spindle Speed: 10,000 RPM Spindle Taper: 50 Taper Equipped With: Makino Professional 5 CNC Control Pallet Changer 137 ATC

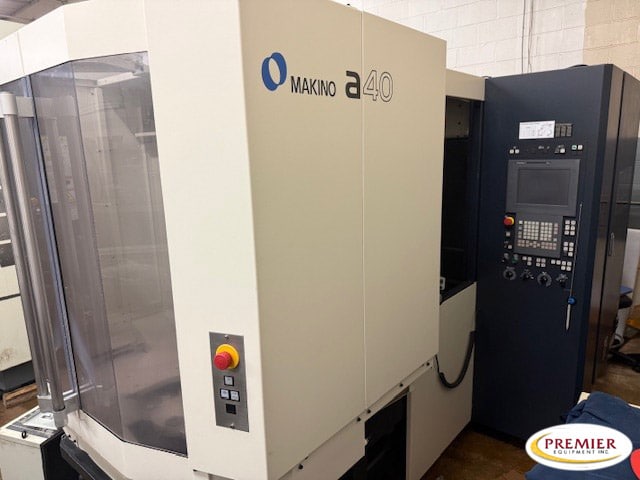

Makino a40 CNC Horizontal Machining Center Specifications (subject to buyer verification): Pallet Size (Metric Type) …………………………………………………..15.7” x 15.7″ Axis Travel X, Column Longitudinal ………………………………….22.1″ Axis Travel Y, Spindle Vertical ……………………………………….. 25.2″ Axis Travel Z, Table Cross ………………………………………………. 25.2″ Spindle Center to Top of Pallet …………………………………………. 3.15″- 28.35″ Spindle Nose to Center of Pallet …………………………………………2.75″- 27.95″ Spindle Speed ……………………………………………………………. 50 to 12,000 RPM Pallet/Table positioning range …………………………………………… 360,000 positions, bi-directional Spindle Taper Interface ……………………………………………………. (HSK-A63 option) Spindle Speed Range ……………………………………………………….. Two Range, 50-12,000 RPM Capacity: ………………………………………………………………… 40 Tools Equipped With (subject to buyer verification): Professional 5 CNC Control 217 PSI/ 1.5 MPa Through Spindle Coolant Chip Conveyor HSK-A63 Spindle Interface

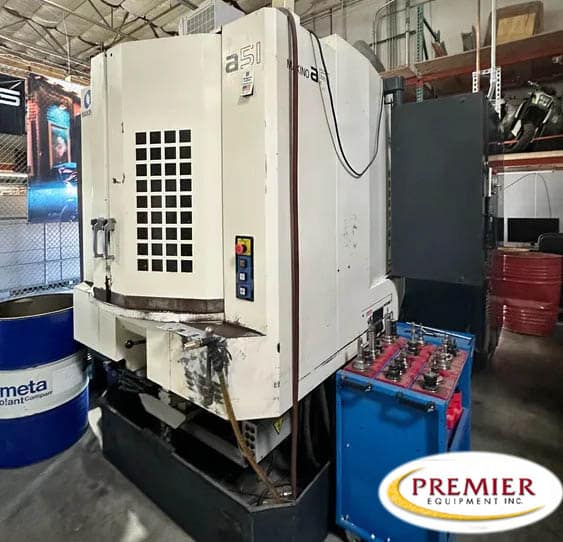

Makino a-51 CNC 4-Axis Horizontal Machining Center

Makino a-51 CNC 4-Axis Horizontal Machining Center Pallet Size 15.7″ x 15.7″ (2 Pallets) Pallet Weight Capacity 880 lbs X- Axis Travel 22″ Y-Axis Travel 22″ Z-Axis Travel 19.7″ 4th-Axis 0.001 Degree Full 4th Rotation Spindle Motor 25 HP Spindle Speed 14,000 RPM Spindle Taper CT#40 ATC Capacity 60 ATC Chip to Chip Time 2.2 Seconds Rapid Traverse Rate 2,362 IPM Approx. Machine Weight 17,200 lbs Description Pro5 CNC Control, Spindle Chiller, Lift Up Chip Conveyor/Coolant Tank, Over The Top Hydraulics,Chip Augers, Helical Interpolation, Spindle Hours Shown on Control 12,636 Hours

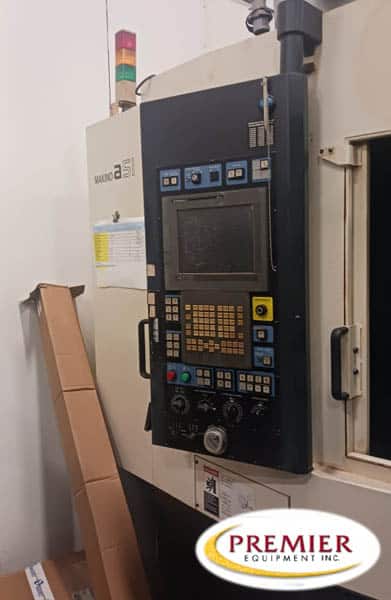

Makino A51 CNC Horizontal Machining Center

Makino A51 CNC Horizontal Machining Center Specifications (subject to buyer verification): Pallet Size 15.7″ X 15.7″ Table Load Capacity 880 LBS. Axis Travel X – Axis 22″ Y – Axis 22″ Z – Axis 23.6″ Table Indexing .001 DEGREE Spindle Center To Table Top 22.44″ Spindle Nose To Table Center 2.760″ Spindle Drive Motor 25 H.P.AC Spindle Taper # 40 Spindle Speeds 14,000 RPM? Rapid Traverse Rate 1574 IPM X,Y,Z Cutting Feedrate 630 IPM Auto Tool Change Capacity 60 ATC Max Tool Dia.(WITH ADJACENT POCKETS EMPTY) 3.5″ Max Tool Weight 26.5 LBS. Machine Weight 18,800 LBS. Equipped With (subject to buyer verification): Professional 5 CNC Control 60 ATC Full 4th Chip Conveyor Tombstones in Pictures are included

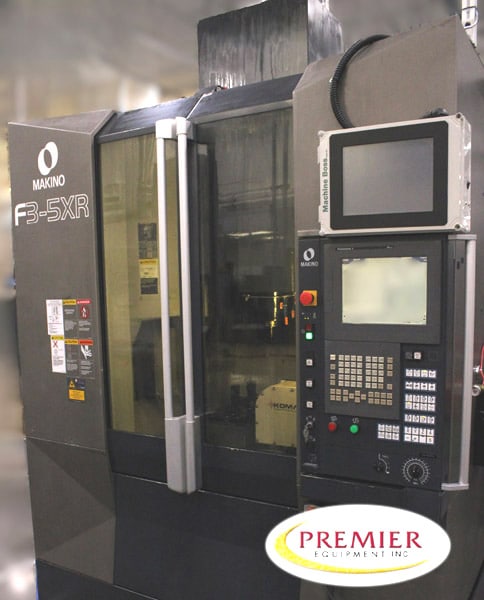

Makino F3-5XR with Koma Tilting-Rotary Table

Makino F3-5XR with Koma Tilting-Rotary Table 5-Axis CNC Vertical Machining Center Specifications (subject to buyer verification): Table Size: 33.46” x 19.68” Table Load Capacity: 1433 lbs Max Work Size on Table: 33.46” x 19.68” x 17.72” Table Top to Spindle Face: 5.9”min./ 23.63” X Axis Travel: 25.59″ Y Axis Travel: 19.68″ Z Axis Travel: 17.72″ Magazine Capacity: 30 ATC Spindle Nose: HSK-A63 Spindle Speed: 20,000 RPM Main Motor: 29.5 HP (15 min) / 24 HP (cont) Equipped With (subject to buyer verification): Makino Professional 5 30 ATC ChipBlaster High Pressure Coolant Chip Conveyor Komo Tilting-Rotary Table

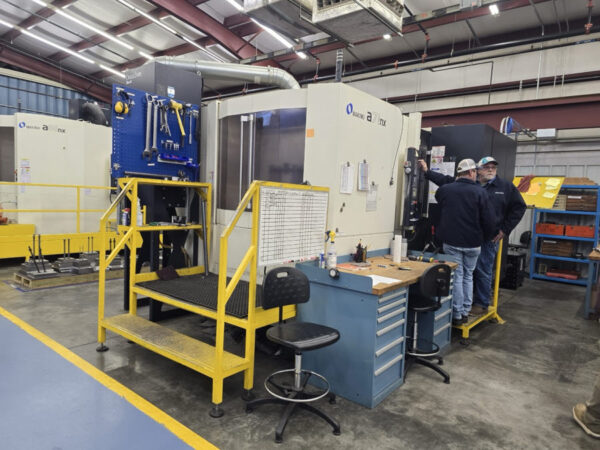

Makino A71NX Horizontal Machining Centers
X 35.4″
Y 35.4″
Z 40.2″
RPM 10,000 RPM
# ATC 60
Pallet-W 24.8″
Pallet-L 24.8″
# Axis 4
Fanuc CNC
Chip Blaster Unit
10k RPM
60 ATC

Makino A51

Makino A51 CNC Horizontal Machining Center Pallet Size: 15.7” x 15.7” X-Axis Travel: 22″ Y-Axis Travel: 22″ Z-Axis Travel: 19.7″ Spindle Speed: 12,000 RPM No. of Tool Stations: 60 ATC Professional CNC Control 60 ATC Full 4th Chiller Chip Conveyor

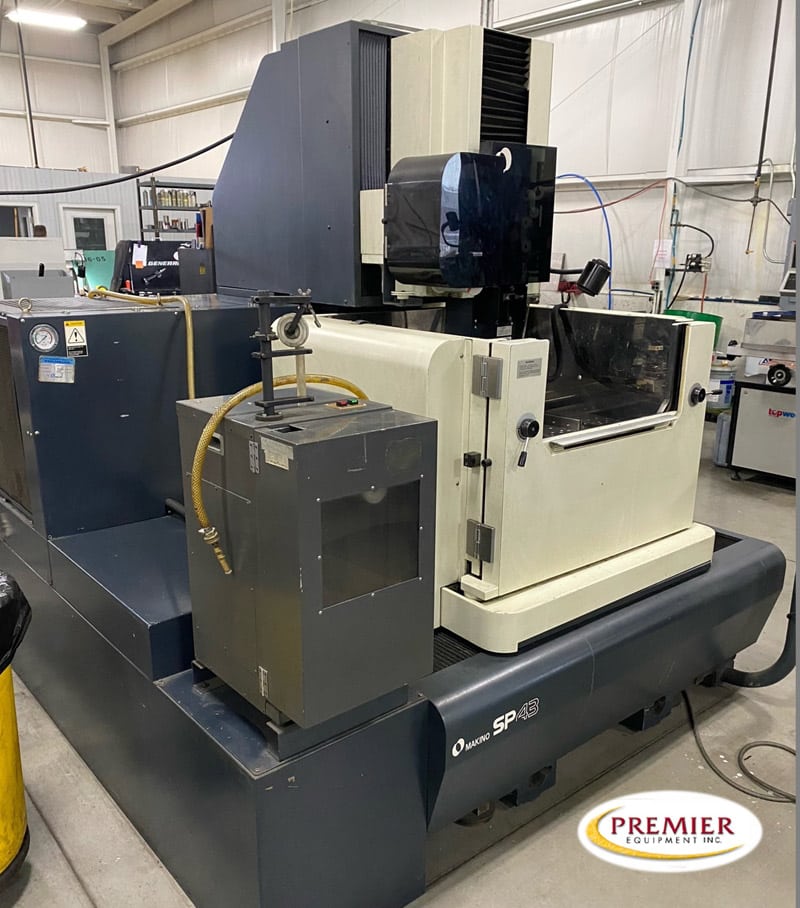

Makino SP43 CNC Wire EDM

Makino SP43 CNC Wire EDM Specifications (subject to buyer verification): Table Size 28.74” x 22.83” Max Load on Table 1,764 lbs Travels X, Y, Z 17.8” x 11.8” x 12.6” Expansion X&Y Axis / U & V Axis +/- .200” / +/- 3.97” Distance Floor to Table Top 38.18” Servo Feed .00030 ~ 1.96 IPM Max Taper Angle +/-15 Degree/3.93 inch thickness With “C” Guides+/-35 Degree/3.93 inch thickness Workpiece Size Inside of Worktank 33.5” x 28.35” x 12.6” Auto Wire Feed Normal Threading Time 15 seconds/30mm thickness, 0.008” wire Dielectric Work Tank Size 35” x 33.5” x 16” Machine Dimensions 86” x 100” x 89” Machine Weight 8487 lbs Equipped With (subject to buyer verification): MGW-S5 Control

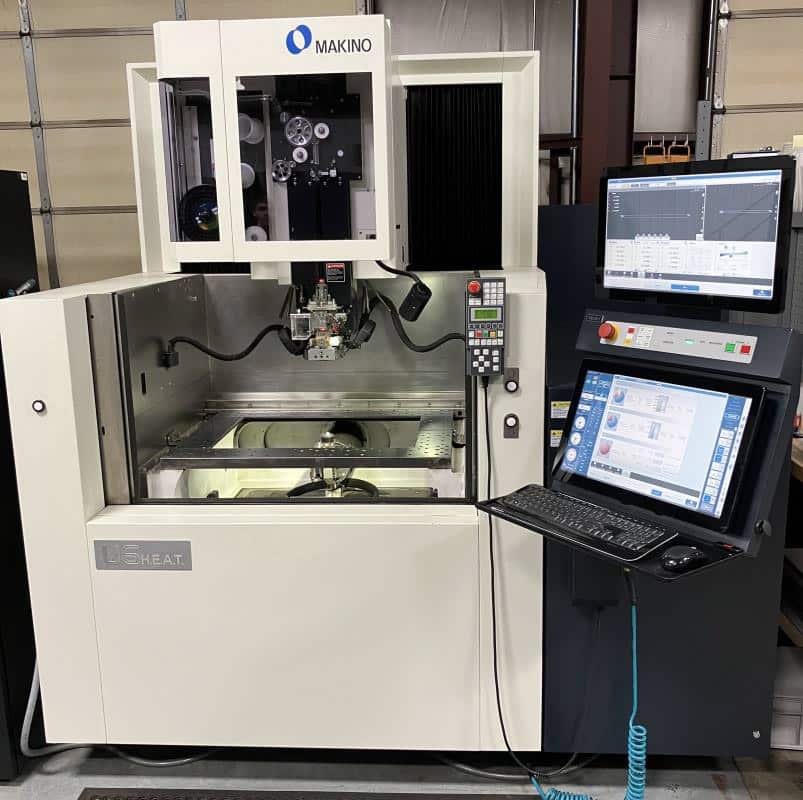

2019 Makino U6 H.E.A.T. Wire Edm The Makino U6 H.E.A.T. Extreme Wire Electrical Discharge Machine (Wire EDM) is the fastest in the industry. Its innovative EDM technology uses a 0.016” (0.400mm) coated wire to achieve the fastest feedrates possible— twice as fast as traditional 0.010″ brass wire. The U6 can also be outfitted with wire sizes down to 0.004” (0.100mm) for the most precise cuts. Built on the popular Makino platform, the U6 stands out from other types of EDM machines by lowering manufacturing costs while boosting productivity. The combination of new EDM machine technology and new high-gauge EDM wire increases cutting Year Built: 2019 Hours 6,000 Wire Size: .004 – .016 Travels: X – 25.60” Y – 17.72” Z – 16.53” U/V – +/- 2.95” Max Work Size: 39.37” x 31.50” x 15.75 Submerged Cutting: Yes Auto Threader: Yes Max Workpiece Weight: 3,330 Lbs ADDITIONAL FEATURES & OPTIONS: Glass Scales Chiller & Transformer Hyper Connect Large Spool Option (35lbs) Low Hours

2019 Makino U6 H.E.A.T. Wire Edm The Makino U6 H.E.A.T. Extreme Wire Electrical Discharge Machine (Wire EDM) is the fastest in the industry. Its innovative EDM technology uses a 0.016” (0.400mm) coated wire to achieve the fastest feedrates possible— twice as fast as traditional 0.010″ brass wire. The U6 can also be outfitted with wire sizes down to 0.004” (0.100mm) for the most precise cuts. Built on the popular Makino platform, the U6 stands out from other types of EDM machines by lowering manufacturing costs while boosting productivity. The combination of new EDM machine technology and new high-gauge EDM wire increases cutting Year Built: 2019 Hours 6,000 Wire Size: .004 – .016 Travels: X – 25.60” Y – 17.72” Z – 16.53” U/V – +/- 2.95” Max Work Size: 39.37” x 31.50” x 15.75 Submerged Cutting: Yes Auto Threader: Yes Max Workpiece Weight: 3,330 Lbs ADDITIONAL FEATURES & OPTIONS: Glass Scales Chiller & Transformer Hyper Connect Large Spool Option (35lbs) Low Hours

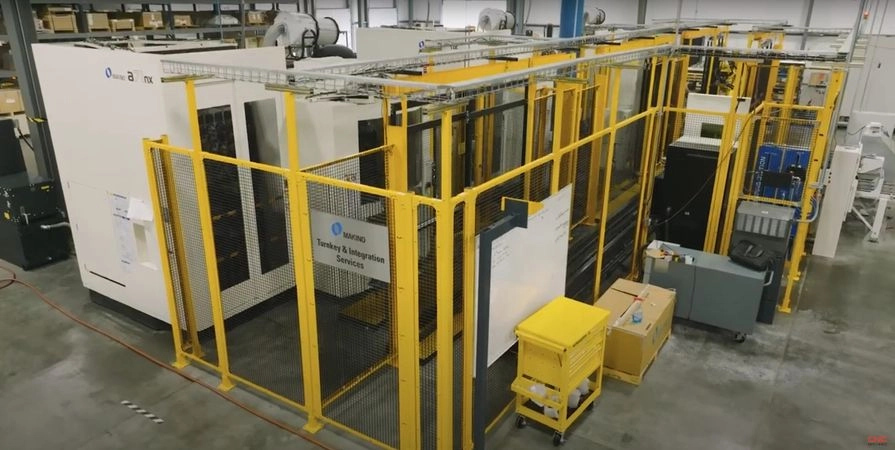

(2018, 2021, 2021) Makino A71NX 3-Machine Automation System CNC Horizontal Machining Center Note: This system can be sold as a whole or Individually X Axis Travel: 31.5″ Y Axis Travel: 29.5″ Z Axis Travel: 32.7″ Spindle Speed: 10,000 RPM Spindle Taper: HSK100 CT Spindle Motor: 50 HP Rapid Rate Y Axis: 1,968 IPM Rapid Rate X Axis: 1,968 IPM Rapid Rate Z Axis: 1,968 IPM Tool Changer: 136 ATC Max Pallet Load: 2200 LBS B-Axis: 360° DD NCRT Maximum Workpiece: 35.4″ x 39.4″ Tool to Tool: 1.7 sec (20kg) Chip to Chip: 3.6 sec (20kg) Maximum Tool Diameter: 11.8″ Maximum Tool Weight: 44.1 LBS (66 LBS with limitations) Sale of (3) Makino A71NX machines and Fanuc R-1000-iA/80F Robot cell on a 11.5 meter track rail system for 3 machines which includes a laser marking station that can be operated manually and with automation. Machines are equipped with (3) Tsudakoma RT251-2-4PRJ 5th Axis Table with Riser Balluff Tool ID reader Fixture Hydraulic Unit NC controller for index table Auto doors Robot interface Fixture Wash Inside Pallet Stand hip Conveyor Probe Coolant Thru Spindle 360,000 Full 4th 5 Axis 10,000 RPM Spindle Spindle Nose Cleaning Air Rigid Tap Positioning Block MST HSK-A100 Spindle Interface Rotary Table (DD motor) Pallet Seat Confirm Function Payload 1000Kg Auto Grease Supply Device 136 / 187 Tool ATC HSK Pot for 136 / 187 Tool ATC Tool Magazine Guard Pallet Changer Pallet Changer Safety Guard Random Pallet Selection APC Door Lock CPHUpper Hydraulic (12+12 port) 500mm Tapped Hole Pallets Eight (8) Nozzle Coolant Shower Coolant Through Spindle Coolant (1.5/2.2MPa) Base Coolant Terrace Washing Coolant Water Soluble Coolant Operator Door Lock Air Dryer Vision B.T.S. I/O Interface for Measurement Automatic Fire Extinguish Int Signal Light 3-Layer PMPG w/ Enable Button PD16-0323-Option C Only Helical Interpolation Linear Interpolation Position User Memory 2GB+1GB PD17-0235 CNC Mem Incr 512kb Fast Ethernet Interface External Setting Spindle Orient Tool Offset 400 Pairs Tool Offset Memory C Workpiece Coordinate System Optional Block Skip: total 9 Rigid Tapping Retract Function Program Quick Restart Function Custom Macro Variables 1100 Macro Variable File Output High Speed Skip Adaptive Control Function GI Control Energy Saving Function MRDF

Makino A51NX 4-AXIS DUAL PALLET HMC

Makino A51NX 4-AXIS DUAL PALLET HMC Pallet size: 15.7” x 15.7” Travels: 22” x 25” x 25.2” in Z Rapid Feed rates: X,Y, Z: 2,362 ipm Max. feed rates: X,Y,Z: 1,968 ipm B1: 47 rpm Max. work piece: 1,100 lbs. Spindle HP: 50 Spindle taper: Cat 40 Spindle ranges: 2 Spindle rpm: 14,000 Spindle torque: 240 Nm ATC capacity: 60 Dimensions: 98” x 135” x 106” x 17,200 lbs. EQUIPPED WITH: Fanuc Professional 5 controls Hosnic Chip conveyor Coolant thru spindle Full 4th axis 1G axis acceleration One piece way covers Step down transformer Broken Tool Detection

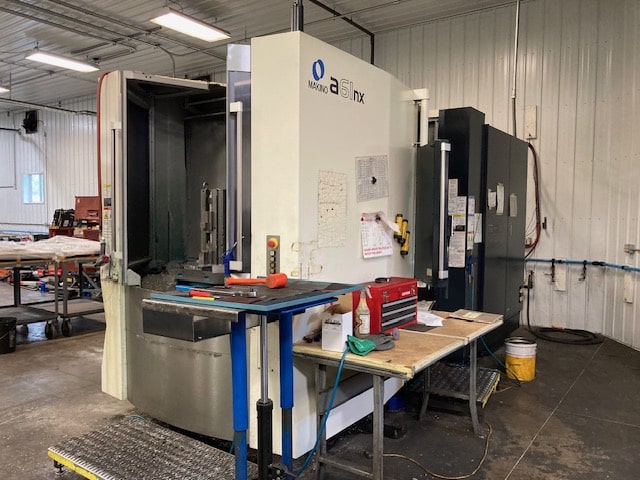

2013 Makino A61NX

2013 Makino A61NX CNC HMC SPECIFICATIONS: X 28.7″ Y 25.6″ Z 31.5″ POWER 40 hp RPM 14,000 RPM # ATC 60 TAPER HSK63 PALLET-W 19.7″ PALLET-L 19.7″ # AXIS 4 CONTROL CNC (PRO 5) DIMENSIONS 225 in x 117 in x 131 in WEIGHT 37400 lbs EQUIPPED WITH: PRO 5 CONTROL BOX WAYS FULL 4TH AXIS THROUGH-SPINDLE COOLANT & AIR THROUGH (300 PSI) CHIP BLASTER UNIT 1000 PSI 14,000 RPM SPINDLE (HSK63) 60 TOOL POSITIONS CHIP CONVEYOR (LEFT DISCHARGE) 600 MACRO CUSTOM VARIABLES HIGH-SPEED SKIP FUNCTION HELICAL INTERPOLATION RIGID TAPPING NOTE: Tombstones in pictures do NOT go with machine

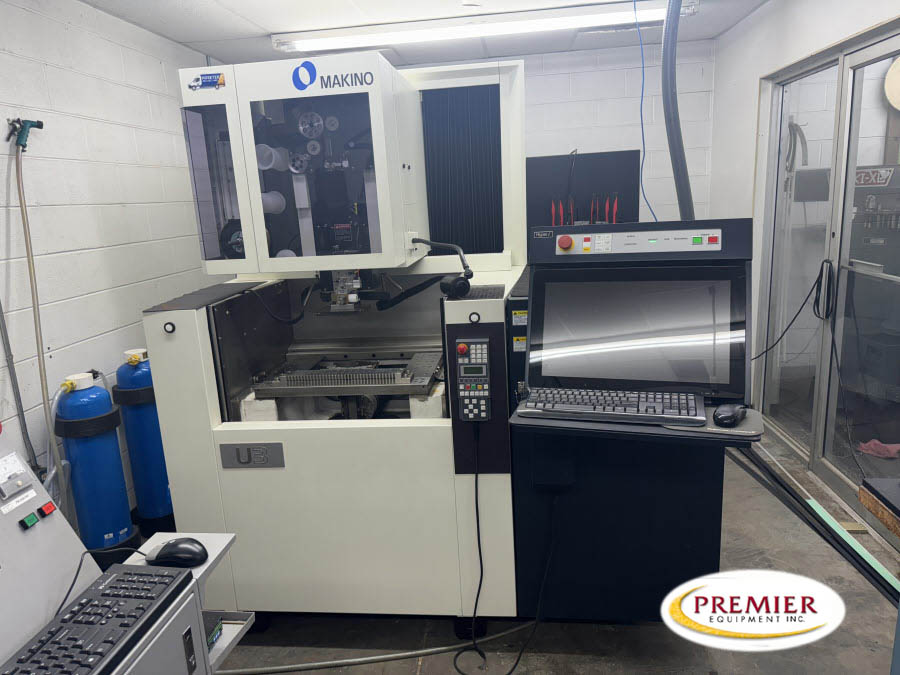

Makino U3 CNC Wire EDM Specifications (subject to buyer verification): The Makino U3 Wire EDM provides an ideal mix of speed, accuracy, and surface finish capability to tackle the most demanding applications. The machine utilizes a stationary work table design that delivers repeatable accuracy regardless of work piece size or weight. Excellent access to the work tank is provided through the pneumatic raise and fall front door, and the operator can access the underside of the work piece or lower machine head even with a large work piece on the table. Table: 4-Sided 630 × 450 mm / 24.8” x 17.71” X: 370 mm / 14.56” Y: 270 mm / 10.6” Z: 220 mm / 8.66” U-Axis: ±50 mm V-Axis: ±50 mm Maximum Workpiece: 770 × 590 × 220 mm / 30.3” x 23.22” x 8.66” Maximum Workpiece Weight: 600 kg / 1322 lbs Tank Size: 790 × 611 mm / 31.1” x 24.06” Available Wire Size: 0.100mm, 0.150mm, 0.200mm, 0.250mm, 0.300mm ø Equipped With (subject to buyer verification): CNC Control

Makino U3 CNC Wire EDM Specifications (subject to buyer verification): The Makino U3 Wire EDM provides an ideal mix of speed, accuracy, and surface finish capability to tackle the most demanding applications. The machine utilizes a stationary work table design that delivers repeatable accuracy regardless of work piece size or weight. Excellent access to the work tank is provided through the pneumatic raise and fall front door, and the operator can access the underside of the work piece or lower machine head even with a large work piece on the table. Table: 4-Sided 630 × 450 mm / 24.8” x 17.71” X: 370 mm / 14.56” Y: 270 mm / 10.6” Z: 220 mm / 8.66” U-Axis: ±50 mm V-Axis: ±50 mm Maximum Workpiece: 770 × 590 × 220 mm / 30.3” x 23.22” x 8.66” Maximum Workpiece Weight: 600 kg / 1322 lbs Tank Size: 790 × 611 mm / 31.1” x 24.06” Available Wire Size: 0.100mm, 0.150mm, 0.200mm, 0.250mm, 0.300mm ø Equipped With (subject to buyer verification): CNC Control

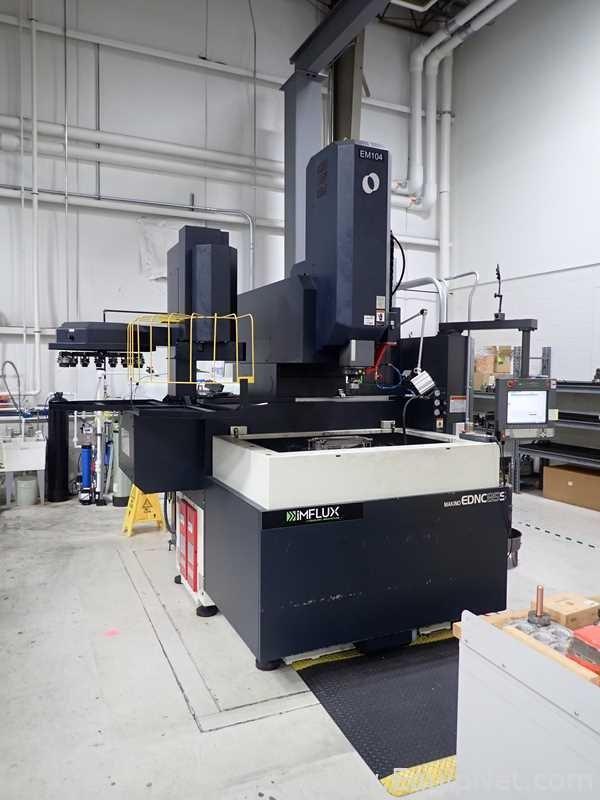

MAKINO EDNC85S SINKER EDM

MAKINO EDNC85S SINKER EDM SPECIFICATIONS: CNC Control: yes Type of CNC Control: Makino CNC Control Internal Work Tank Dimensions W x D x H: 55.1″ x 35.4″ x 19.7″ Table Size: 43.3″ x 27.6″ Max Workpiece Weight: 3,000 KG Dielectric Fluid Capacity: 1200L Dielectric Tank Capacity: 700L X-Axis (Longitudinal Travel): 31.5″ Y-Axis (Cross Travel): 19.7″ Z-Axis (Ram Travel): 15.7″ C-Axis (Head Rotation): 360° Full Contouring Max Electrode Weight: 300 KG Dielectric Fluid Level Adjustment Range (From Top of Table): 17.7″ Approximate Machine Dimensions: 120″ x 144″ Approximate Machine Height: 144″ Approximate Machine Weight: 15,000 LBS EQUIPPED WITH: Makino MGH6 CNC Control, Drop Tank Design, 16 Station Head Changer w/ Several Erowa Heads Included, Walker Magnetic Chuck mounted on Table, (2) Fluid Chillers, Transformer, Extra Filters Included, Brand New Dielectric Fluid Pump.
