Makino A51 – 2009 (Sold)
Makino A51 – 2009 (Sold)
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Makino
Model
A51
Hours of Usage
-
Year of Manufacture
2009
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type

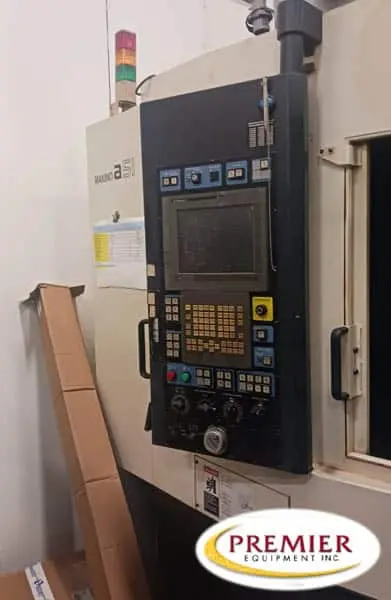

Makino A51 CNC Horizontal Machining Center
Taper
40
Through Spindle Coolant
Yes
Spindle Speed
14,000 RPM
Used Cnc Brands
Makino
No Of Pallets
2
Control
Fanuc
Indexing
.001 Degree
Pallet Size
15.7" x 15.7"
Spindle Nose
To Table Center 2.760″
Description
Makino A51 CNC Horizontal Machining Center Makino A51 CNC Horizontal Machining Center Specifications (subject to buyer verification): Pallet Size 15.7″ X 15.7″ Table Load Capacity 880 LBS. Axis Travel X – Axis 22″ Y – Axis 22″ Z – Axis 23.6″ Table Indexing .001 DEGREE Spindle Center To Table Top 22.44″ Spindle Nose To Table Center 2.760″ Spindle Drive Motor 25 H.P.AC Spindle Taper # 40 Spindle Speeds 14,000 RPM? Rapid Traverse Rate 1574 IPM X,Y,Z Cutting Feedrate 630 IPM Auto Tool Change Capacity 60 ATC Max Tool Dia.(WITH ADJACENT POCKETS EMPTY) 3.5″ Max Tool Weight 26.5 LBS. Machine Weight 18,800 LBS. Equipped With (subject to buyer verification): Professional 5 CNC Control 60 ATC Full 4th Chip Conveyor Tombstones in Pictures are included
