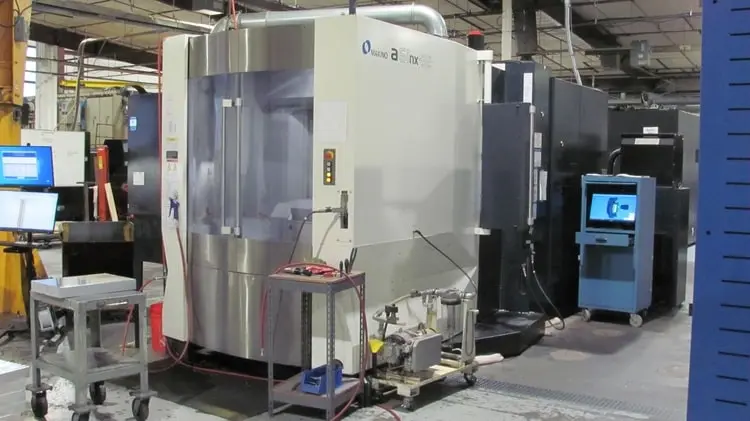

Makino A61NX-5E (5-Axis) – 2016
Makino A61NX-5E (5-Axis) – 2016
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Makino
Model
A61NX-5E
Hours of Usage
-
Year of Manufacture
2016
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
Makino A61NX 5E (5-Axis) CNC Horizontal Machining Center
Through Spindle Coolant
Yes
Spindle Speed
24,000 RPM
Used Cnc Brands
Makino, Makino Milling Machine
Taper
40
Indexing
.001 Degree
Control
Fanuc
Pallet Size
15.7" x 15.7"
No Of Pallets
2
Spindle Nose
to B axis center ……………………………………………. 100 – 780mm 3.9″- 30.7″ Floor Space (W x D) w/o Accessories ………………………………… 2,910 x 5,187 mm 114.5” x 204.2” Weight with ATC 60 ……………………………………………………….. 11,000 kg 24,250 lbs Workzone Limitation (see limitation drawing)…………………….. 700 mm dia x SR400 27.5” dia x SR15.7” Optional Core Cooled 24k Aero-Structure
Description
Makino A61NX 5E (5-Axis) CNC Horizontal Machining Center Makino A61NX 5E (5-Axis) CNC Horizontal Machining Center Specifications (subject to buyer verification): Pallet Size (Metric Type) ………………………………………………….. 400 mm x 400 mm 15.7″ x 15.7″ Note: This pallet is for the a61nx-5E ONLY and is not compatible with other 400mm machines Axis Travel X, Column Longitudinal …………………………………. 730 mm 28.7″ Axis Travel Y, Spindle Vertical ………………………………………… 730 mm 28.7” Axis Travel Z, Table Cross ………………………………………………. 680 mm 26.8″ Axis Travel B, C axis casting rotation …………………………………. 290° (-110° to +180°) Axis Travel C, Pallet rotation …………………………………………….. Unlimited Spindle Nose to B axis center ……………………………………………. 100 – 780mm 3.9″- 30.7″ Floor Space (W x D) w/o Accessories ………………………………… 2,910 x 5,187 mm 114.5” x 204.2” Weight with ATC 60 ……………………………………………………….. 11,000 kg 24,250 lbs Workzone Limitation (see limitation drawing)…………………….. 700 mm dia x SR400 27.5” dia x SR15.7” Optional Core Cooled 24k Aero-Structure Spindle Spindle Nose ……………………………………………………………. HSK63A only Tooling ……………………………………………………………. HSK63A Tool Clamp Force (mechanical) ………………………………………… 18.0 kN (HSK63A) 4,050 lbs. Spindle Speed Range ……………………………………………………….. 50-24,000 RPM Spindle Orientation ……………………………………………… Electric Servo Control Spindle Acceleration Time (to 24,000 rpm) ……………………….. 2.0 sec / 2.0 sec (deceleration) Drive Motor 25% ED Rating (14,000~24,000 rpm) ……………………. 80 kW AC 107 HP AC Continuous ………………………………………………………… 60 kW AC 80 HP AC Equipped With (subject to buyer verification): Professional 5 CNC Control 24k Structural Package HSK Pots for Spindle RMP600 Workpiece Measuring (Renishaw) Renishaw NC4s Laser ATLM
Get in Touch with Seller About This Product
