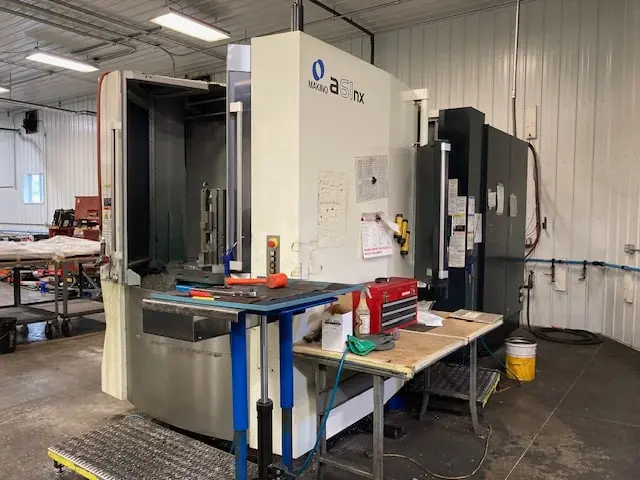

Makino A61NX – 2011 (Sold)
Makino A61NX – 2011 (Sold)
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Makino
Model
A61NX
Hours of Usage
-
Year of Manufacture
2011
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
Makino A61NX CNC Horizontal Machining Center
Spindle Speed
14,000 RPM
Pallet Size
19.7" x 19.7"
Used Cnc Brands
Makino
No Of Pallets
2
Control
Fanuc
Taper
40
Through Spindle Coolant
Yes
Indexing
.001 Degree
Weight
26.4 lbs
Description
Makino A61NX CNC Horizontal Machining Center Makino A61NX CNC Horizontal Machining Center Specifications (subject to buyer verification): Pallet: 19.7″ x 19.7″ X Axis Travel: 28.7″ Y Axis Travel: 25.6″ Z Axis Travel: 31.5″ Spindle RPM: 14,000 rpm Rapid Traverse: 2,362ipm Cutting Feedrate: 1,968ipm Maximum Workpiece: 31.5″ x 39.4″ Maximum Payload: 1,100 lbs ATC Capacity: 134 ATC Tool to Tool: 0.9 sec Chip to Chip: 2.5 sec Maximum Tool Length: 20.1″ Maximum Tool Diameter: 6.7″ Maximum Tool Weight: 26.4 lbs Equipped With (subject to buyer verification): Pro 5 Control 14k RPM 302 N-m torque spindle CAT 40 NC Rotary Table TSC Flow Switch 300 PSI Thru Spindle Coolant and Air ?? Lift Up Chip Conveyor 134 ATC – Matrix JV40 Chip Blaster Mist Buster Renishaw OMP400 Spindle Probe 600 Macro Common Variables & High-Speed Skip NC4 laser ATLM BTS Increased memory to max 16,400’ w/ 1,000 registered programs Extra 48 work offsets Memory type C options 200 Tool Offset Pairs All available manuals and tooling
Get in Touch with Seller About This Product
