Makino A71NX (3-Machine with Robot System)

Back to All Listings

Makino A71NX (3-Machine with Robot System)

Specifications

Spindle Speed

10,000 RPM

Pallet Size

24.8" x 24.8"

Used Cnc Brands

Makino, Makino Milling Machine

No Of Pallets

Control

Fanuc

Taper

Through Spindle Coolant

Yes

Indexing

.001 Degree

5 Axis

Yes

Spindle Nose

Cleaning Air Rigid Tap Positioning Block MST HSK-A100

Description

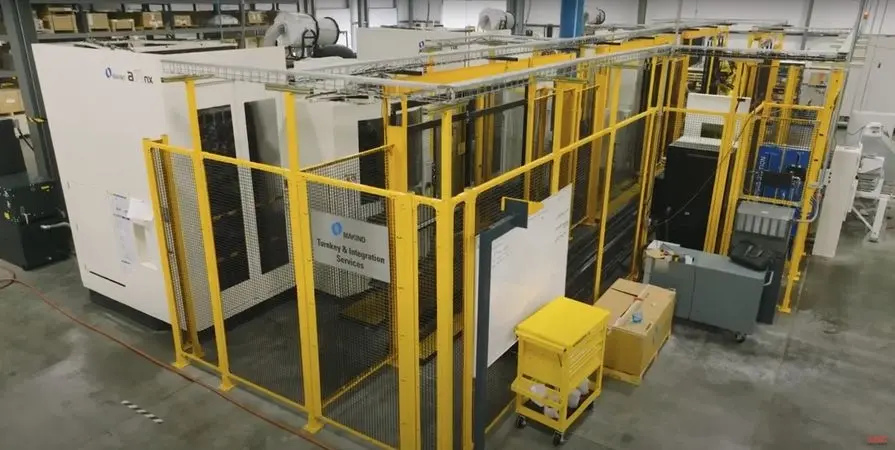

(2018, 2021, 2021) Makino A71NX 3-Machine Automation System CNC Horizontal Machining Center Note: This system can be sold as a whole or Individually X Axis Travel: 31.5″ Y Axis Travel: 29.5″ Z Axis Travel: 32.7″ Spindle Speed: 10,000 RPM Spindle Taper: HSK100 CT Spindle Motor: 50 HP Rapid Rate Y Axis: 1,968 IPM Rapid Rate X Axis: 1,968 IPM Rapid Rate Z Axis: 1,968 IPM Tool Changer: 136 ATC Max Pallet Load: 2200 LBS B-Axis: 360° DD NCRT Maximum Workpiece: 35.4″ x 39.4″ Tool to Tool: 1.7 sec (20kg) Chip to Chip: 3.6 sec (20kg) Maximum Tool Diameter: 11.8″ Maximum Tool Weight: 44.1 LBS (66 LBS with limitations) Sale of (3) Makino A71NX machines and Fanuc R-1000-iA/80F Robot cell on a 11.5 meter track rail system for 3 machines which includes a laser marking station that can be operated manually and with automation. Machines are equipped with (3) Tsudakoma RT251-2-4PRJ 5th Axis Table with Riser Balluff Tool ID reader Fixture Hydraulic Unit NC controller for index table Auto doors Robot interface Fixture Wash Inside Pallet Stand hip Conveyor Probe Coolant Thru Spindle 360,000 Full 4th 5 Axis 10,000 RPM Spindle Spindle Nose Cleaning Air Rigid Tap Positioning Block MST HSK-A100 Spindle Interface Rotary Table (DD motor) Pallet Seat Confirm Function Payload 1000Kg Auto Grease Supply Device 136 / 187 Tool ATC HSK Pot for 136 / 187 Tool ATC Tool Magazine Guard Pallet Changer Pallet Changer Safety Guard Random Pallet Selection APC Door Lock CPHUpper Hydraulic (12+12 port) 500mm Tapped Hole Pallets Eight (8) Nozzle Coolant Shower Coolant Through Spindle Coolant (1.5/2.2MPa) Base Coolant Terrace Washing Coolant Water Soluble Coolant Operator Door Lock Air Dryer Vision B.T.S. I/O Interface for Measurement Automatic Fire Extinguish Int Signal Light 3-Layer PMPG w/ Enable Button PD16-0323-Option C Only Helical Interpolation Linear Interpolation Position User Memory 2GB+1GB PD17-0235 CNC Mem Incr 512kb Fast Ethernet Interface External Setting Spindle Orient Tool Offset 400 Pairs Tool Offset Memory C Workpiece Coordinate System Optional Block Skip: total 9 Rigid Tapping Retract Function Program Quick Restart Function Custom Macro Variables 1100 Macro Variable File Output High Speed Skip Adaptive Control Function GI Control Energy Saving Function MRDF
