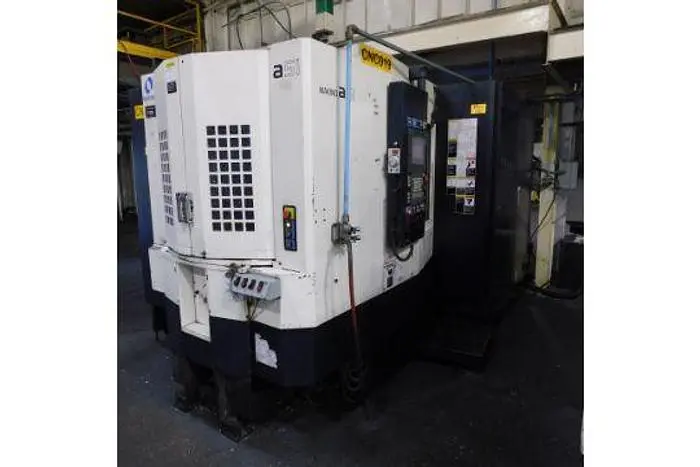

Makino A51 – 2013
Makino A51 – 2013
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Makino
Model
A51
Hours of Usage
12636hr
Year of Manufacture
2013
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
Makino a-51 CNC 4-Axis Horizontal Machining Center
Taper
40
Through Spindle Coolant
Yes
Spindle Speed
14,000 RPM
Used Cnc Brands
Makino, Makino Milling Machine
No Of Pallets
2
Control
Fanuc
Indexing
.001 Degree
Pallet Size
15.7" x 15.7"
Y-Axis Travel
22″ Z-Axis Travel 19.7″ 4th-Axis 0.001 Degree Full 4th Rotation
Description
Makino a-51 CNC 4-Axis Horizontal Machining Center Makino a-51 CNC 4-Axis Horizontal Machining Center Pallet Size 15.7″ x 15.7″ (2 Pallets) Pallet Weight Capacity 880 lbs X- Axis Travel 22″ Y-Axis Travel 22″ Z-Axis Travel 19.7″ 4th-Axis 0.001 Degree Full 4th Rotation Spindle Motor 25 HP Spindle Speed 14,000 RPM Spindle Taper CT#40 ATC Capacity 60 ATC Chip to Chip Time 2.2 Seconds Rapid Traverse Rate 2,362 IPM Approx. Machine Weight 17,200 lbs Description Pro5 CNC Control, Spindle Chiller, Lift Up Chip Conveyor/Coolant Tank, Over The Top Hydraulics,Chip Augers, Helical Interpolation, Spindle Hours Shown on Control 12,636 Hours
