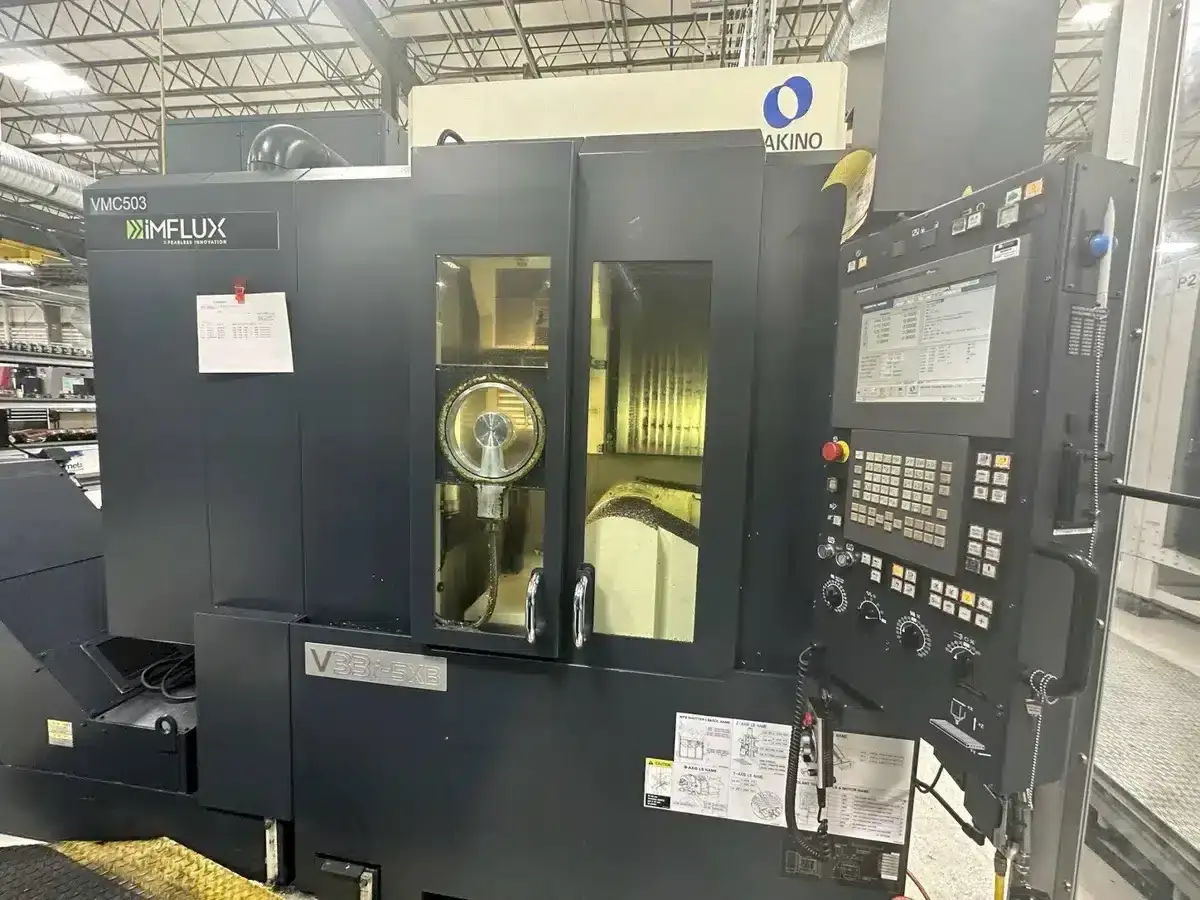

Makino V33I-5XB 5-Axis CNC Vertical Machining Center SPECIFICATIONS: CNC CONTROL Makino Professional 5 CNC # AXIS 5 TABLE DIAMETER (ROUND) 7.87″ MAX TABLE LOAD CAPACITY 66 lb X-AXIS (LONGITUDINAL TRAVEL) 25.59″ Y-AXIS (CROSS TRAVEL) 12.79″ Z-AXIS (VERTICAL TRAVEL) 13.78″ A-AXIS (SPINDLE HEAD TILT)(±25°) 130° C-AXIS TABLE ROTATION POSITIONING 360° FEED RATES (X, Y, & Z AXIS) 787 in/min. RAPID TRAVERSE RATE (X, Y, & Z AXIS) 787 in/min. SPINDLE SPEED RANGE 20,000 RPM AUTOMATIC TOOL CHANGER CAPACITY (ATC) 145 AUTOMATIC TOOL CHANGER STYLE Free Standing TOOL CHANGE TIME 4.8 sec. MAX TOOL LENGTH 9.8″ MAX TOOL DIAMETER 3.15″ MAX TOOL WEIGHT 15.4 lb MACHINE HOURS 6832 ELECTRICS 460/3/60 DIMENSIONS 160″ x 200″ x 160″ WEIGHT 18,000 LBS Max Workpiece Size: 9.8″ø x 5.31″ EQUIPPED WITH: Makino Professional P-5 CNC Control, 7.87″ Full Contouring 5-Axis Trunnion Style Table, 20000 RPM Spindle, 145 Station Free Standing Tool Changer, Spindle Chiller, Mist Collector, Tooling Package, Chip Conveyor and Coolant System. FEATURES: The V33i-5XB features a specially designed tilt-trunnion table with combined B- and C-axes to provide die/mold shops with a full 5-axis simultaneous milling answer for intricate 3-D shapes. The table provides the highest accuracies and repeatability available in the industry with less lost motion and higher stiffness and rigidity than comparative 5-axis machines. TheV33i-5XB provides one-setup access to complex, multiple-sided parts, reducing handling and costs. It also facilitates access to undercut areas, oddly positioned features and complex geometries—all with optimum, shorter tool lengths. This creates the best tool life and surface finish characteristics in the marketplace. The machine can also be used in the more traditional “2+3” mode for blending and matching complicated multi-plane surfaces typical of die/mold production.
