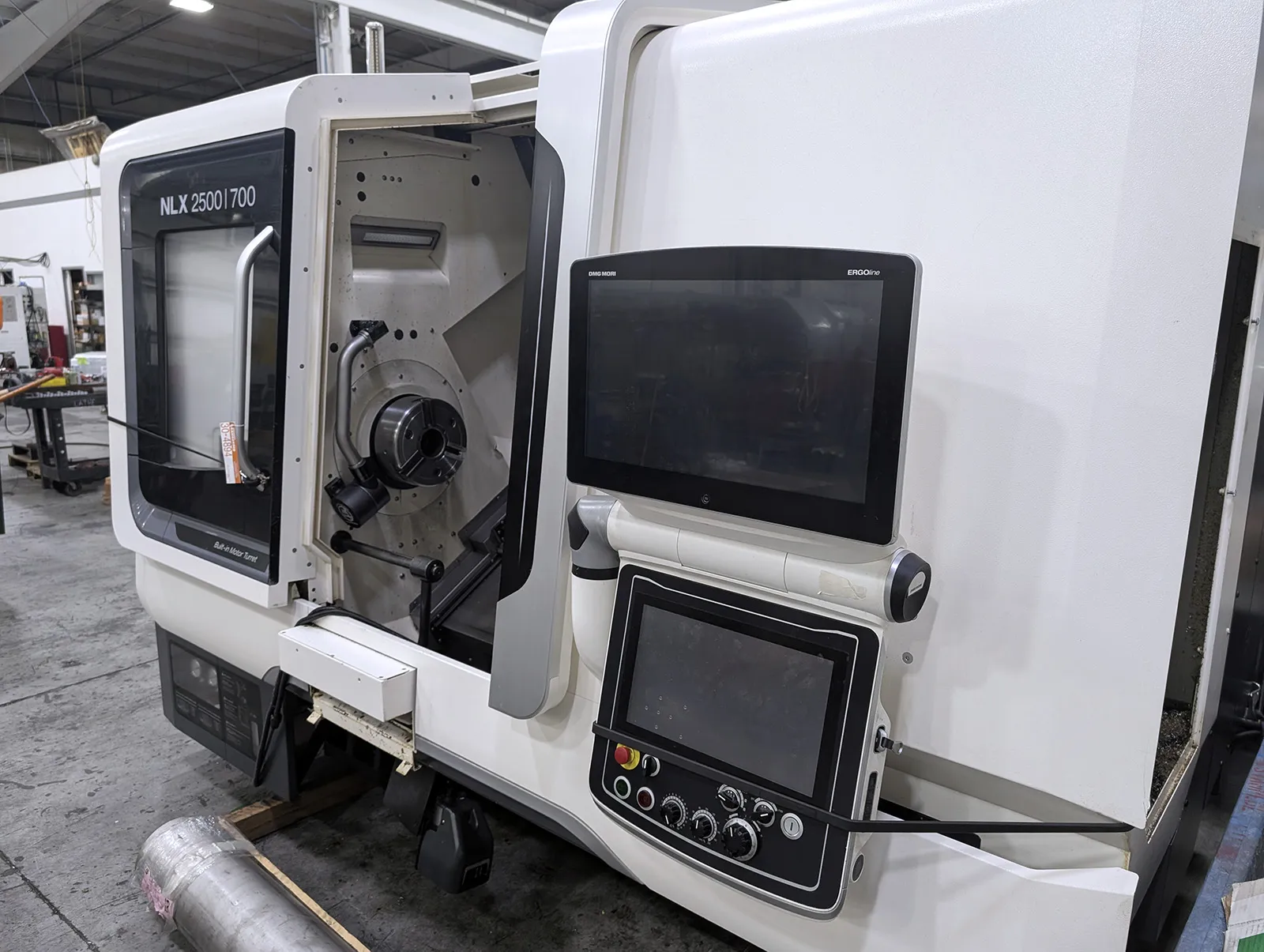

2022 DMG Mori NLX2500SY/700 machine specifications Swing over Bed: 36.2″ Swing over cross slide: 29.2″ Max Turning Diameter: 14.4″ Max Turning Length: 27.7″ Bar Capacity: 3.15″ Main Spindle Speed: 4,000 RPM Main Spindle Nose: A2-8 Main Spindle Bore: 3.58″ Sub Spindle Speed: 5,000 RPM Sub Spindle Nose: A2-6 Sub Spindle Bore: 2.87″ Axes Travel (X / Z / Y): 10.2″ / 31.3″ / ±2.0″ Rapid Traverse Rate: 1,181 IPM (X/Z) Turret: 12-Station BMT Rotary Tool Speed: 10,000 RPM Rotary Tool Torque: 29.5 / 22.1 / 10.3 ft-lbs Chuck Size (Main): 12″ Kitagawa Chuck Size (Sub): 8″ Kitagawa Coolant Tank Capacity: 96.6 Gallons` Machine Dimensions (L x W): 131.8″ x 82.9″ Machine Weight: Approx. 13,500 lbs machine equipped with Mitsubishi M730UM with CELOS (MAPPS V)v Extended Transferable Warranty – Expires in 2027 Sub Spindle (5000 RPM 2.87″ bore) Y-Axis Capability (±2.0″) BMT Turret with Live Tooling Rotary Tool Spindle (10000 RPM) 12″ Hydraulic Chuck (Main) 8″ Kitagawa Hydraulic Chuck (Sub) High-Pressure Coolant System (116 PSI) Hinge-Type Chip Conveyor (Right Discharge). Coolant Gun Built-In Parts Catcher / Workpiece Unloader Workpiece Conveyor System Bar Feeder Interface Tool Presetters MPG Handwheel No Tooling included

2022 DMG Mori NLX2500SY/700 machine specifications Swing over Bed: 36.2″ Swing over cross slide: 29.2″ Max Turning Diameter: 14.4″ Max Turning Length: 27.7″ Bar Capacity: 3.15″ Main Spindle Speed: 4,000 RPM Main Spindle Nose: A2-8 Main Spindle Bore: 3.58″ Sub Spindle Speed: 5,000 RPM Sub Spindle Nose: A2-6 Sub Spindle Bore: 2.87″ Axes Travel (X / Z / Y): 10.2″ / 31.3″ / ±2.0″ Rapid Traverse Rate: 1,181 IPM (X/Z) Turret: 12-Station BMT Rotary Tool Speed: 10,000 RPM Rotary Tool Torque: 29.5 / 22.1 / 10.3 ft-lbs Chuck Size (Main): 12″ Kitagawa Chuck Size (Sub): 8″ Kitagawa Coolant Tank Capacity: 96.6 Gallons` Machine Dimensions (L x W): 131.8″ x 82.9″ Machine Weight: Approx. 13,500 lbs machine equipped with Mitsubishi M730UM with CELOS (MAPPS V)v Extended Transferable Warranty – Expires in 2027 Sub Spindle (5000 RPM 2.87″ bore) Y-Axis Capability (±2.0″) BMT Turret with Live Tooling Rotary Tool Spindle (10000 RPM) 12″ Hydraulic Chuck (Main) 8″ Kitagawa Hydraulic Chuck (Sub) High-Pressure Coolant System (116 PSI) Hinge-Type Chip Conveyor (Right Discharge). Coolant Gun Built-In Parts Catcher / Workpiece Unloader Workpiece Conveyor System Bar Feeder Interface Tool Presetters MPG Handwheel No Tooling included

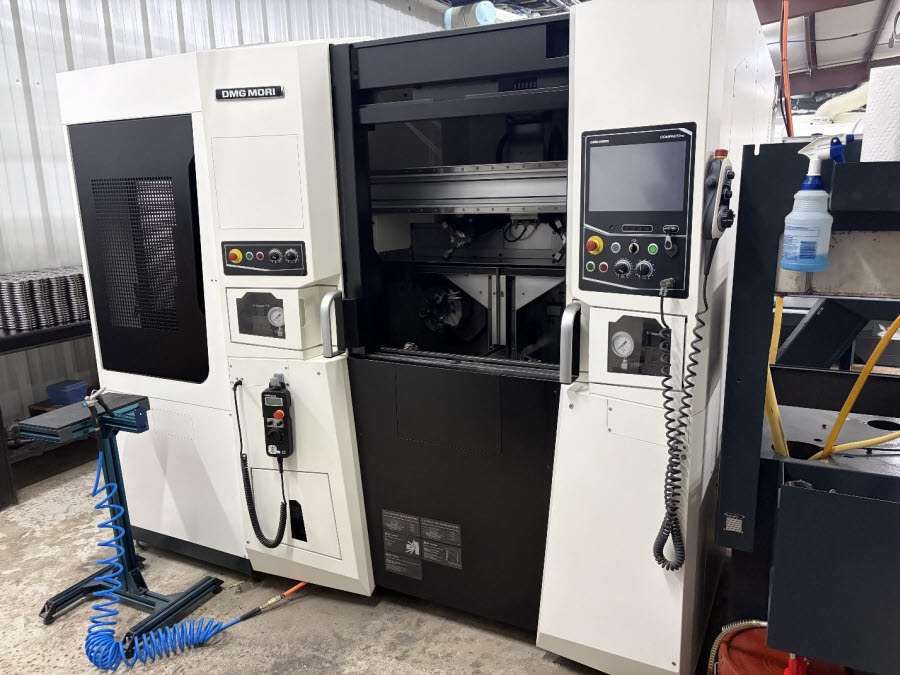

DMG Mori NRX2000 (ORDERED NEW IN 2020) SPECIFICATIONS: MAX. WORKPIECE DIAMETER……….7.1″ MAX. WORKPIECE LENGTH…………3.9″ MAX. X-AXIS TRAVEL……………3.9″ MAX. Z-AXIS TRAVEL……………8.7″ DISTANCE BETWEEN SPINDLES……..26.37″ MAX. SPINDLE SPEED MAX………..6,000 RPM RAPID TRAVERSE ( X / Y / Z )…..1181 IPM FEED SPEEDS MAX………………1181 IPM POWER CAPACITY……………….10 HP SPINDLE NOSE…………………A2-5 C-AXIS………………………0.001° NUMBER OF TOOLS………………(2) 8-STATION TURRETS WEIGHT………………………12,500 LBS EQUIPPED WITH: CELOS M730UM CNC Control (Mitsubishi) Interface for EtherNet/IP Dual 6,000 RPM High Output Spindles 8″ Solid Kitagawa Chucks Dual 8-Station Turrets Gantry Loader Left Side 14-Station Workpiece Stocker GX03-R Gantry (Left Side Discharge) High Pressure Coolant Air Blow for Chuck Manual in Machine Tool Presetter both Spindles Signal Lamp 4 Colors (Red, Yellow, Green, Blue) Earth leakage breaker 10 external M-codes Right Discharge Chip Conveyor

DMG Mori NRX2000 (ORDERED NEW IN 2020) SPECIFICATIONS: MAX. WORKPIECE DIAMETER……….7.1″ MAX. WORKPIECE LENGTH…………3.9″ MAX. X-AXIS TRAVEL……………3.9″ MAX. Z-AXIS TRAVEL……………8.7″ DISTANCE BETWEEN SPINDLES……..26.37″ MAX. SPINDLE SPEED MAX………..6,000 RPM RAPID TRAVERSE ( X / Y / Z )…..1181 IPM FEED SPEEDS MAX………………1181 IPM POWER CAPACITY……………….10 HP SPINDLE NOSE…………………A2-5 C-AXIS………………………0.001° NUMBER OF TOOLS………………(2) 8-STATION TURRETS WEIGHT………………………12,500 LBS EQUIPPED WITH: CELOS M730UM CNC Control (Mitsubishi) Interface for EtherNet/IP Dual 6,000 RPM High Output Spindles 8″ Solid Kitagawa Chucks Dual 8-Station Turrets Gantry Loader Left Side 14-Station Workpiece Stocker GX03-R Gantry (Left Side Discharge) High Pressure Coolant Air Blow for Chuck Manual in Machine Tool Presetter both Spindles Signal Lamp 4 Colors (Red, Yellow, Green, Blue) Earth leakage breaker 10 external M-codes Right Discharge Chip Conveyor

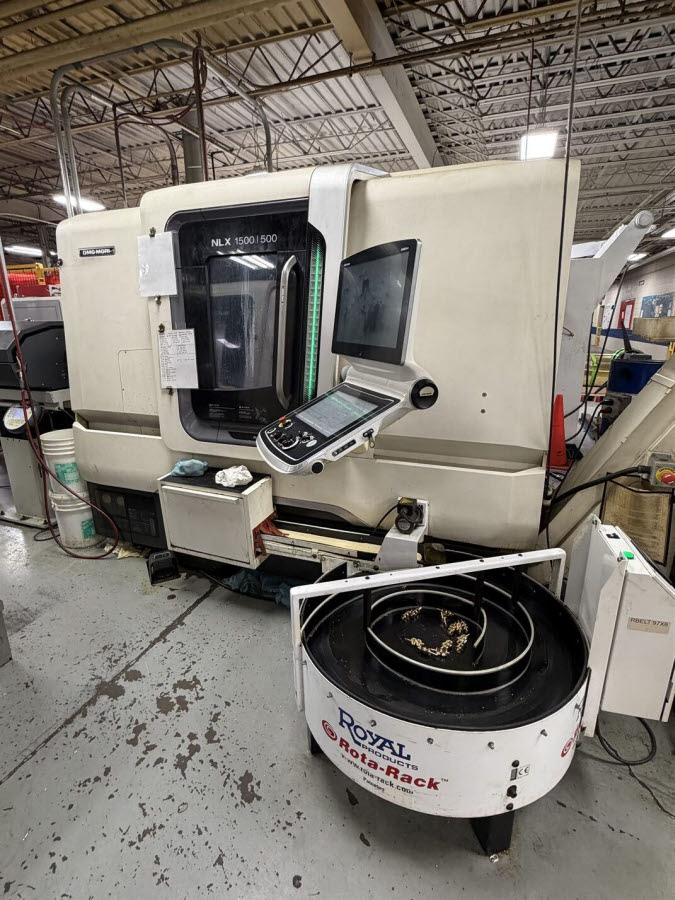

2015 DMG MORI NLX1500SY/500 MULTI AXIS CNC LATHE SPECIFICATIONS: # AXIS 5 SWING 29.7″ MACHINING LENGTH 20.2″ CHUCK SIZE 6″ BAR CAPACITY 2″ POWER 20 hp MAX RPM 6,000 RPM CONTROL CNC DIMENSIONS 140.2″ X 82″ X 84.4″ WEIGHT 11,880 LBS Max. X-axis travel: 10.2 in. Max. Y-axis travel: 3.9 in. Max. Z-axis travel: 23.2 in. Workpiece Max. workpiece diameter: 15.2 in. Max. workpiece length: 20.3 in. Max. bar diameter: 2 in. EQUIPPED WITH: FMB 12ft Magazine Barloader LNS Chip Conveyor High Pressure Unit Mist Collector Misc Tooling

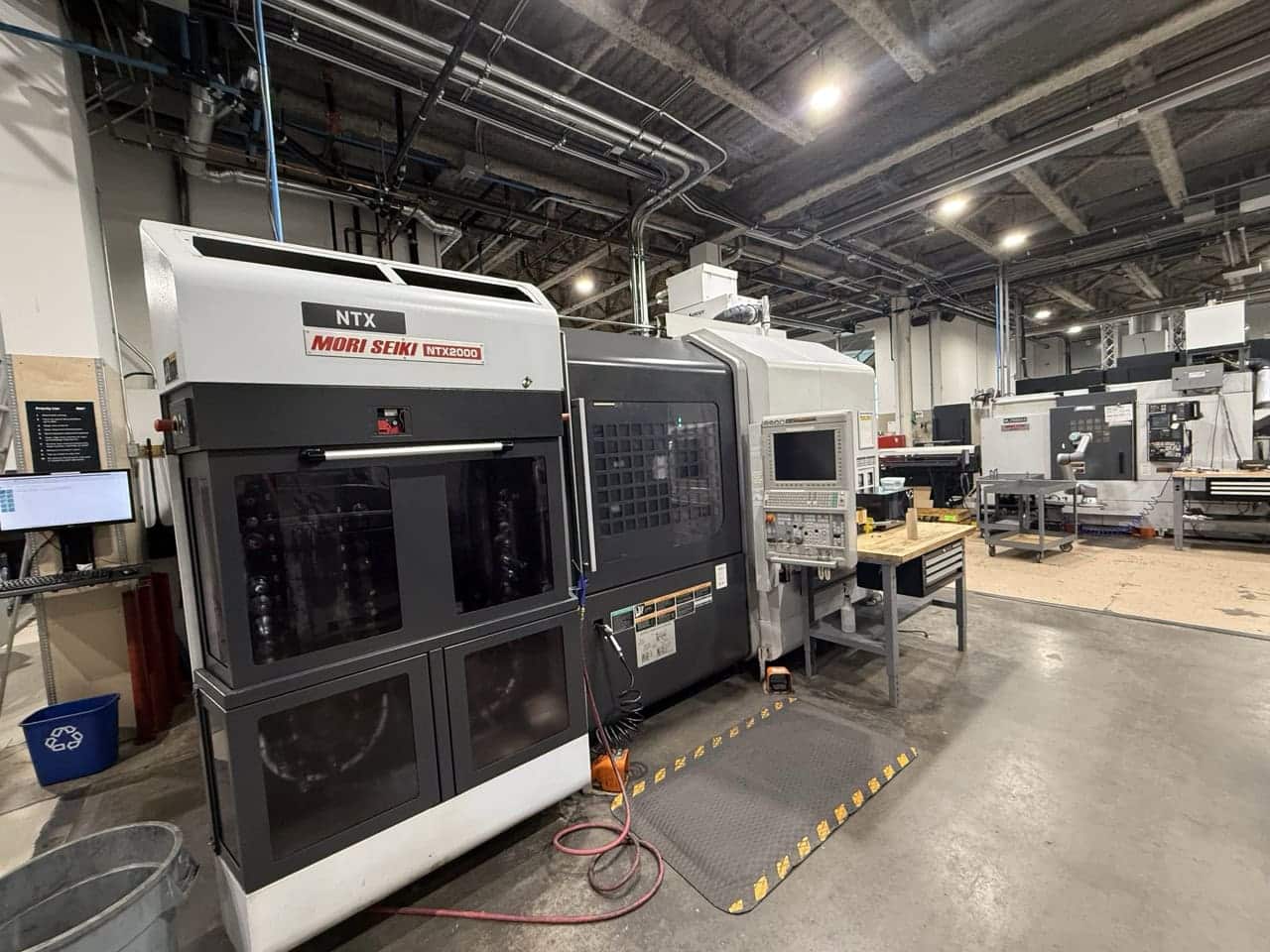

Mori Seiki NTX2000/15000SZ

Mori Seiki NTX2000/15000SZ Tool Magazine: Number of tools: 76 Tool holder: Capto C6 Maximum tool length: 15.7” Maximum tool diameter: 5.1” Maximum tool weight: 17.6 lbs Axes Travel: X-axis: 26.6” Y-axis: ±5.9” Z-axis: 61.5” B-axis: ±120º Rapid Traverse Rate: X-axis: 1,575”/min Y-axis: 1,575”min Z-axis: 1,575”min Spindle Speed: Main spindle: 5,000 rpm (22/18.5 kw) Spindle Bore: 2.9” Chuck Size: 10″ Sub Spindle- 5,000 rpm (22/18.5 kw) Sub Spindle Chuck Size: 10″ Machine Dimensions: Width: 157.5” Depth: 98.4” Height: 106.3” Weight: Approximately 33,000 lbs Equipped with: 12,000 RPM B-Axis Milling Head Lower Turret (10 Station) High Pressure Coolant Thru Spindle coolant Automatic Door DDM (Direct Drive Motor) ORC (Octagonal Ram Construction) BMT (Built-in Motor Turret) MAPPS IV + ESPRIT Control System Tool Spindle Three-Point Support Structure Thermal Displacement Measures Coolant Gun Bar Feed Interface Simultaneous 5-axis Control Tool Center Point Control Workpiece Setting Error Compensation ATA Flash MEmory Card

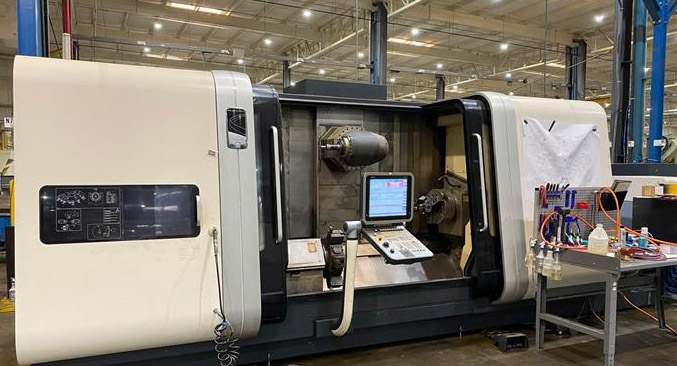

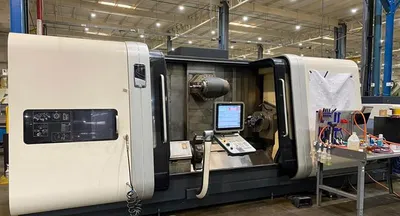

DMG Mori Seiki CTX Gamma 2000 TC CNC Mill Turn CAPACITY: MAXIMUM WORKPIECE DIAMETER 27.6″ MAXIMUM WORKPIECE LENGTH 78.74″ MAXIMUM BAR CAPACITY 4.1″ X1 TRAVEL 25.59″ Y1 TRAVEL +/-7.87″ Z1 TRAVEL 80.70″ Z2 TRAVEL 75.19″ Z3 TRAVEL 75.19″ B-AXIS +/- 0.001 DEGREES MAIN SPINDLE: CHUCK SIZE 20″ MAXIMUM SPEED 2,500 RPM MOTOR OUTPUT (30 MINUTE RATING) 70 HP SECOND SPINDLE: CHUCK SIZE 13″ MAXIMUM SPEED 4,000 RPM MOTOR OUTPUT (30 MINUTE RATING) 61 HP MILLING SPINDLE: B-AXIS TRAVEL 240 DEGREES TOOL MAGAZINE 36 ATC TOOLING HSK63 MAXIMUM SPEED 8,000 RPM MOTOR OUTPUT 43 HP APPROXIMATE DIMENSIONS 299″ X 166″ X 100″ APPROXIMATE WEIGHT 52,910 EQUIPPED WITH: SIEMENS 840D CNC CONTROL MAIN & COUNTER SPINDLES 15″ CHUCK ON MAIN SPINDLE 18″ CHUCK ON COUNTER SPINDLE LOWER TURRET HIGH PRESSURE COOLANT SYSTEM FACTORY COOLANT CHILLER DUAL CTS 300 PSI & 1000 PSI PUMPS BALANCED PRESSURE CLAMPING FOR MAIN AND SUB-SPINDLES FLUSHING OF CHUCKS, STEADY REST, WAY COVERS CHILLER SYSTEM, COOLING OF THE MILLING/TURNING SPINDLE AND COUNTER SPINDLES SUB SPINDLE AS TAILSTOCK OPTION WITH PROGRAMMABLE MOVEMENT AND FORCE 36 STATION AUTOMATIC TOOL CHANGER AUTOMATIC CABIN DOORS CHIP CONVEYOR TOOLING

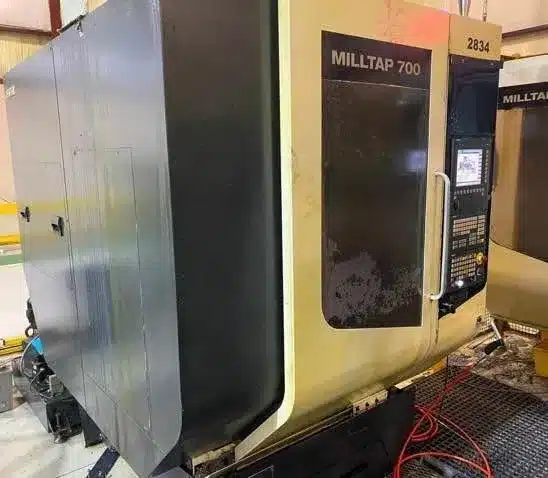

DMG MORI MILLTAP 700 (2014) SPECIFICATIONS: X 27.6″ Y 16.5″ Z 15″ POWER 15 hp RPM 24,000 RPM # ATC 25 TAPER 30 CONTROL CNC DIMENSIONS 65″ x 112″ x 113H For Shipping ( 96″ Tall ) X-Axis Travel 27.6″ Max Table Load 882 Lbs Spindle Motor 15 Hp Spindle Speed 24,000 Rpm Spindle Taper Bt-30 Table Size 33.1″ X 16.5″ Rapid Traverse Rate (X/Y/Z) 2,362 Ipm Z-Axis Travel 15″ Y-Axis Travel 16.5″ Tool Changer 25 Tool Atc Current Electrical Arrangement 230/400/3/60 16kVA 23 A Jn Max, 35 A EQUIPPED WITH: Siemens 840S CNC, 10.4″ Tft Screen Digital Parts Counter & Timer Programguide Via Sinumerik Cycles & G-Code Manual Pulse Generator – Remote Jog Handwheel Coolant Filtration Manuals

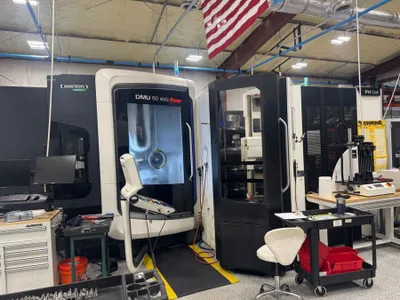

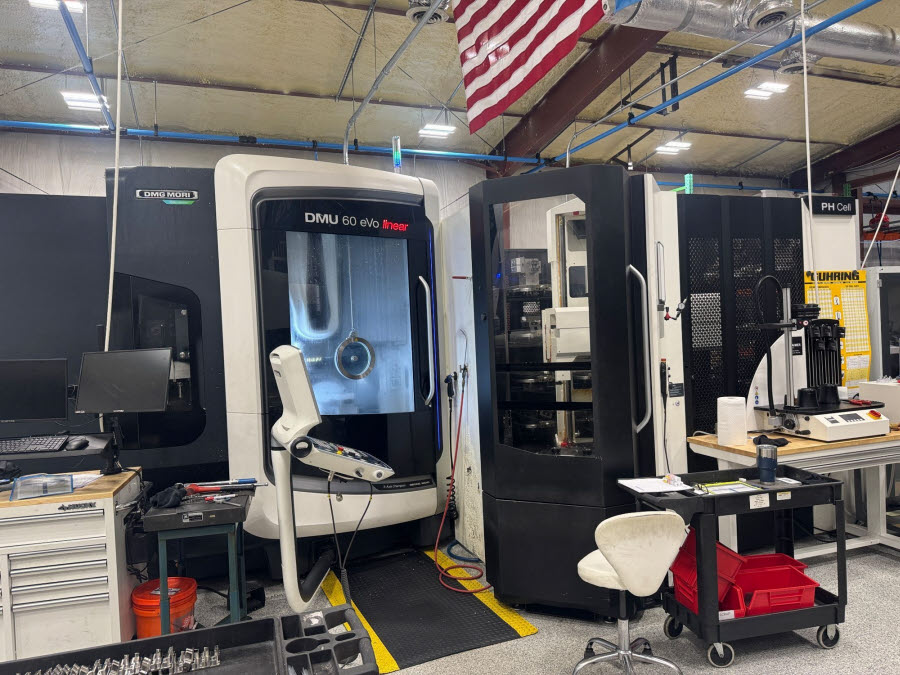

DMG MORI DMU60 EVO FD 24-Pallet

DMG MORI DMU60 EVO FD 24-Pallet 5-Axis CNC Vertical Machining Center DESCRIPTION: The DMU60 eVo Linear is a powerhouse of both speed and accuracy in 5- axis milling, configured this cell with DMG’s FD function, a 1,200rpm Vertical Turning C-Axis for true mill/turn capability SPECIFICATIONS: 24-Pallet Lights Out Automation Cell PH300 Travels: 23.6/19.6/19.6 NC Rotary 600mm x 500mm Table Load Capacity 881 lbs MILL TURN OPTION 1200 RPM CELOS Siemans 840d sl Power Skivving for Gear Manufacturing SK001 20,000 RPM spindle HSK 63A 47hp/33 1,160 PSI High Pressure Thru Spindle Coolant 120 pocket tool magazine 3d quick set Internal coolant supply 80bar coolant tempering for internal 980I Schunk zero point clamping unit laser tool Measuring BLUM NT Infared measuring probe pp60 Optical Dynamic package for evo linear Sensonr package i4.0 Digital manufacturing package Service camera paper filter 40bar double cartridge 50um Combi Tool Measuring , swiveling All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.. Available for Additional Price: Six (6) Schunk Tombstones, each with eight (8) Schunk vises Fourteen (14) Schunk Pyramids, each with three (3) Schunk vises Four (4) SMW AutoBlok Turning Chucks

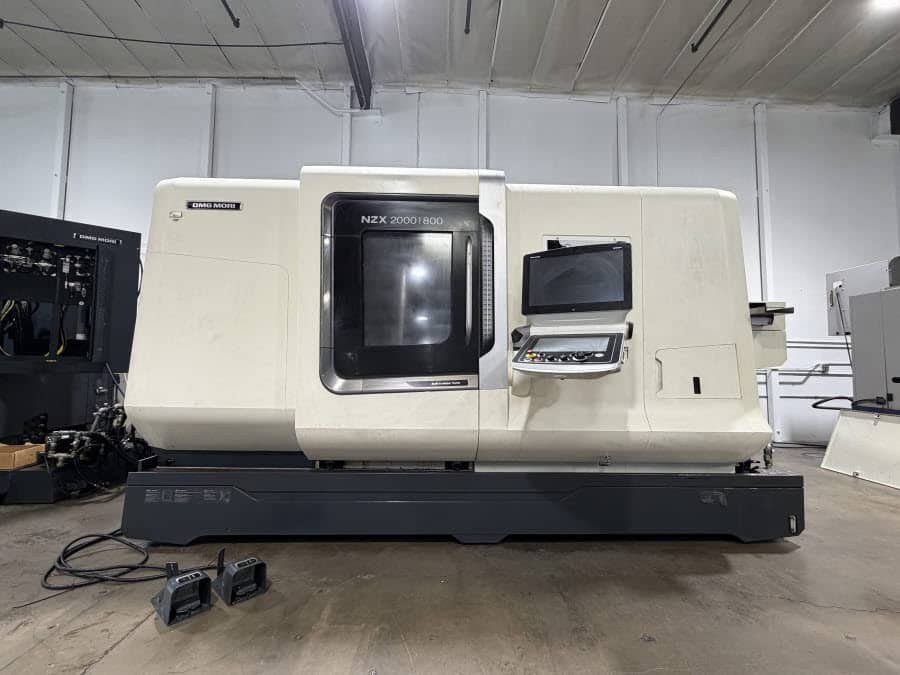

DMG MORI NZX2000SY/800 Multi-Axis Turning Center Specifications: Swing Over Bed: 31.5” Max Turning Diameter : 12.5” Max Workpiece Delivery Dia : 11.8” Max Bar Work Capacity : 2.5” Travel X1/X2: 8.2” Travel Y1 : 4.3” Travel Z1 /Z2 : 31.8” Spindle 1 / 2 Speed : 5,000 / 5,000 RPM Spindle Nose 1 / 2 : A2-6 / A2-6 Max Rotary Tool Speed : 6,000 RPM Through Spindle Hole 1 / 2 : 2.8”/2.8” Turret Stations 1 / 2 : 16 / 16 All Live Rapid Traverse X / Y / Z : 1181.1” / 787.4” / 1,968.5” IPM Chuck Size Main / Sub : Collet Chuck / 6” 3 Jaw Hydraulic Chuck EQUIPPED WITH: Fanuc 31iB w/ CELOS ERGOline Control Coolant Tank Chip Conveyor Rebel V-65 Barfeeder Parts Unloader

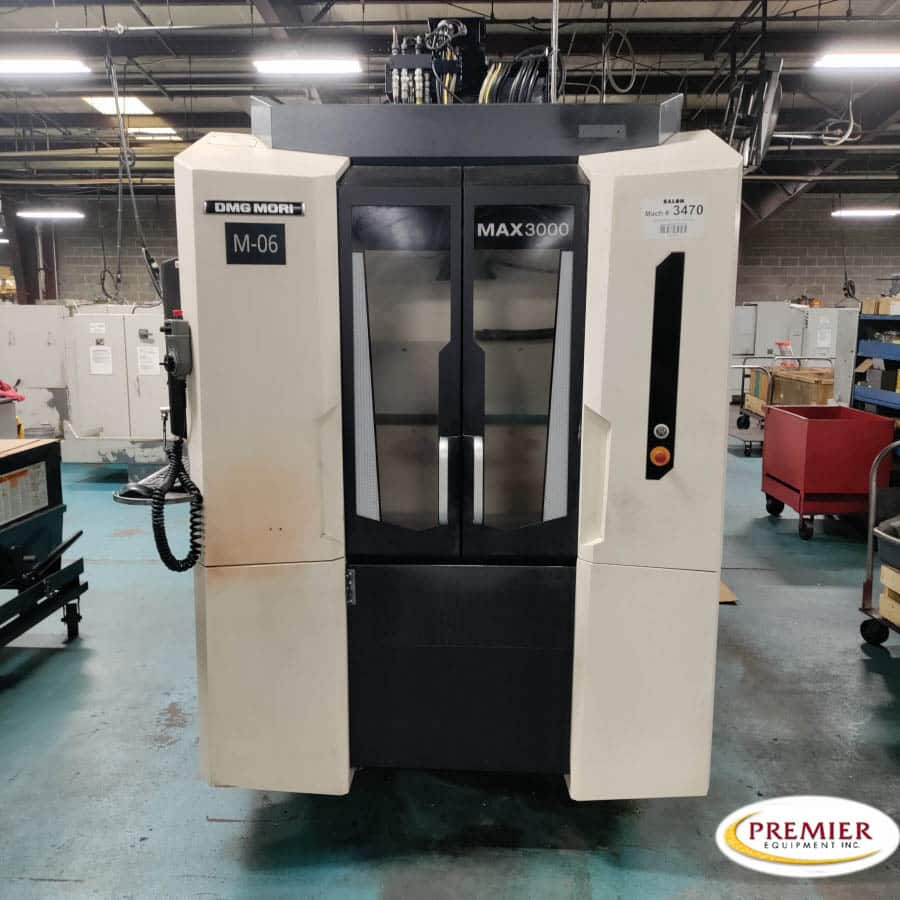

DMG Mori MAX 3000 (2-Pallet) CNC Vertical Machining Center

DMG Mori MAX 3000 (2-Pallet) CNC Vertical Machining Center Specifications (subject to buyer verification): Table Size23.6” x 11.8” X Axis Travel15.7” Y Axis Travel10.6″ Z Axis Travel11.02″ Magazine Capacity27 ATC Spindle NoseBT30 Spindle Speed15,000 RPM Equipped With (subject to buyer verification): M730UM Control Auto Pallet Changer Super Smooth Surface Option Ethernet/IP Interface OMP60 Probe Chip Conveyor

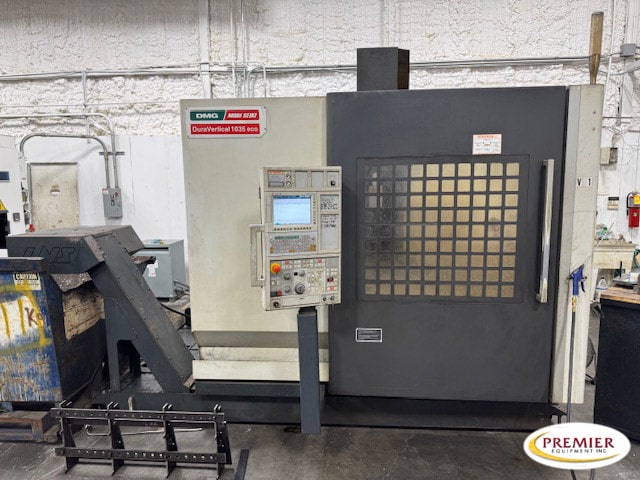

DMG Mori Seiki Dura Vertical 1035 eco CNC Vertical Machining Center / DuraVertical 1035 eco Specifications (subject to buyer verification): Table Size 47.2” x 22” Table Load Capacity 2200 lbs X Axis Travel 40.7″ Y Axis Travel 22″ Z Axis Travel 20.1″ Distance Spindle Nose to Table Top 4.7” – 24.8” Magazine Capacity 30 ATC Rapid Traverse Rates X,Y, Z 1200 IPM Spindle Nose 40 Spindle Speed 12,000 RPM Main Motor 15/11 HP Machine Dimensions 98” x 97” x 106” Machine Weight 9,400 lbs estim. Equipped With (subject to buyer verification): M730BM Chip Conveyor Tool Presetter HP-Thru Spindle Coolant

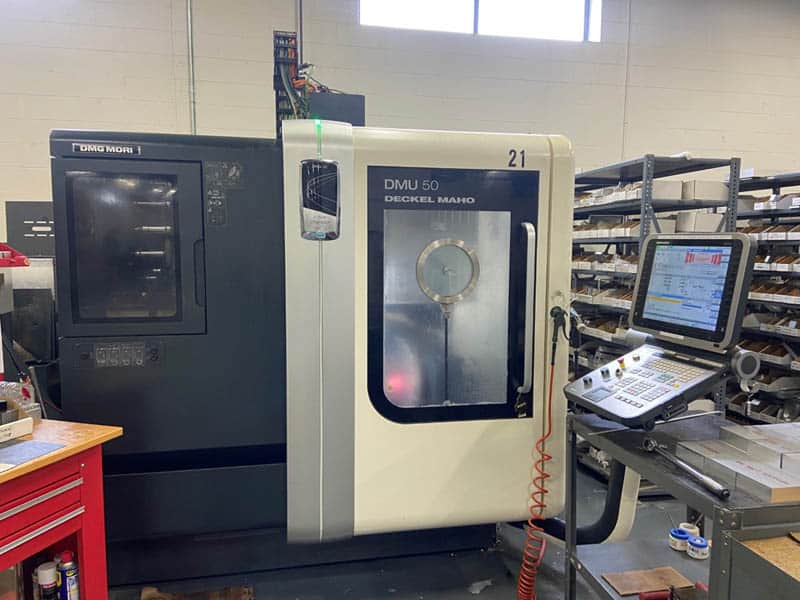

DMG Mori DMU50 5-Axis VMC X 19.7″ Y 17.7″ Z 15.7″ # Axis 5 Power 46 hp RPM 18,000 RPM # ATC 60 Taper HSK-63 Weight 11,000 Siemens CNC Control

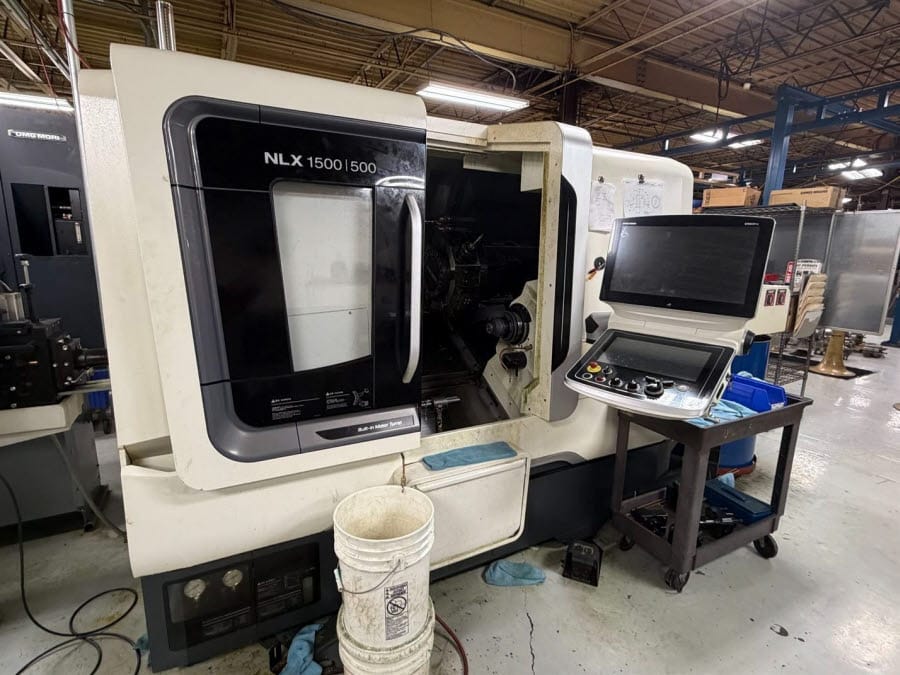

2022 DMG MORI NLX1500SY/500 MULTI AXIS CNC LATHE SPECIFICATIONS: # AXIS 5 SWING 29.7″ MACHINING LENGTH 20.2″ CHUCK SIZE 6″ BAR CAPACITY 2″ POWER 20 hp MAX RPM 6,000 RPM CONTROL CNC DIMENSIONS 140.2″ X 82″ X 84.4″ WEIGHT 11,880 LBS Max. X-axis travel: 10.2 in. Max. Y-axis travel: 3.9 in. Max. Z-axis travel: 23.2 in. Workpiece Max. workpiece diameter: 15.2 in. Max. workpiece length: 20.3 in. Max. bar diameter: 2 in. EQUIPPED WITH: FMB 12ft Magazine Barloader LNS Chip Conveyor High Pressure Unit Mist Collector Misc Tooling

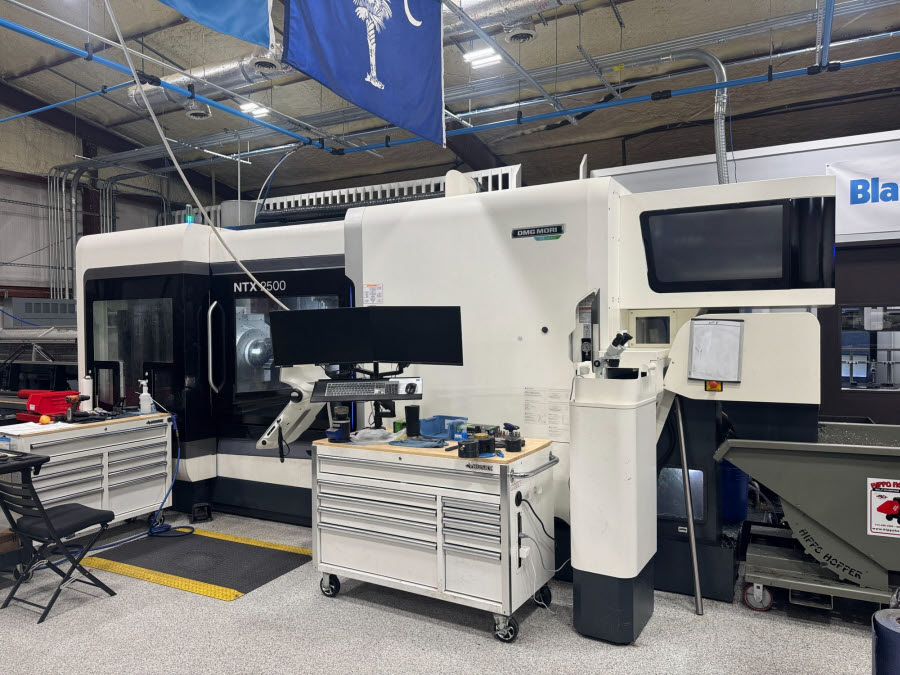

DMG MORI NTX2500/1500 MILL TURN LATHE SPECIFICATIONS: # AXIS 12 (Spindle 1) through-spindle hole dia. 91 mm, 4,000min-1 (STD) (FANUC) (Spindle 2) through-spindle hole dia. 91 mm, 4,000min-1 (FANUC) Chuck for Main spindle (Spindle 1) KITAGAWA 10in. Hollow Chuck BB210A821 (Spindle 1) Hollow Cylinder set for KITAGAWA 10in. Hollow Chuck BB210A821 (without chuck body) Chuck for Counter spindle (Spindle 2) KITAGAWA 10in. Hollow Chuck BB210A821 (Spindle 2) Hollow Cylinder set for KITAGAWA 10in. Hollow Chuck BB210A821 (without chuck body) Tool Spindle High-speed tool spindle, 20,000 min-1, 23/ 22.2 kW (FANUC) + Additional Water-glycol chiller (spindle cooling, Separate Type) Capto C6 Tool spindle full indexing specifications (STD) Turret Turret 2 : Y-axis 10 Station Bolt-Tightened Turret, high-torque milling specifications (6,000 min-1, 40 Nm) (Turret 2) (FANUC) Tailstock Spindle 2 tailstock specifications Tool Magazine Tool storage capacity 76 tools (Capto C6) Coolant supply / Chip removal Usable Coolant Type: Water-Soluble Coolant Chip conveyor (right discharge, hinge type + drum filter type) (/1500) Interface for Super-high-pressure coolant system (7.0 MPa, Variable Pressure Steps, KNOLL/ Interlit, for 2-path system) (Coolant system for Through Spindle (Tool spindle) and Turret 2) Coolant gun Air blow for tool tip (tool spindle) Air blow for chuck (Counter Spindle) Interface for Mist collector (duct only, dia. 200 mm ) Measuring / Monitoring Manual in-machine tool presetter (removable type, spindle1 and spindle2) (STD) In-machine workpiece measuring system radio signal transmission type touch sensor (RENISHAW, RMP600) Automation Signal lamp 4 colors (Red, yellow, green, blue) Workpiece unloader (Spindle 2, workpiece receiver type) +Workpiece unloading conveyor+ Workpiece stocker Spindle 2 workpiece ejector (cylinder type) Interface for EtherNet/IP Interface for Bar feeder (EtherNet/IP Interface)with terminal block for power supply General Options Multi dry filter Voltage of Customer Factory 220 V Frequency 60 Hz Setting Unit inch Technology Cycle Alternating speed 3D quickSET MPC (Machine Protection Control Options for Control Addition of optional block skip (soft key type 2-9) X-Axis Direction JIS / ISO Standard DMQP: LNS CB V40HP – 1000 PSI 14 GPM variable flow high pressure coolant system with mounted 1200 cfm mistBLASTER and mounted chipCHILLER EQUIPPED WITH: High Pressure coolant 1000psi Parts Unloader Magazine Barfeed 60″ centers Y-axis milling on lower Turret 20000 rpm milling spindle Capto C6 3.58″ bore on rt and left spindles Chip conveyor In process measuring/ probing Renishaw RMP 600 Work piece ejector Work piece stacker Tailstock option on sub spindle COMPARE AT 1.25 MILLION TODAY

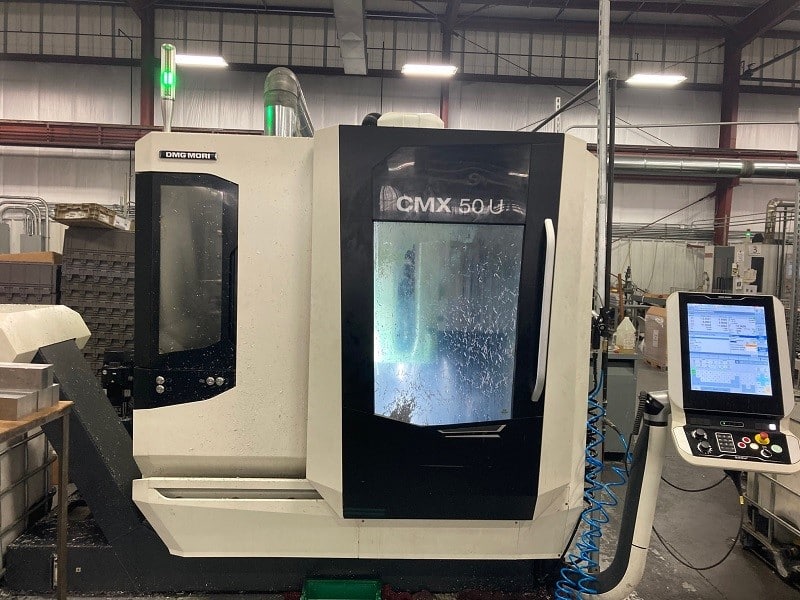

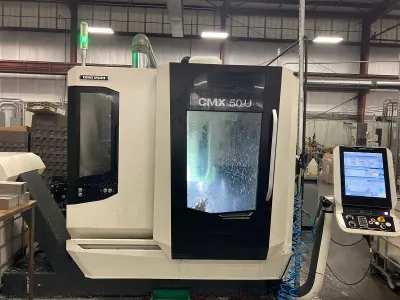

DMG Mori CMX 50 U 5-Axis Mill Product Details: X-Axis 19.6″ Y-Axis Travel 17.7″ Z-Axis 15.74″ B-Axis (Table Swivel) -5 to +110 Degrees C-Axis Index 0.001 Degree Table Size 24.8″ x 19.7″ Spindle Speed 15,000 RPM Spindle Taper Cat 40 Big Plus Spindle Motor 27.2 / 19.4 HP Tools 60 Table Load Capacity 440 lbs. Rapid Traverse Rates 1181 IPM Max Tool Diameter 2.76″ Max Tool Weight 17.6 lbs. Machine Dimensions (L x D x H) 163″ x 140″ x 107″ Machine Weight 12,000 lbs. Spindle Torque 89.24 ft. lbs. Features: • DMG MORI SLIMline Multi-Touch Control (Siemens 840D) • 19″ Multi-Touch Color TFT • 5-Axis Machining Capability • (2) USB Ports • Integral Trunnion Rotary/ Tilt Platter • Chip Conveyor (Left Side Exit) • 15000 RPM Cat 40 Big Plus Spindle • 60 Tool Magazine • Renishaw PP40 Touch Probe • Renishaw TS27R Tool Presetter • 3D Quickset • Through Spindle Coolant (12 Bar) • Bed and ATC Arm Flushing via M-Function • Coolant Spray Gun for Swarf Removal • External Electronic Handwheel • Cabin Roof • Signal Lamp with Four Colors • 16 MB Memory • Graphic Simulation of the Machining Process • 7112 Power On Time • 5209 Cutting Time

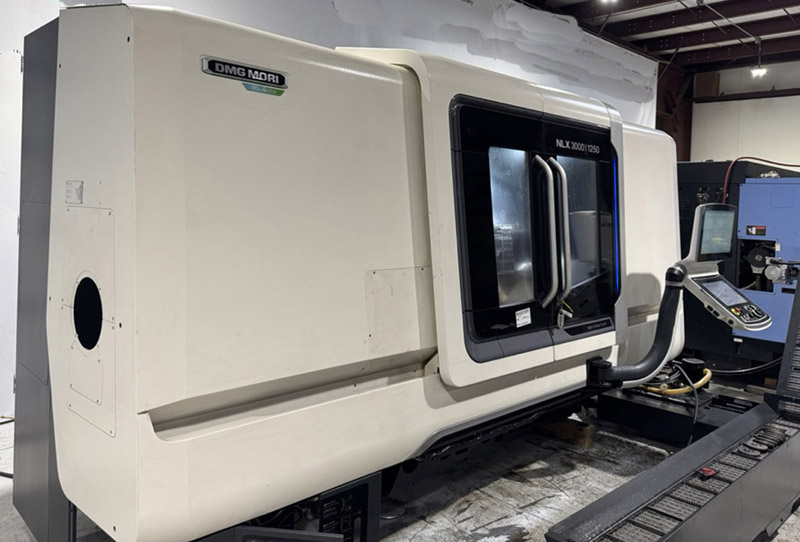

DMG Mori NLX3000Y/1250 Max Turning Diameter: 16.9″ Max Turning Length: 49.6″ Max Bar Capacity: 3.5″ X-Axis Travel: 11.0″ Y-Axis Travel: ±2.4″ Z-Axis Travel: 53.9″ Spindle Speed: 3,000 RPM Spindle Nose: A2-8 Spindle Motor: 30 HP Turret Capacity: 12 Station Rotary Tool Speed: 10,000 RPM Approximate Machine Weight: 19,620 lbs. Approximate Dimensions (LxWxH): 209″ x 98″ x 95″ Equipped With: ERGOline Touch Screen with CELOS / MAPPS Control Chip Conveyor Milling Y-Axis

DMG MORI NLX2500T/700 2-Axis CNC Turning Center SPECIFICATIONS: – Max turning length: 708 mm – Max turning diameter: Ø 366 mm – Bar capacity: Ø 105 mm (left spindle) – Max spindle speed (left): 5,000 rpm (standard) / 3,000 rpm high torque – Max spindle speed (right, if equipped): 7,000 rpm / 5,000 rpm Axis Travels – X axis: 10.2 in (≈259 mm) – Z axis: 53 in (≈1,346 mm) — platform max; 700 mm version uses ~708 mm effective turning length Turret – BMT (Built in Motor Turret) – High precision quick change turret (optional) Construction & Thermal Control – High rigidity slideways on X/Y/Z for damping and stability – Thermal displacement control for accuracy during long cycles EQUIPPED WITH: MAPPS (Mitsubishi) CELOS / ERGOline X (2nd Gen) Chuck with Jaws Chip Conveyor CoolJet

DMG Mori Sprint 20/5 CNC Swiss-Type Lathe Specifications (subject to buyer verification): Complete machining of workpieces measuring up to ø 0.8 × 23.6 in in a footprint of under 21.5 ft² Max. workpiece diameter 0.8 in. Max. workpiece length 7.1 in. Max. bar diameter 0.8 in. Max. X-axis travel 2 in. Max. Y-axis travel 12.8 in. Max. Z-axis travel 2.4 in. Main spindle 10,000 rpm, 10.3 ft lb, 3 hp (nominal) Counter spindle 10,000 rpm, 3.5 ft lb, 2 hp (nominal) 4 driven tool stations as standard Driven tools spindles 6,000 rpm, 1.1 ft lb, 1.2 hp (nominal) Equipped With (subject to buyer verification): Fanuc Series 32i-Model B CNC Contro Iemca Ideal 325 Barfeed Chip Conveyor Rear Eject Unit

DMG Mori Sprint 20/5 CNC Swiss-Type Lathe Specifications (subject to buyer verification): Complete machining of workpieces measuring up to ø 0.8 × 23.6 in in a footprint of under 21.5 ft² Max. workpiece diameter 0.8 in. Max. workpiece length 7.1 in. Max. bar diameter 0.8 in. Max. X-axis travel 2 in. Max. Y-axis travel 12.8 in. Max. Z-axis travel 2.4 in. Main spindle 10,000 rpm, 10.3 ft lb, 3 hp (nominal) Counter spindle 10,000 rpm, 3.5 ft lb, 2 hp (nominal) 4 driven tool stations as standard Driven tools spindles 6,000 rpm, 1.1 ft lb, 1.2 hp (nominal) Equipped With (subject to buyer verification): Fanuc Series 32i-Model B CNC Contro Iemca Ideal 325 Barfeed Chip Conveyor Rear Eject Unit

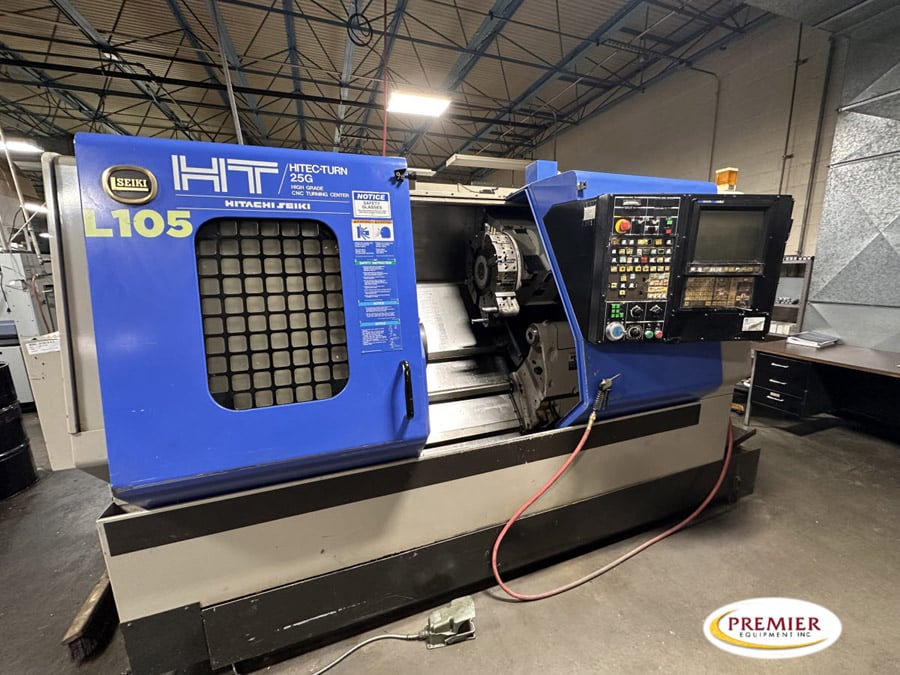

1995 Hitachi Seiki HT-25G Specification: Swing over bed: 24.4 in Maximum machining diameter: 19.7 in Maximum machining length: 42″ Bar capacity: 2.5 in X-axis travel: 11.4 in Z-axis travel: 44.0 in Spindle speed: 20–3,600 RPM Spindle nose: A2-8 Spindle through-hole: 3.0 in Turret: 12 positions Rapid traverse X/Z: 787 IPM Tailstock: MT-5, manual travel Spindle motor: 25/20 HP Approx. machine weight: 11,880 lb Equpped With: SEICOS?? Tailstock

1995 Hitachi Seiki HT-25G Specification: Swing over bed: 24.4 in Maximum machining diameter: 19.7 in Maximum machining length: 42″ Bar capacity: 2.5 in X-axis travel: 11.4 in Z-axis travel: 44.0 in Spindle speed: 20–3,600 RPM Spindle nose: A2-8 Spindle through-hole: 3.0 in Turret: 12 positions Rapid traverse X/Z: 787 IPM Tailstock: MT-5, manual travel Spindle motor: 25/20 HP Approx. machine weight: 11,880 lb Equpped With: SEICOS?? Tailstock

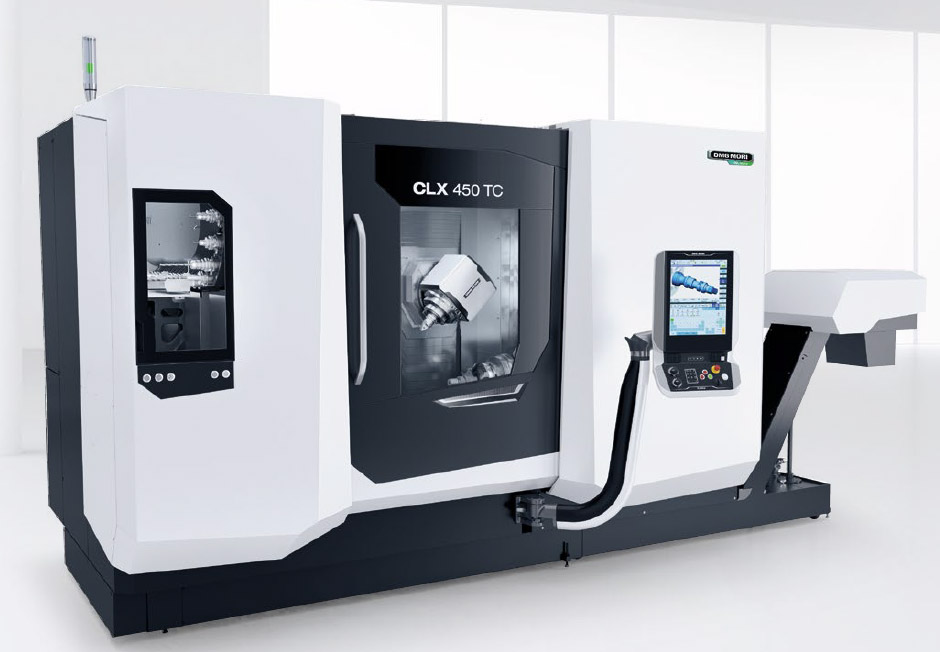

DMG Mori CLX 450 TC CNC Multi-Axis Lathe (New, Never Used) Specifications (subject to buyer verification): Working area Swing diameter 500 mm 19.6 in Max. turning diameter 400 mm 15.7 in Max. turning length 1100 mm 43.3 in Center distance for tailstock machine 1472,5 mm 57.9 in Spindle distance for counter spindle machine 1435 mm 56.4 in Spindle 1 Main spindle, left Spindle head (short taper) A2-8 Chuck diameter 210-325 mm 8.2-12.7 in Max. bar diameter 65 mm 2.5 in Spindle bore diameter 87 mm 3.4 in Draw tube inner diameter 67 mm 2.6 in Diameter in front bearing 130 mm 5.1 in Drive power, S1-100%d.c. / S3-40%d.c. 14/17 kW 18.7/22.7 hp Max. Speed 5000 rpm Power knee 485 rpm Torque, S1-100%d.c. / S3-40%d.c. 275/345 Nm 202/254 lb*ft Drive type, number of ranges AC/1 Design ISM 65 C-axis resolution 0.001 degrees Slide 1, top Slide traverse X1 (below center) 750 mm 29.5 in Slide traverse Y1 ±100 mm ±3.9 in Slide traverse Z1 1100 mm 43.3 in Turning-/milling spindle Tool holder HSK-T 63 Max. Speed 12000 rpm Tool magazine Magazine type chain Max. tool places 60 Equipped With (subject to buyer verification): Celos X with Siemens Sinumerik One Counter Spindle ISM 65, A2-8” Chain Magazine for 60 Tools

DMG Mori CLX 450 TC CNC Multi-Axis Lathe (New, Never Used) Specifications (subject to buyer verification): Working area Swing diameter 500 mm 19.6 in Max. turning diameter 400 mm 15.7 in Max. turning length 1100 mm 43.3 in Center distance for tailstock machine 1472,5 mm 57.9 in Spindle distance for counter spindle machine 1435 mm 56.4 in Spindle 1 Main spindle, left Spindle head (short taper) A2-8 Chuck diameter 210-325 mm 8.2-12.7 in Max. bar diameter 65 mm 2.5 in Spindle bore diameter 87 mm 3.4 in Draw tube inner diameter 67 mm 2.6 in Diameter in front bearing 130 mm 5.1 in Drive power, S1-100%d.c. / S3-40%d.c. 14/17 kW 18.7/22.7 hp Max. Speed 5000 rpm Power knee 485 rpm Torque, S1-100%d.c. / S3-40%d.c. 275/345 Nm 202/254 lb*ft Drive type, number of ranges AC/1 Design ISM 65 C-axis resolution 0.001 degrees Slide 1, top Slide traverse X1 (below center) 750 mm 29.5 in Slide traverse Y1 ±100 mm ±3.9 in Slide traverse Z1 1100 mm 43.3 in Turning-/milling spindle Tool holder HSK-T 63 Max. Speed 12000 rpm Tool magazine Magazine type chain Max. tool places 60 Equipped With (subject to buyer verification): Celos X with Siemens Sinumerik One Counter Spindle ISM 65, A2-8” Chain Magazine for 60 Tools

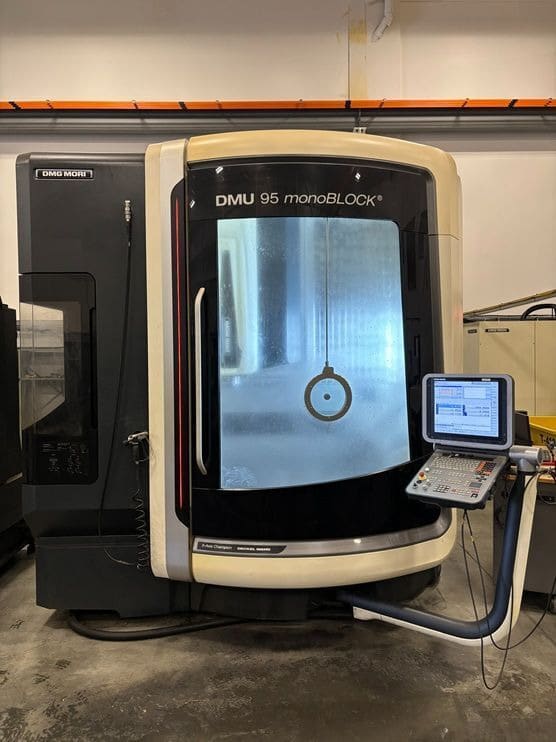

DMG MORI DMU 95 MONOBLOCK Specifications (subject to buyer verification): Number of Tables/Pallets: 1 Table Size: 39.3” x 29.5” Weight on Table: 2,200 lbs Integrated NC Rotary Table Size: 33.4” Main Spindle Horsepower: 46.9HP Main Spindle Speeds: 20,000 RPM Maximum Workpiece Diameter & Height: 40.9” x 23.2” Main Spindle Taper: HSK A63 X-Axis Travel: 37.4” Y-Axis Travel: 33.5” Z-Axis Travel: 25.6” A-Axis Travel: +/- 120 Degrees C-Axis Travel Table Indexing: 360 Degrees Rapid Traverse Rate X, Y and Z: 1,576 in/min Cutting Feed Rate: 1,576 in/min Automatic Tool Changer: 60 Tool Diameter: 3.14”, 6.3” Tool Length: 16.5” Tool Weight: 17.6 lbs Machine Weight: 39,462 lbs Equipped With (subject to buyer verification): Heidenhain TNC 640 3D CNC Control Mdynamics Package MPC Machine Protection Control Safety Package for Power Failure Spray Pistol with Pump Rotating Clearview Window Coolant Ring Jet 3D Quickset Chip Conveyor Infrared Measuring Probing Renishaw SK Blum Laser Tool Length Measurement Production Package 40 Bar 23L/min 500L tank coolant Thru Spindle and Filtration Hand-Held Remote Pulse Generator Inner Cooled Ball Screws Optimal 3 Point Support System 3D Simultaneous Graphics Dynamic Collision Monitoring Simultaneous 5-Axis Milling B-Axis Four (4) Colour Signal Light Transformer
