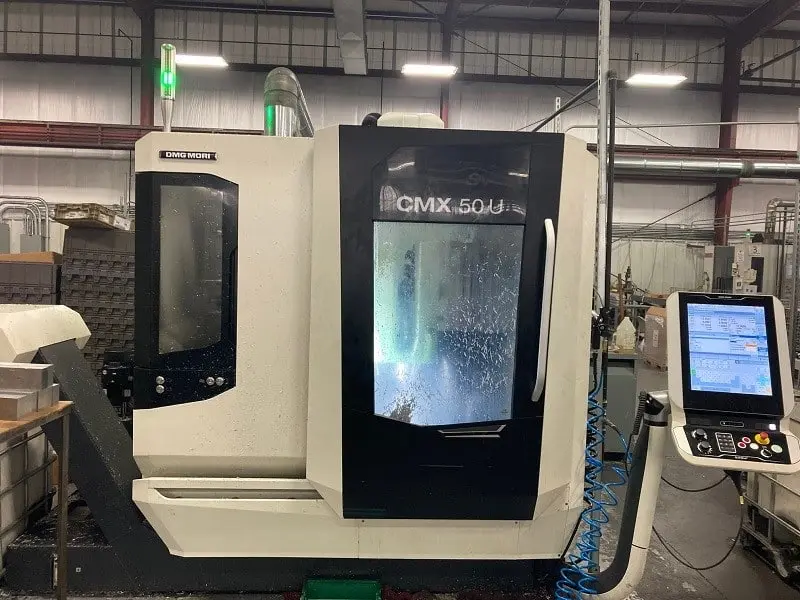

DMG Mori CMX50U – 2020 (Sold)
DMG Mori CMX50U – 2020 (Sold)
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
DMG MORI
Model
CMX50U
Hours of Usage
-
Year of Manufacture
2020
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Y Axis Travel
18"
Used Cnc Brands
Mori Seiki
X Axis Travel
20"
Control
Siemens
Taper
40
Z Axis Travel
15.7"
Through Spindle Coolant
Yes
5 Axis
Yes
Spindle Speed
15,000 RPM
Y-Axis Travel
17.7″ Z-Axis 15.74″ B-Axis (Table Swivel) -5 to +110 Degrees C-Axis Index 0.001 Degree Table Size 24.8″ x 19.7″
Description
DMG Mori CMX 50 U 5-Axis Mill Product Details: X-Axis 19.6″ Y-Axis Travel 17.7″ Z-Axis 15.74″ B-Axis (Table Swivel) -5 to +110 Degrees C-Axis Index 0.001 Degree Table Size 24.8″ x 19.7″ Spindle Speed 15,000 RPM Spindle Taper Cat 40 Big Plus Spindle Motor 27.2 / 19.4 HP Tools 60 Table Load Capacity 440 lbs. Rapid Traverse Rates 1181 IPM Max Tool Diameter 2.76″ Max Tool Weight 17.6 lbs. Machine Dimensions (L x D x H) 163″ x 140″ x 107″ Machine Weight 12,000 lbs. Spindle Torque 89.24 ft. lbs. Features: • DMG MORI SLIMline Multi-Touch Control (Siemens 840D) • 19″ Multi-Touch Color TFT • 5-Axis Machining Capability • (2) USB Ports • Integral Trunnion Rotary/ Tilt Platter • Chip Conveyor (Left Side Exit) • 15000 RPM Cat 40 Big Plus Spindle • 60 Tool Magazine • Renishaw PP40 Touch Probe • Renishaw TS27R Tool Presetter • 3D Quickset • Through Spindle Coolant (12 Bar) • Bed and ATC Arm Flushing via M-Function • Coolant Spray Gun for Swarf Removal • External Electronic Handwheel • Cabin Roof • Signal Lamp with Four Colors • 16 MB Memory • Graphic Simulation of the Machining Process • 7112 Power On Time • 5209 Cutting Time
Get in Touch with Seller About This Product
