Used 2021 DMG MORI NTX-2500/1500 for sale in United States

Back to All Listings

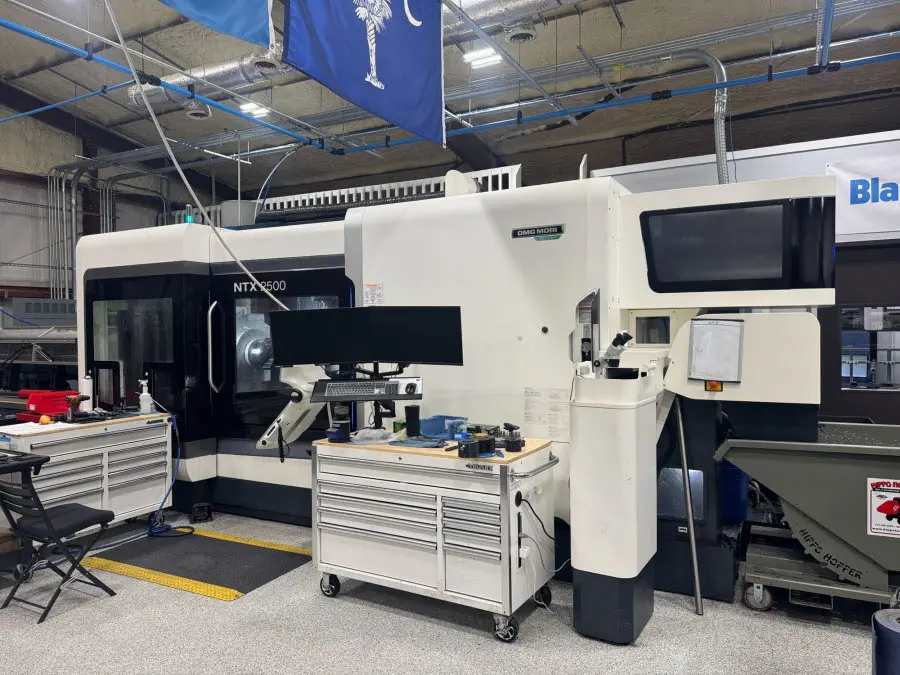

DMG Mori NTX-2500/1500 – 2021 (Sold)

Back to All Listings

DMG Mori NTX-2500/1500 – 2021 (Sold)

Specifications

Live Tooling

Yes

Chuck Size

12"

Used Cnc Brands

Mori Seiki

Machining Length

60"

Sub Spindle

Yes

Control

Fanuc

Y Axis

Yes

Machining Diameter

24"

Bar Capacity

3.1"

Turret

Turret 2 : Y-axis 10 Station Bolt-Tightened Turret, high-torque milling specifications (6,000 min-1, 40 Nm) (Turret 2) (FANUC) Tailstock Spindle 2 tailstock specifications Tool Magazine Tool storage capacity 76 tools (Capto C6) Coolant supply / Chip removal Usable Coolant Type: Water-Soluble Coolant Chip conveyor (right discharge, hinge type + drum filter type) (/1500) Interface for Super-high-pressure coolant system (7.0 MPa, Variable Pressure Steps, KNOLL/ Interlit, for 2-path system) (Coolant system for Through Spindle (Tool spindle) and Turret 2) Coolant gun Air blow for tool tip (tool spindle) Air blow for chuck (Counter Spindle) Interface for Mist collector (duct only, dia. 200 mm ) Measuring / Monitoring Manual in-machine tool presetter (removable type, spindle1 and spindle2) (STD) In-machine workpiece measuring system radio signal transmission type touch sensor (RENISHAW, RMP600) Automation Signal lamp 4 colors (Red, yellow, green, blue) Workpiece unloader (Spindle 2, workpiece receiver type) +Workpiece unloading conveyor+ Workpiece stocker Spindle 2 workpiece ejector (cylinder type) Interface for EtherNet/IP Interface for Bar feeder (EtherNet/IP Interface)with terminal block for power supply General Options Multi dry filter Voltage of Customer Factory 220 V Frequency 60 Hz Setting Unit inch Technology Cycle Alternating speed 3D quickSET MPC (Machine Protection Control Options for Control Addition of optional block skip (soft key type 2-9) X-Axis Direction JIS / ISO Standard DMQP: LNS CB V40HP – 1000 PSI 14 GPM variable flow high pressure coolant system with mounted 1200 cfm mistBLASTER and mounted chipCHILLER EQUIPPED WITH: High Pressure coolant 1000psi Parts Unloader Magazine Barfeed 60″ centers Y-axis milling on lower Turret 20000 rpm milling spindle Capto C6 3.58″ bore on rt and left spindles Chip conveyor In process measuring/ probing Renishaw RMP 600 Work piece ejector Work piece stacker Tailstock option on sub spindle COMPARE AT 1.25 MILLION TODAY

Description

DMG MORI NTX2500/1500 MILL TURN LATHE SPECIFICATIONS: # AXIS 12 (Spindle 1) through-spindle hole dia. 91 mm, 4,000min-1 (STD) (FANUC) (Spindle 2) through-spindle hole dia. 91 mm, 4,000min-1 (FANUC) Chuck for Main spindle (Spindle 1) KITAGAWA 10in. Hollow Chuck BB210A821 (Spindle 1) Hollow Cylinder set for KITAGAWA 10in. Hollow Chuck BB210A821 (without chuck body) Chuck for Counter spindle (Spindle 2) KITAGAWA 10in. Hollow Chuck BB210A821 (Spindle 2) Hollow Cylinder set for KITAGAWA 10in. Hollow Chuck BB210A821 (without chuck body) Tool Spindle High-speed tool spindle, 20,000 min-1, 23/ 22.2 kW (FANUC) + Additional Water-glycol chiller (spindle cooling, Separate Type) Capto C6 Tool spindle full indexing specifications (STD) Turret Turret 2 : Y-axis 10 Station Bolt-Tightened Turret, high-torque milling specifications (6,000 min-1, 40 Nm) (Turret 2) (FANUC) Tailstock Spindle 2 tailstock specifications Tool Magazine Tool storage capacity 76 tools (Capto C6) Coolant supply / Chip removal Usable Coolant Type: Water-Soluble Coolant Chip conveyor (right discharge, hinge type + drum filter type) (/1500) Interface for Super-high-pressure coolant system (7.0 MPa, Variable Pressure Steps, KNOLL/ Interlit, for 2-path system) (Coolant system for Through Spindle (Tool spindle) and Turret 2) Coolant gun Air blow for tool tip (tool spindle) Air blow for chuck (Counter Spindle) Interface for Mist collector (duct only, dia. 200 mm ) Measuring / Monitoring Manual in-machine tool presetter (removable type, spindle1 and spindle2) (STD) In-machine workpiece measuring system radio signal transmission type touch sensor (RENISHAW, RMP600) Automation Signal lamp 4 colors (Red, yellow, green, blue) Workpiece unloader (Spindle 2, workpiece receiver type) +Workpiece unloading conveyor+ Workpiece stocker Spindle 2 workpiece ejector (cylinder type) Interface for EtherNet/IP Interface for Bar feeder (EtherNet/IP Interface)with terminal block for power supply General Options Multi dry filter Voltage of Customer Factory 220 V Frequency 60 Hz Setting Unit inch Technology Cycle Alternating speed 3D quickSET MPC (Machine Protection Control Options for Control Addition of optional block skip (soft key type 2-9) X-Axis Direction JIS / ISO Standard DMQP: LNS CB V40HP – 1000 PSI 14 GPM variable flow high pressure coolant system with mounted 1200 cfm mistBLASTER and mounted chipCHILLER EQUIPPED WITH: High Pressure coolant 1000psi Parts Unloader Magazine Barfeed 60″ centers Y-axis milling on lower Turret 20000 rpm milling spindle Capto C6 3.58″ bore on rt and left spindles Chip conveyor In process measuring/ probing Renishaw RMP 600 Work piece ejector Work piece stacker Tailstock option on sub spindle COMPARE AT 1.25 MILLION TODAY
