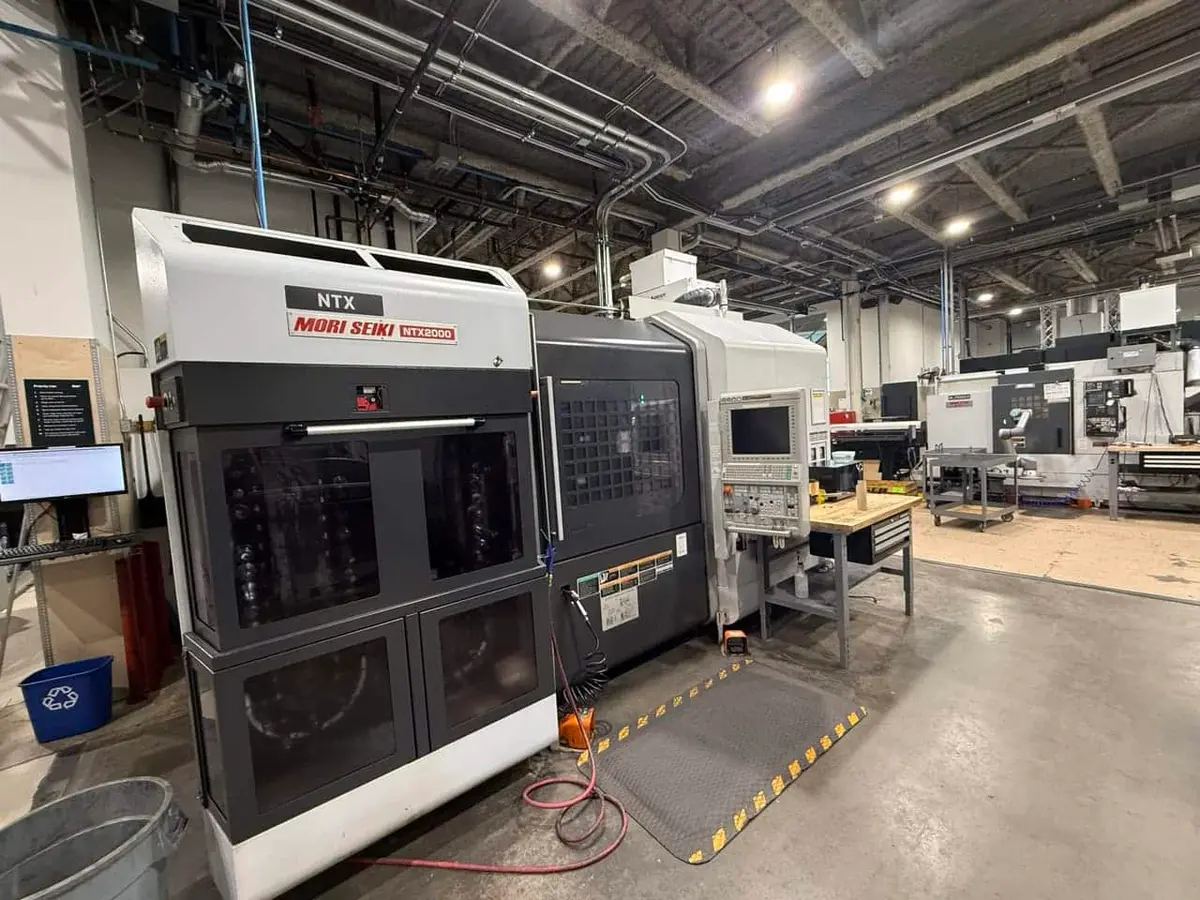

DMG Mori NTX-2000/1500SZ – 2011 (Sold)
DMG Mori NTX-2000/1500SZ – 2011 (Sold)
Category
CNC lathes
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
DMG MORI
Model
NTX-2000/1500SZ
Hours of Usage
-
Year of Manufacture
2000
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
Mori Seiki NTX2000/15000SZ
Live Tooling
Yes
Chuck Size
8"
Used Cnc Brands
Mori Seiki
Machining Length
60"
Sub Spindle
Yes
Control
Fanuc
Y Axis
Yes
Machining Diameter
24"
Bar Capacity
2.5"
Description
Mori Seiki NTX2000/15000SZ Mori Seiki NTX2000/15000SZ Tool Magazine: Number of tools: 76 Tool holder: Capto C6 Maximum tool length: 15.7” Maximum tool diameter: 5.1” Maximum tool weight: 17.6 lbs Axes Travel: X-axis: 26.6” Y-axis: ±5.9” Z-axis: 61.5” B-axis: ±120º Rapid Traverse Rate: X-axis: 1,575”/min Y-axis: 1,575”min Z-axis: 1,575”min Spindle Speed: Main spindle: 5,000 rpm (22/18.5 kw) Spindle Bore: 2.9” Chuck Size: 10″ Sub Spindle- 5,000 rpm (22/18.5 kw) Sub Spindle Chuck Size: 10″ Machine Dimensions: Width: 157.5” Depth: 98.4” Height: 106.3” Weight: Approximately 33,000 lbs Equipped with: 12,000 RPM B-Axis Milling Head Lower Turret (10 Station) High Pressure Coolant Thru Spindle coolant Automatic Door DDM (Direct Drive Motor) ORC (Octagonal Ram Construction) BMT (Built-in Motor Turret) MAPPS IV + ESPRIT Control System Tool Spindle Three-Point Support Structure Thermal Displacement Measures Coolant Gun Bar Feed Interface Simultaneous 5-axis Control Tool Center Point Control Workpiece Setting Error Compensation ATA Flash MEmory Card
Get in Touch with Seller About This Product
