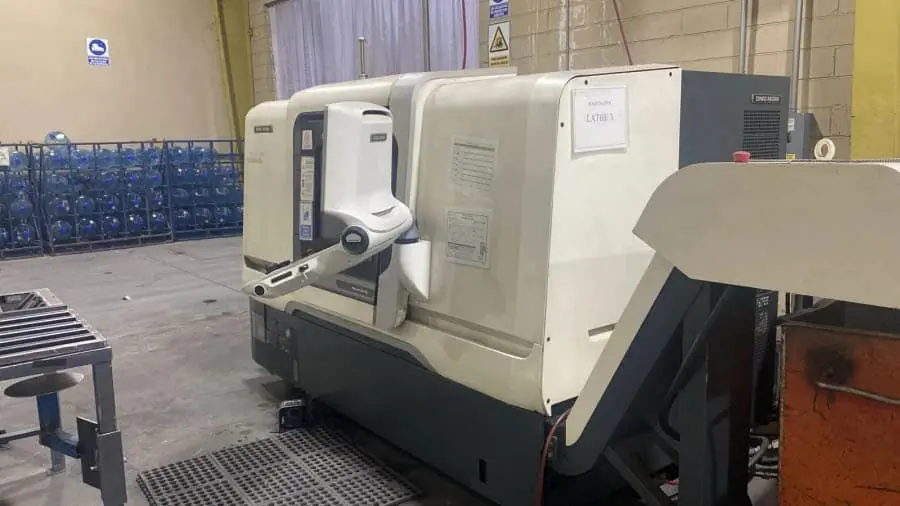

DMG Mori NLX-2500T/700 – 2020 (Sold)
Product Image
Product Image
Category
CNC lathes
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
DMG MORI
Model
NLX-2500T/700
Hours of Usage
-
Year of Manufacture
2020
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

Machining Diameter
18"
Machining Length
28"
Used Cnc Brands
Mori Seiki
Bar Capacity
3"
Control
Mitsubishi
Chuck Size
12"
Bar Capacity
: Ø 105 mm (left
Spindle Speed
(left): 5,000 rpm (standard) / 3,000 rpm high torque – Max spindle speed (right, if equipped): 7,000 rpm / 5,000 rpm Axis Travels – X axis: 10.2 in (≈259 mm) – Z axis: 53 in (≈1,346 mm) — platform max; 700 mm version uses ~708 mm effective turning length Turret – BMT (Built in Motor Turret) – High precision quick change turret (optional) Construction & Thermal Control – High rigidity slideways on X/Y/Z for damping and stability – Thermal displacement control for accuracy during long cycles EQUIPPED WITH: MAPPS (Mitsubishi) CELOS / ERGOline X (2nd Gen) Chuck with Jaws Chip Conveyor CoolJet
Turret
– BMT (Built in Motor Turret) – High precision quick change turret (optional) Construction & Thermal Control – High rigidity slideways on X/Y/Z for damping and stability – Thermal displacement control for accuracy during long cycles EQUIPPED WITH: MAPPS (Mitsubishi) CELOS / ERGOline X (2nd Gen) Chuck with Jaws Chip Conveyor CoolJet
Status
Sold

Description

DMG MORI NLX2500T/700 2-Axis CNC Turning Center SPECIFICATIONS: – Max turning length: 708 mm – Max turning diameter: Ø 366 mm – Bar capacity: Ø 105 mm (left spindle) – Max spindle speed (left): 5,000 rpm (standard) / 3,000 rpm high torque – Max spindle speed (right, if equipped): 7,000 rpm / 5,000 rpm Axis Travels – X axis: 10.2 in (≈259 mm) – Z axis: 53 in (≈1,346 mm) — platform max; 700 mm version uses ~708 mm effective turning length Turret – BMT (Built in Motor Turret) – High precision quick change turret (optional) Construction & Thermal Control – High rigidity slideways on X/Y/Z for damping and stability – Thermal displacement control for accuracy during long cycles EQUIPPED WITH: MAPPS (Mitsubishi) CELOS / ERGOline X (2nd Gen) Chuck with Jaws Chip Conveyor CoolJet
