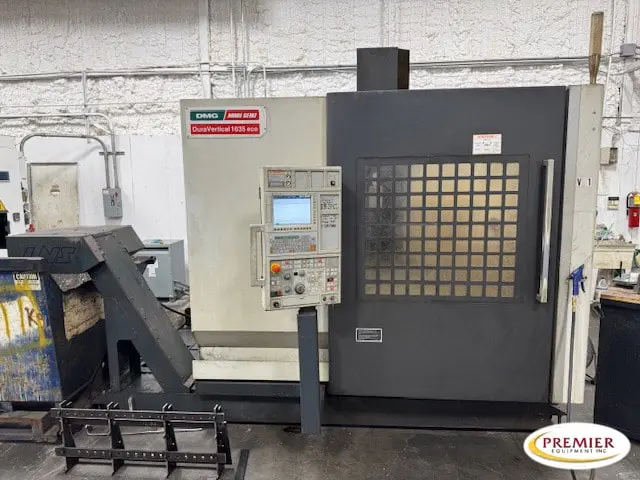

DMG Mori DuraVertical 1035 eco – 2011
Product Image
Product Image
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
DMG MORI
Model
DuraVertical 1035
Hours of Usage
-
Year of Manufacture
2011
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

X Axis Travel
40"
Y Axis Travel
22"
Taper
40
Z Axis Travel
20"
Used Cnc Brands
DMG Mori, Mori Seiki
Control
Mitsubishi
Spindle Speed
12,000 RPM
Through Spindle Coolant
Yes
Spindle Nose
to Table Top 4.7” – 24.8” Magazine Capacity 30 ATC Rapid Traverse Rates X,Y, Z 1200 IPM
Spindle Speed
12,000 RPM Main Motor 15/11 HP Machine Dimensions 98” x 97” x 106” Machine Weight 9,400 lbs estim. Equipped With (subject to buyer verification): M730BM Chip Conveyor Tool Presetter HP-Thru Spindle Coolant

Description

DMG Mori Seiki Dura Vertical 1035 eco CNC Vertical Machining Center / DuraVertical 1035 eco Specifications (subject to buyer verification): Table Size 47.2” x 22” Table Load Capacity 2200 lbs X Axis Travel 40.7″ Y Axis Travel 22″ Z Axis Travel 20.1″ Distance Spindle Nose to Table Top 4.7” – 24.8” Magazine Capacity 30 ATC Rapid Traverse Rates X,Y, Z 1200 IPM Spindle Nose 40 Spindle Speed 12,000 RPM Main Motor 15/11 HP Machine Dimensions 98” x 97” x 106” Machine Weight 9,400 lbs estim. Equipped With (subject to buyer verification): M730BM Chip Conveyor Tool Presetter HP-Thru Spindle Coolant
