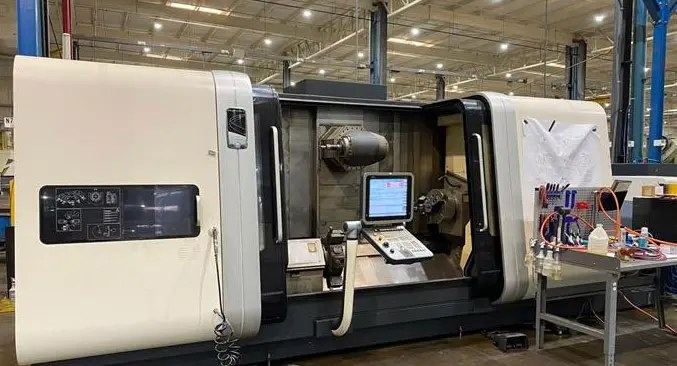

DMG Mori Seiki CTX Gamma 2000 TC – 2012
Product Image
Product Image
Category
CNC lathes
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
DMG MORI
Model
Seiki CTX
Hours of Usage
-
Year of Manufacture
2000
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

Machining Length
80"
Used Cnc Brands
DMG DECKEL, DMG Mori, DMG Mori Lathe, Mori Seiki
Chuck Size
15"
Machining Diameter
18.5"
Control
Siemens
Sub Spindle
Yes
Bar Capacity
4"
Live Tooling
Yes
Y Axis
Yes
Bar Capacity
4.1″ X1 TRAVEL 25.59″ Y1 TRAVEL +/-7.87″ Z1 TRAVEL 80.70″ Z2 TRAVEL 75.19″ Z3 TRAVEL 75.19″ B-AXIS +/- 0.001 DEGREES MAIN

Description

DMG Mori Seiki CTX Gamma 2000 TC CNC Mill Turn CAPACITY: MAXIMUM WORKPIECE DIAMETER 27.6″ MAXIMUM WORKPIECE LENGTH 78.74″ MAXIMUM BAR CAPACITY 4.1″ X1 TRAVEL 25.59″ Y1 TRAVEL +/-7.87″ Z1 TRAVEL 80.70″ Z2 TRAVEL 75.19″ Z3 TRAVEL 75.19″ B-AXIS +/- 0.001 DEGREES MAIN SPINDLE: CHUCK SIZE 20″ MAXIMUM SPEED 2,500 RPM MOTOR OUTPUT (30 MINUTE RATING) 70 HP SECOND SPINDLE: CHUCK SIZE 13″ MAXIMUM SPEED 4,000 RPM MOTOR OUTPUT (30 MINUTE RATING) 61 HP MILLING SPINDLE: B-AXIS TRAVEL 240 DEGREES TOOL MAGAZINE 36 ATC TOOLING HSK63 MAXIMUM SPEED 8,000 RPM MOTOR OUTPUT 43 HP APPROXIMATE DIMENSIONS 299″ X 166″ X 100″ APPROXIMATE WEIGHT 52,910 EQUIPPED WITH: SIEMENS 840D CNC CONTROL MAIN & COUNTER SPINDLES 15″ CHUCK ON MAIN SPINDLE 18″ CHUCK ON COUNTER SPINDLE LOWER TURRET HIGH PRESSURE COOLANT SYSTEM FACTORY COOLANT CHILLER DUAL CTS 300 PSI & 1000 PSI PUMPS BALANCED PRESSURE CLAMPING FOR MAIN AND SUB-SPINDLES FLUSHING OF CHUCKS, STEADY REST, WAY COVERS CHILLER SYSTEM, COOLING OF THE MILLING/TURNING SPINDLE AND COUNTER SPINDLES SUB SPINDLE AS TAILSTOCK OPTION WITH PROGRAMMABLE MOVEMENT AND FORCE 36 STATION AUTOMATIC TOOL CHANGER AUTOMATIC CABIN DOORS CHIP CONVEYOR TOOLING
