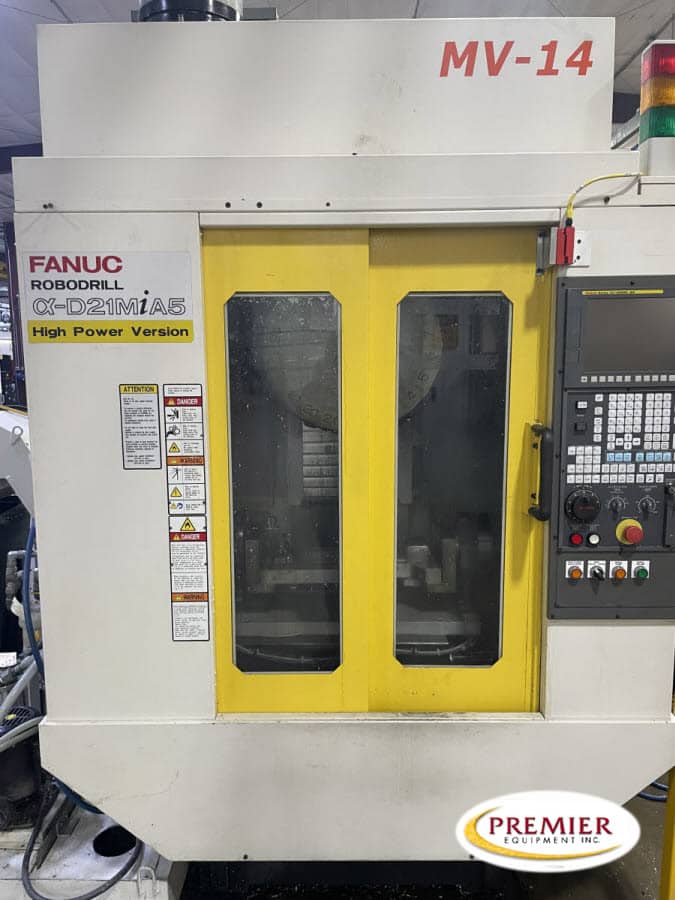

Fanuc Robodrill α-D21MiA5 with Rotary Table CNC Drill Tap Specifications (subject to buyer verification): Travel X/Y/Z19.69” x 15.74” x 12.99” Max. tool length (0–24,000 rpm) 9.84” Max. tool diameter 3.15” Table size 25.59” x 15.75” Max. table load 660 lbs Max. tool mass (0–24,000 rpm) 6.6 lbs Distance from spindle nose to table (with HC100) 9.84” – 22.83” Spindle speed 24,000 RPM Taper BT30 Rapid traverse in all axes 2125 IPM Programmable cutting feed 1181 IPM Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6 Number of tools 21 ATC Tool change time (2 kg-tool) (cut to cut) s 1.6 sec Machine Weight 4000 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-B5 Chip Blaster HP Coolant @ 500 PSI Royal Mist Collector Rotary Table DDR

Fanuc Robodrill α-D21MiA5 with Rotary Table CNC Drill Tap Specifications (subject to buyer verification): Travel X/Y/Z19.69” x 15.74” x 12.99” Max. tool length (0–24,000 rpm) 9.84” Max. tool diameter 3.15” Table size 25.59” x 15.75” Max. table load 660 lbs Max. tool mass (0–24,000 rpm) 6.6 lbs Distance from spindle nose to table (with HC100) 9.84” – 22.83” Spindle speed 24,000 RPM Taper BT30 Rapid traverse in all axes 2125 IPM Programmable cutting feed 1181 IPM Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6 Number of tools 21 ATC Tool change time (2 kg-tool) (cut to cut) s 1.6 sec Machine Weight 4000 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-B5 Chip Blaster HP Coolant @ 500 PSI Royal Mist Collector Rotary Table DDR

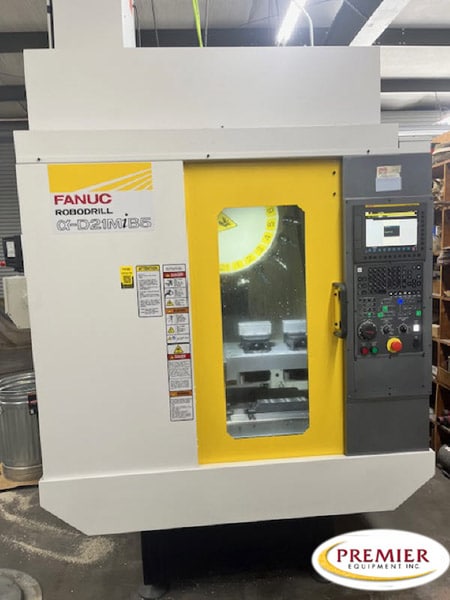

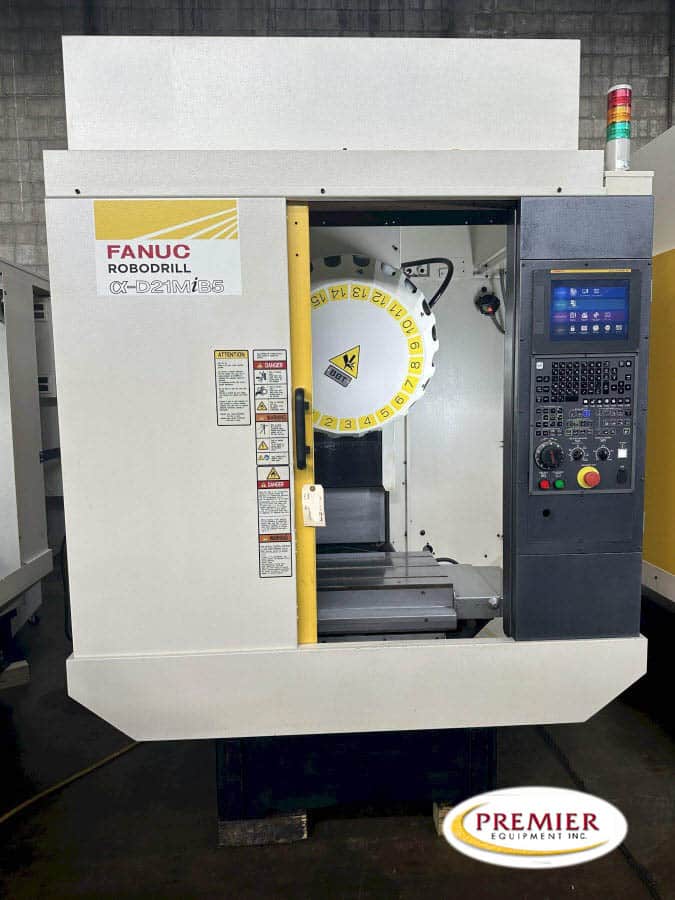

2021 Fanuc Robodrill D21Mib5 Specifications Table Size 25.59″ x 15.74″ Max Table Load Capacity 661 Lbs. X Axis Travel 19.68″ Y Axis Travel 15.74″ Z Axis Travel 15.74 Main Spindle RPM 20,000 RPM Rapid Traverse Rate X 2125 IPM Rapid Traverse Rate Y 2125 IPM Rapid Traverse Rate Z 2125 IPM Number of Tool Stations 21 Maximum Tool Diameter 3.14″ Maximum Tool Length 9.84″ Maximum Tool Weight 6.6 lbs. Spindle Taper BT-30 Main Spindle HP 7.5 HP Equipped With: Fanuc Series 31i-Model B5 Hi-Pressure Coolant Thru Spindle (1000 PSI) Mist Collector Chip Conveyor

2021 Fanuc Robodrill D21Mib5 Specifications Table Size 25.59″ x 15.74″ Max Table Load Capacity 661 Lbs. X Axis Travel 19.68″ Y Axis Travel 15.74″ Z Axis Travel 15.74 Main Spindle RPM 20,000 RPM Rapid Traverse Rate X 2125 IPM Rapid Traverse Rate Y 2125 IPM Rapid Traverse Rate Z 2125 IPM Number of Tool Stations 21 Maximum Tool Diameter 3.14″ Maximum Tool Length 9.84″ Maximum Tool Weight 6.6 lbs. Spindle Taper BT-30 Main Spindle HP 7.5 HP Equipped With: Fanuc Series 31i-Model B5 Hi-Pressure Coolant Thru Spindle (1000 PSI) Mist Collector Chip Conveyor

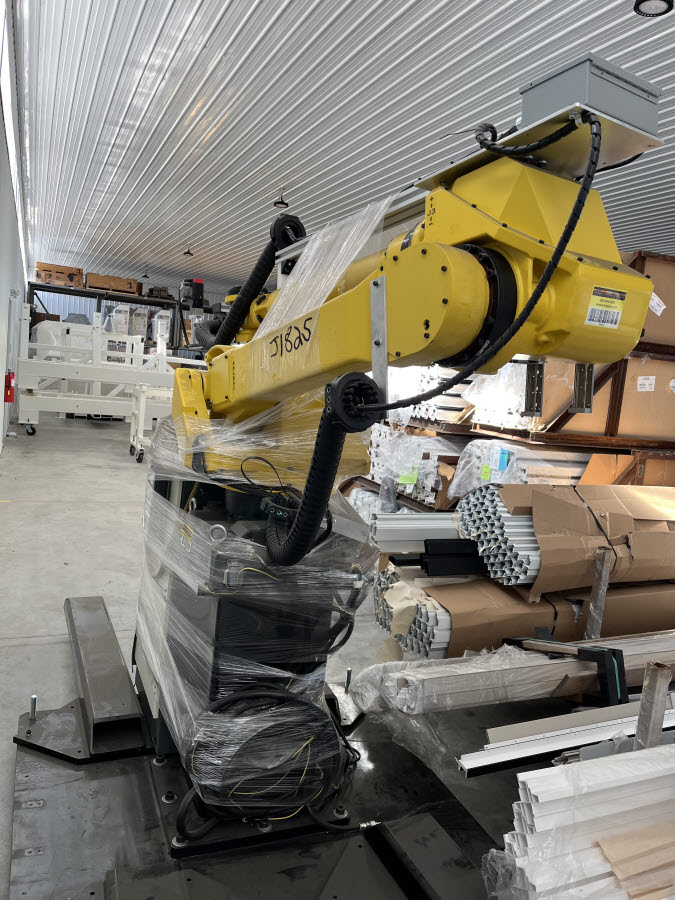

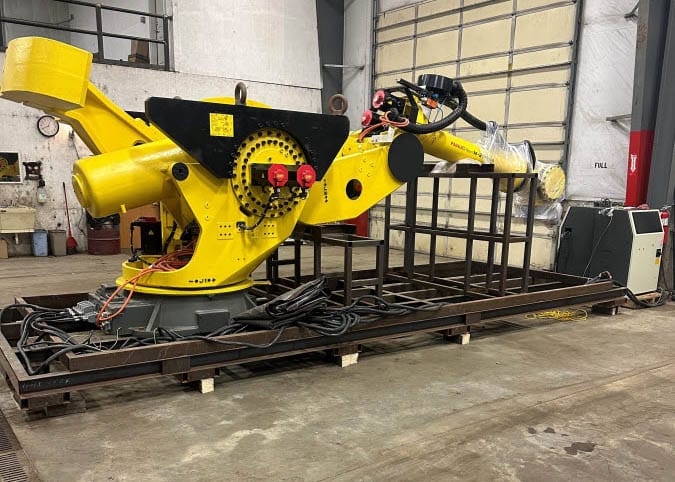

Fanuc M2000ia 900L Robot Automatic Robot

Fanuc M2000ia 900L Robot Automatic Robot Specifications (subject to buyer verification): Payload1984 lbs Reach 184” Axes 6 Equipped With (subject to buyer verification): R30ib Plus controller with 166 options installed. Ethernet and DCS. Less than 1 hour on time. 9.3 software installed. *Purchased New in 2022

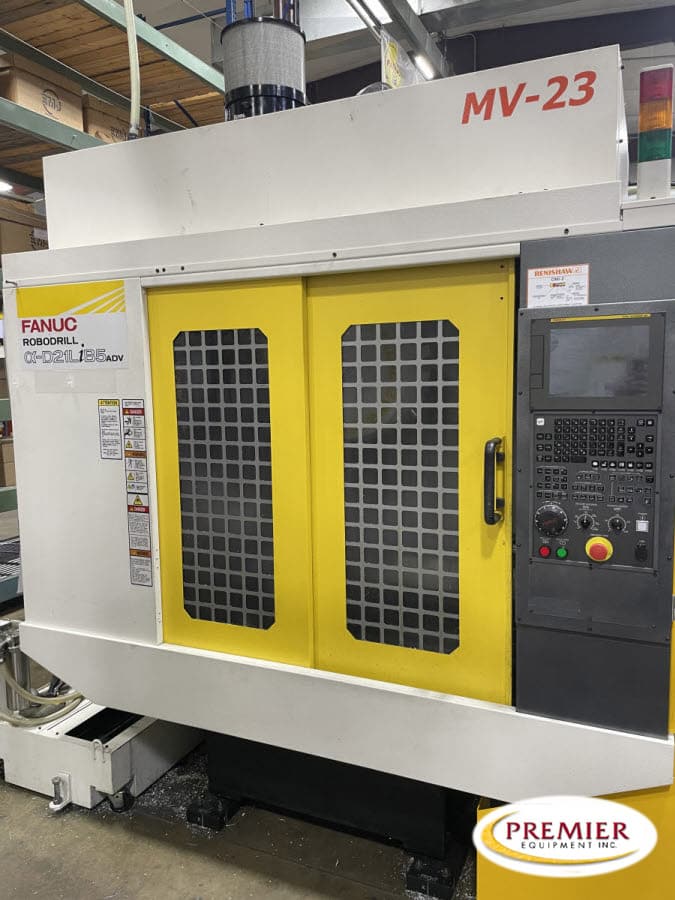

Fanuc Robodrill D21LiB5-Adv Specifications (subject to buyer verification): Travel X/Y/Z: 27.55” x 15.74” x 15.74” Max. tool length (0–24,000 rpm) : 9.84” Max. tool diameter: HS 3.15” / 3.93” Table size: 33.46” x 16.14” Max. table load: 881 lbs Max. tool mass (0–24,000 rpm) : 8.8 lbs Distance from spindle nose to table (with HC100) : 7.0” – 22”.83” Spindle speed: 24,000 RPM Motor: 7.5 HP (24) Rapid traverse in all axes: 2125 IPM Number of tools 21 Tool change time (2 kg-tool) (cut to cut) : 1.3 sec Spindle holder: BT30 ? Machine mass: 5500 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-B5 Chip Conveyor DDR Rotary Table Royal Filter Mist High Pressure Coolant

Fanuc Robodrill D21LiB5-Adv Specifications (subject to buyer verification): Travel X/Y/Z: 27.55” x 15.74” x 15.74” Max. tool length (0–24,000 rpm) : 9.84” Max. tool diameter: HS 3.15” / 3.93” Table size: 33.46” x 16.14” Max. table load: 881 lbs Max. tool mass (0–24,000 rpm) : 8.8 lbs Distance from spindle nose to table (with HC100) : 7.0” – 22”.83” Spindle speed: 24,000 RPM Motor: 7.5 HP (24) Rapid traverse in all axes: 2125 IPM Number of tools 21 Tool change time (2 kg-tool) (cut to cut) : 1.3 sec Spindle holder: BT30 ? Machine mass: 5500 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-B5 Chip Conveyor DDR Rotary Table Royal Filter Mist High Pressure Coolant

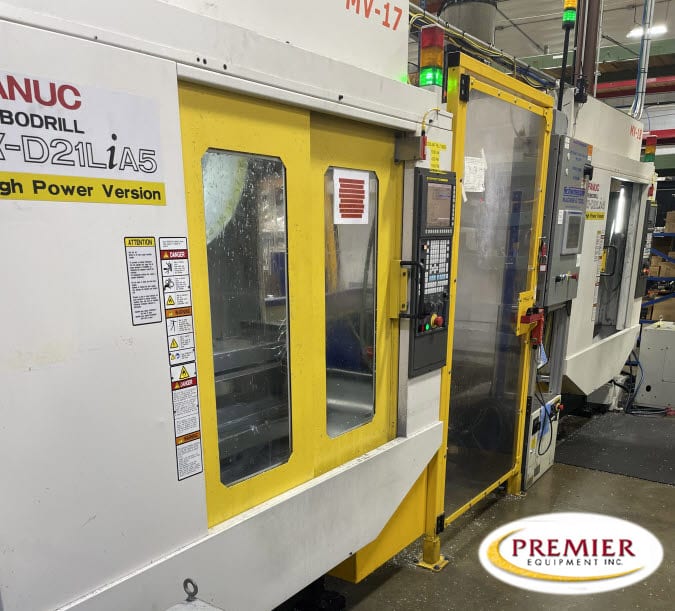

Fanuc Robodrill D21LiA5 Two Machines & Fanuc M20iA Robot Pallet Machining Cell
Specifications (subject to buyer verification):
Pallet Size 33.5″ x 16.1″
Table Capacity 660 lbs
X Axis Travel 27.6″
Y Axis Travel 15.7″
Z Axis Travel 13″
Spindle to Table 5.9” – 18.9”
Spindle Speed   24,000 RPM
Taper 30
Rapid Traverse Rate (X,Y,Z) 2125 IPM
Tool Positions 21
Chip to Chip Change Time 1.6 sec
Max Tool Length / Diameter 9.8” / 3.14”
Machine Size 84” x 95” x 88”
Machine Weight 4,620 lbs
Equipped With  (subject to buyer verification):
Fanuc Series 31i-B5
1-Fanuc M20iA Robot
Royal FX900 Mist Collector
ChipBlaster D30-70 High Pressure Coolant
Cell contains 2 Fanuc Alpha-D21LiA5 RoboDrills , 1 Fanuc M20iA robot (F139741), 2 Royal FX900 mist collectors, 2 ChipBlaster D30-70 High Pressure Units, PLC, HMI, pallet frame, and machining pallets.
Machining pallets are hand loaded by an operator.
Operator uses a special torque wrench that is connected to the Torque Monitor to verify the parts are torqued to spec before letting the robot to pick up the pallet.
Pallets are identified by a series of proximity switches and steel inserts to very the pallet matches the pallets the machine program is running (example in Pallet Identification photo.
If these items are verified the robot will pick up the pallet using ball lock grippers when the operator clears the light curtain and activates the operator switch by swiping their finger on it.
Robot loads the pallet in the machine (right side pallets go to MV-17 and left side pallets go to MV-18 when looking from loading station).
The pallet is clamped in the machine using air clamps.
If finished pallet is in the machine, the DDR will rotate the finished pallet to the top so the robot can pick from the machine.
The machine unclamps the finished pallet and robot picks the pallet using the ball lock grippers then exits the machine.
Once the robot has exited the robot door closes and the machine starts machining.
The robot sets the finished pallet on the load station for the operator to unload and reload.

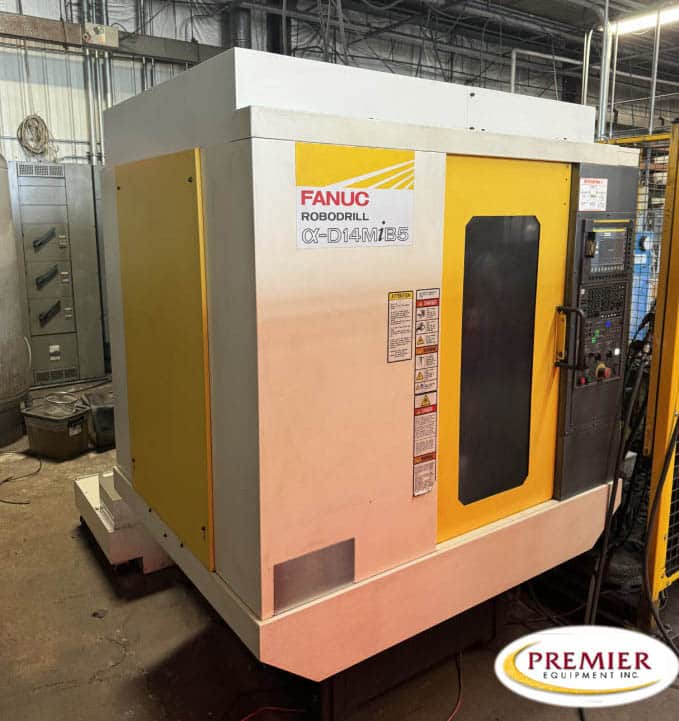

Fanuc Robodrill α-D14MiB5 with Rotary Table

Fanuc Robodrill α-D14MiB5 with Rotary Table CNC Drill Tap Specifications (subject to buyer verification): Travel X/Y/Z: 19.69” x 15.74” x 12.99” Max. tool diameter: 3.15” Table size: 25.59” x 15.75” Max. table load: 660 lbs Distance from spindle nose to table (with HC100) : 9.84” – 22.83” Spindle speed: 10,000 RPM Number of tools : 14 ATC Equipped With (subject to buyer verification): Fanuc Series 31i-Model B5 DDR Rotary Table

2021 Fanuc Robodrill α-D21MiB5 CNC Drill Tap with Rotary Table

2021 Fanuc Robodrill α-D21MiB5 CNC Drill Tap with Rotary Table Specifications (subject to buyer verification): Travel X/Y/Z19.69” x 15.74” x 12.99” Max. tool length (0–24,000 rpm) 9.84” Max. tool diameter 3.15” Table size 25.59” x 15.75” Max. table load 660 lbs Spindle speed 24,000 RPM Number of tools 21 ATC Equipped With (subject to buyer verification): Fanuc 31i-B5 Control 24,000 RPM Spindle IHMI Interface 10.5” Screen AI Contour Control 1 Renishaw RMP400 Probe Hennig Chip Conveyor (scraper type) Fanuc DDRT-500 rotary table Coolant Thru Spindle – 1,000 PSI All available toolholders

Fanuc M-710iC/45M 6-Axis Robot Specifications (subject to buyer verification): Payload Capacity: 45 kg Maximum Reach: 2,606 mm Number of Axes: 6 Repeatability: ±0.1 mm Robot Mass: Approximately 570 kg Mounting Options: Floor, inverted, or angle Control: Fanuc R-30iB Plus Motion Range: J1 Axis: ±360° J2 Axis: ±225° J3 Axis: ±440° J4 Axis: ±800° J5 Axis: ±250° J6 Axis: ±800° Motion Speed: J1 Axis: 180°/s J2 Axis: 180°/s J3 Axis: 180°/s J4 Axis: 250°/s J5 Axis: 250°/s J6 Axis: 360°/s

Fanuc M-710iC/45M 6-Axis Robot Specifications (subject to buyer verification): Payload Capacity: 45 kg Maximum Reach: 2,606 mm Number of Axes: 6 Repeatability: ±0.1 mm Robot Mass: Approximately 570 kg Mounting Options: Floor, inverted, or angle Control: Fanuc R-30iB Plus Motion Range: J1 Axis: ±360° J2 Axis: ±225° J3 Axis: ±440° J4 Axis: ±800° J5 Axis: ±250° J6 Axis: ±800° Motion Speed: J1 Axis: 180°/s J2 Axis: 180°/s J3 Axis: 180°/s J4 Axis: 250°/s J5 Axis: 250°/s J6 Axis: 360°/s

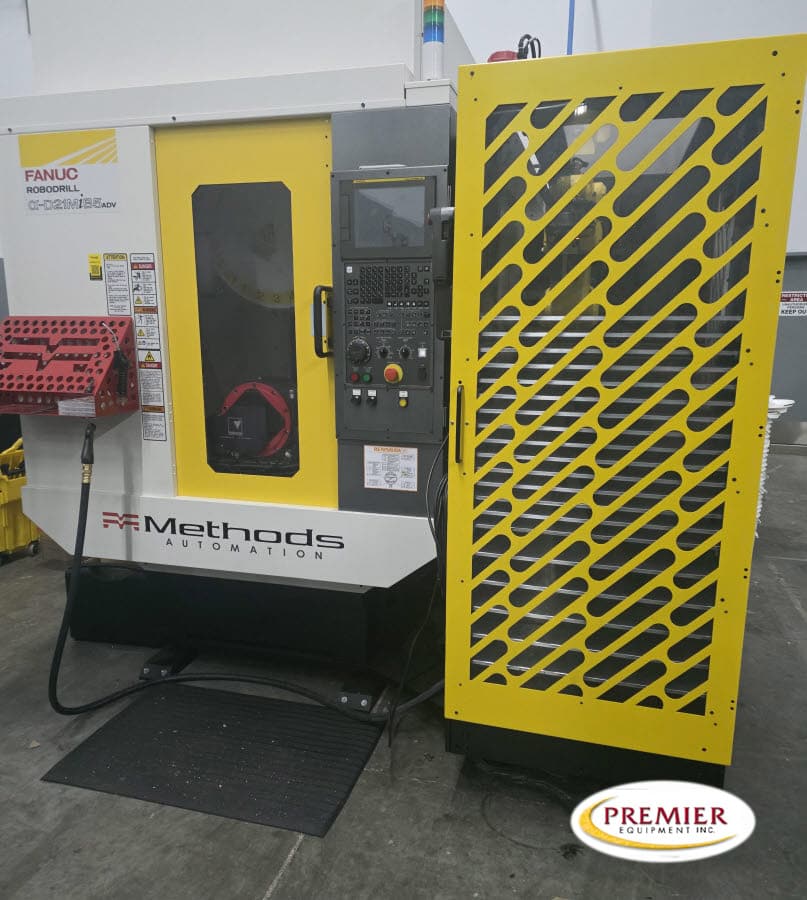

Fanuc Robodrill α-D21MiB5ADV with Plus-K Automation CNC Drill Tap

Fanuc Robodrill α-D21MiB5ADV with Plus-K Automation CNC Drill Tap Specifications (subject to buyer verification): Travel X/Y/Z19.69” x 15.75” x 15.75” Max. tool length (0–24,000 rpm) 9.84” Max. tool diameter 3.93” Table size 25.59” x 15.75” Max. table load 880 lbs Max. tool mass (0–24,000 rpm) 8.8 lbs Distance from spindle nose to table (with HC100) 7.08” – 22.83” Spindle speed 24,000 RPM Taper BT30 Big Plus Rapid traverse in all axes 2125 IPM Programmable cutting feed 1181 IPM Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6 Number of tools 44+60 ATC Tool change time (2 kg-tool) (cut to cut) s 1.3 sec Machine Weight 4000 lbs Plus-K specifications (subject to buyer verification): PALLET Pallet Storage ¾” between pallets for 32 pallets / 1 ½” between pallets for 19 pallets / 4 ¼” between pallets for 8 pallets Pallet Size 6.3” x 4” x 4.7” WORK PIECE Max Weight of Part 13 lbs. parts & vise GENERAL Floor Space 67” x 30” Unit Weight 1200lbs Equipped With (subject to buyer verification): Fanuc Series 31i-Model B5 Advanced Version Touch Screen 21 ATC Fixed 60 ATC Plus-K Automation System – Fanuc Robot LR Mate 200iD: Tool Management Fixture Flush Fanuc Robodrill DDR Tilting Rotary Table HP TSC

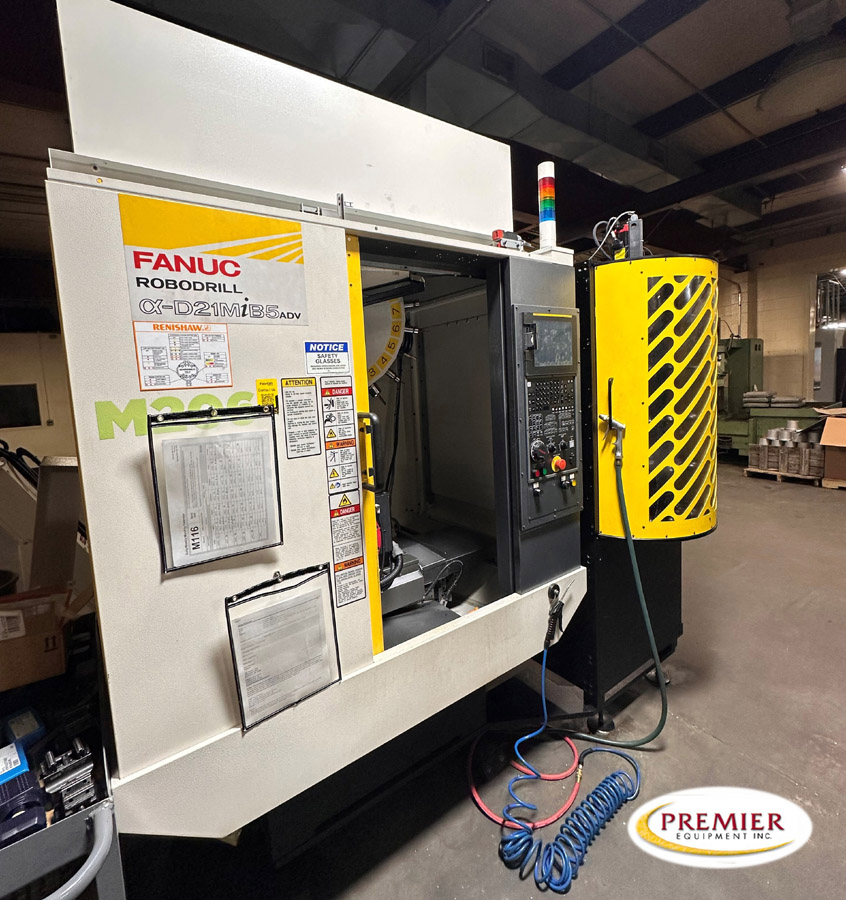

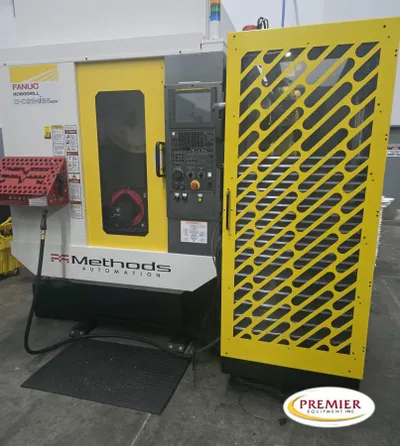

Fanuc Robodrill α-D21MiB5ADV with Fanuc Robot CNC Drill Tap – 2022
Specifications (subject to buyer verification):
Travel X/Y/Z19.69” x 15.75” x 15.75”
Max. tool length (0–24,000 rpm) 9.84”
Max. tool diameter 3.93”
Table size 25.59” x 15.75”
Max. table load 880 lbs
Max. tool mass (0–24,000 rpm) 8.8 lbs
Distance from spindle nose to table (with HC100) 7.08” – 22.83”
Spindle speed 24,000 RPM
Taper BT30 Big Plus
Rapid traverse in all axes 2125 IPM
Programmable cutting feed 1181 IPM
Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6
Number of tools 21 ATC
Tool change time (2 kg-tool) (cut to cut) s 1.3 sec
Machine Weight 4000 lbs
Equipped With  (subject to buyer verification):
Fanuc Series 31i-Model B5
21 ATC
24K ADV
Robot Ready 100mm
Plus-E Accessories Kit Prepped
Base Pallet, Plus-E (15)
CC Scraper LH+ Tank
HPC Unit 1000psi
RMP400 + RTS HSS DiB5 Combo Probes
DTTiB Double Torque 5 Axis Table
Fanuc Package B – High Speed 5 Axis DiB5
2 Valve Pneu Fixture DiB5
2 Clamp/Unclamp Push Buttons, ROBO
DTT-260iB Schunk KSP-100 Adapter Kit

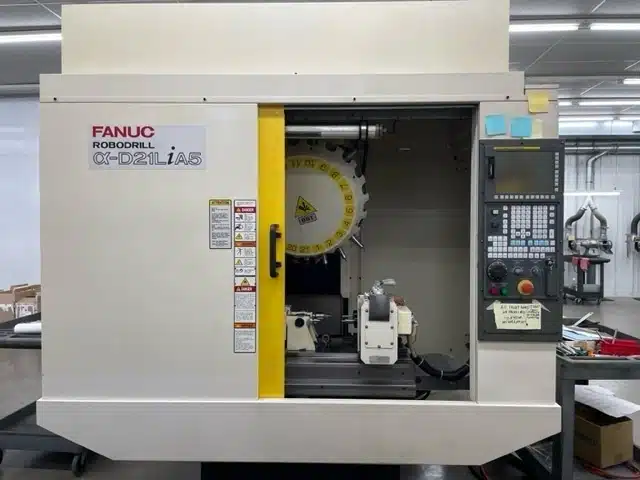

FANUC ROBODRILL Alpha D21LiA5 For Sale The FANUC ROBODRILL Alpha D21LiA5 is a high-performance machining center featuring a travel capacity of 27.6 inches on the X-axis, 15.7 inches on the Y-axis, and 13 inches on the Z-axis. Powered by an 18.7 hp motor, it operates at a spindle speed of 24,000 RPM, with a 21-tool Automatic Tool Changer (ATC) and a BBT-30 Big Plus taper. The machine includes a table measuring 33.5 inches in width and 16.1 inches in length, and it is capable of 4-axis machining. It is equipped with a Fanuc 31-i Model B5 control, twin 4th Axis Rotary Tables, Koma 5C collets, and has recorded 3,112 operational hours as of May 26, 2023.

FANUC ROBODRILL Alpha D21LiA5 For Sale The FANUC ROBODRILL Alpha D21LiA5 is a high-performance machining center featuring a travel capacity of 27.6 inches on the X-axis, 15.7 inches on the Y-axis, and 13 inches on the Z-axis. Powered by an 18.7 hp motor, it operates at a spindle speed of 24,000 RPM, with a 21-tool Automatic Tool Changer (ATC) and a BBT-30 Big Plus taper. The machine includes a table measuring 33.5 inches in width and 16.1 inches in length, and it is capable of 4-axis machining. It is equipped with a Fanuc 31-i Model B5 control, twin 4th Axis Rotary Tables, Koma 5C collets, and has recorded 3,112 operational hours as of May 26, 2023. FANUC ROBODRILL ALPHA D21LIA5 SPECIFICATIONS: X-Axis: 27.6″ Y-Axis: 15.7″ Z-Axis: 13″ POWER: 18.7 hp RPM: 24,000 RPM # ATC: 21 TAPER: BBT-30 Big Plus TABLE-W: 33.5″ TABLE-L: 16.1″ # AXIS: 4 EQUIPPED WITH: * Fanuc control : 31-i Model B5 Twin 4th Axis Rotary Tables *Koma 5C collets. *Hours as of May 26, 2023: 3,112.

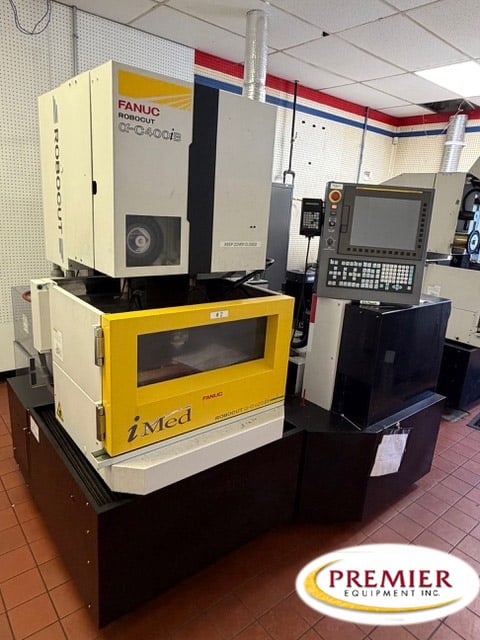

FANUC ROBOCUT C400iB CNC Wire Cutting Machine Standard specifications: Maximum workpiece dimensions [mm]……….. 730 x 630 x 250 Maximum workpiece weight [kg]…………… 500 XY axis table travel [mm]………………. 400 × 300 Z axis travel [mm]…………………….. 255 UV axis travel [mm]……………………. 120 × 120 Maximum taper angle [ ° / mm]…………… ± 30° / 80 Minimum step increment of the drives [mm]… 0,0001 Wire diameter [mm]…………………….. Ø 0.10 ~ Ø 0.30 Maximum wire weight [kg]……………….. 16 Footprint (W/D) [mm]…………………… 1990 × 2200 Machine weight (approx.) [kg]…………… 1800 Machine Dimensions LxDxH…………….1990 x 2120 x 1960 Controller……………………………. FANUC 31i-W Model B Part program storage size………………. 4 MB

FANUC ROBOCUT C400iB CNC Wire Cutting Machine Standard specifications: Maximum workpiece dimensions [mm]……….. 730 x 630 x 250 Maximum workpiece weight [kg]…………… 500 XY axis table travel [mm]………………. 400 × 300 Z axis travel [mm]…………………….. 255 UV axis travel [mm]……………………. 120 × 120 Maximum taper angle [ ° / mm]…………… ± 30° / 80 Minimum step increment of the drives [mm]… 0,0001 Wire diameter [mm]…………………….. Ø 0.10 ~ Ø 0.30 Maximum wire weight [kg]……………….. 16 Footprint (W/D) [mm]…………………… 1990 × 2200 Machine weight (approx.) [kg]…………… 1800 Machine Dimensions LxDxH…………….1990 x 2120 x 1960 Controller……………………………. FANUC 31i-W Model B Part program storage size………………. 4 MB

Fanuc Robodrill D21LiA5 Two Machines & Fanuc M20iA Robot Pallet Machining Cell Specifications (subject to buyer verification): Pallet Size 33.5″ x 16.1″ Table Capacity 660 lbs X Axis Travel 27.6″ Y Axis Travel 15.7″ Z Axis Travel 13″ Spindle to Table 5.9” – 18.9” Spindle Speed 24,000 RPM Taper 30 Rapid Traverse Rate (X,Y,Z) 2125 IPM Tool Positions 21 Chip to Chip Change Time 1.6 sec Max Tool Length / Diameter 9.8” / 3.14” Machine Size 84” x 95” x 88” Machine Weight 4,620 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-B5 1-Fanuc M20iA Robot Royal FX900 Mist Collector ChipBlaster D30-70 High Pressure Coolant Cell contains 2 Fanuc Alpha-D21LiA5 RoboDrills , 1 Fanuc M20iA robot (F139741), 2 Royal FX900 mist collectors, 2 ChipBlaster D30-70 High Pressure Units, PLC, HMI, pallet frame, and machining pallets. Machining pallets are hand loaded by an operator. Operator uses a special torque wrench that is connected to the Torque Monitor to verify the parts are torqued to spec before letting the robot to pick up the pallet. Pallets are identified by a series of proximity switches and steel inserts to very the pallet matches the pallets the machine program is running (example in Pallet Identification photo. If these items are verified the robot will pick up the pallet using ball lock grippers when the operator clears the light curtain and activates the operator switch by swiping their finger on it. Robot loads the pallet in the machine (right side pallets go to MV-17 and left side pallets go to MV-18 when looking from loading station). The pallet is clamped in the machine using air clamps. If finished pallet is in the machine, the DDR will rotate the finished pallet to the top so the robot can pick from the machine. The machine unclamps the finished pallet and robot picks the pallet using the ball lock grippers then exits the machine. Once the robot has exited the robot door closes and the machine starts machining. The robot sets the finished pallet on the load station for the operator to unload and reload.

Fanuc Robodrill D21LiA5 Two Machines & Fanuc M20iA Robot Pallet Machining Cell Specifications (subject to buyer verification): Pallet Size 33.5″ x 16.1″ Table Capacity 660 lbs X Axis Travel 27.6″ Y Axis Travel 15.7″ Z Axis Travel 13″ Spindle to Table 5.9” – 18.9” Spindle Speed 24,000 RPM Taper 30 Rapid Traverse Rate (X,Y,Z) 2125 IPM Tool Positions 21 Chip to Chip Change Time 1.6 sec Max Tool Length / Diameter 9.8” / 3.14” Machine Size 84” x 95” x 88” Machine Weight 4,620 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-B5 1-Fanuc M20iA Robot Royal FX900 Mist Collector ChipBlaster D30-70 High Pressure Coolant Cell contains 2 Fanuc Alpha-D21LiA5 RoboDrills , 1 Fanuc M20iA robot (F139741), 2 Royal FX900 mist collectors, 2 ChipBlaster D30-70 High Pressure Units, PLC, HMI, pallet frame, and machining pallets. Machining pallets are hand loaded by an operator. Operator uses a special torque wrench that is connected to the Torque Monitor to verify the parts are torqued to spec before letting the robot to pick up the pallet. Pallets are identified by a series of proximity switches and steel inserts to very the pallet matches the pallets the machine program is running (example in Pallet Identification photo. If these items are verified the robot will pick up the pallet using ball lock grippers when the operator clears the light curtain and activates the operator switch by swiping their finger on it. Robot loads the pallet in the machine (right side pallets go to MV-17 and left side pallets go to MV-18 when looking from loading station). The pallet is clamped in the machine using air clamps. If finished pallet is in the machine, the DDR will rotate the finished pallet to the top so the robot can pick from the machine. The machine unclamps the finished pallet and robot picks the pallet using the ball lock grippers then exits the machine. Once the robot has exited the robot door closes and the machine starts machining. The robot sets the finished pallet on the load station for the operator to unload and reload.

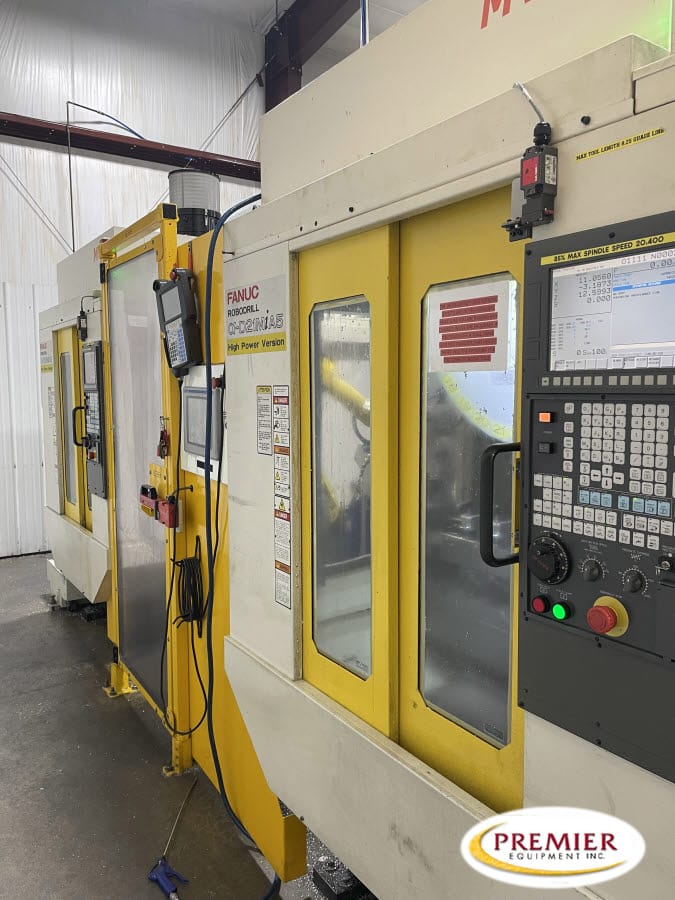

Fanuc Robodrill α-D21MiA5 2-Machines & 1-Fanuc M10iA/10M Robot Progressive Machining Cell

Fanuc Robodrill α-D21MiA5 2-Machines & 1-Fanuc M10iA/10M Robot Progressive Machining Cell Specifications (subject to buyer verification): Table size 25.6” x 15.7” Max. table load 660 lbs Travel X/Y/Z19.7” x 15.7” x 13” Distance from spindle nose to table 5.9” – 18.9” Spindle speed 24,000 RPM Spindle Motor 5.4 HP (cont.) Rapid traverse in all axes 2125 IPM Programmable cutting feed 1181 IPM Acceleration 1.5 G Number of tools 21 ATC Spindle Taper BT30 Max. tool length 9.8” Max. tool diameter 3.14” Max. tool mass 4.4 lbs Tool change time (chip to chip) 1.6 sec Machine Size with Coolant Tank 62” x 94.9” x 88.1” Machine Weight 4400 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-Model B5 Fanuc M10iA/10M Robot Royal FX900 Mist Collector Chip Blaster D30-70 High Pressure Unit – 1000 PSI Parts Rack and Flip Station Progressive Machining Cell (MV-19 & MV-20) Cell contains 2 Fanuc Alpha-D21MiA5 RoboDrills , 1 Fanuc M10iA/10M robot (F167515), 2 Royal FX900 mist collectors, 2 ChipBlaster D30-70 High Pressure Units, PLC, HMI, parts rack, and flip station. Raw Stock is loaded by an operator on the infeed gravity conveyors outside of the cell. The raw stock is picked up by the robot inside the cell, 2 pieces at a time. Parts are measured for acceptable length and loaded in to machine 1 (MV-19) to machine op10. Once op10 is completed, parts are removed from machine 1 (MV-19) by the robot and another set of raw stock is loaded by the robot. The robot sets the op10 parts in the flip station by the robot. Flip station rotates the parts over so the robot can pick up from the opposite side. Robot picks up op10 parts from flip station and loads in machine 2 (MV-20) to finish machining. Once parts are finished in machine 2 (MV-20) they are unloaded by the robot and the next set of op10 parts is loaded. The finished parts are then set on the finished parts gravity conveyor by the robot. The parts slide down the conveyor out of the cell for the operator to inspect and unload.

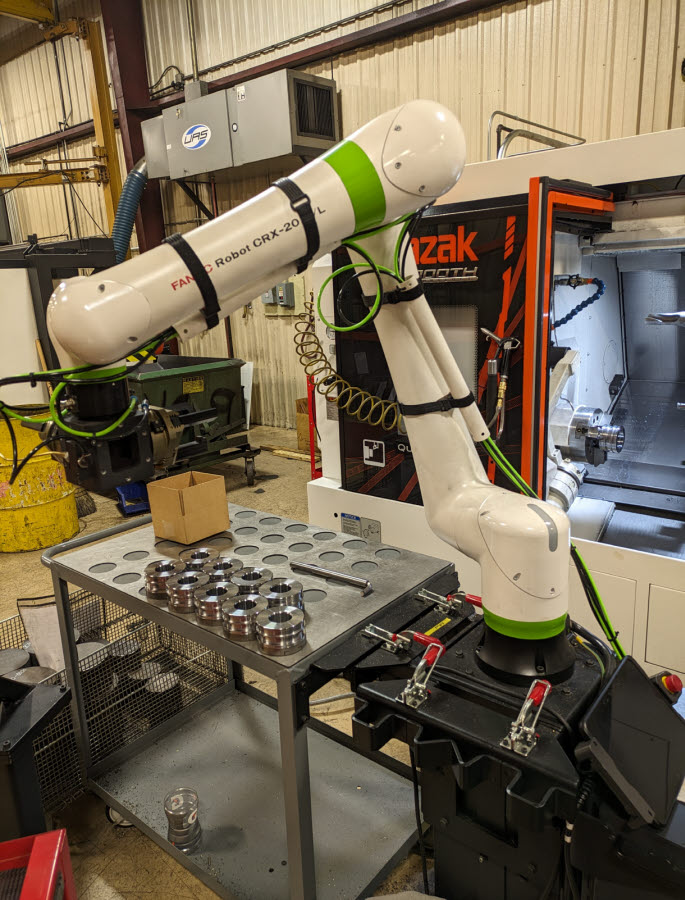

Fanuc CRX20iAL Robot Fanuc CRX2OiAL Robot . 6 axis I 1418 mm reach I 20 KG payload . Base configuration with ethernet l/P adapter software option System Base . Hardware package consisting of: – Adjustable height robot pedestalwith controller hanger . Casters and Floor Locating Brackets – Casters – Floor mounted locating brackets Part Handling – Dual Schunk Pneumatic – 2 or 3 Jaw . Hardware package consisting of: – (2) Schunk pneumatic grippers – Fabricated mounting bracket – Valve package – Pneumatic filter/regulator – Dress out kit . Part handling package additions – Part specific gripper fingers x One set ((2) or (3) fingers) per gripper module x Customer to specify part orientation and grip location Air Blow-Off . Blow-off nozzle and mount . Pneumatic valve package . Valve connected to l/O block . lnterface wiring and pneumatic lines routed in containment package l/O Expansion . Hardware package consisting of: – (8) Digital inputs -24VDC – (8) Digitaloutputs -24VDC – 25′ Ethernet cable for robot side – Customer is responsible for termination of wire to equipment – *Sold New in 2022

Fanuc CRX20iAL Robot Fanuc CRX2OiAL Robot . 6 axis I 1418 mm reach I 20 KG payload . Base configuration with ethernet l/P adapter software option System Base . Hardware package consisting of: – Adjustable height robot pedestalwith controller hanger . Casters and Floor Locating Brackets – Casters – Floor mounted locating brackets Part Handling – Dual Schunk Pneumatic – 2 or 3 Jaw . Hardware package consisting of: – (2) Schunk pneumatic grippers – Fabricated mounting bracket – Valve package – Pneumatic filter/regulator – Dress out kit . Part handling package additions – Part specific gripper fingers x One set ((2) or (3) fingers) per gripper module x Customer to specify part orientation and grip location Air Blow-Off . Blow-off nozzle and mount . Pneumatic valve package . Valve connected to l/O block . lnterface wiring and pneumatic lines routed in containment package l/O Expansion . Hardware package consisting of: – (8) Digital inputs -24VDC – (8) Digitaloutputs -24VDC – 25′ Ethernet cable for robot side – Customer is responsible for termination of wire to equipment – *Sold New in 2022

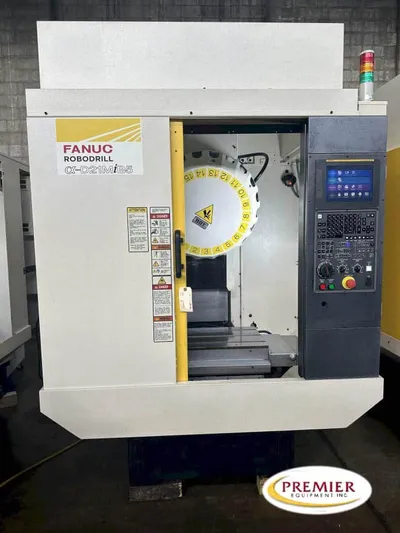

FANUC Robodrill α-D21MiB5 Machining Centers, Vertical Specifications Type of CNC Control Fanuc Series 31i-B5 CNC Control # Axis 3 Table Size 25.6″ x 15.75″ Table Load Capacity 661 LBS X-Axis (Longitudinal Travel) 19.7″ Y-Axis (Cross Travel) 15.7″ Z-Axis (Vertical Travel) 12.9″ Max/Min Clearance Table Top to Spindle Nose 22.8″ / 9.84″ Feed Rates, All Axes 1,181 IPM Rapid Traverse Rate, All Axes 2,125 IPM Max Spindle RPM 24,000 RPM Spindle Taper BT30 Coolant Thru Spindle yes Automatic Tool Changer Capacity (ATC) 21 Tool Change Time 1.6 Sec Electrics 220/3/60 Approximate Machine Dimensions 63″ x 63″ Approximate Machine Height 90″ Approximate Machine Weight 4,850 LBS Equipped With Fanuc Series 31i-B5 CNC Control, 24000 RPM Spindle, Renishaw OMP40-2 Part Probe, Mist Collector, Coolant Tank

Fanuc Robodrill α-D21MiB5ADV with Fanuc Robot CNC Drill Tap Specifications (subject to buyer verification): Travel X/Y/Z19.69” x 15.75” x 15.75” Max. tool length (0–24,000 rpm) 9.84” Max. tool diameter 3.93” Table size 25.59” x 15.75” Max. table load 880 lbs Max. tool mass (0–24,000 rpm) 8.8 lbs Distance from spindle nose to table (with HC100) 7.08” – 22.83” Spindle speed 24,000 RPM Taper BT30 Big Plus Rapid traverse in all axes 2125 IPM Programmable cutting feed 1181 IPM Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6 Number of tools 21 ATC Tool change time (2 kg-tool) (cut to cut) s 1.3 sec Machine Weight 4000 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-Model B5 21 ATC 24K ADV Robot Ready 100mm Plus-E Accessories Kit Prepped Base Pallet, Plus-E (15) CC Scraper LH+ Tank HPC Unit 1000psi RMP400 + RTS HSS DiB5 Combo Probes DTTiB Double Torque 5 Axis Table Fanuc Package B – High Speed 5 Axis DiB5 2 Valve Pneu Fixture DiB5 2 Clamp/Unclamp Push Buttons, ROBO DTT-260iB Schunk KSP-100 Adapter Kit

Fanuc Robodrill α-D21MiB5ADV with Fanuc Robot CNC Drill Tap Specifications (subject to buyer verification): Travel X/Y/Z19.69” x 15.75” x 15.75” Max. tool length (0–24,000 rpm) 9.84” Max. tool diameter 3.93” Table size 25.59” x 15.75” Max. table load 880 lbs Max. tool mass (0–24,000 rpm) 8.8 lbs Distance from spindle nose to table (with HC100) 7.08” – 22.83” Spindle speed 24,000 RPM Taper BT30 Big Plus Rapid traverse in all axes 2125 IPM Programmable cutting feed 1181 IPM Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6 Number of tools 21 ATC Tool change time (2 kg-tool) (cut to cut) s 1.3 sec Machine Weight 4000 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-Model B5 21 ATC 24K ADV Robot Ready 100mm Plus-E Accessories Kit Prepped Base Pallet, Plus-E (15) CC Scraper LH+ Tank HPC Unit 1000psi RMP400 + RTS HSS DiB5 Combo Probes DTTiB Double Torque 5 Axis Table Fanuc Package B – High Speed 5 Axis DiB5 2 Valve Pneu Fixture DiB5 2 Clamp/Unclamp Push Buttons, ROBO DTT-260iB Schunk KSP-100 Adapter Kit Manufactured in 2021 / Installed New in 2022

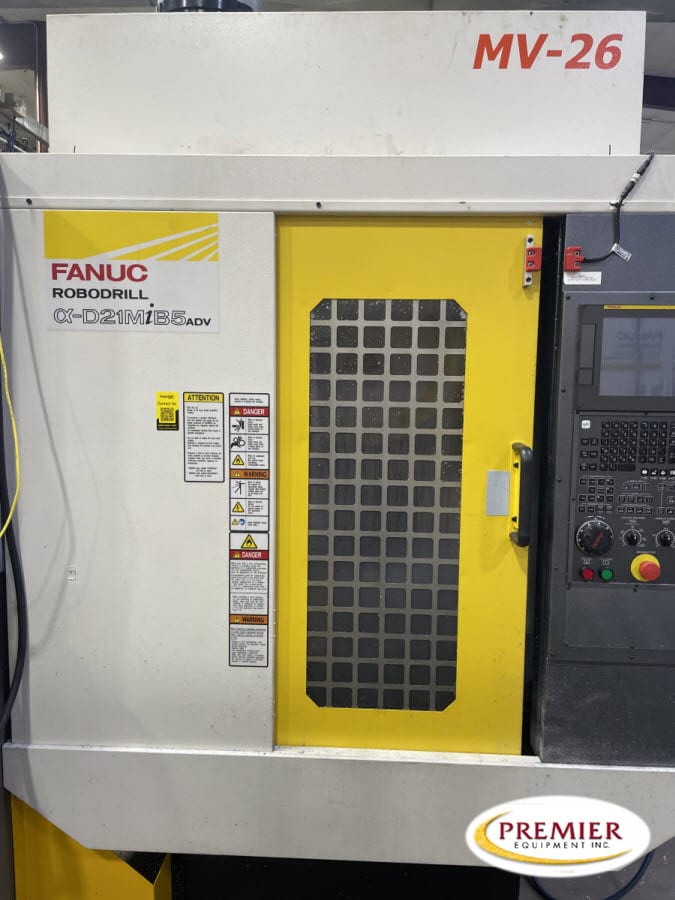

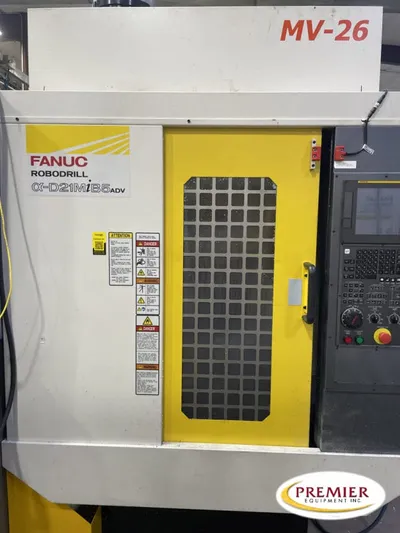

Fanuc Robodrill α-D21MiB5ADV CNC Drill Tap with Rotary Table Specifications (subject to buyer verification): Travel X/Y/Z19.69” x 15.75” x 15.75” Max. tool length (0–24,000 rpm) 9.84” Max. tool diameter 3.93” Table size 25.59” x 15.75” Max. table load 880 lbs Max. tool mass (0–24,000 rpm) 8.8 lbs Distance from spindle nose to table (with HC100) 7.08” – 22.83” Spindle speed 24,000 RPM Taper BT30 Rapid traverse in all axes 2125 IPM Programmable cutting feed 1181 IPM Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6 Number of tools 21 ATC Tool change time (2 kg-tool) (cut to cut) s 1.3 sec Machine Weight4000 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-Model B5 Chip Covneyor High Pressure Coolant @ 1000 PSI Royal FX900 FIltermist DDR Rotary Table Tool Taper Wash Side Auto Door

Fanuc Robodrill α-D21MiB5ADV CNC Drill Tap with Rotary Table Specifications (subject to buyer verification): Travel X/Y/Z19.69” x 15.75” x 15.75” Max. tool length (0–24,000 rpm) 9.84” Max. tool diameter 3.93” Table size 25.59” x 15.75” Max. table load 880 lbs Max. tool mass (0–24,000 rpm) 8.8 lbs Distance from spindle nose to table (with HC100) 7.08” – 22.83” Spindle speed 24,000 RPM Taper BT30 Rapid traverse in all axes 2125 IPM Programmable cutting feed 1181 IPM Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6 Number of tools 21 ATC Tool change time (2 kg-tool) (cut to cut) s 1.3 sec Machine Weight4000 lbs Equipped With (subject to buyer verification): Fanuc Series 31i-Model B5 Chip Covneyor High Pressure Coolant @ 1000 PSI Royal FX900 FIltermist DDR Rotary Table Tool Taper Wash Side Auto Door

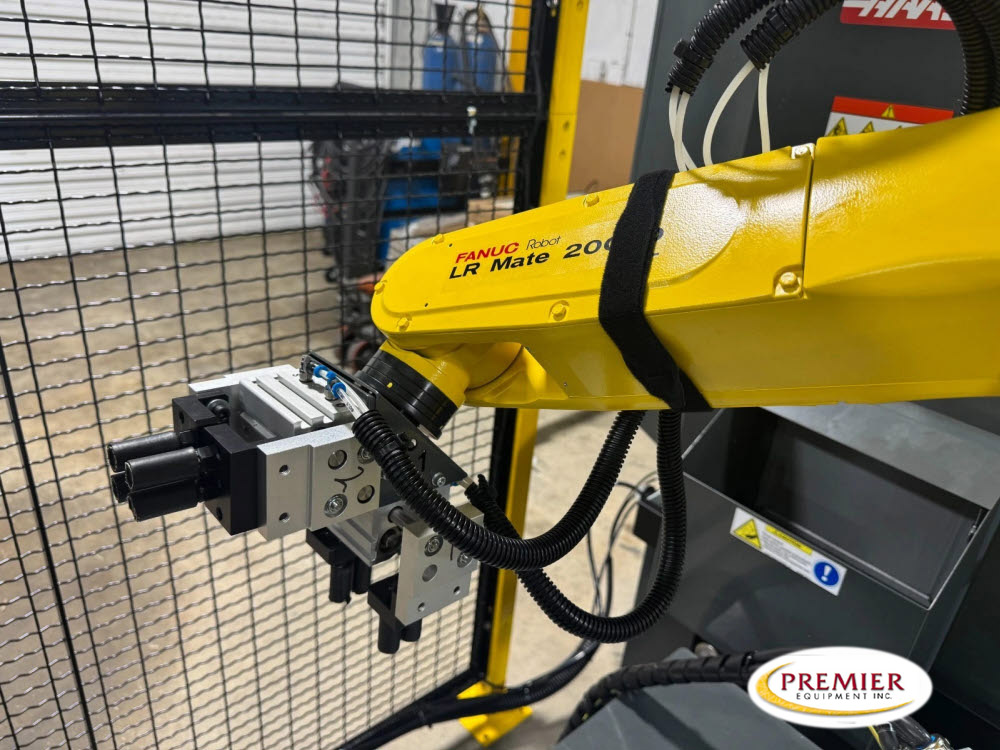

2021 Fanuc Robot LR Mate 200iD/7L package with cage and puck station FANUC LR Mate 200iD/7L Robot Puck/part staging station Full safety cage/enclosure Control cabinet & teach pendant Mounting hardware and associated components from original demo setup ChatGPT said: The FANUC LR Mate 200iD/7L is the long-arm version of FANUC’s compact 6-axis LR Mate robot. Here are the key specifications from FANUC: Specification LR Mate 200iD/7L Payload 7 kg (15.4 lb) Reach 911 mm (35.9 in) Axes 6 Repeatability ±0.01 mm Robot weight 27 kg (59.5 lb) Controller R-30iB Plus Mounting Floor, angle, inverted Body protection IP67 standard / IP69K optional Average power consumption 0.5 kW J1 range 340° J2 range 245° J3 range 430° J4 range 380° J5 range 250° J6 range 720° Maximum joint speeds Axis Speed J1 370°/s J2 310°/s J3 410°/s J4 550°/s J5 545°/s J6 1,000°/s

2021 Fanuc Robot LR Mate 200iD/7L package with cage and puck station FANUC LR Mate 200iD/7L Robot Puck/part staging station Full safety cage/enclosure Control cabinet & teach pendant Mounting hardware and associated components from original demo setup ChatGPT said: The FANUC LR Mate 200iD/7L is the long-arm version of FANUC’s compact 6-axis LR Mate robot. Here are the key specifications from FANUC: Specification LR Mate 200iD/7L Payload 7 kg (15.4 lb) Reach 911 mm (35.9 in) Axes 6 Repeatability ±0.01 mm Robot weight 27 kg (59.5 lb) Controller R-30iB Plus Mounting Floor, angle, inverted Body protection IP67 standard / IP69K optional Average power consumption 0.5 kW J1 range 340° J2 range 245° J3 range 430° J4 range 380° J5 range 250° J6 range 720° Maximum joint speeds Axis Speed J1 370°/s J2 310°/s J3 410°/s J4 550°/s J5 545°/s J6 1,000°/s

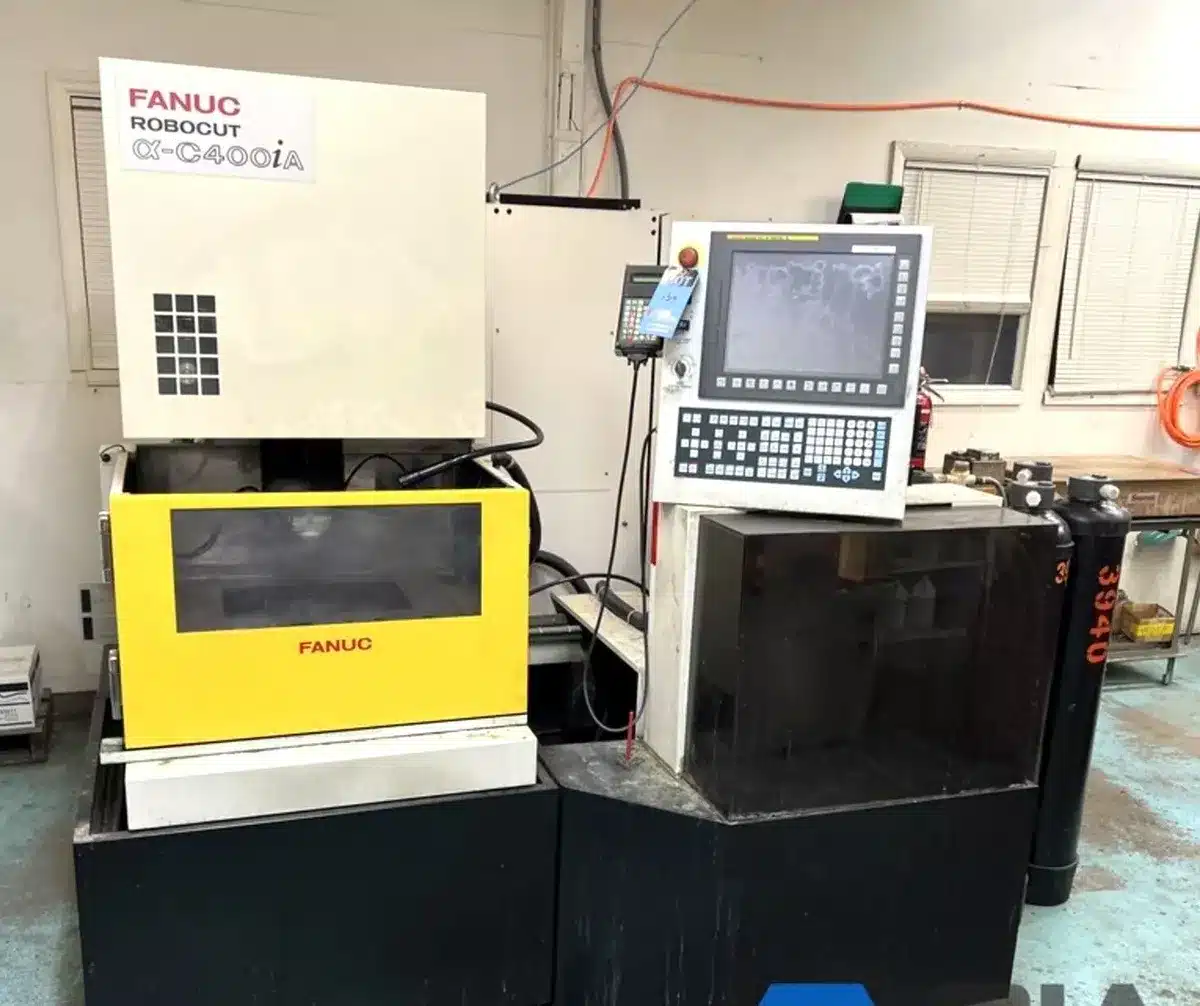

FANUC ROBOCUT A-C400IA SPECIFICATIONS: Technical Data • Main processor : (Qty. 1) 64 bit • Aux processors : (Qty. 4) 32 bit • Control method : Servo-closed loop • Controlled axes : X, Y, U, V, Z Plus optional rotary axis • Least input increment : 0.000004” • Least command increment : 0.00000004” • Interpolation: Linear, Circular • Maximum programmable dimension : ±999.99999 in. • Position command : Coordinate Systems Relative, absolute and machine values • Display unit : 15” color liquid crystal display • Position display : Five axes at a time (X, Y, U, V, Z) Seven axes at a time by option • Part program storage and editing : 4 MB (standard) • Input / output interface : RS232-C, Ethernet interface, PCMCIA-ATA style flash card, 2 USB Ports • Rapid traverse : 1 ~ 50”/ min. • Wire diameter compensation : 0 – ± 9.99999 in. A list of M & G Codes utilized by the Fanuc Control is available upon request Machine Tool Features • Floor space : 92” x 105” • Machine weight : 4,000 lbs. • Maximum cutting speed*** .012” brass wire guides 2.4 in. thick tool steel : 31 square in./hour 0.012” Coated wire 2.4” thick D2 tool steel : 33.5 square in./hour • Internal Worktank Size (X x Y x Z) : 30.5” x 23.6” x 9.8” • Maximum submerged cutting depth : 9.84” • Maximum work piece weight : 1,100 lbs • Travel X Axis : 14.6” Y Axis : 10.6” Z Axis : 10.2” UV axes travel : ± 2.362” Rapid traverse : 1 ~ 50 Work piece thickness @ taper Angle : ± 12 @ 10 in Manual threading (jet nozzle removed) ± 30 @ 3.26 in * Requires optional Diamond guides ± 45 @ 1.6 in • Positioning accuracy (X, Y) ± 0.0001 • Repeatability (X, Y) : ± 0.000050 • Axes drive motors : AC Servo Motors Direct coupled to ball screw • Wire feed system Wire feed rate : 0 ~ 590 IPM Wire tension : 200 ~ 2,500 g Maximum wire spool weight : 35 lbs Wire diameter (min. to max.) : 0.004 to 0.012” • Wire guide – upper & lower guide : Round diamond . Die guide • Dielectric fluid system Tank capacity : 145 gal Chiller unit : Standard Dielectric fluid : Deionized water Resin bottle (one plus a spare): 1 cu. ft Filters (2 each): Cartridge Filtering precision: 3 Micron Dielectric fluid resistively control: NC Controlled • Cutting conditions Automatic selection of 9 choices for 1 Cut: Standard Automatic selection of 9 choices for multiple cut: Standard Automatic selection of 3 choices for micro finish cut: Standard • Programming methods G-Code Programming: Standard Built-in easy conversational: Standard Off-line system via RS232 or Ethernet interface: Standard Power Supply Features • Power supply Pulse generator type: Transistor driven AC or DC: Switchable Power supply circuit: Transistor pulse circuit No loading voltage: Setting range 0 – 13 Cutting voltage: Setting range 3 – 18 On time: Setting range 1 – 255 Off time: Setting range 2 – 300 Servo voltage: Setting range 0 – 255 Programmable flushing: Setting range 1 – 18 Pulse mode: Setting range – 1, 2, 3, 4, 11, 12, 13, 14, 21, 31, 33, 41,43 • Total power required: 13 KVA (200/220 V ± 10%, 3 Phase, 60 Hz) (CATALOG SPECIFICATIONS) EQUIPPED WITH: • Fanuc series 31i-WB CNC control with (1) 64bit and (3) 32 bit processors • 15” Color LCD with advanced Touch Screen technology • Swivel Control Panel for easier operation • Heidenhain linear glass scales – X and Y Axis only • Fanuc serial/digital AC servo motors • NC Command Resolution of 0.00000004” • Seven (7) controlable axes (X, Y, U, V, Z, A & B) • 30 degree + taper cutting capability (optional guides required) • Absolute position encoder system for X, Y, U, V & Z axes (no need to home the machine after start-up) • Wire Tension Controlled via Twin Servo Motors (no powder brakes) • Independent column mounted U and V axis slides • Anti-Crash protection (X, Y, U, V, Z) • Fanuc high speed fully digital / AC power supply • Full Function Hand Held Pendant • Simple and Quick On-Board Conversational Programming • Servo Controlled automatic water level control in work tank • Operator guidance screens for operation, alarms, maintenance and parts • (1) RS232C • (1) Ethernet port • (2) USB Ports • (1) PCMCIA slot • Part program storage capacity 4 Megabyte (in control memory) • Automatic power recovery • Automatic restart • Wire center path calculation G41/42 • Programmable Flushing • (2) LED Work lights provide low energy consumption and low heat output. • One Set of .010” High precision die guides • Stainless Submersible Vertical Wire Alignment Gauge • Wash down hose with nozzle • Chiller unit for dielectric fluid (Inverter controlled to +/- 0.1 deg C) • Fanuc Filtration Unit ü Two (2) canister style, 3-micron paper filters ü The filters sit vertically in the front of the machine for easy access. ü The standard 1 cu. ft. resin bottle is easily changed out by quick disconnects ü Clean water is used to fill the machine work tank • Manuals (1each): operator’s, maintenance, parts, AWF, cutting technology, safety precautions (CATALOG SPECIFICATIONS)

FANUC ROBOCUT A-C400IA SPECIFICATIONS: Technical Data • Main processor : (Qty. 1) 64 bit • Aux processors : (Qty. 4) 32 bit • Control method : Servo-closed loop • Controlled axes : X, Y, U, V, Z Plus optional rotary axis • Least input increment : 0.000004” • Least command increment : 0.00000004” • Interpolation: Linear, Circular • Maximum programmable dimension : ±999.99999 in. • Position command : Coordinate Systems Relative, absolute and machine values • Display unit : 15” color liquid crystal display • Position display : Five axes at a time (X, Y, U, V, Z) Seven axes at a time by option • Part program storage and editing : 4 MB (standard) • Input / output interface : RS232-C, Ethernet interface, PCMCIA-ATA style flash card, 2 USB Ports • Rapid traverse : 1 ~ 50”/ min. • Wire diameter compensation : 0 – ± 9.99999 in. A list of M & G Codes utilized by the Fanuc Control is available upon request Machine Tool Features • Floor space : 92” x 105” • Machine weight : 4,000 lbs. • Maximum cutting speed*** .012” brass wire guides 2.4 in. thick tool steel : 31 square in./hour 0.012” Coated wire 2.4” thick D2 tool steel : 33.5 square in./hour • Internal Worktank Size (X x Y x Z) : 30.5” x 23.6” x 9.8” • Maximum submerged cutting depth : 9.84” • Maximum work piece weight : 1,100 lbs • Travel X Axis : 14.6” Y Axis : 10.6” Z Axis : 10.2” UV axes travel : ± 2.362” Rapid traverse : 1 ~ 50 Work piece thickness @ taper Angle : ± 12 @ 10 in Manual threading (jet nozzle removed) ± 30 @ 3.26 in * Requires optional Diamond guides ± 45 @ 1.6 in • Positioning accuracy (X, Y) ± 0.0001 • Repeatability (X, Y) : ± 0.000050 • Axes drive motors : AC Servo Motors Direct coupled to ball screw • Wire feed system Wire feed rate : 0 ~ 590 IPM Wire tension : 200 ~ 2,500 g Maximum wire spool weight : 35 lbs Wire diameter (min. to max.) : 0.004 to 0.012” • Wire guide – upper & lower guide : Round diamond . Die guide • Dielectric fluid system Tank capacity : 145 gal Chiller unit : Standard Dielectric fluid : Deionized water Resin bottle (one plus a spare): 1 cu. ft Filters (2 each): Cartridge Filtering precision: 3 Micron Dielectric fluid resistively control: NC Controlled • Cutting conditions Automatic selection of 9 choices for 1 Cut: Standard Automatic selection of 9 choices for multiple cut: Standard Automatic selection of 3 choices for micro finish cut: Standard • Programming methods G-Code Programming: Standard Built-in easy conversational: Standard Off-line system via RS232 or Ethernet interface: Standard Power Supply Features • Power supply Pulse generator type: Transistor driven AC or DC: Switchable Power supply circuit: Transistor pulse circuit No loading voltage: Setting range 0 – 13 Cutting voltage: Setting range 3 – 18 On time: Setting range 1 – 255 Off time: Setting range 2 – 300 Servo voltage: Setting range 0 – 255 Programmable flushing: Setting range 1 – 18 Pulse mode: Setting range – 1, 2, 3, 4, 11, 12, 13, 14, 21, 31, 33, 41,43 • Total power required: 13 KVA (200/220 V ± 10%, 3 Phase, 60 Hz) (CATALOG SPECIFICATIONS) EQUIPPED WITH: • Fanuc series 31i-WB CNC control with (1) 64bit and (3) 32 bit processors • 15” Color LCD with advanced Touch Screen technology • Swivel Control Panel for easier operation • Heidenhain linear glass scales – X and Y Axis only • Fanuc serial/digital AC servo motors • NC Command Resolution of 0.00000004” • Seven (7) controlable axes (X, Y, U, V, Z, A & B) • 30 degree + taper cutting capability (optional guides required) • Absolute position encoder system for X, Y, U, V & Z axes (no need to home the machine after start-up) • Wire Tension Controlled via Twin Servo Motors (no powder brakes) • Independent column mounted U and V axis slides • Anti-Crash protection (X, Y, U, V, Z) • Fanuc high speed fully digital / AC power supply • Full Function Hand Held Pendant • Simple and Quick On-Board Conversational Programming • Servo Controlled automatic water level control in work tank • Operator guidance screens for operation, alarms, maintenance and parts • (1) RS232C • (1) Ethernet port • (2) USB Ports • (1) PCMCIA slot • Part program storage capacity 4 Megabyte (in control memory) • Automatic power recovery • Automatic restart • Wire center path calculation G41/42 • Programmable Flushing • (2) LED Work lights provide low energy consumption and low heat output. • One Set of .010” High precision die guides • Stainless Submersible Vertical Wire Alignment Gauge • Wash down hose with nozzle • Chiller unit for dielectric fluid (Inverter controlled to +/- 0.1 deg C) • Fanuc Filtration Unit ü Two (2) canister style, 3-micron paper filters ü The filters sit vertically in the front of the machine for easy access. ü The standard 1 cu. ft. resin bottle is easily changed out by quick disconnects ü Clean water is used to fill the machine work tank • Manuals (1each): operator’s, maintenance, parts, AWF, cutting technology, safety precautions (CATALOG SPECIFICATIONS)
