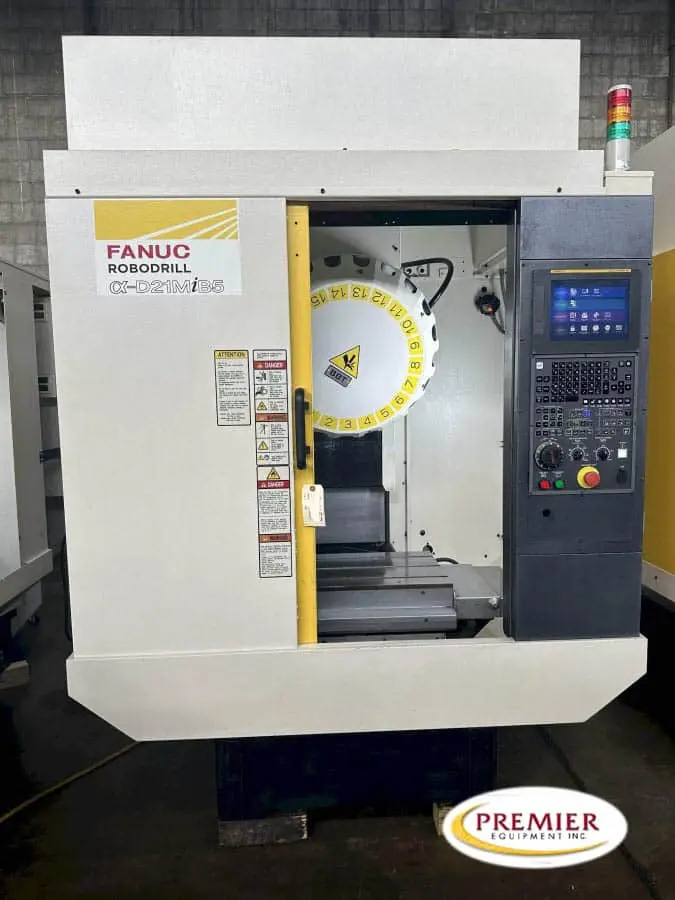

Fanuc Robodrill D21MiB5 – 2017 (Sold)
Fanuc Robodrill D21MiB5 – 2017 (Sold)
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Fanuc
Model
Robodrill D21MiB5
Hours of Usage
-
Year of Manufacture
2017
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Y Axis Travel
16"
X Axis Travel
20"
Taper
30
Spindle Speed
24,000 RPM
Z Axis Travel
13"
Used Cnc Brands
Fanuc
Control
Fanuc
Spindle Nose
22.8″ / 9.84″ Feed Rates, All Axes 1,181 IPM Rapid Traverse Rate, All Axes 2,125 IPM Max
Weight
4,850 LBS
Control
FANUC Robodrill α-D21MiB5 Machining Centers
Description
FANUC Robodrill α-D21MiB5 Machining Centers, Vertical Specifications Type of CNC Control Fanuc Series 31i-B5 CNC Control # Axis 3 Table Size 25.6″ x 15.75″ Table Load Capacity 661 LBS X-Axis (Longitudinal Travel) 19.7″ Y-Axis (Cross Travel) 15.7″ Z-Axis (Vertical Travel) 12.9″ Max/Min Clearance Table Top to Spindle Nose 22.8″ / 9.84″ Feed Rates, All Axes 1,181 IPM Rapid Traverse Rate, All Axes 2,125 IPM Max Spindle RPM 24,000 RPM Spindle Taper BT30 Coolant Thru Spindle yes Automatic Tool Changer Capacity (ATC) 21 Tool Change Time 1.6 Sec Electrics 220/3/60 Approximate Machine Dimensions 63″ x 63″ Approximate Machine Height 90″ Approximate Machine Weight 4,850 LBS Equipped With Fanuc Series 31i-B5 CNC Control, 24000 RPM Spindle, Renishaw OMP40-2 Part Probe, Mist Collector, Coolant Tank
