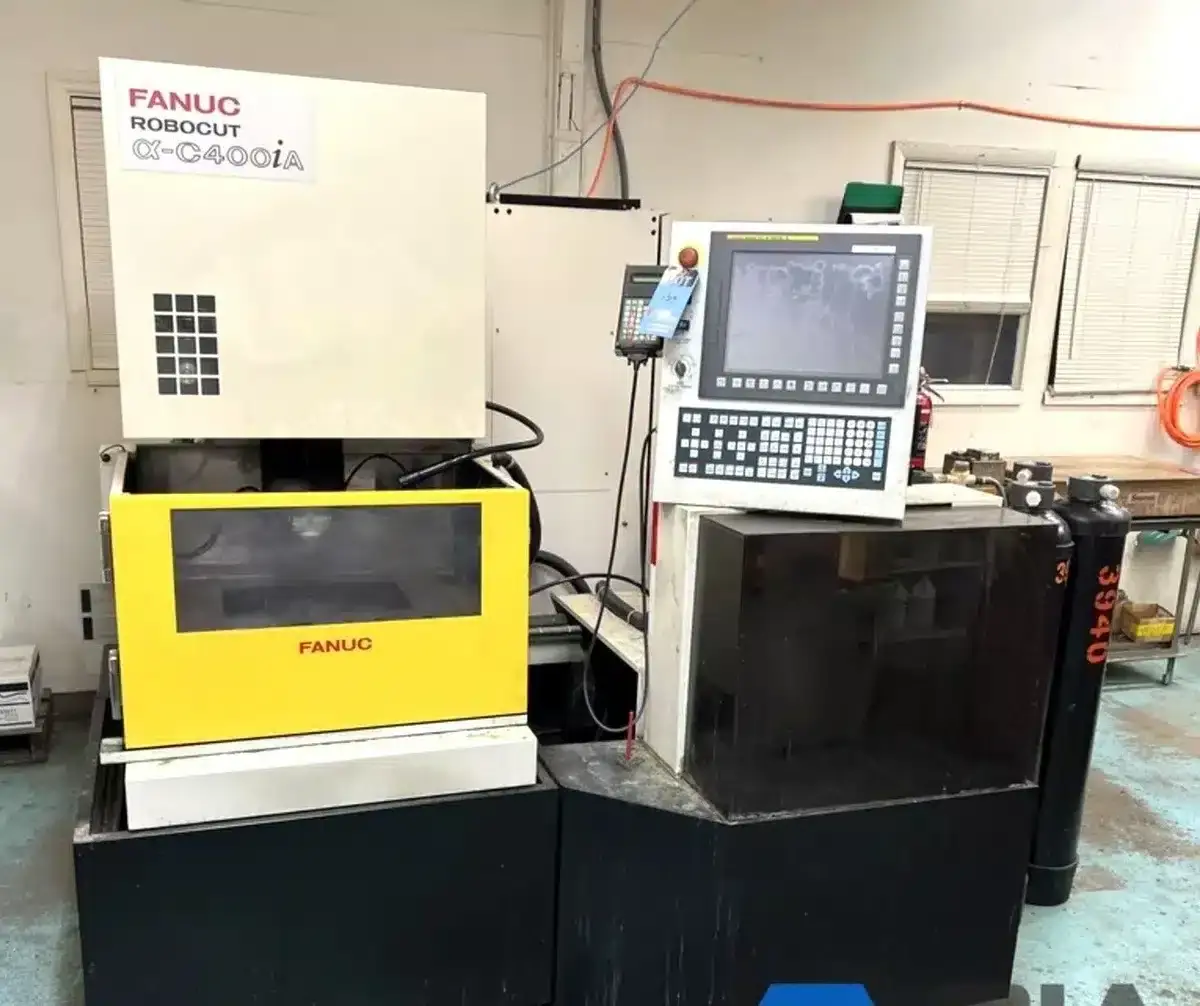

FANUC ROBOCUT A-C400IA SPECIFICATIONS: Technical Data • Main processor : (Qty. 1) 64 bit • Aux processors : (Qty. 4) 32 bit • Control method : Servo-closed loop • Controlled axes : X, Y, U, V, Z Plus optional rotary axis • Least input increment : 0.000004” • Least command increment : 0.00000004” • Interpolation: Linear, Circular • Maximum programmable dimension : ±999.99999 in. • Position command : Coordinate Systems Relative, absolute and machine values • Display unit : 15” color liquid crystal display • Position display : Five axes at a time (X, Y, U, V, Z) Seven axes at a time by option • Part program storage and editing : 4 MB (standard) • Input / output interface : RS232-C, Ethernet interface, PCMCIA-ATA style flash card, 2 USB Ports • Rapid traverse : 1 ~ 50”/ min. • Wire diameter compensation : 0 – ± 9.99999 in. A list of M & G Codes utilized by the Fanuc Control is available upon request Machine Tool Features • Floor space : 92” x 105” • Machine weight : 4,000 lbs. • Maximum cutting speed*** .012” brass wire guides 2.4 in. thick tool steel : 31 square in./hour 0.012” Coated wire 2.4” thick D2 tool steel : 33.5 square in./hour • Internal Worktank Size (X x Y x Z) : 30.5” x 23.6” x 9.8” • Maximum submerged cutting depth : 9.84” • Maximum work piece weight : 1,100 lbs • Travel X Axis : 14.6” Y Axis : 10.6” Z Axis : 10.2” UV axes travel : ± 2.362” Rapid traverse : 1 ~ 50 Work piece thickness @ taper Angle : ± 12 @ 10 in Manual threading (jet nozzle removed) ± 30 @ 3.26 in * Requires optional Diamond guides ± 45 @ 1.6 in • Positioning accuracy (X, Y) ± 0.0001 • Repeatability (X, Y) : ± 0.000050 • Axes drive motors : AC Servo Motors Direct coupled to ball screw • Wire feed system Wire feed rate : 0 ~ 590 IPM Wire tension : 200 ~ 2,500 g Maximum wire spool weight : 35 lbs Wire diameter (min. to max.) : 0.004 to 0.012” • Wire guide – upper & lower guide : Round diamond . Die guide • Dielectric fluid system Tank capacity : 145 gal Chiller unit : Standard Dielectric fluid : Deionized water Resin bottle (one plus a spare): 1 cu. ft Filters (2 each): Cartridge Filtering precision: 3 Micron Dielectric fluid resistively control: NC Controlled • Cutting conditions Automatic selection of 9 choices for 1 Cut: Standard Automatic selection of 9 choices for multiple cut: Standard Automatic selection of 3 choices for micro finish cut: Standard • Programming methods G-Code Programming: Standard Built-in easy conversational: Standard Off-line system via RS232 or Ethernet interface: Standard Power Supply Features • Power supply Pulse generator type: Transistor driven AC or DC: Switchable Power supply circuit: Transistor pulse circuit No loading voltage: Setting range 0 – 13 Cutting voltage: Setting range 3 – 18 On time: Setting range 1 – 255 Off time: Setting range 2 – 300 Servo voltage: Setting range 0 – 255 Programmable flushing: Setting range 1 – 18 Pulse mode: Setting range – 1, 2, 3, 4, 11, 12, 13, 14, 21, 31, 33, 41,43 • Total power required: 13 KVA (200/220 V ± 10%, 3 Phase, 60 Hz) (CATALOG SPECIFICATIONS) EQUIPPED WITH: • Fanuc series 31i-WB CNC control with (1) 64bit and (3) 32 bit processors • 15” Color LCD with advanced Touch Screen technology • Swivel Control Panel for easier operation • Heidenhain linear glass scales – X and Y Axis only • Fanuc serial/digital AC servo motors • NC Command Resolution of 0.00000004” • Seven (7) controlable axes (X, Y, U, V, Z, A & B) • 30 degree + taper cutting capability (optional guides required) • Absolute position encoder system for X, Y, U, V & Z axes (no need to home the machine after start-up) • Wire Tension Controlled via Twin Servo Motors (no powder brakes) • Independent column mounted U and V axis slides • Anti-Crash protection (X, Y, U, V, Z) • Fanuc high speed fully digital / AC power supply • Full Function Hand Held Pendant • Simple and Quick On-Board Conversational Programming • Servo Controlled automatic water level control in work tank • Operator guidance screens for operation, alarms, maintenance and parts • (1) RS232C • (1) Ethernet port • (2) USB Ports • (1) PCMCIA slot • Part program storage capacity 4 Megabyte (in control memory) • Automatic power recovery • Automatic restart • Wire center path calculation G41/42 • Programmable Flushing • (2) LED Work lights provide low energy consumption and low heat output. • One Set of .010” High precision die guides • Stainless Submersible Vertical Wire Alignment Gauge • Wash down hose with nozzle • Chiller unit for dielectric fluid (Inverter controlled to +/- 0.1 deg C) • Fanuc Filtration Unit ü Two (2) canister style, 3-micron paper filters ü The filters sit vertically in the front of the machine for easy access. ü The standard 1 cu. ft. resin bottle is easily changed out by quick disconnects ü Clean water is used to fill the machine work tank • Manuals (1each): operator’s, maintenance, parts, AWF, cutting technology, safety precautions (CATALOG SPECIFICATIONS)
