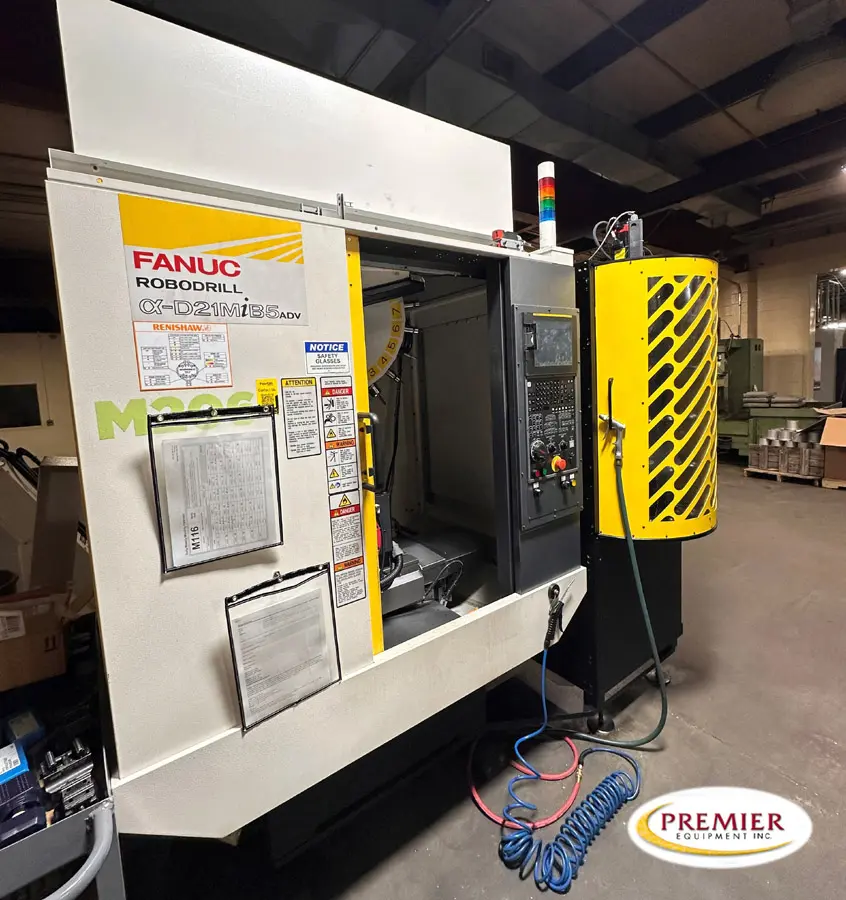

Fanuc Robodrill D21MiB5ADV with Robot – 2021
Fanuc Robodrill D21MiB5ADV with Robot – 2021
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Fanuc
Model
Robodrill D21MiB5ADV
Hours of Usage
-
Year of Manufacture
2021
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
Fanuc Robodrill α-D21MiB5ADV with Plus-K Automation CNC Drill Tap
Y Axis Travel
16"
X Axis Travel
20"
Taper
30
Spindle Speed
24,000 RPM
Z Axis Travel
13"
Used Cnc Brands
Fanuc
Control
Fanuc
5 Axis
Yes
Through Spindle Coolant
Yes
Description
Fanuc Robodrill α-D21MiB5ADV with Plus-K Automation CNC Drill Tap Fanuc Robodrill α-D21MiB5ADV with Plus-K Automation CNC Drill Tap Specifications (subject to buyer verification): Travel X/Y/Z19.69” x 15.75” x 15.75” Max. tool length (0–24,000 rpm) 9.84” Max. tool diameter 3.93” Table size 25.59” x 15.75” Max. table load 880 lbs Max. tool mass (0–24,000 rpm) 8.8 lbs Distance from spindle nose to table (with HC100) 7.08” – 22.83” Spindle speed 24,000 RPM Taper BT30 Big Plus Rapid traverse in all axes 2125 IPM Programmable cutting feed 1181 IPM Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6 Number of tools 44+60 ATC Tool change time (2 kg-tool) (cut to cut) s 1.3 sec Machine Weight 4000 lbs Plus-K specifications (subject to buyer verification): PALLET Pallet Storage ¾” between pallets for 32 pallets / 1 ½” between pallets for 19 pallets / 4 ¼” between pallets for 8 pallets Pallet Size 6.3” x 4” x 4.7” WORK PIECE Max Weight of Part 13 lbs. parts & vise GENERAL Floor Space 67” x 30” Unit Weight 1200lbs Equipped With (subject to buyer verification): Fanuc Series 31i-Model B5 Advanced Version Touch Screen 21 ATC Fixed 60 ATC Plus-K Automation System – Fanuc Robot LR Mate 200iD: Tool Management Fixture Flush Fanuc Robodrill DDR Tilting Rotary Table HP TSC
Get in Touch with Seller About This Product
