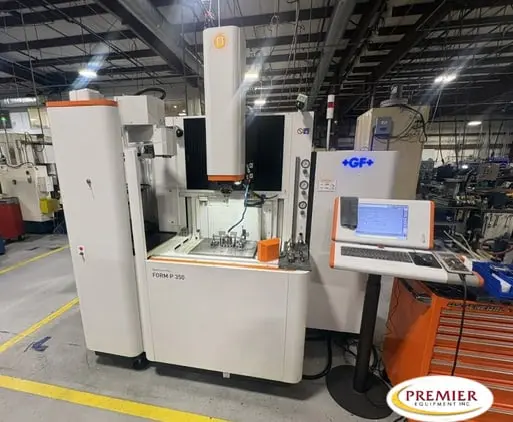

AgieCharmilles Form P 350 CNC EDM

AgieCharmilles Form P 350 CNC EDM Specifications (subject to buyer verification): Machine Architecture: C-frame/Fixed table/Drop tank Dimensions: (*) mm (in) 1900 x 1690 x 2398 / (74.80 x 66.53 x 94.4) Total weight: (without dielectric) kg (lbs) 2800 (6173) Floor space: (**) mm (in) 1900 x 1690 / (74.80 x 66.53) X, Y, Z axes X, Y, Z travel: mm (in) 350 x 250 x 300 (13.78 x 9.84 x 11.81) X, Y, axes speed: m/min (ft/min) 6 (19.7) Z axis speed: m/min (ft/min) 15 (49.2) Work area Worktank size: mm (in) 790 x 530 x 350 (31.1 x 20.87 x 13.78) Worktable size: mm (in) 500 x 400 (19.68 x 15.75) Distance floor to clamping level: mm (in) 1000 (39.37) Min./Max. distance between table and chuck: mm (in) 150/450 (5.91/17.72) Workpiece and electrode Max. electrode weight: kg (lbs) 50 (110.23) Max. workpiece weight: kg (lbs) 500 (1102.31) Max. workpiece dimensions: mm (in) 790 x 530 x 275 (31.1 x 20.87 x 10.83) Bath level (programmable): mm (in) 100 – 325 (3.94 – 12.8) Dielectric unit Capacity l: (gal) 410 (108.65) Number of filter elements and type: 4 Paper filter Equipped With (subject to buyer verification): CNC Control 32 ATC

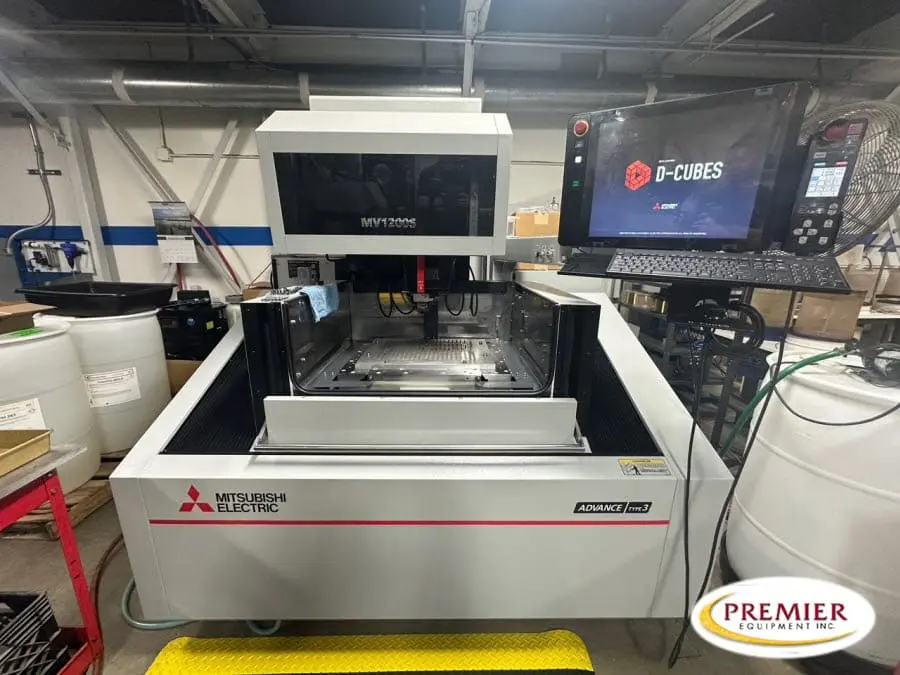

Mitsubishi MV1200S CNC Wire Cut EDM

Mitsubishi MV1200S CNC Wire Cut EDM Specifications (subject to buyer verification): Max. Workpiece Dimensions (in): 31.9 x 27.6 x 8.5 Workpiece Weight (lbs): 1,100 Table Dimensions (in): (3-sided) 25.2 x 17.7 Machining Range (in): 15.7 x 11.8 x 8.7 U/V Travel (in) : ±2.4 x ±2.4 Resolution (in) (Absolute Scales): .000002 (2 Millionths) Taper Angle : 15° @ 8.0 Table Rapid Feed (in / min) : 51.2 Wire Diameter (in) : .004-.012 (.010 Std.) Minimum Wire Thread Start Hole (in) : .020 Maximum Workpiece AT Height (in) : 8.7 Wire Tension (g) : 50 ~ 2500 Wire Spooling Speed (in / sec) : 0 ~ 11.8 Filter System Paper cartridge: (2x) Filter Precision: 5 micron Ion-Exchange Resin: 1 ft³. (6.4 gal. dry) Filter Tank Capacity (gallons) : 145 Dielectric System Dimensions (in) : Included in machine dimensions Dielectric System Weight (lbs.) : Included in machine weight Overall Machine Unit Dimensions (in) : 79.7 x 106.4 x 79.3 Machine Weight (lbs) : 5,952 Equipped With (subject to buyer verification): MITSUBISHI M800 SERIES PC CNC CONTROL ?? All Available Extras ie, filters, .010” brass wire spools **Est. Year of Mfg is 2021

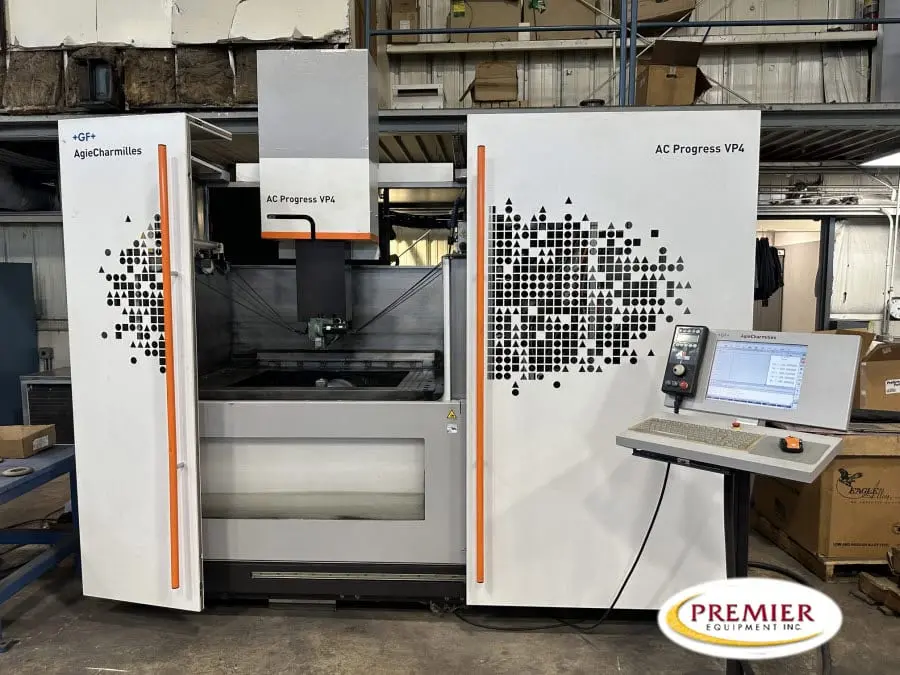

AgieCharmilles AC Progress VP4 CNC Wire Cut EDM Specifications (subject to buyer verification): Travel X, Y, Z travel: 31.496 x 21.654 x 20.669 in Working range U, V travel: 31.496 x 21.654 in Taper angle height: 30 / 19.69 ° / in Workpiece and electrode Workpiece dimensions (W x D x H) : 51.181 x 39.37 x 20.079 in Max. workpiece weight: 6613.8 lb Wire circuit Available wire diameters (Standard) : 0.006 – 0.001 (0.0 – 0.001) in Permissible weights and types of spools (ISO) : 55.12 lb Equipped With (subject to buyer verification): CNC Control Auto Thread

AgieCharmilles AC Progress VP4 CNC Wire Cut EDM Specifications (subject to buyer verification): Travel X, Y, Z travel: 31.496 x 21.654 x 20.669 in Working range U, V travel: 31.496 x 21.654 in Taper angle height: 30 / 19.69 ° / in Workpiece and electrode Workpiece dimensions (W x D x H) : 51.181 x 39.37 x 20.079 in Max. workpiece weight: 6613.8 lb Wire circuit Available wire diameters (Standard) : 0.006 – 0.001 (0.0 – 0.001) in Permissible weights and types of spools (ISO) : 55.12 lb Equipped With (subject to buyer verification): CNC Control Auto Thread
