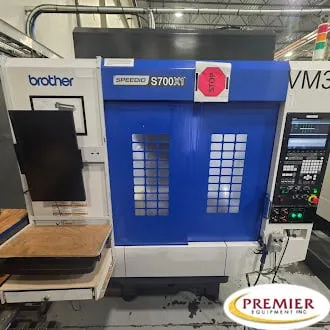

Brother Speedio S700X1 Travels: X: 27.6 Y: 15.7 Z: 11.8 Distance Tabletop to Spindle Nose: 7.1″-18.9″ Table Work Area Size: 31.4 x 15.7″ Max Load Capacity: 661 lbs Spindle Speed: 27,000 rpm Tapping Speed: 8000 rpm Spindle Taper: BT30 Rapid Traverse X & Y Axis: 1969 ipm Rapid Traverse Z Axis: 2204 ipm Tool Pull Stud: MAS P30T-2 Tool Storage: 21 Tool Change Time tool to tool in seconds: .8 Tool Change Time chip to chip: 1.4 Motor (10 min/cont.): 11.8/8.4 hp For Axis Feed X&Y: 1.34 hp For Axis Feed Z: 2.68 hp Machine Weight: 5291 lbs Floor Space Required: 80.7″ x 87.4 x 98.3h Includes: Spindle Taper Air blast Manual Pulse Generator 12.1 Color LCP Heat Expansion Compensation System 27000 rpm Spindle Nikken CNCZ105 Full 4th Axis Rotary Table w Tailstock Part and Tool Probes TOTAL OPERATION TIME: 1384 HOURS

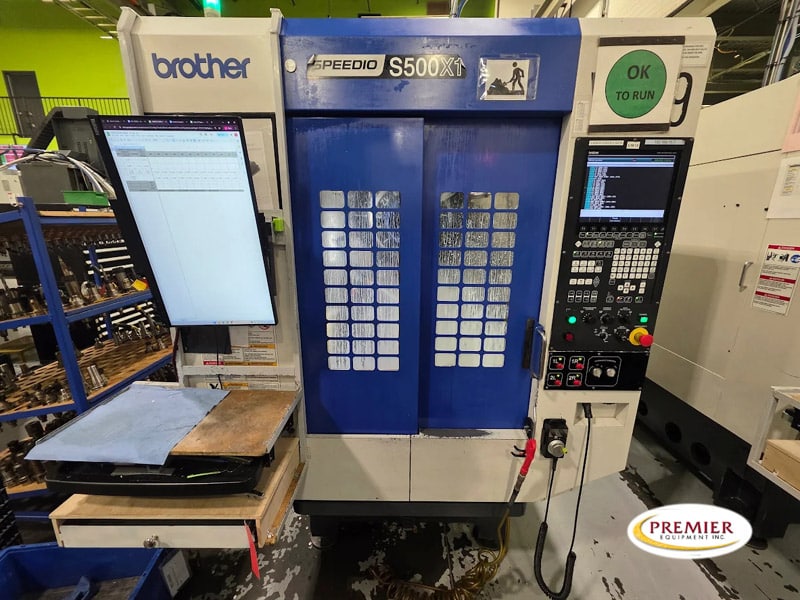

Brother Speedio S500X1 CNC Mill – 2015

Brother Speedio S500X1 CNC Mill – 2015 Specifications (subject to buyer verification): Travels X-Axis: 500 mm 19.7″ Y-Axis: 400 mm 15.7″ Z-Axis: 300 mm 11.8″ Table Size: 600 × 400 mm 23.6″ × 15.7″ Spindle Taper: BT30 Speed: 10,000 RPM Tool Changer Capacity: 21 tools Machine Dim Approx. Footprint: 61″×87″×106″ Weight: 5,500 lbs Equipped With (subject to buyer verification): Brother CNC-C00 CNC Control Renishaw Tool Breakage Detection Laser System Rotary Table

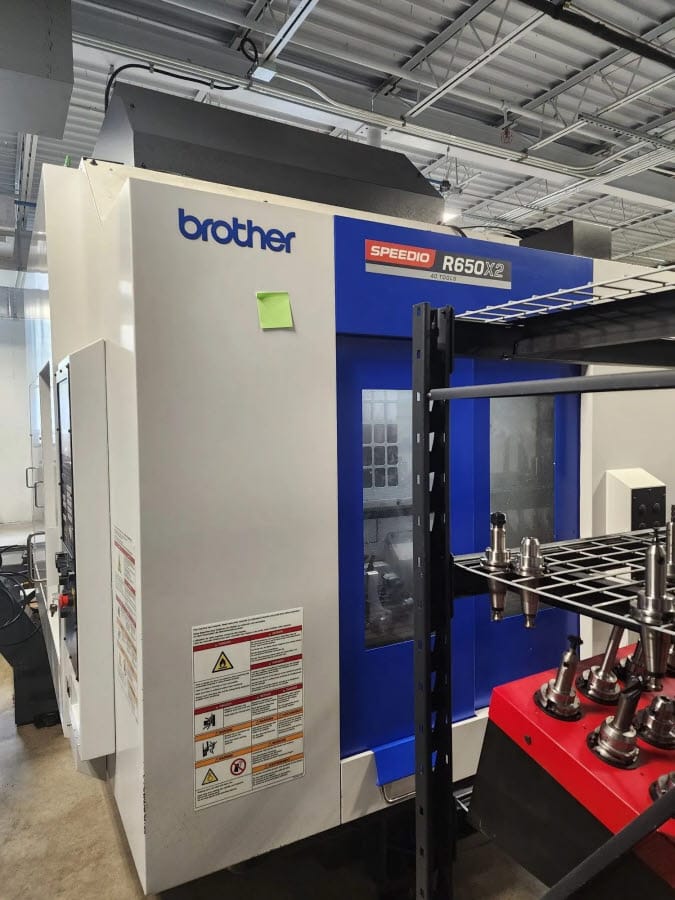

2021 BROTHER SPEEDIO R650X2 CNC Drill and Tap Specs: 16,000 RPM BBT CTSI Spindle 9.8/6.5 HP Main Spindle Low Inertia Motor – IPM Motor Type BT-30 Taper, 40 Tool High-Speed ATC Travel: 25.6¨ x 15.7¨ x 17.1¨ Table: 31.5¨ x 15.7¨ Rapid Traverse: X,Y,Z – 1,969 IPM EQUIPPED WITH: Brother CNC-C00 Control with Built-In PLC Brother T-200A Rotary Table Chip Conveyor Blum Probing 1,000 PSI High Pressure Pump Tool Washing System Automatic Grease Lubrication System Chip Shower System 250L Coolant Tank Complete Covers with Ceiling Cover and Safety Door Interlock System Chip Conveyor Blum Probing

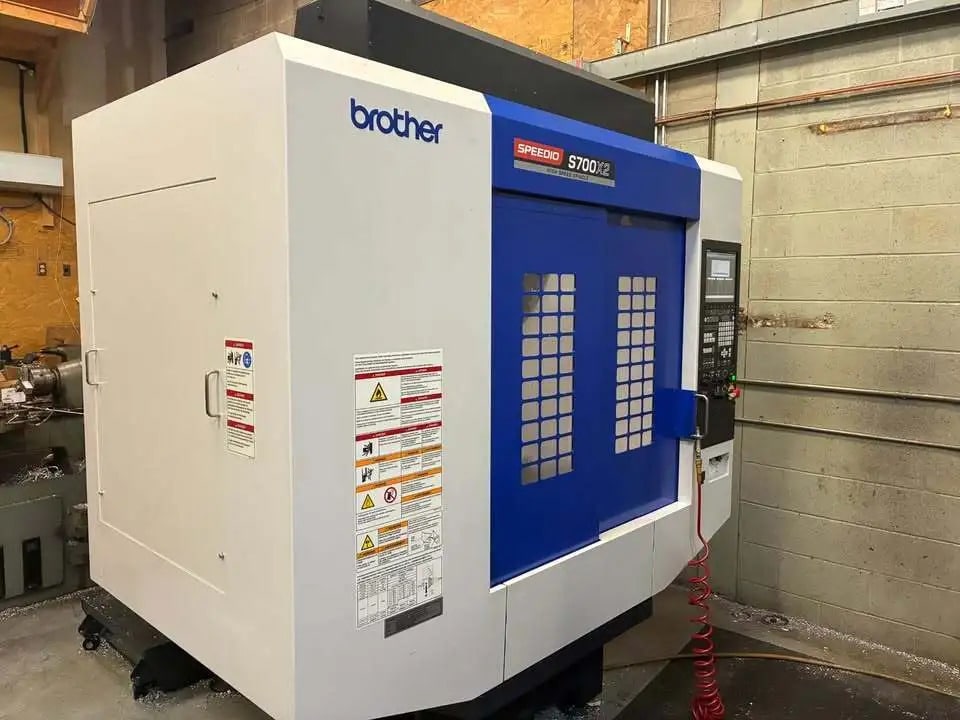

BROTHER SPEEDIO S700X2 Vertical Machining Center SPECIFICATIONS: X 27.6″ Y 15.7″ Z 11.8″ POWER 11.8 hp RPM 27,000 RPM # ATC 21 TAPER BT30 EQUIPPED WITH: – Blum tool setter – BT30 Big Plus, dual contact [big plus] 27K spindle. – High accuracy modes – Ethernet – Tooling available

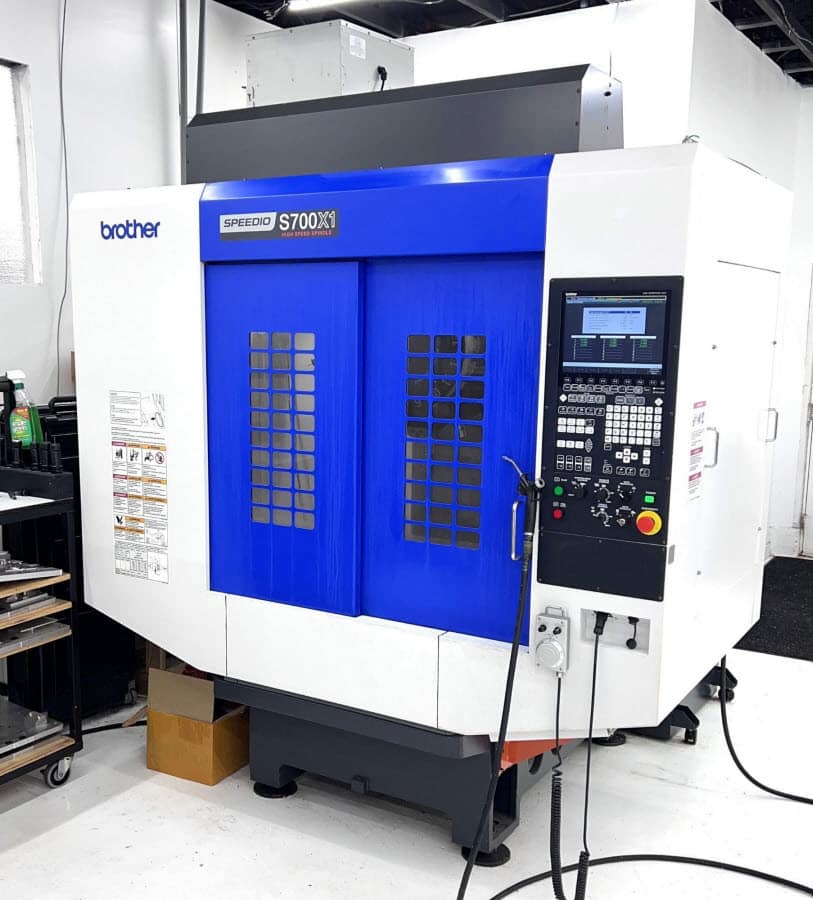

Brother Speedio S700X1 CNC Drill and Tap High Speed Mill

Brother Speedio S700X1 CNC Drill and Tap High Speed Mill CNC Mill Specifications (subject to buyer verification): Travels X-Axis: 700 mm 27.6″ Y-Axis: 400 mm 15.7″ Z-Axis: 300 mm 11.8″ Table Size: 800 × 400 mm 31.5″ × 15.7″ Spindle Taper: BT30 Speed (Max): 16,000 RPM Tool Changer Capacity (Standard): 21 tools Machine Dim. Approx. Footprint: 80.7″ × 87.4″ × 98.3″ Weight: 5,300 lbs Equipped With (subject to buyer verification): Brother CNC-C00 CNC Control Hydraulic System Renishaw Tool Breakage Detection Laser Rotary Table

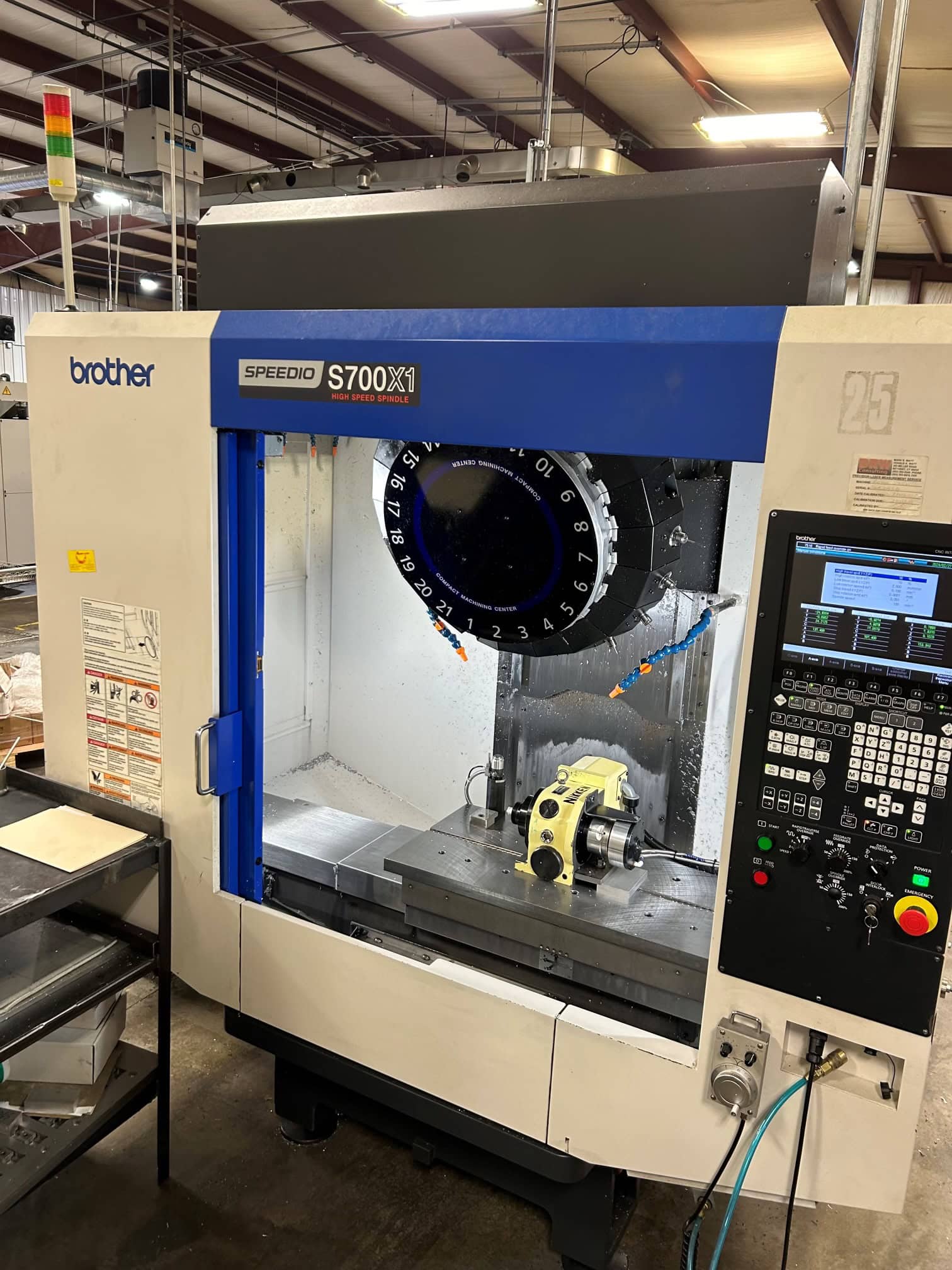

2020 BROTHER SPEEDIO S700X1 SPECIFICATIONS: TABLE LENGTH 31.4″ TABLE WIDTH 15.7″ X-AXIS TRAVEL 27.6″ Y-AXIS TRAVEL 15.7″ Z-AXIS TRAVEL 11.8″ SPINDLE SPEED 27,000 RPM SPINDLE MOTOR 11.8 hp SPINDLE TAPER BT 30 TOOL CAPACITY (ATC) 21 RAPID TRAVERSE – X AXIS 1,969 in/min. RAPID TRAVERSE – Y AXIS 1,969 in/min. RAPID TRAVERSE – Z-AXIS 2,205 in/min. EQUIPPED WITH: BROTHER C00 CNC CONTROL WITH BUILT-IN PLC 27,000 RPM SPINDLE UPGRAGE 21-TOOL DRUM ATC 21 TOOL HOLDERS INCLUDED METROL TM26D-01 TOOL SETTER & 60 MM RISE SPINDLE TAPER AIR BLAST AUTO GREASE LUBRICATION SYSTEM 150L COOLANT TANK & CHIP SHOWER HIGH ACCURACY MODE BII SAFETY DOOR INTERLOCK SYSTEM MANUAL PULSE GENERATOR 2-LIGHT WORK LIGHT KIT SHOWER GUN TOP COVER MISTAWAY MA700C COOLANT MIST COLLECTOR, 700 CFM

2020 BROTHER SPEEDIO S700X1 SPECIFICATIONS: TABLE LENGTH 31.4″ TABLE WIDTH 15.7″ X-AXIS TRAVEL 27.6″ Y-AXIS TRAVEL 15.7″ Z-AXIS TRAVEL 11.8″ SPINDLE SPEED 27,000 RPM SPINDLE MOTOR 11.8 hp SPINDLE TAPER BT 30 TOOL CAPACITY (ATC) 21 RAPID TRAVERSE – X AXIS 1,969 in/min. RAPID TRAVERSE – Y AXIS 1,969 in/min. RAPID TRAVERSE – Z-AXIS 2,205 in/min. EQUIPPED WITH: BROTHER C00 CNC CONTROL WITH BUILT-IN PLC 27,000 RPM SPINDLE UPGRAGE 21-TOOL DRUM ATC 21 TOOL HOLDERS INCLUDED METROL TM26D-01 TOOL SETTER & 60 MM RISE SPINDLE TAPER AIR BLAST AUTO GREASE LUBRICATION SYSTEM 150L COOLANT TANK & CHIP SHOWER HIGH ACCURACY MODE BII SAFETY DOOR INTERLOCK SYSTEM MANUAL PULSE GENERATOR 2-LIGHT WORK LIGHT KIT SHOWER GUN TOP COVER MISTAWAY MA700C COOLANT MIST COLLECTOR, 700 CFM

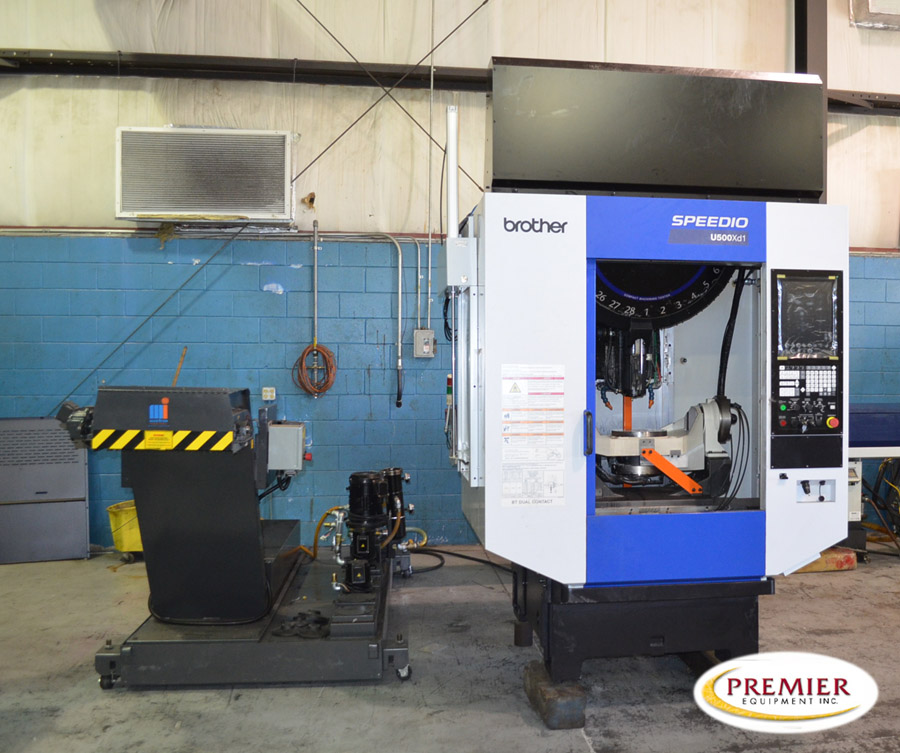

Brother Speedio U500Xd1 5-Axis CNC Drill and Tap

Brother Speedio U500Xd1 5-Axis CNC Drill and Tap Specifications (subject to buyer verification): Travels X axis: 19.7″ Y axis: 15.7″ Z axis: 11.8″ A axis [deg.]: 120 to -30 C axis [deg.]: 360 Distance between table top and spindle nose end: 5.7 – 17.5″ Table Work area size: 10.2″ Max.loading capacity: (uniform load): 220 lbs Spindle Spindle speed: 1 – 16,000 RPM (Option) Speed during tapping: MAX. 6,000 RPM Tapered hole: 7/24 tapered No.30 Feed rate Rapid traverse rate (XYZ-area): 1,969 x 1,969 x 2,205 IPM Cutting feed rate: 0.04 – 1,181 IPM ATC Unit Tool shank type: MAS-BT30 Tool storage capacity: 28 Equipped With (subject to buyer verification): CNC-D00 Control Tilting Rotary Table Amano Mist Buster 16,000 RPM Spindle Chip Conveyor Tool Presetter System Thru Spindle Coolant

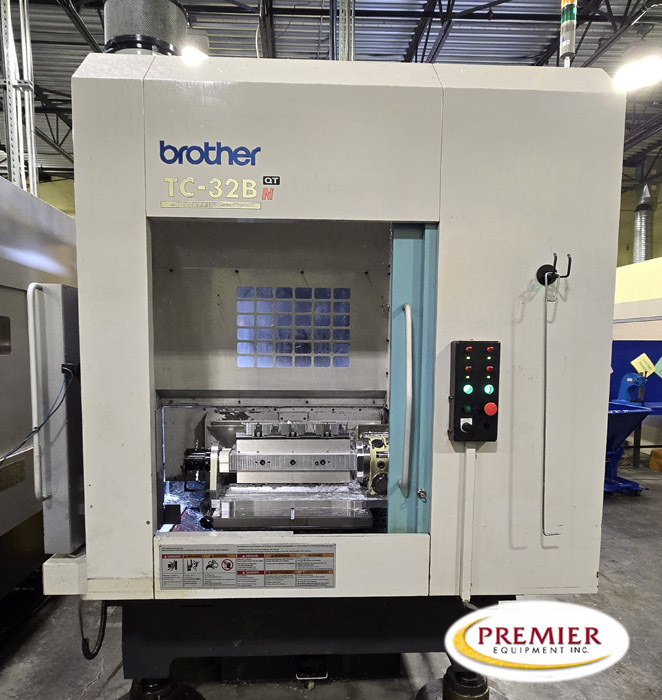

Brother TC32BN QT (with Two-Face Pallet Changer) CNC Drill & Tap

Brother TC32BN QT (with Two-Face Pallet Changer) CNC Drill & Tap Specifications (subject to buyer verification): X axis Travel 21.7” Y axis Travel 15.7” Z axis Travel 16.3” Distance between table top and spindle nose end 25.4” Work area size 23.6” x 16.7” (one side) Maximum loading capacity (uniform load) 441 lbs (one side) **Spindle speed 16-16,000 RPM option Speed during tapping Max 8000 RPM Tapered hole #30 Rapid traverse rate X x Y x Z axes 2755 IPM Cutting feed rate .04 – 787 IPM Tool shank type MAS BT30 Tool storage capacity 26 Equipped With (subject to buyer verification): CNC-B00 CNC Control (2) Nikken Rotary Tables Chip Conveyor 16,000 RPM Spindle ??

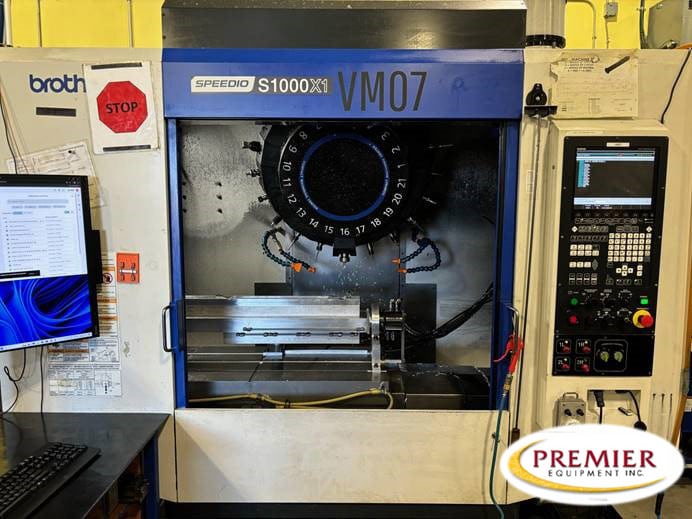

Brother Speedio S1000X1 CNC Compact Machining Center

Brother Speedio S1000X1 CNC Compact Machining Center Specifications (subject to buyer verification): Travels X axis 39.4” Y axis 19.7” Z axis 11.8” Distance between table top and spindle nose end 7.1 ~ 18.9” Table Work area size 43.3” x 19.7” Max.loading capacity (Uniform Load) 661 lbs Spindle Spindle speed (Optional) : 16 ~ 16,000 Tapered hole 7/24 tapered No.30 Feed rate Rapid traverse rate (XYZ-area) 1,969 x 1,969 x 2,205 IPM Cutting feed rate X,Y,Z: 0.04 ~ 1,181 IPM ATC unit Tool shank type MAS-BT30 Tool storage capacity 21 Max.tool length 9.8” Max.tool diameter 4.3” Max.tool weight 6.6 lbs Tool change time Tool To Tool[sec.]: 0.8 / Chip To Chip[sec.]: 1.4 Electric motor Main spindle motor (10 min/continuous) 16,000min-1 specifications(Optional) : 10/6.5 HP Equipped With (subject to buyer verification): Brother CNC-C00 Control 16,000 RPM Spindle Through Coolant Tool Breakage Detection Auto Tool Presetter
