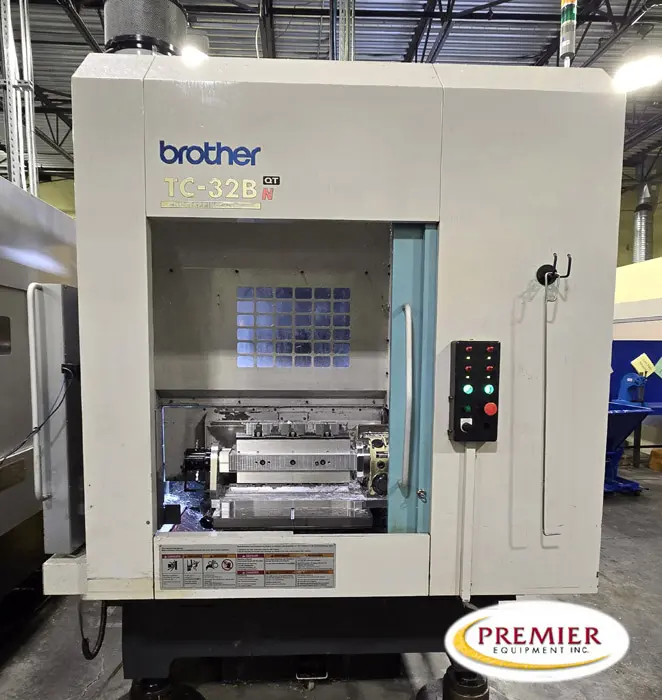

Brother TC-32BN QT – 2013 (Sold)
Brother TC-32BN QT – 2013 (Sold)
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Brother
Model
TC-32BN QT
Hours of Usage
-
Year of Manufacture
2013
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
Brother TC32BN QT (with Two-Face Pallet Changer) CNC Drill & Tap
Spindle Speed
16,000 RPM
Y Axis Travel
15.7"
Used Cnc Brands
Brother
Z Axis Travel
16"
Control
Brother
Through Spindle Coolant
Yes
Pallet Changer
Yes
Taper
30
Rotary Table
Yes
Description
Brother TC32BN QT (with Two-Face Pallet Changer) CNC Drill & Tap Brother TC32BN QT (with Two-Face Pallet Changer) CNC Drill & Tap Specifications (subject to buyer verification): X axis Travel 21.7” Y axis Travel 15.7” Z axis Travel 16.3” Distance between table top and spindle nose end 25.4” Work area size 23.6” x 16.7” (one side) Maximum loading capacity (uniform load) 441 lbs (one side) **Spindle speed 16-16,000 RPM option Speed during tapping Max 8000 RPM Tapered hole #30 Rapid traverse rate X x Y x Z axes 2755 IPM Cutting feed rate .04 – 787 IPM Tool shank type MAS BT30 Tool storage capacity 26 Equipped With (subject to buyer verification): CNC-B00 CNC Control (2) Nikken Rotary Tables Chip Conveyor 16,000 RPM Spindle ??
