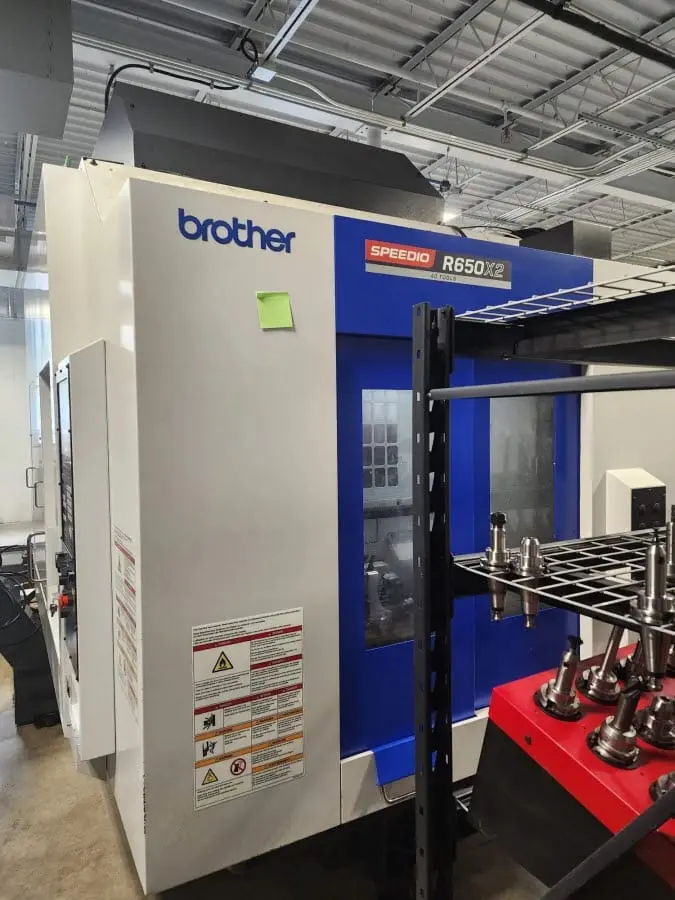

BROTHER SPEEDIO R650X2 – 2021
Product Image
Product Image
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Brother
Model
SPEEDIO R650X2
Hours of Usage
-
Year of Manufacture
2021
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

Z Axis Travel
17.5"
Y Axis Travel
16"
Spindle Speed
15,000 RPM
X Axis Travel
25"
Used Cnc Brands
Brother
Control
Brother
Pallet Changer
Yes
Taper
30
Rotary Table
Yes

Description

2021 BROTHER SPEEDIO R650X2 CNC Drill and Tap Specs: 16,000 RPM BBT CTSI Spindle 9.8/6.5 HP Main Spindle Low Inertia Motor – IPM Motor Type BT-30 Taper, 40 Tool High-Speed ATC Travel: 25.6¨ x 15.7¨ x 17.1¨ Table: 31.5¨ x 15.7¨ Rapid Traverse: X,Y,Z – 1,969 IPM EQUIPPED WITH: Brother CNC-C00 Control with Built-In PLC Brother T-200A Rotary Table Chip Conveyor Blum Probing 1,000 PSI High Pressure Pump Tool Washing System Automatic Grease Lubrication System Chip Shower System 250L Coolant Tank Complete Covers with Ceiling Cover and Safety Door Interlock System Chip Conveyor Blum Probing
