Brother Speedio S1000X1 – 2016 (Sold)
Brother Speedio S1000X1 – 2016 (Sold)
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Brother
Model
Speedio S1000X1
Hours of Usage
-
Year of Manufacture
2016
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type

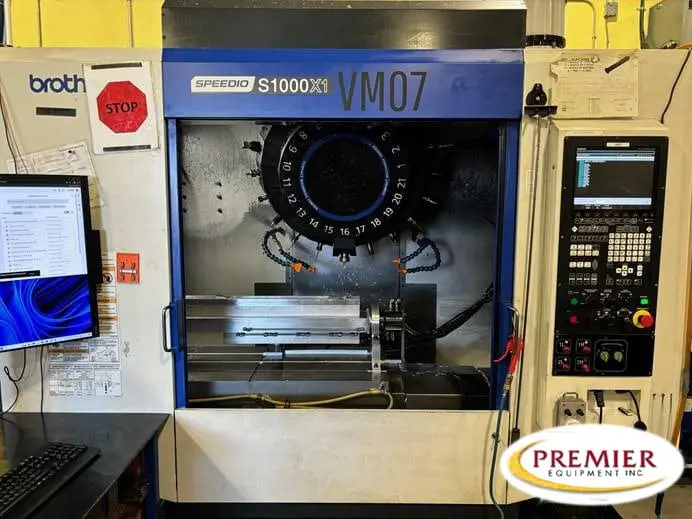

Brother Speedio S1000X1 CNC Compact Machining Center
Z Axis Travel
12"
Taper
30
Used Cnc Brands
Brother
X Axis Travel
40"
Y Axis Travel
20"
Control
Brother
Spindle Speed
16,000 RPM
Through Spindle Coolant
Yes
Spindle Nose
end 7.1 ~ 18.9” Table Work area size 43.3” x 19.7” Max.loading capacity (Uniform Load) 661 lbs
Description
Brother Speedio S1000X1 CNC Compact Machining Center Brother Speedio S1000X1 CNC Compact Machining Center Specifications (subject to buyer verification): Travels X axis 39.4” Y axis 19.7” Z axis 11.8” Distance between table top and spindle nose end 7.1 ~ 18.9” Table Work area size 43.3” x 19.7” Max.loading capacity (Uniform Load) 661 lbs Spindle Spindle speed (Optional) : 16 ~ 16,000 Tapered hole 7/24 tapered No.30 Feed rate Rapid traverse rate (XYZ-area) 1,969 x 1,969 x 2,205 IPM Cutting feed rate X,Y,Z: 0.04 ~ 1,181 IPM ATC unit Tool shank type MAS-BT30 Tool storage capacity 21 Max.tool length 9.8” Max.tool diameter 4.3” Max.tool weight 6.6 lbs Tool change time Tool To Tool[sec.]: 0.8 / Chip To Chip[sec.]: 1.4 Electric motor Main spindle motor (10 min/continuous) 16,000min-1 specifications(Optional) : 10/6.5 HP Equipped With (subject to buyer verification): Brother CNC-C00 Control 16,000 RPM Spindle Through Coolant Tool Breakage Detection Auto Tool Presetter
Get in Touch with Seller About This Product
