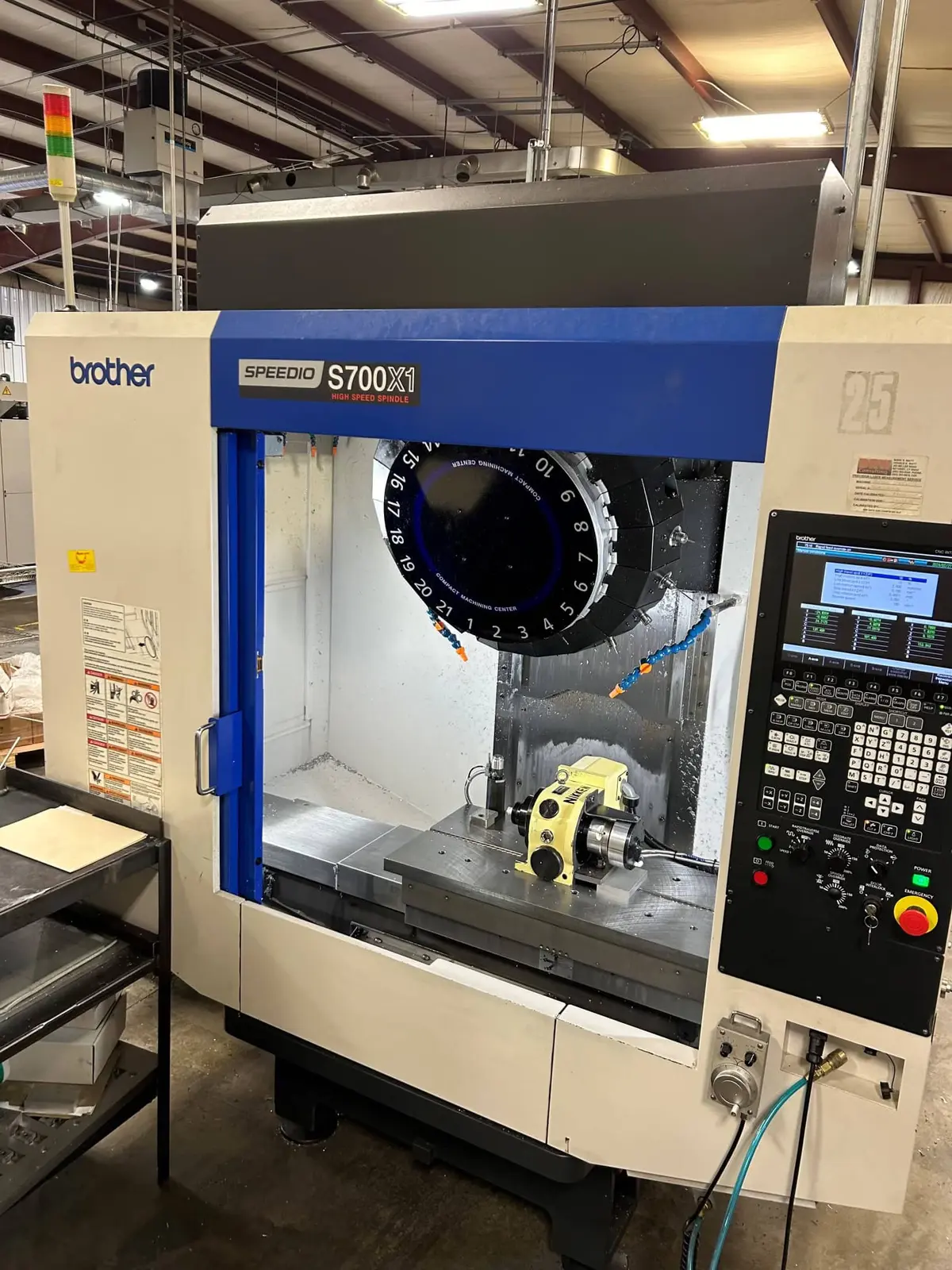

Brother Speedio S700X1 – 2018 (Sold)
Product Image
Product Image
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Brother
Model
Speedio S700X1
Hours of Usage
1384hr
Year of Manufacture
2018
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

X Axis Travel
28"
Z Axis Travel
16"
Used Cnc Brands
Brother
Control
Brother
Taper
30
Spindle Speed
28,000 RPM
Y Axis Travel
12"
Rotary Table
Yes
Spindle Nose
: 7.1″-18.9″ Table Work Area Size: 31.4 x 15.7″ Max Load Capacity: 661 lbs
Spindle Speed
: 27,000 rpm Tapping Speed: 8000 rpm Spindle Taper: BT30 Rapid Traverse X & Y Axis: 1969 ipm Rapid Traverse Z Axis: 2204 ipm Tool Pull Stud: MAS P30T-2 Tool Storage: 21 Tool Change Time tool to tool in seconds: .8 Tool Change Time chip to chip: 1.4 Motor (10 min/cont.): 11.8/8.4 hp For Axis Feed X&Y: 1.34 hp For Axis Feed Z: 2.68 hp Machine Weight: 5291 lbs Floor Space Required: 80.7″ x 87.4 x 98.3h Includes: Spindle Taper Air blast Manual Pulse Generator 12.1 Color LCP Heat Expansion Compensation System 27000 rpm Spindle Nikken CNCZ105 Full 4th Axis Rotary Table w Tailstock Part and Tool Probes TOTAL OPERATION TIME: 1384 HOURS

Description

Brother Speedio S700X1 Travels: X: 27.6 Y: 15.7 Z: 11.8 Distance Tabletop to Spindle Nose: 7.1″-18.9″ Table Work Area Size: 31.4 x 15.7″ Max Load Capacity: 661 lbs Spindle Speed: 27,000 rpm Tapping Speed: 8000 rpm Spindle Taper: BT30 Rapid Traverse X & Y Axis: 1969 ipm Rapid Traverse Z Axis: 2204 ipm Tool Pull Stud: MAS P30T-2 Tool Storage: 21 Tool Change Time tool to tool in seconds: .8 Tool Change Time chip to chip: 1.4 Motor (10 min/cont.): 11.8/8.4 hp For Axis Feed X&Y: 1.34 hp For Axis Feed Z: 2.68 hp Machine Weight: 5291 lbs Floor Space Required: 80.7″ x 87.4 x 98.3h Includes: Spindle Taper Air blast Manual Pulse Generator 12.1 Color LCP Heat Expansion Compensation System 27000 rpm Spindle Nikken CNCZ105 Full 4th Axis Rotary Table w Tailstock Part and Tool Probes TOTAL OPERATION TIME: 1384 HOURS
