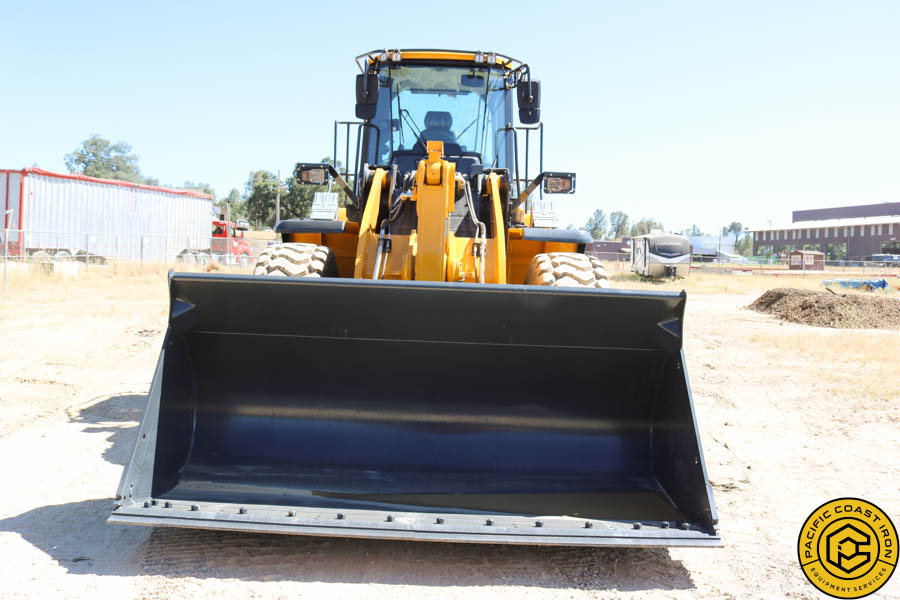

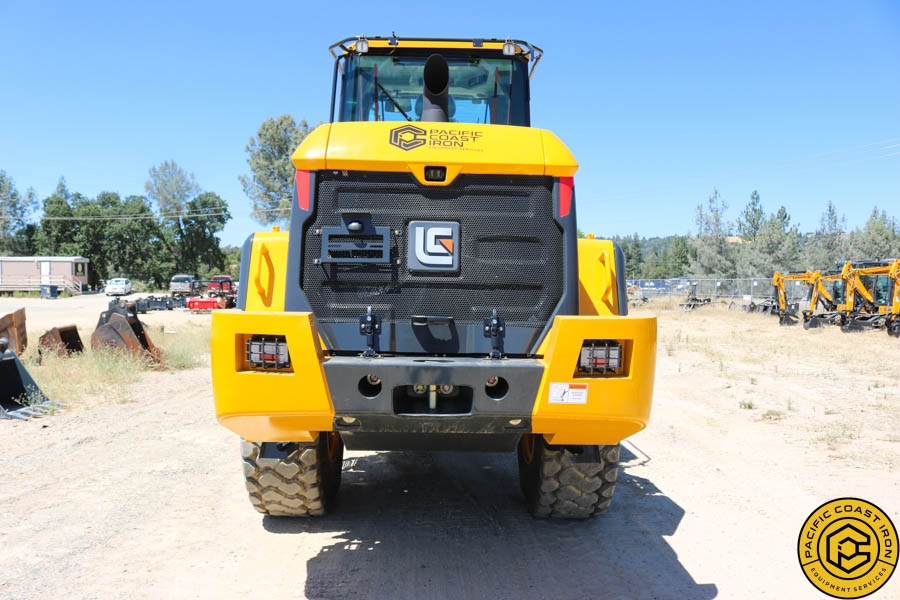

2024 LIUGONG 838HV WHEEL LOADER
2024 LIUGONG 838HV WHEEL LOADER FOR SALE. UNIT IS EQUIPPED WITH A TIER 4 FINAL CUMMINS ENGINE, 3RD VALVE, HYDRAULIC QUICK COUPLER, RIDE CONTROL, REVERSING FAN, AND LIUGONG 3 YEAR/4000 HR FULL MACHINE WARRANTY. FORKS ALSO AVAILBILE.
MACHINE SPECIFACATIONS:
   ENGINE
HYDRAULIC SYSTEM
Emissions rating
EPA Tier 4 Final / EU Stage V
Main pump type
Piston
Make
Cummins
System pressure
3,771 psi (26 MPa)
Model
B4.5
Raise
4.8 s
Gross power
154 hp (115 kW) @ 2,200 rpm
Dump time
1.5 s
Net power
142 hp (106 kW) @ 2,200 rpm
Float down time
3.1 s
Peak torque
525 lbf·ft (712 N·m) @ 1,200 rpm
Total cycle time
9.4 s
Cylinders
4
BUCKET PERFORMANCE
Displacement
1.18 gal (4.5 L)
Bucket capacity
2.35-5.2 yd3 (1.8-4.0 m3)
Aspiration
Turbocharged &
Air-to-air intercooled
TIRES
   TRANSMISSION
Tire size
20.5R25 L3
Transmission type
Countershaft, power shift
OPERATING WEIGHT
Torque converter
Single stage, three elements
Operating weight
29,033 lb (13,169 kg)
Max. travel speed, fwd
24.9 mph (40 km/h)
Max. travel speed, rev
17 mph (27.3 km/h)
SERVICE CAPACITY
Fuel tank
57.3 gal (217 L)
Number of speeds, fwd
4
Number of speeds, rev
3
Engine oil
3 gal (11.6 L)
Cooling system
7.4 gal (28 L)
   AXLES
Hydraulic system
33 gal (125 L)
Differential front type
Limited slip
Transmission
10.5 gal (40 L)
Differential rear type
Limited slip
Axles, each
9 gal (34 L)
Axle oscillation
±12°
DEF tank
5 gal (19 L)
STEERING
Steering configuration
Articulated
Steering pressure
2,611 psi (18 Mpa)
BRAKES
Service brake type
Wet disc brake
Service brake actuation
Fully hydraulic
Parking brake type
Drum
Parking brake actuation
Electro-hydraulic release
LOADER ARM PERFORMANCE WITH ATTACHMENT
Description
Tipping load – straight
19,610 lb (8,895 kg)
Tipping load – full turn
16,552 lb (7,508 kg)
Bucket breakout force
17,985 lbf (80 kN)
A   Maximum hinge pin height
12 ft 5 in (3,788 mm)
B   Dump clearence at full height discharge
9 ft 4 in (2,850 mm)
C   Dump reach at full height discharge
4 ft 1 in (1,250 mm)
D   Max. digging depth, bucket level
0.8 in (20 mm)
S1  Bucket rollback at ground level
42°
S2  Bucket rollback at carry
49°
S3  Bucket rollback at max. height
56°
S4  Max. dump angle at full height
45°
DIMENSIONS
Description
E    Ground clearance
1 ft 6 in (450 mm)
G   Wheelbase
9 ft 7 in (2,940 mm)
H   Cab height
11 ft 2 in (3,420 mm)
J    Wheel tread
6 ft 1 in (1,850 mm)
K   Width over tires
7 ft 10 in (2,370 mm)
L    Length with bucket down
24 ft 10 in (7,570 mm)
M   Turn angle, either side
40°
P   Rear angle of departure
31°
R4  Turning radius, bucket carry
19 ft 1 in (5,807 mm)
R2  Turning radius, outside of tire
17 ft 6 in (5,320 mm)
W  Width over bucket
8 ft 1 in (2,460 mm)

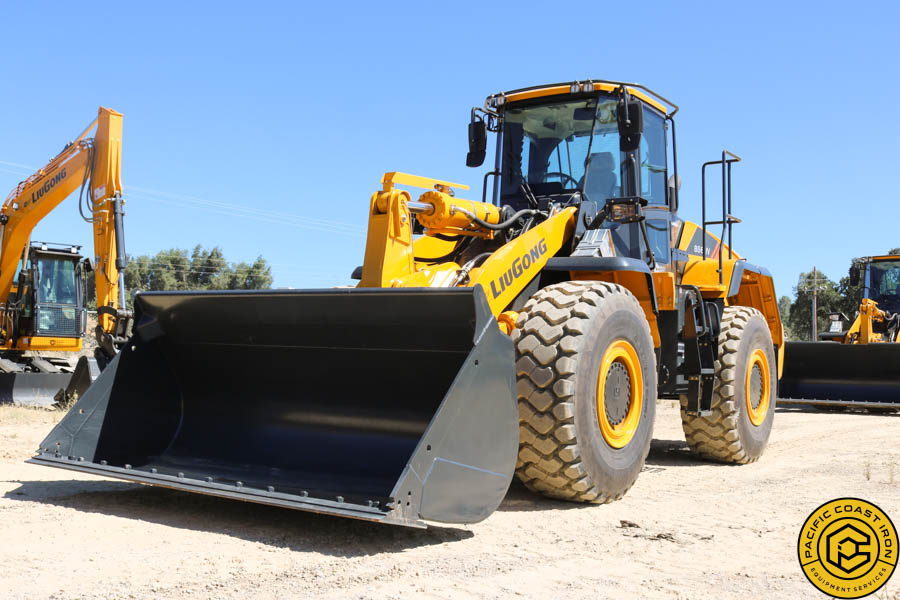

2024 LIUGONG 856HV WHEEL LOADER
NEW WHEEL LOADER FOR SALE 2024 LIUGONG 856HV 4 YARD CLASS WHEEL LOADER FOR SALE. UNIT IS EQUIPPED WITH A TIER 4 FINAL CUMMINS ENGINE, 3RD VALVE, HYDRAULIC QUICK COUPLER, RIDE CONTROL, REVERSING FAN, AND LIUGONG 3 YEAR/4000 HR FULL MACHINE WARRANTY. FORKS ALSO AVAILBILE.
ENGINE
LOADER ARM PERFORMANCE WITH ATTACHMENT
Emissions regulation
Tier 4 Final / Stage IV
Tipping load – straight
28,219 lb (12,700 kg)
Make
Cummins
Tipping load – full turn
24,250 lb (11,000 kg)
Model
QSB6.7
Bucket breakout force
40,275 lbf (179 kN)
Max gross power
225 hp (168 kW) @ 2,100 rpm
Maximum hinge pin height
13 ft 2 in  (4,028 mm)
Max net power
215 hp (160 kW) @ 2,100 rpm
Dump clearance at full height discharge
9 ft 8 in (2,948 mm)
Peak torque
1,106 lb-ft (1,500 N-m) @ 1,400 rpm
Dump reach at full height discharge
3 ft 8 in (1,129 mm)
Displacement
409 in3  (6.7 L)
Maximum digging depth, bucket level
3 in (85 mm)
Number of cylinders
6
Bucket rollback at ground level
43°
Aspiration
Turbocharged & air-to-air intercooled
Bucket rollback at carry
48°
Bucket rollback at maximum height
58°
TRANSMISSION STANDARD
Maximum dump angle at full height
45°
Transmission type
Countershaft, power shift
BUCKET PERFORMANCE
Torque converter
Single-stage, three-element
Maximum travel speed, fwd
23.7 mph (38.1 km/h)
Bucket capacity
4.2 yd3  (3.2 m3)
Maximum travel speed, rev
14.9 mph (23.9 km/h)
DIMENSIONS
Number of speeds, fwd
4
Ground clearance
17 in (431 mm)
Number of speeds, rev
3
Wheelbase
10 ft 10 in (3,320 mm)
AXLES
Cab height
11 ft 3 in (3,450 mm)
Wheel tread
7 ft 0 in (2,150 mm)
Differential front type
Limited slip
Width over tires
9 ft 0 in (2,750 mm)
Differential rear type
Limited slip
Length with bucket down
27 ft 3 in (8,318 mm)
Axle oscillation
±12°
Turn angle, either side
38°
STEERING
Rear angle of departure
27°
Steering configuration
Articulated
Turning radius, bucket carry
22 ft 9 in (6,954 mm)
Steering pressure
2,756 psi (19 MPa)
Turning radius, outside of tire
20 in 4 in (6,205 mm)
BRAKES
Width over bucket
9 ft 10 in (2,976 mm)
Service brake type
Wet discs, two independent circuits
TIRES
Service brake actuation
Hydraulic
Tire size
23.5R25 L3 tire
Parking brake type
Manual electronic control
OPERATING WEIGHTS
Parking brake actuation
Hydraulic
Operating weight
42,540 lb (19,296 kg)
HYDRAULIC SYSTEM
SERVICE CAPACITY
Main pump type
Piston
System pressure
3,191 psi (22 MPa)
Fuel tank
79.2 (300 L)
Raise
5.7 s
Engine oil
4.7 gal (18 L)
Dump time
1.3 s
Cooling system
11.6 gal (44 L)
Float down time
3.0 s
Hydraulic system
62.3 gal (236 L)
Total cycle time
10.0 s
Transmission
11.8 gal (45 L)
Axles, each
11.6 gal (44 L)
DEF tank
5.0 gal (19 L)

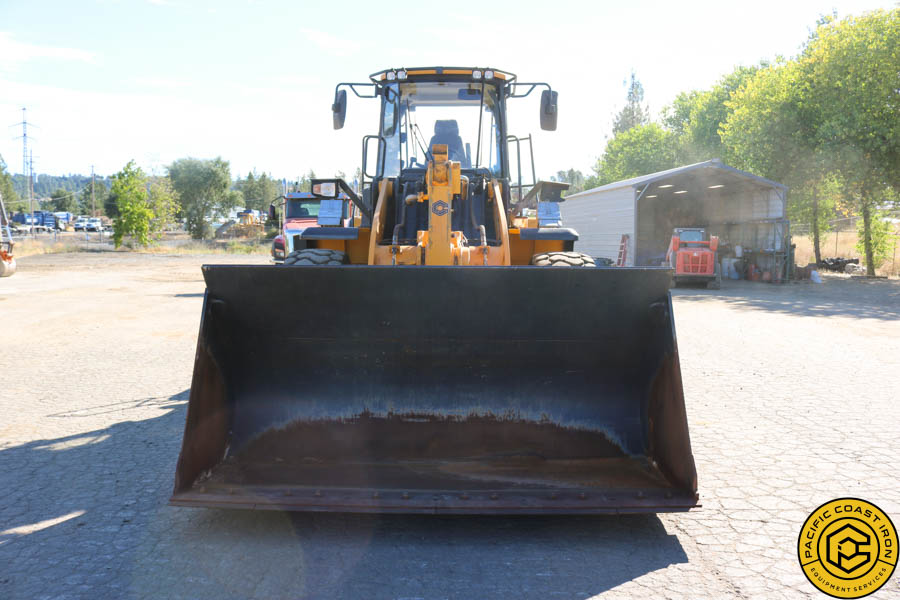

2019 LIUGONG 848H WHEEL LOADER
VERY NICE LOW HOUR LIUGONG 948H 3.5YD CLASS WHEEL LOADER. ONE OWNER MACHINE! UNIT IS EQUIPPED WITH A HYDRAULIC COUPLER, GP BUCKET, 3RD VALVE, RIDE CONTROL, AND RADIAL TIRES.
848H SPECIFICATIONS >>>
ENGINE
LOADER ARM PERFORMANCE WITH ATTACHMENT
Emissions regulation
Tier 4 Final / Stage IV
Tipping load – straight
23,876 lb (10,830 kg)
Make
Cummins
Tipping load – full turn
21,418 lb (9,715 kg)
Model
QSB6.7
Bucket breakout force
26,977 lbf (120.0 kN)
Max gross power
175 hp (129 kW) @ 2,100 rpm
Maximum hinge pin height
12 ft 11 in (3,935 mm)
Max net power
167 hp (123 kW) @ 2,100 rpm
Dump clearance at full height discharge  9 ft 0 in (2,750 mm)
Peak torque
620 lb-ft (841 N-m) @ 1,400 rpm
Dump reach at full height discharge
3 ft 5 in (1,050 mm)
Displacement
409 in3  (6.7 L)
Maximum digging depth, bucket level
3 in (70 mm)
Number of cylinders
6
Bucket rollback at ground level
45O
Aspiration
Turbocharged & air-to-air intercooled
Bucket rollback at carry
48O
TRANSMISSION STANDARD
Bucket rollback at maximum height
60O
Maximum dump angle at full height
45O
Transmission type
Countershaft, power shift
Torque converter
Single-stage, three-element
BUCKET PERFORMANCE
Maximum travel speed, fwd
27.5 mph (44.3 km/h)
Bucket capacity
3.5 yd3  (2.7 m3)
Maximum travel speed, rev
15.7 mph (25.3 km/h)
DIMENSIONS
Number of speeds, fwd.
4
Ground clearance
1 ft 3 in (366 mm)
Number of speeds, rev
3
Wheelbase
10 ft 0 in (3,050 mm)
AXLES
Cab height
10 ft 10 in (3,310 mm)
Differential front type
Limited slip
Wheel tread
6 ft 9 in (2,050 mm)
Differential rear type
Limited slip
Width over tires
8 ft 4 in (2,548 mm)
Axle oscillation
±12°
Length with bucket down
26 ft 4 in (8,030 mm)
Turn angle, either side
38O
STEERING
Rear angle of departure
28O
Steering configuration
Articulated
Turning radius, bucket carry
20 ft 6 in (6,520 mm)
Steering pressure
2,611 psi (18 MPa)
Turning radius, outside of tire
18 ft 4 in (5,590 mm)
BRAKES
Width over bucket
9 ft 1 in (2,750 mm)
Service brake type
Wet discs, two independent circuits
TIRES
Service brake actuation
Hydraulic
Tire Size
20.5R25 L3 tire
Parking brake type
Manual electronic control
OPERATING WEIGHTS
Parking brake actuation
Hydraulic
HYDRAULIC SYSTEM
Operating weight
35,260 lb (15,994 kg)
Main pump type
Piston
SERVICE CAPACITY
Pressure
3,002 psi (20.7 MPa)
Fuel tank
65.0 gal (245 L)
Raise
5.5 s
Engine oil
4.5 gal  (17 L)
Dump time
1.6 s
Cooling system
12.0 gal (44 L)
Float down time
3.0 s
Hydraulic system
48.0 gal (180 L)
Total cycle time
10.1 s
Transmission
10.5 gal (40 L)
Axles, each
9.5 gal (36 L)
DEF tank
5.0 gal (19 L)

MACHINE FEATURES: EROPS HEAT/AC TIER 4 FINAL CUMMINS ENGINE QC 3 YD BUCKET RIDE CONTROL 3RD VALVE AUTO GREASER

2024 LIUGONG 838HV WHEEL LOADER 2024 LIUGONG 838HV WHEEL LOADER FOR SALE. UNIT IS EQUIPPED WITH A TIER 4 FINAL CUMMINS ENGINE, 3RD VALVE, HYDRAULIC QUICK COUPLER, RIDE CONTROL, REVERSING FAN, AND LIUGONG 3 YEAR/4000 HR FULL MACHINE WARRANTY. FORKS ALSO AVAILBILE. MACHINE SPECIFACATIONS: ENGINE HYDRAULIC SYSTEM Emissions rating EPA Tier 4 Final / EU Stage V Main pump type Piston Make Cummins System pressure 3,771 psi (26 MPa) Model B4.5 Raise 4.8 s Gross power 154 hp (115 kW) @ 2,200 rpm Dump time 1.5 s Net power 142 hp (106 kW) @ 2,200 rpm Float down time 3.1 s Peak torque 525 lbf·ft (712 N·m) @ 1,200 rpm Total cycle time 9.4 s Cylinders 4 BUCKET PERFORMANCE Displacement 1.18 gal (4.5 L) Bucket capacity 2.35-5.2 yd3 (1.8-4.0 m3) Aspiration Turbocharged & Air-to-air intercooled TIRES TRANSMISSION Tire size 20.5R25 L3 Transmission type Countershaft, power shift OPERATING WEIGHT Torque converter Single stage, three elements Operating weight 29,033 lb (13,169 kg) Max. travel speed, fwd 24.9 mph (40 km/h) Max. travel speed, rev 17 mph (27.3 km/h) SERVICE CAPACITY Fuel tank 57.3 gal (217 L) Number of speeds, fwd 4 Number of speeds, rev 3 Engine oil 3 gal (11.6 L) Cooling system 7.4 gal (28 L) AXLES Hydraulic system 33 gal (125 L) Differential front type Limited slip Transmission 10.5 gal (40 L) Differential rear type Limited slip Axles, each 9 gal (34 L) Axle oscillation ±12° DEF tank 5 gal (19 L) STEERING Steering configuration Articulated Steering pressure 2,611 psi (18 Mpa) BRAKES Service brake type Wet disc brake Service brake actuation Fully hydraulic Parking brake type Drum Parking brake actuation Electro-hydraulic release LOADER ARM PERFORMANCE WITH ATTACHMENT Description Tipping load – straight 19,610 lb (8,895 kg) Tipping load – full turn 16,552 lb (7,508 kg) Bucket breakout force 17,985 lbf (80 kN) A Maximum hinge pin height 12 ft 5 in (3,788 mm) B Dump clearence at full height discharge 9 ft 4 in (2,850 mm) C Dump reach at full height discharge 4 ft 1 in (1,250 mm) D Max. digging depth, bucket level 0.8 in (20 mm) S 1 Bucket rollback at ground level 42° S 2 Bucket rollback at carry 49° S 3 Bucket rollback at max. height 56° S 4 Max. dump angle at full height 45° DIMENSIONS Description E Ground clearance 1 ft 6 in (450 mm) G Wheelbase 9 ft 7 in (2,940 mm) H Cab height 11 ft 2 in (3,420 mm) J Wheel tread 6 ft 1 in (1,850 mm) K Width over tires 7 ft 10 in (2,370 mm) L Length with bucket down 24 ft 10 in (7,570 mm) M Turn angle, either side 40° P Rear angle of departure 31° R 4 Turning radius, bucket carry 19 ft 1 in (5,807 mm) R 2 Turning radius, outside of tire 17 ft 6 in (5,320 mm) W Width over bucket 8 ft 1 in (2,460 mm)

MACHINE FEATURES: EROPS HEAT/AC TIER 4 FINAL CUMMINS ENGINE QC 4 YD BUCKET RIDE CONTROL 3RD VALVE AUTO GREASER

2024 LIUGONG 856HV WHEEL LOADER NEW WHEEL LOADER FOR SALE 2024 LIUGONG 856HV 4 YARD CLASS WHEEL LOADER FOR SALE. UNIT IS EQUIPPED WITH A TIER 4 FINAL CUMMINS ENGINE, 3RD VALVE, HYDRAULIC QUICK COUPLER, RIDE CONTROL, REVERSING FAN, AND LIUGONG 3 YEAR/4000 HR FULL MACHINE WARRANTY. FORKS ALSO AVAILBILE. ENGINE LOADER ARM PERFORMANCE WITH ATTACHMENT Emissions regulation Tier 4 Final / Stage IV Tipping load – straight 28,219 lb (12,700 kg) Make Cummins Tipping load – full turn 24,250 lb (11,000 kg) Model QSB6.7 Bucket breakout force 40,275 lbf (179 kN) Max gross power 225 hp (168 kW) @ 2,100 rpm Maximum hinge pin height 13 ft 2 in (4,028 mm) Max net power 215 hp (160 kW) @ 2,100 rpm Dump clearance at full height discharge 9 ft 8 in (2,948 mm) Peak torque 1,106 lb-ft (1,500 N-m) @ 1,400 rpm Dump reach at full height discharge 3 ft 8 in (1,129 mm) Displacement 409 in3 (6.7 L) Maximum digging depth, bucket level 3 in (85 mm) Number of cylinders 6 Bucket rollback at ground level 43° Aspiration Turbocharged & air-to-air intercooled Bucket rollback at carry 48° Bucket rollback at maximum height 58° TRANSMISSION STANDARD Maximum dump angle at full height 45° Transmission type Countershaft, power shift BUCKET PERFORMANCE Torque converter Single-stage, three-element Maximum travel speed, fwd 23.7 mph (38.1 km/h) Bucket capacity 4.2 yd3 (3.2 m3) Maximum travel speed, rev 14.9 mph (23.9 km/h) DIMENSIONS Number of speeds, fwd 4 Ground clearance 17 in (431 mm) Number of speeds, rev 3 Wheelbase 10 ft 10 in (3,320 mm) AXLES Cab height 11 ft 3 in (3,450 mm) Wheel tread 7 ft 0 in (2,150 mm) Differential front type Limited slip Width over tires 9 ft 0 in (2,750 mm) Differential rear type Limited slip Length with bucket down 27 ft 3 in (8,318 mm) Axle oscillation ±12° Turn angle, either side 38° STEERING Rear angle of departure 27° Steering configuration Articulated Turning radius, bucket carry 22 ft 9 in (6,954 mm) Steering pressure 2,756 psi (19 MPa) Turning radius, outside of tire 20 in 4 in (6,205 mm) BRAKES Width over bucket 9 ft 10 in (2,976 mm) Service brake type Wet discs, two independent circuits TIRES Service brake actuation Hydraulic Tire size 23.5R25 L3 tire Parking brake type Manual electronic control OPERATING WEIGHTS Parking brake actuation Hydraulic Operating weight 42,540 lb (19,296 kg) HYDRAULIC SYSTEM SERVICE CAPACITY Main pump type Piston System pressure 3,191 psi (22 MPa) Fuel tank 79.2 (300 L) Raise 5.7 s Engine oil 4.7 gal (18 L) Dump time 1.3 s Cooling system 11.6 gal (44 L) Float down time 3.0 s Hydraulic system 62.3 gal (236 L) Total cycle time 10.0 s Transmission 11.8 gal (45 L) Axles, each 11.6 gal (44 L) DEF tank 5.0 gal (19 L)

MACHINE FEATURES: EROPS HEAT/AC TIER 4 FINAL CUMMINS ENGINE QC 3.5 YD BUCKET RIDE CONTROL 3RD VALVE AUTO GREASER

NEW 2024 LIUGONG 848H WHEEL LOADER NEW WHEEL LOADER FOR SALE 2024 LIUGONG 848H 3.5 YARD CLASS WHEEL LOADER FOR SALE. UNIT IS EQUIPPED WITH A TIER 4 FINAL CUMMINS ENGINE, 3RD VALVE, HYDRAULIC QUICK COUPLER, RIDE CONTROL, REVERSING FAN, AND LIUGONG 3 YEAR/4000 HR FULL MACHINE WARRANTY. FORKS ALSO AVAILBILE. 848H SPECIFICATIONS >>> ENGINE LOADER ARM PERFORMANCE WITH ATTACHMENT Emissions regulation Tier 4 Final / Stage IV Tipping load – straight 23,876 lb (10,830 kg) Make Cummins Tipping load – full turn 21,418 lb (9,715 kg) Model QSB6.7 Bucket breakout force 26,977 lbf (120.0 kN) Max gross power 175 hp (129 kW) @ 2,100 rpm Maximum hinge pin height 12 ft 11 in (3,935 mm) Max net power 167 hp (123 kW) @ 2,100 rpm Dump clearance at full height discharge 9 ft 0 in (2,750 mm) Peak torque 620 lb-ft (841 N-m) @ 1,400 rpm Dump reach at full height discharge 3 ft 5 in (1,050 mm) Displacement 409 in 3 (6.7 L) Maximum digging depth, bucket level 3 in (70 mm) Number of cylinders 6 Bucket rollback at ground level 45 O Aspiration Turbocharged & air-to-air intercooled Bucket rollback at carry 48 O TRANSMISSION STANDARD Bucket rollback at maximum height 60 O Maximum dump angle at full height 45 O Transmission type Countershaft, power shift Torque converter Single-stage, three-element BUCKET PERFORMANCE Maximum travel speed, fwd 27.5 mph (44.3 km/h) Bucket capacity 3.5 yd 3 (2.7 m 3 ) Maximum travel speed, rev 15.7 mph (25.3 km/h) DIMENSIONS Number of speeds, fwd. 4 Ground clearance 1 ft 3 in (366 mm) Number of speeds, rev 3 Wheelbase 10 ft 0 in (3,050 mm) AXLES Cab height 10 ft 10 in (3,310 mm) Differential front type Limited slip Wheel tread 6 ft 9 in (2,050 mm) Differential rear type Limited slip Width over tires 8 ft 4 in (2,548 mm) Axle oscillation ±12° Length with bucket down 26 ft 4 in (8,030 mm) Turn angle, either side 38 O STEERING Rear angle of departure 28 O Steering configuration Articulated Turning radius, bucket carry 20 ft 6 in (6,520 mm) Steering pressure 2,611 psi (18 MPa) Turning radius, outside of tire 18 ft 4 in (5,590 mm) BRAKES Width over bucket 9 ft 1 in (2,750 mm) Service brake type Wet discs, two independent circuits TIRES Service brake actuation Hydraulic Tire Size 20.5R25 L3 tire Parking brake type Manual electronic control OPERATING WEIGHTS Parking brake actuation Hydraulic HYDRAULIC SYSTEM Operating weight 35,260 lb (15,994 kg) Main pump type Piston SERVICE CAPACITY Pressure 3,002 psi (20.7 MPa) Fuel tank 65.0 gal (245 L) Raise 5.5 s Engine oil 4.5 gal (17 L) Dump time 1.6 s Cooling system 12.0 gal (44 L) Float down time 3.0 s Hydraulic system 48.0 gal (180 L) Total cycle time 10.1 s Transmission 10.5 gal (40 L) Axles, each 9.5 gal (36 L) DEF tank 5.0 gal (19 L)

UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK. MACHINE FEATURES: EROPS HEAT/AC TIER 4 FINAL CUMMINS ENGINE QC 3.5 YD BUCKET RIDE CONTROL 3RD VALVE

2019 LIUGONG 848H WHEEL LOADER VERY NICE LOW HOUR LIUGONG 948H 3.5YD CLASS WHEEL LOADER. ONE OWNER MACHINE! UNIT IS EQUIPPED WITH A HYDRAULIC COUPLER, GP BUCKET, 3RD VALVE, RIDE CONTROL, AND RADIAL TIRES. 848H SPECIFICATIONS >>> ENGINE LOADER ARM PERFORMANCE WITH ATTACHMENT Emissions regulation Tier 4 Final / Stage IV Tipping load – straight 23,876 lb (10,830 kg) Make Cummins Tipping load – full turn 21,418 lb (9,715 kg) Model QSB6.7 Bucket breakout force 26,977 lbf (120.0 kN) Max gross power 175 hp (129 kW) @ 2,100 rpm Maximum hinge pin height 12 ft 11 in (3,935 mm) Max net power 167 hp (123 kW) @ 2,100 rpm Dump clearance at full height discharge 9 ft 0 in (2,750 mm) Peak torque 620 lb-ft (841 N-m) @ 1,400 rpm Dump reach at full height discharge 3 ft 5 in (1,050 mm) Displacement 409 in 3 (6.7 L) Maximum digging depth, bucket level 3 in (70 mm) Number of cylinders 6 Bucket rollback at ground level 45 O Aspiration Turbocharged & air-to-air intercooled Bucket rollback at carry 48 O TRANSMISSION STANDARD Bucket rollback at maximum height 60 O Maximum dump angle at full height 45 O Transmission type Countershaft, power shift Torque converter Single-stage, three-element BUCKET PERFORMANCE Maximum travel speed, fwd 27.5 mph (44.3 km/h) Bucket capacity 3.5 yd 3 (2.7 m 3 ) Maximum travel speed, rev 15.7 mph (25.3 km/h) DIMENSIONS Number of speeds, fwd. 4 Ground clearance 1 ft 3 in (366 mm) Number of speeds, rev 3 Wheelbase 10 ft 0 in (3,050 mm) AXLES Cab height 10 ft 10 in (3,310 mm) Differential front type Limited slip Wheel tread 6 ft 9 in (2,050 mm) Differential rear type Limited slip Width over tires 8 ft 4 in (2,548 mm) Axle oscillation ±12° Length with bucket down 26 ft 4 in (8,030 mm) Turn angle, either side 38 O STEERING Rear angle of departure 28 O Steering configuration Articulated Turning radius, bucket carry 20 ft 6 in (6,520 mm) Steering pressure 2,611 psi (18 MPa) Turning radius, outside of tire 18 ft 4 in (5,590 mm) BRAKES Width over bucket 9 ft 1 in (2,750 mm) Service brake type Wet discs, two independent circuits TIRES Service brake actuation Hydraulic Tire Size 20.5R25 L3 tire Parking brake type Manual electronic control OPERATING WEIGHTS Parking brake actuation Hydraulic HYDRAULIC SYSTEM Operating weight 35,260 lb (15,994 kg) Main pump type Piston SERVICE CAPACITY Pressure 3,002 psi (20.7 MPa) Fuel tank 65.0 gal (245 L) Raise 5.5 s Engine oil 4.5 gal (17 L) Dump time 1.6 s Cooling system 12.0 gal (44 L) Float down time 3.0 s Hydraulic system 48.0 gal (180 L) Total cycle time 10.1 s Transmission 10.5 gal (40 L) Axles, each 9.5 gal (36 L) DEF tank 5.0 gal (19 L)
