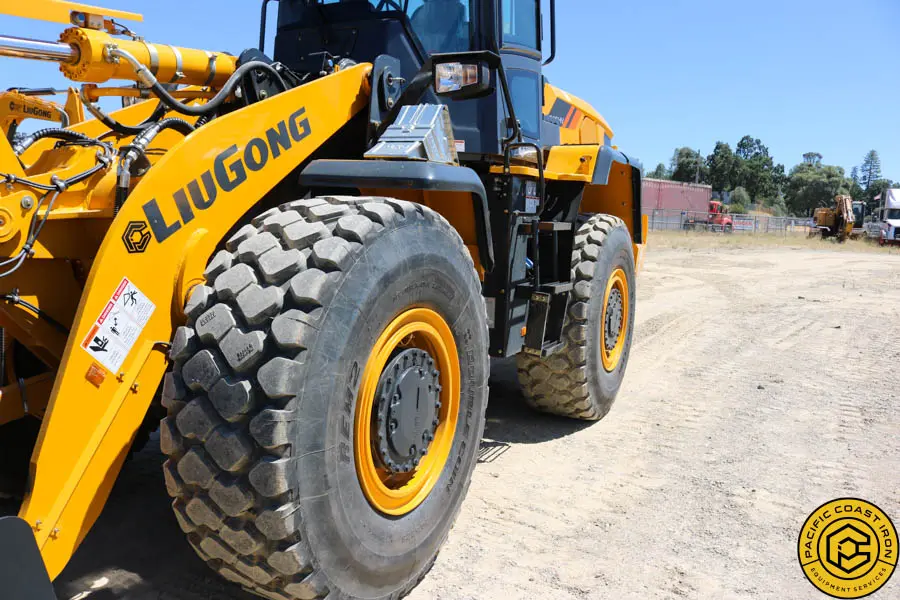

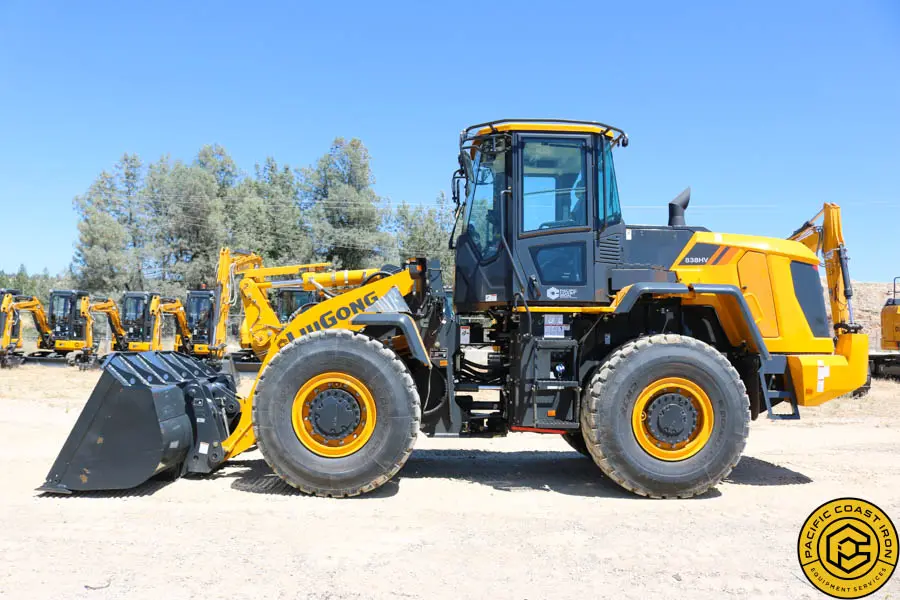

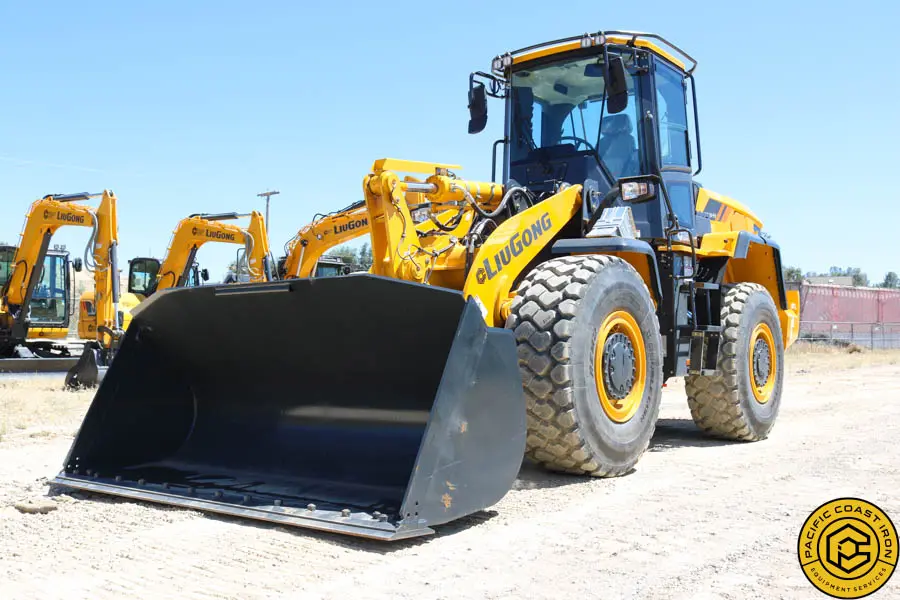

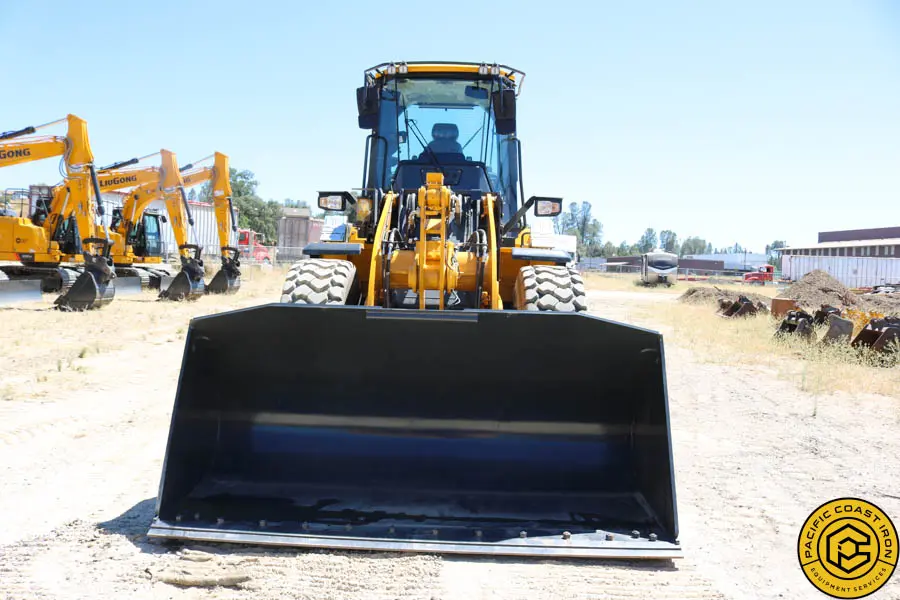

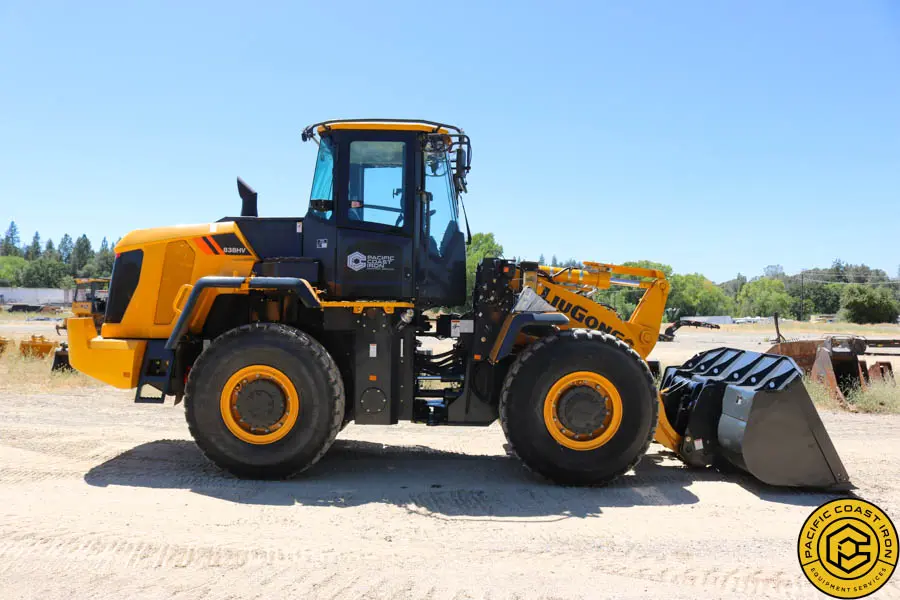

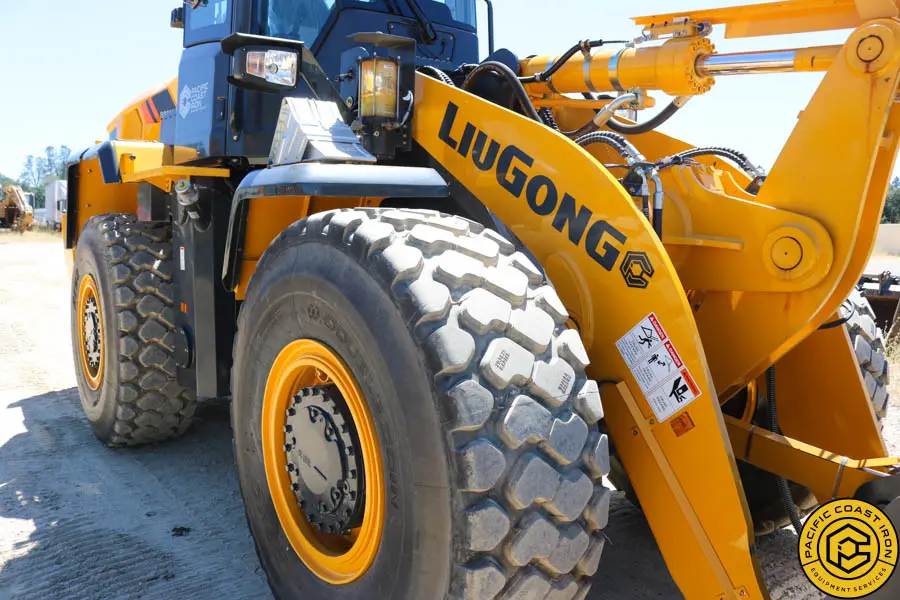

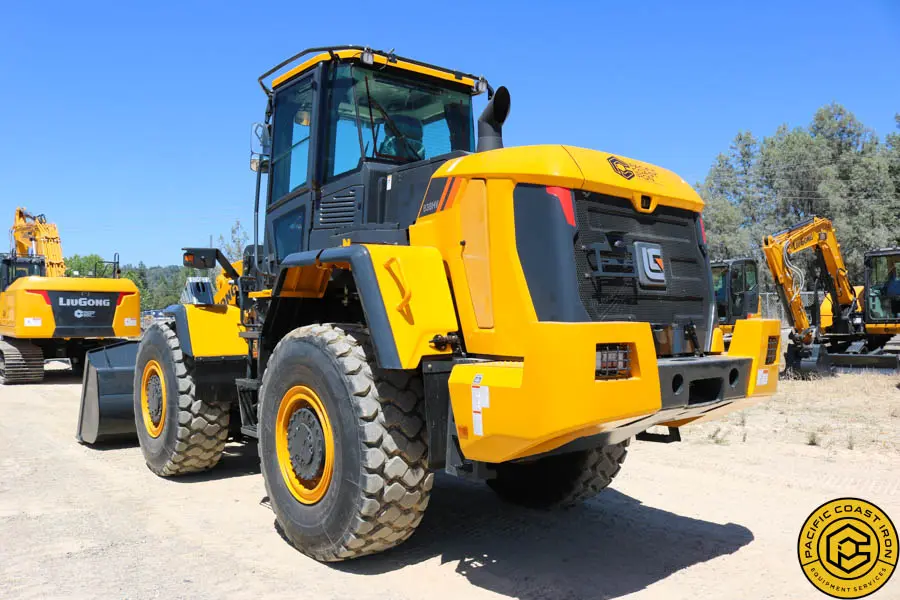

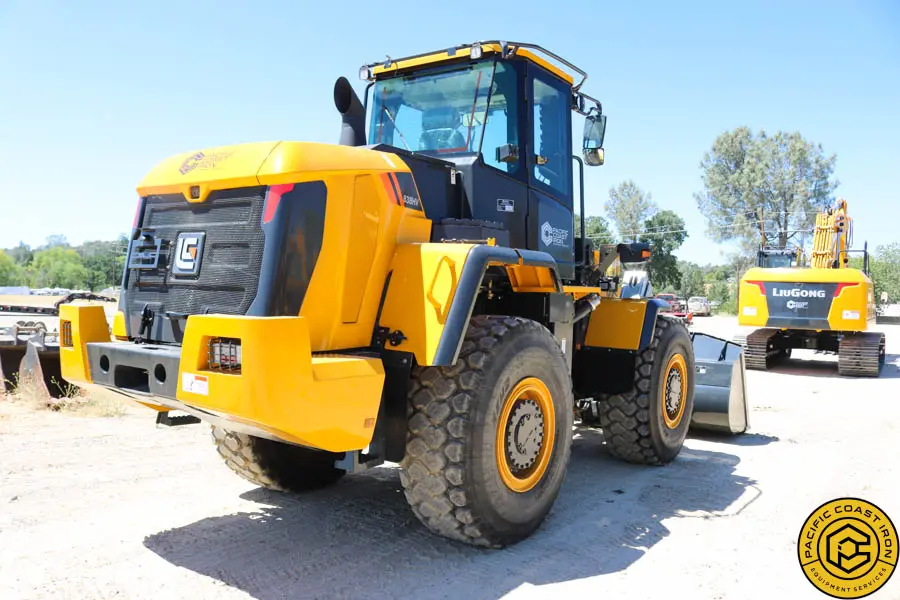

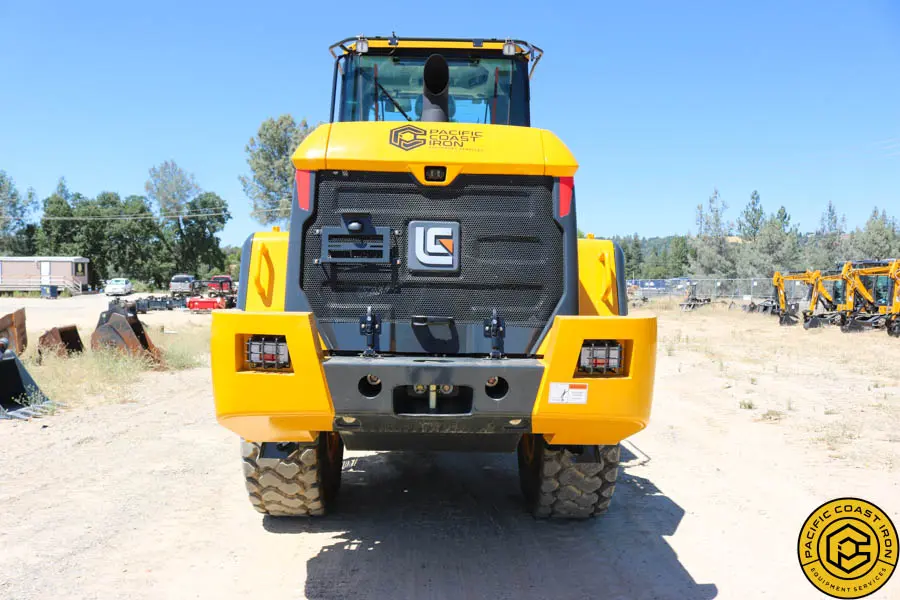

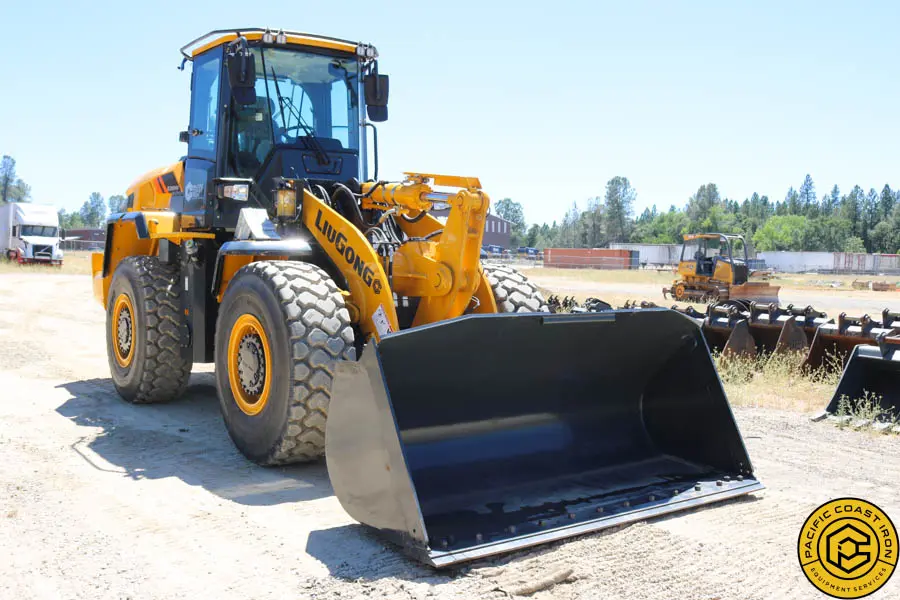

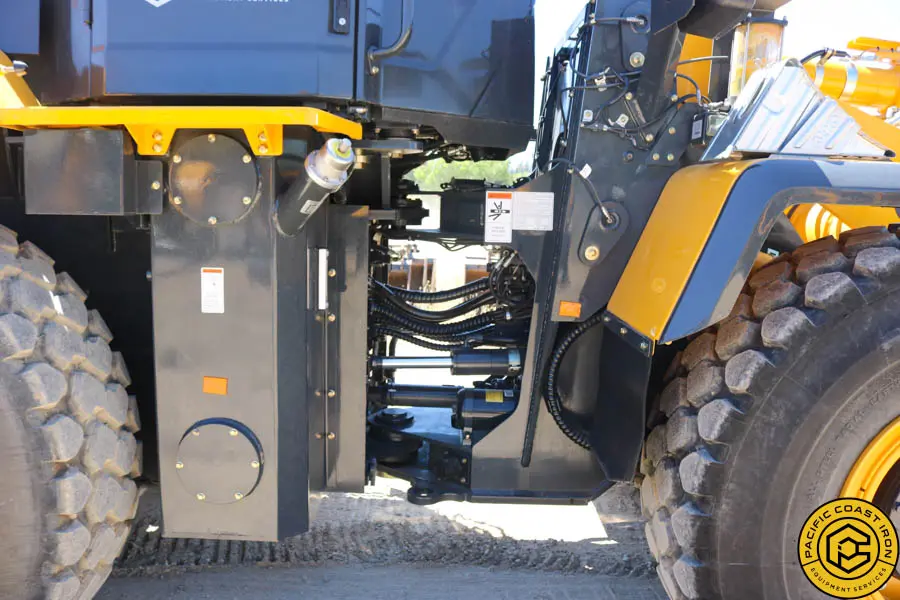

2024 LIUGONG 838HV WHEEL LOADER

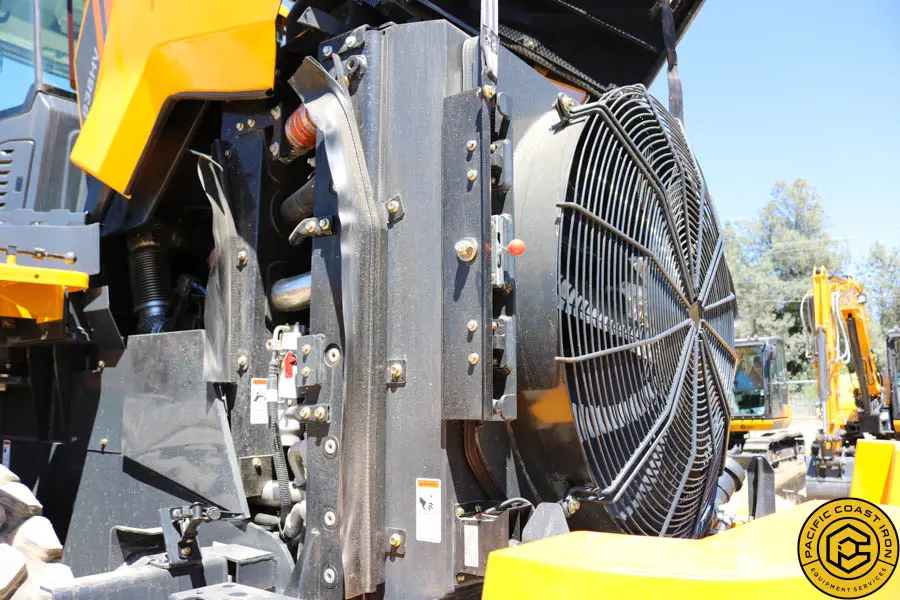

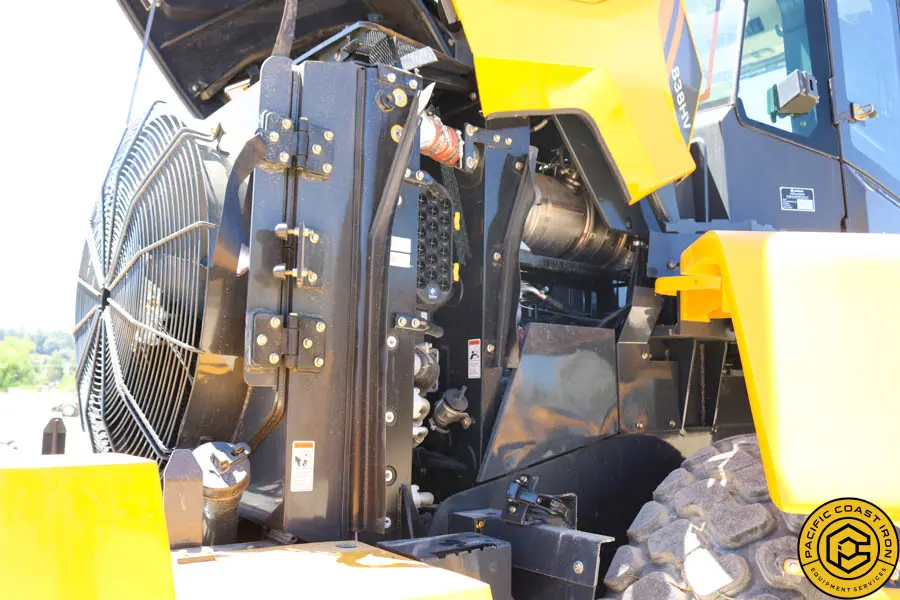

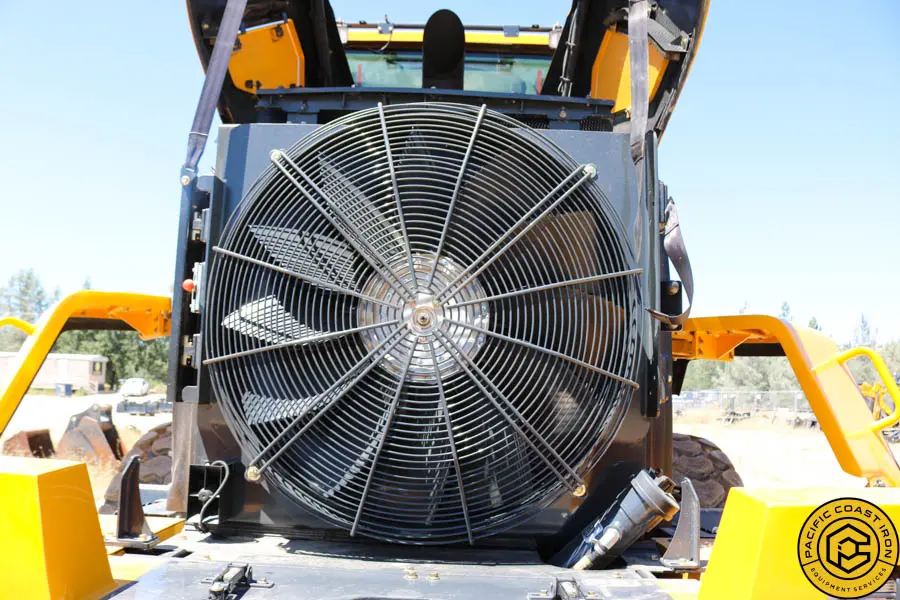

2024 LIUGONG 838HV WHEEL LOADER FOR SALE. UNIT IS EQUIPPED WITH A TIER 4 FINAL CUMMINS ENGINE, 3RD VALVE, HYDRAULIC QUICK COUPLER, RIDE CONTROL, REVERSING FAN, AND LIUGONG 3 YEAR/4000 HR FULL MACHINE WARRANTY. FORKS ALSO AVAILBILE.
MACHINE SPECIFACATIONS:
   ENGINE
HYDRAULIC SYSTEM
Emissions rating
EPA Tier 4 Final / EU Stage V
Main pump type
Piston
Make
Cummins
System pressure
3,771 psi (26 MPa)
Model
B4.5
Raise
4.8 s
Gross power
154 hp (115 kW) @ 2,200 rpm
Dump time
1.5 s
Net power
142 hp (106 kW) @ 2,200 rpm
Float down time
3.1 s
Peak torque
525 lbf·ft (712 N·m) @ 1,200 rpm
Total cycle time
9.4 s
Cylinders
4

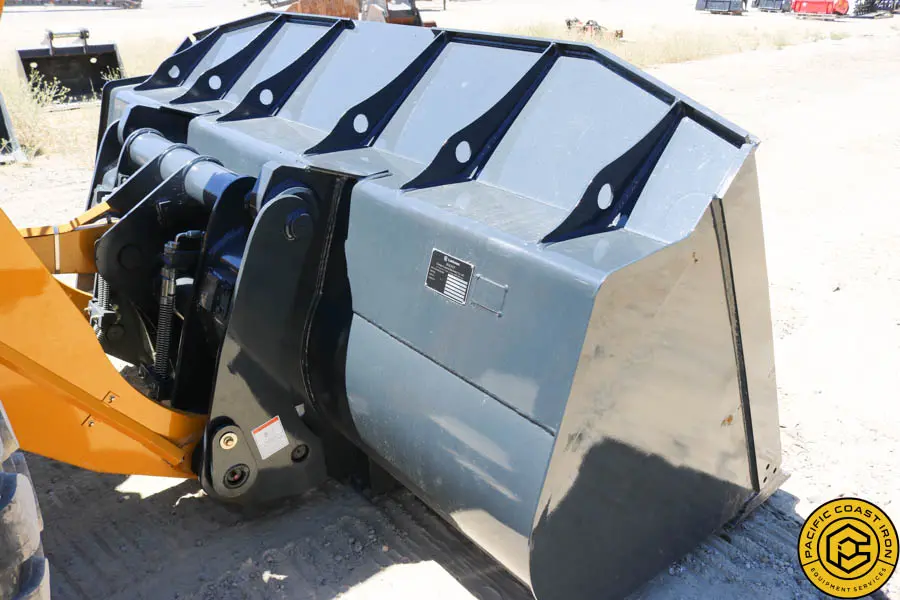

BUCKET PERFORMANCE
Displacement
1.18 gal (4.5 L)
Bucket capacity
2.35-5.2 yd3 (1.8-4.0 m3)
Aspiration
Turbocharged &
Air-to-air intercooled
TIRES
   TRANSMISSION
Tire size
20.5R25 L3
Transmission type
Countershaft, power shift
OPERATING WEIGHT
Torque converter
Single stage, three elements
Operating weight
29,033 lb (13,169 kg)
Max. travel speed, fwd
24.9 mph (40 km/h)
Max. travel speed, rev
17 mph (27.3 km/h)
SERVICE CAPACITY
Fuel tank
57.3 gal (217 L)
Number of speeds, fwd
4
Number of speeds, rev
3
Engine oil
3 gal (11.6 L)
Cooling system
7.4 gal (28 L)
   AXLES
Hydraulic system
33 gal (125 L)
Differential front type
Limited slip
Transmission
10.5 gal (40 L)
Differential rear type
Limited slip
Axles, each
9 gal (34 L)
Axle oscillation
±12°
DEF tank
5 gal (19 L)
STEERING
Steering configuration
Articulated
Steering pressure
2,611 psi (18 Mpa)
BRAKES
Service brake type
Wet disc brake
Service brake actuation
Fully hydraulic
Parking brake type
Drum
Parking brake actuation
Electro-hydraulic release
LOADER ARM PERFORMANCE WITH ATTACHMENT
Description
Tipping load – straight
19,610 lb (8,895 kg)
Tipping load – full turn
16,552 lb (7,508 kg)
Bucket breakout force
17,985 lbf (80 kN)
A   Maximum hinge pin height
12 ft 5 in (3,788 mm)
B   Dump clearence at full height discharge
9 ft 4 in (2,850 mm)
C   Dump reach at full height discharge
4 ft 1 in (1,250 mm)
D   Max. digging depth, bucket level
0.8 in (20 mm)
S1  Bucket rollback at ground level
42°
S2  Bucket rollback at carry
49°
S3  Bucket rollback at max. height
56°
S4  Max. dump angle at full height
45°
DIMENSIONS
Description
E    Ground clearance
1 ft 6 in (450 mm)
G   Wheelbase
9 ft 7 in (2,940 mm)
H   Cab height
11 ft 2 in (3,420 mm)
J    Wheel tread
6 ft 1 in (1,850 mm)
K   Width over tires
7 ft 10 in (2,370 mm)
L    Length with bucket down
24 ft 10 in (7,570 mm)
M   Turn angle, either side
40°
P   Rear angle of departure
31°
R4  Turning radius, bucket carry
19 ft 1 in (5,807 mm)
R2  Turning radius, outside of tire
17 ft 6 in (5,320 mm)
W  Width over bucket
8 ft 1 in (2,460 mm)
