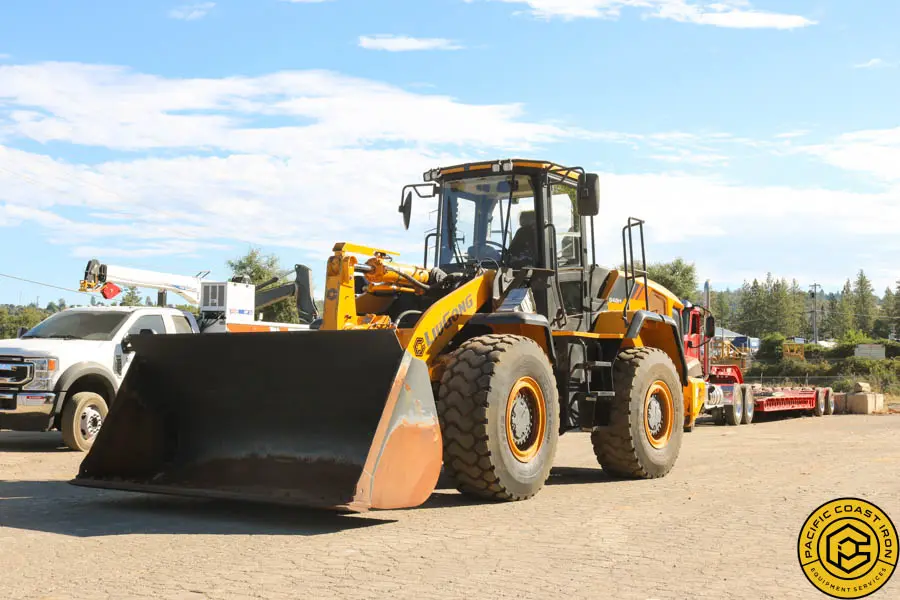

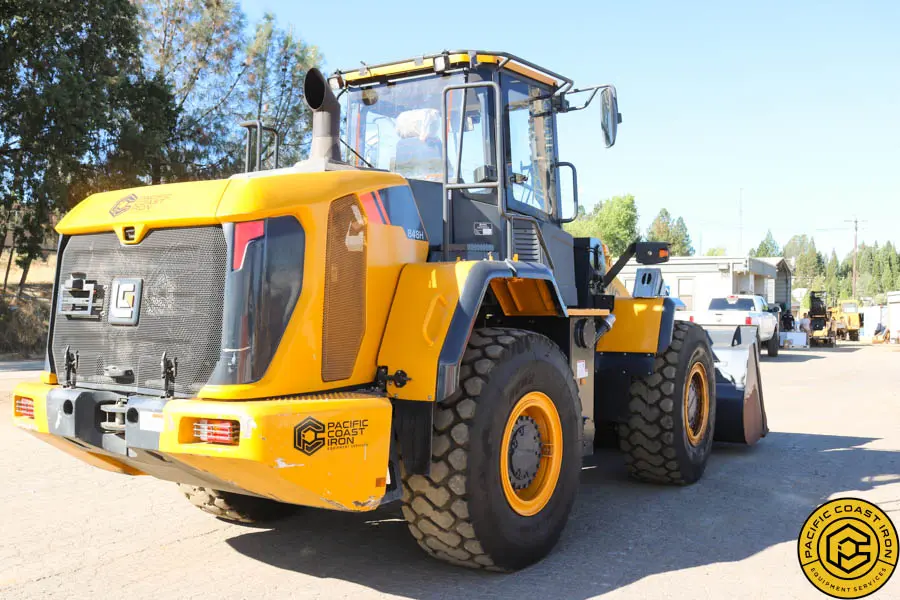

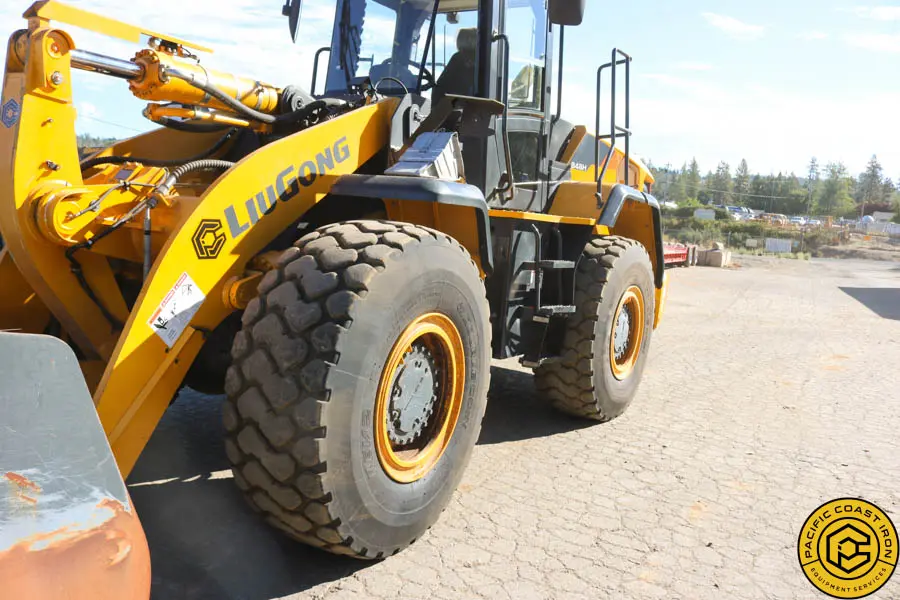

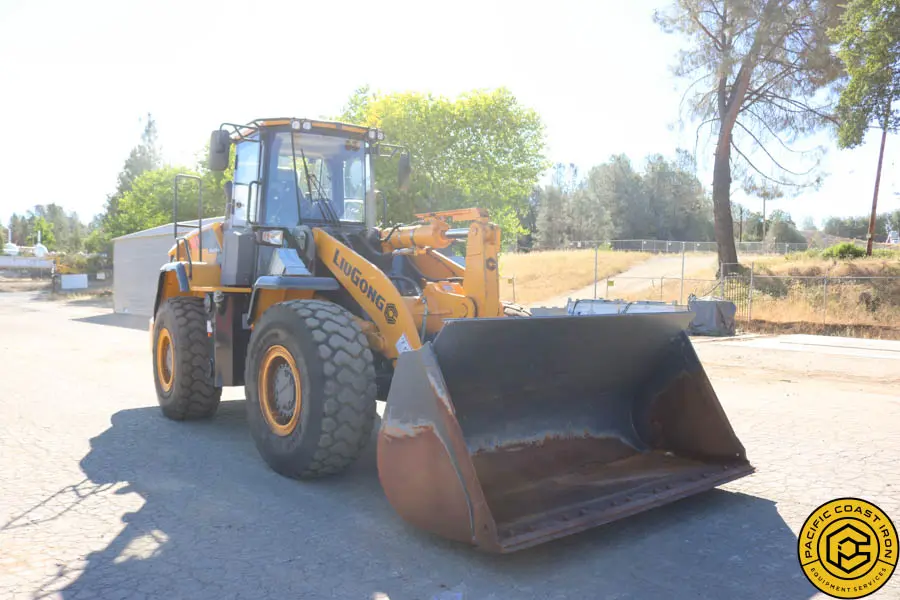

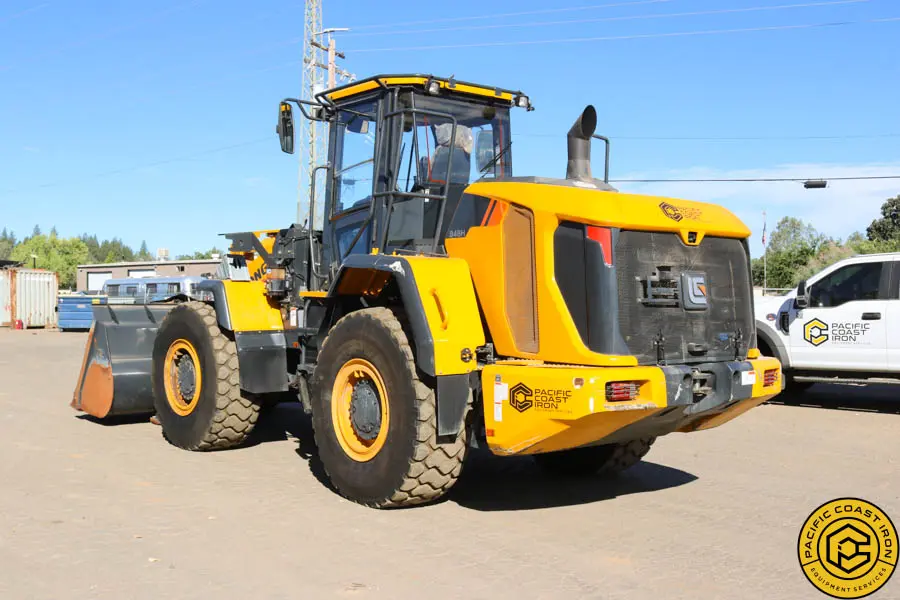

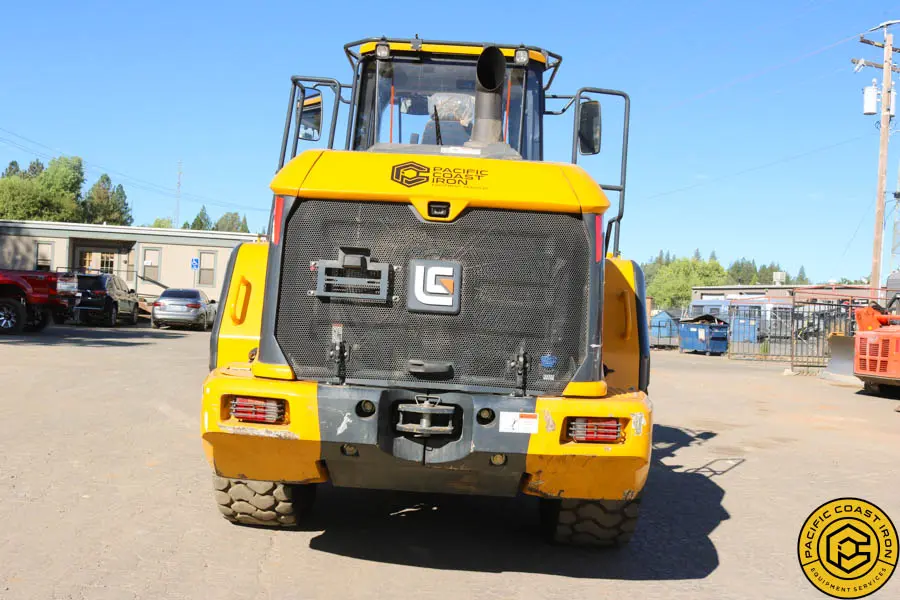

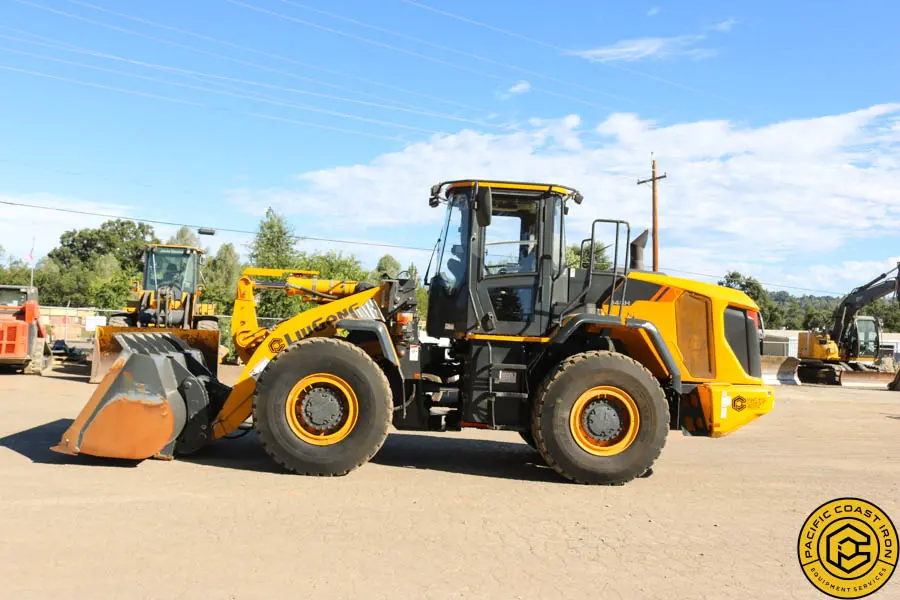

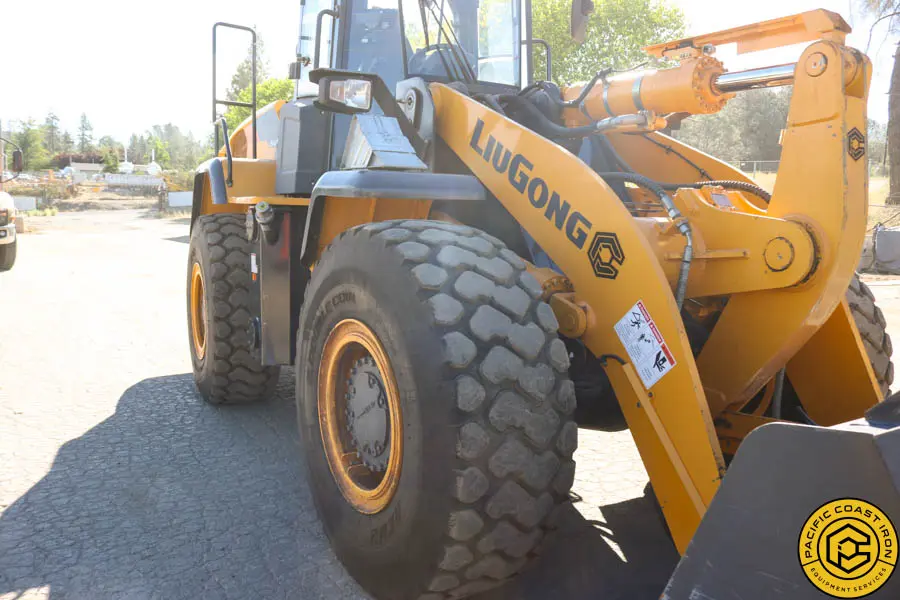

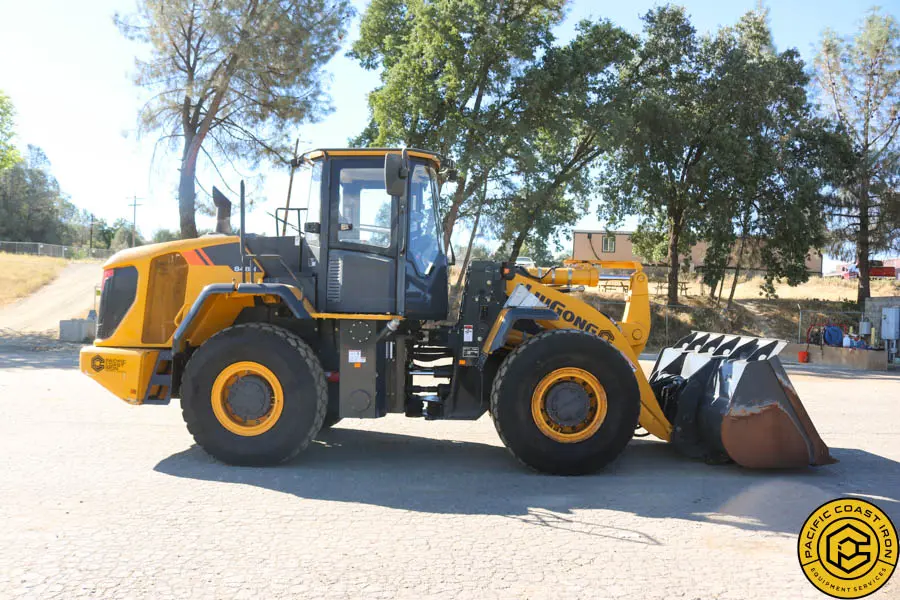

2019 LIUGONG 848H WHEEL LOADER

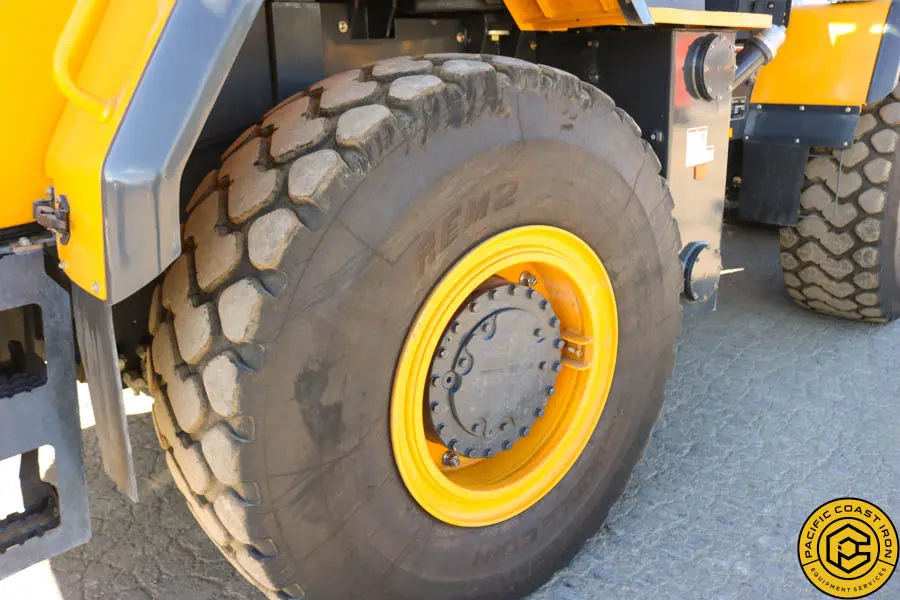

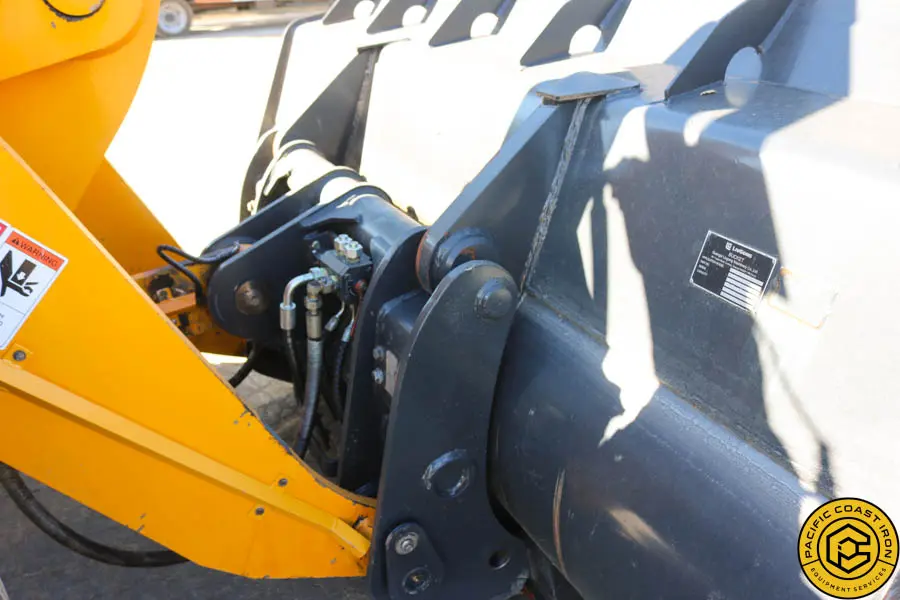

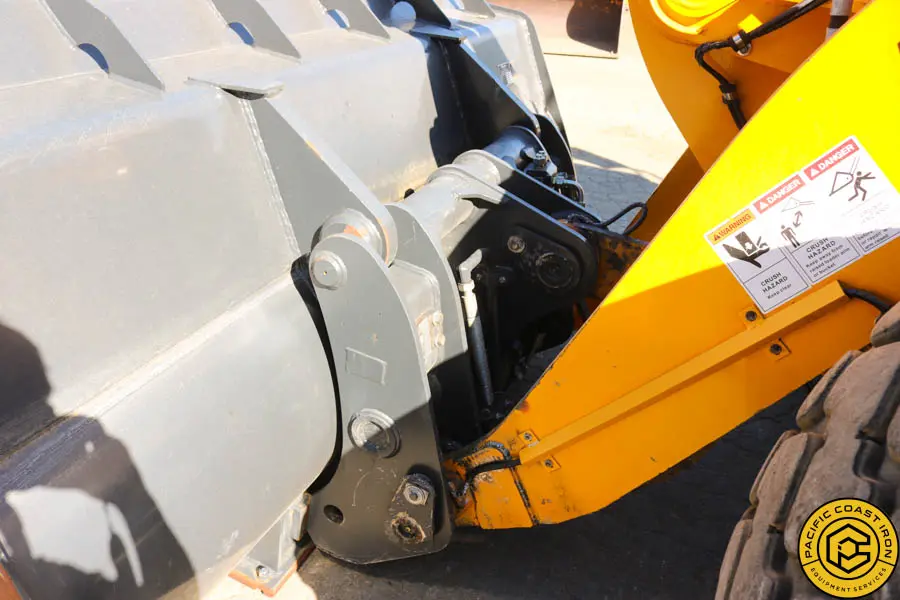

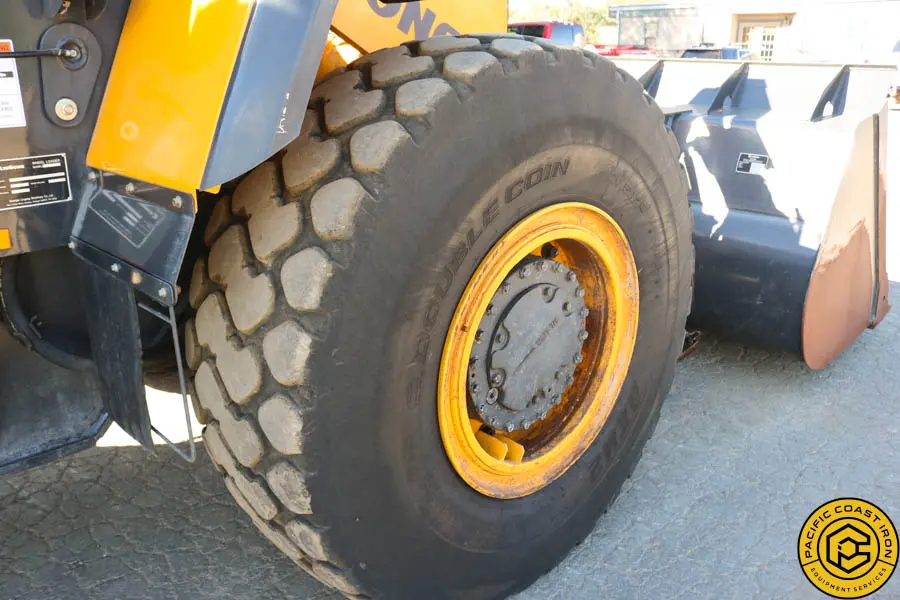

VERY NICE LOW HOUR LIUGONG 948H 3.5YD CLASS WHEEL LOADER. ONE OWNER MACHINE! UNIT IS EQUIPPED WITH A HYDRAULIC COUPLER, GP BUCKET, 3RD VALVE, RIDE CONTROL, AND RADIAL TIRES.
848H SPECIFICATIONS >>>
ENGINE
LOADER ARM PERFORMANCE WITH ATTACHMENT
Emissions regulation
Tier 4 Final / Stage IV
Tipping load – straight
23,876 lb (10,830 kg)
Make
Cummins
Tipping load – full turn
21,418 lb (9,715 kg)
Model
QSB6.7
Bucket breakout force
26,977 lbf (120.0 kN)
Max gross power
175 hp (129 kW) @ 2,100 rpm
Maximum hinge pin height
12 ft 11 in (3,935 mm)
Max net power
167 hp (123 kW) @ 2,100 rpm
Dump clearance at full height discharge  9 ft 0 in (2,750 mm)
Peak torque
620 lb-ft (841 N-m) @ 1,400 rpm
Dump reach at full height discharge
3 ft 5 in (1,050 mm)
Displacement
409 in3  (6.7 L)
Maximum digging depth, bucket level
3 in (70 mm)
Number of cylinders
6
Bucket rollback at ground level
45O
Aspiration
Turbocharged & air-to-air intercooled
Bucket rollback at carry
48O
TRANSMISSION STANDARD
Bucket rollback at maximum height
60O
Maximum dump angle at full height
45O
Transmission type
Countershaft, power shift
Torque converter
Single-stage, three-element
BUCKET PERFORMANCE
Maximum travel speed, fwd
27.5 mph (44.3 km/h)

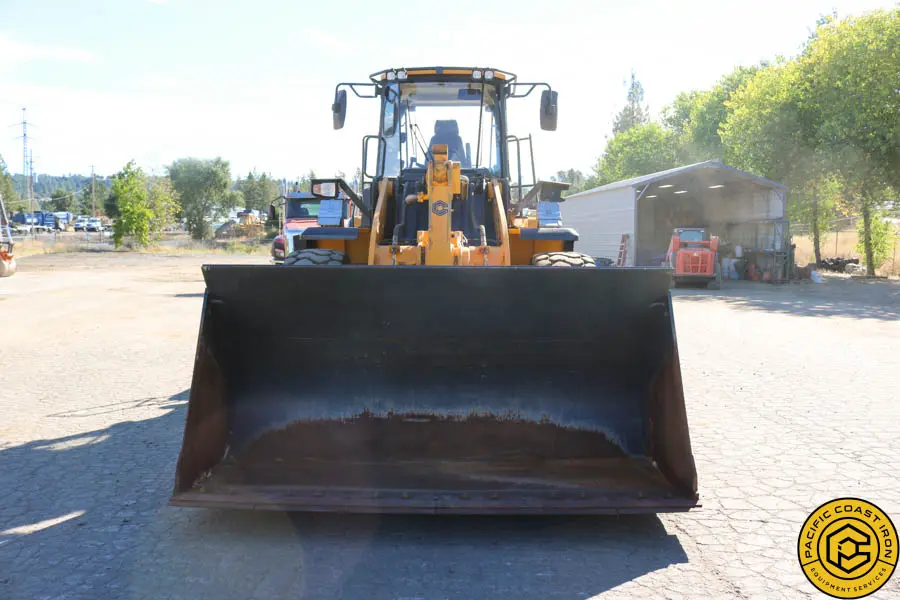

Bucket capacity
3.5 yd3  (2.7 m3)
Maximum travel speed, rev
15.7 mph (25.3 km/h)
DIMENSIONS
Number of speeds, fwd.
4
Ground clearance
1 ft 3 in (366 mm)
Number of speeds, rev
3
Wheelbase
10 ft 0 in (3,050 mm)
AXLES
Cab height
10 ft 10 in (3,310 mm)
Differential front type
Limited slip
Wheel tread
6 ft 9 in (2,050 mm)
Differential rear type
Limited slip
Width over tires
8 ft 4 in (2,548 mm)
Axle oscillation
±12°
Length with bucket down
26 ft 4 in (8,030 mm)
Turn angle, either side
38O
STEERING
Rear angle of departure
28O
Steering configuration
Articulated
Turning radius, bucket carry
20 ft 6 in (6,520 mm)
Steering pressure
2,611 psi (18 MPa)
Turning radius, outside of tire
18 ft 4 in (5,590 mm)
BRAKES
Width over bucket
9 ft 1 in (2,750 mm)
Service brake type
Wet discs, two independent circuits
TIRES
Service brake actuation
Hydraulic

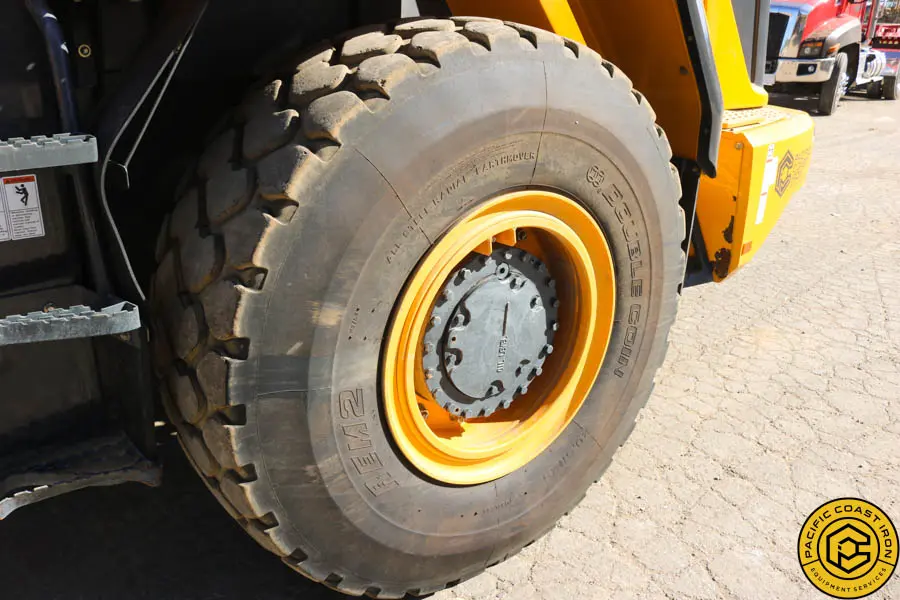

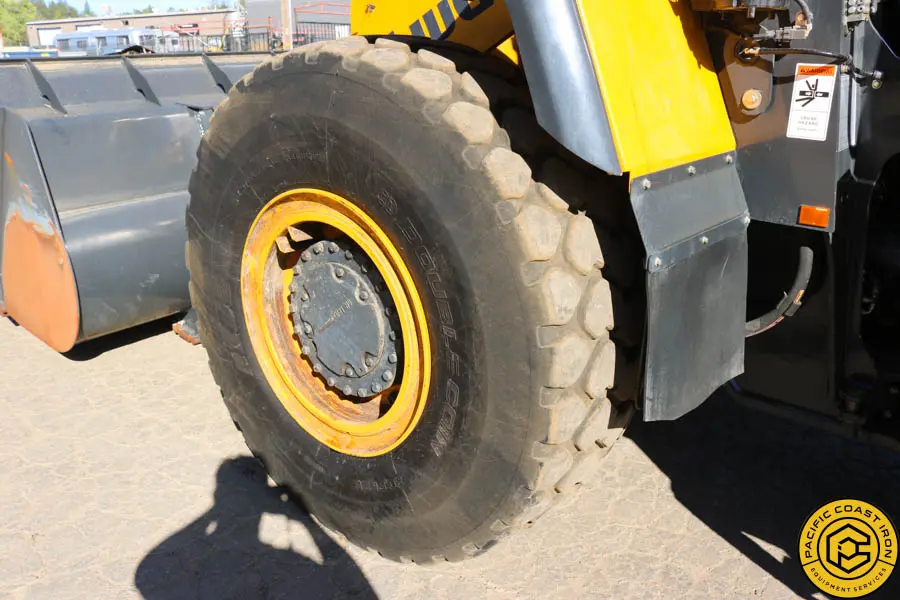

Tire Size
20.5R25 L3 tire
Parking brake type
Manual electronic control
OPERATING WEIGHTS
Parking brake actuation
Hydraulic
HYDRAULIC SYSTEM
Operating weight
35,260 lb (15,994 kg)
Main pump type
Piston
SERVICE CAPACITY
Pressure
3,002 psi (20.7 MPa)
Fuel tank
65.0 gal (245 L)
Raise
5.5 s
Engine oil
4.5 gal  (17 L)
Dump time
1.6 s
Cooling system
12.0 gal (44 L)
Float down time
3.0 s
Hydraulic system
48.0 gal (180 L)
Total cycle time
10.1 s
Transmission
10.5 gal (40 L)
Axles, each
9.5 gal (36 L)
DEF tank
5.0 gal (19 L)
