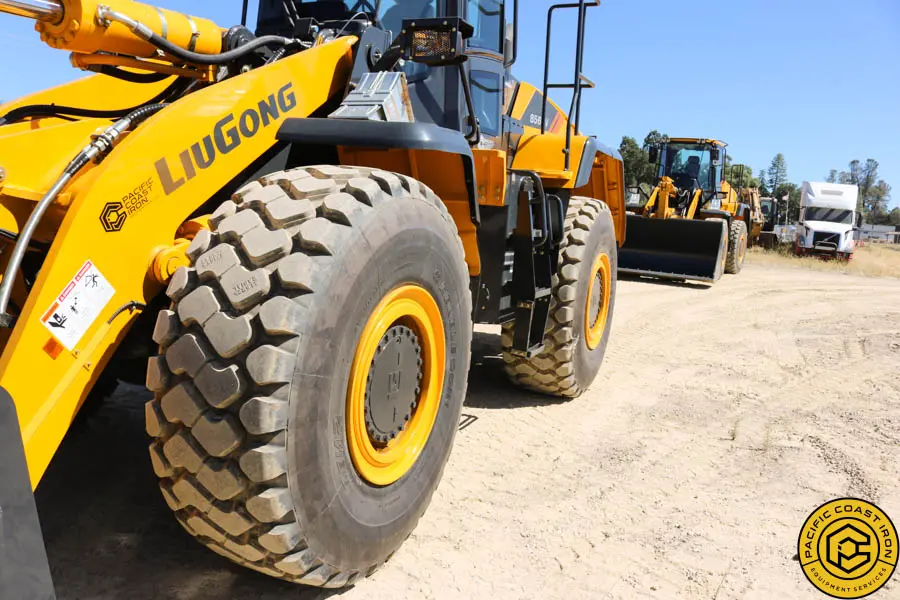

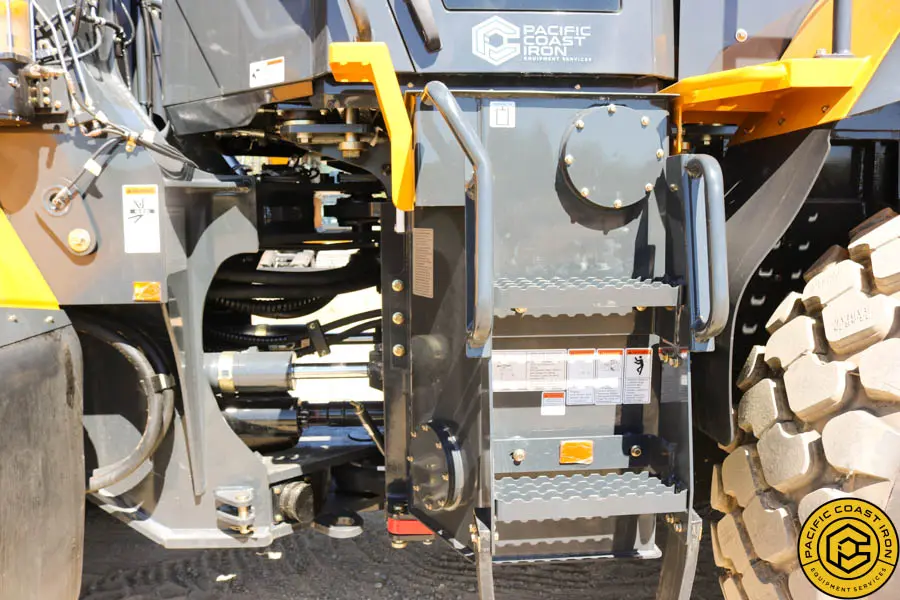

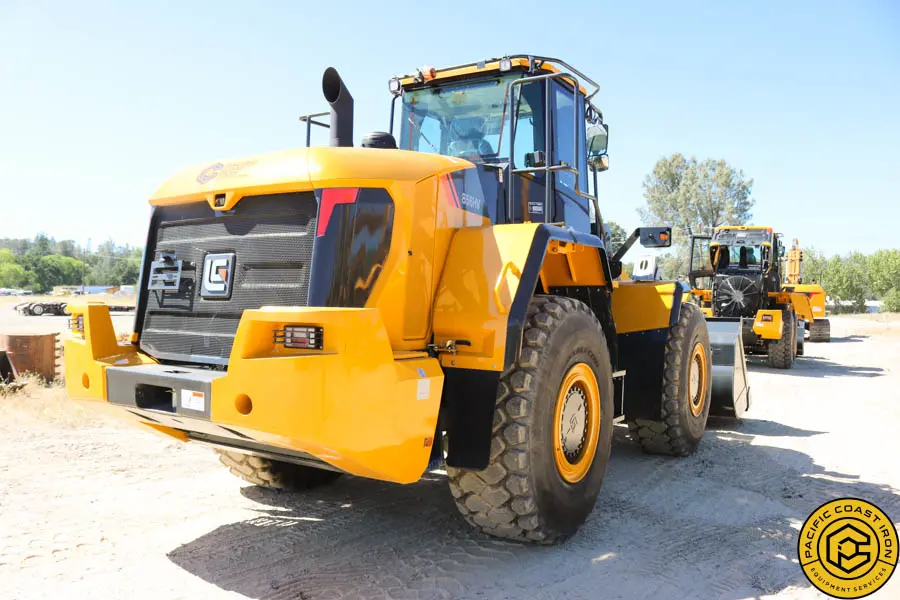

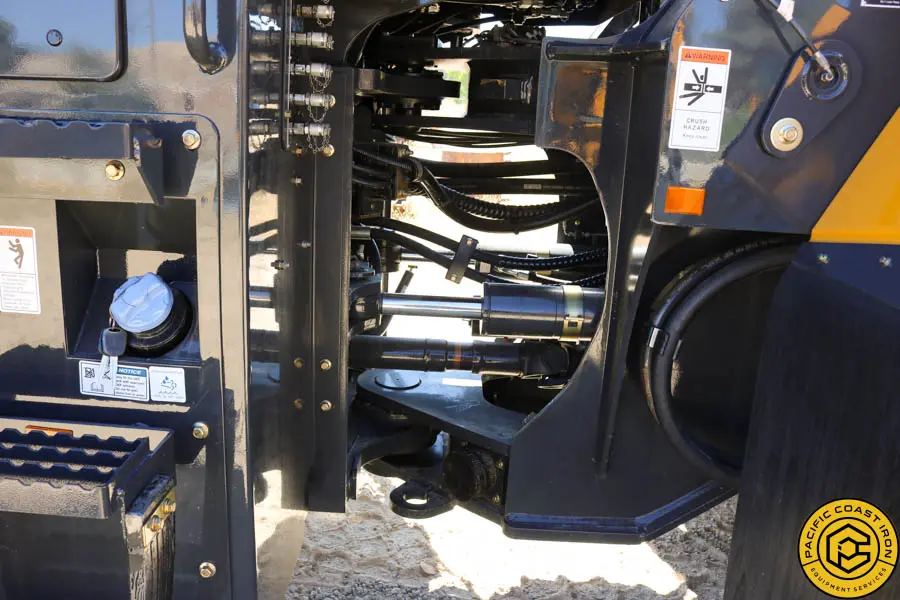

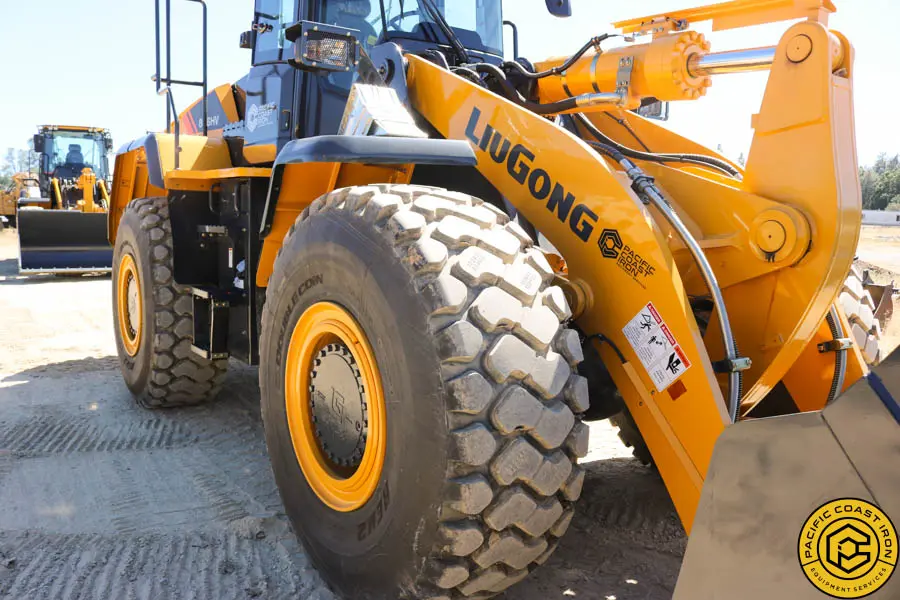

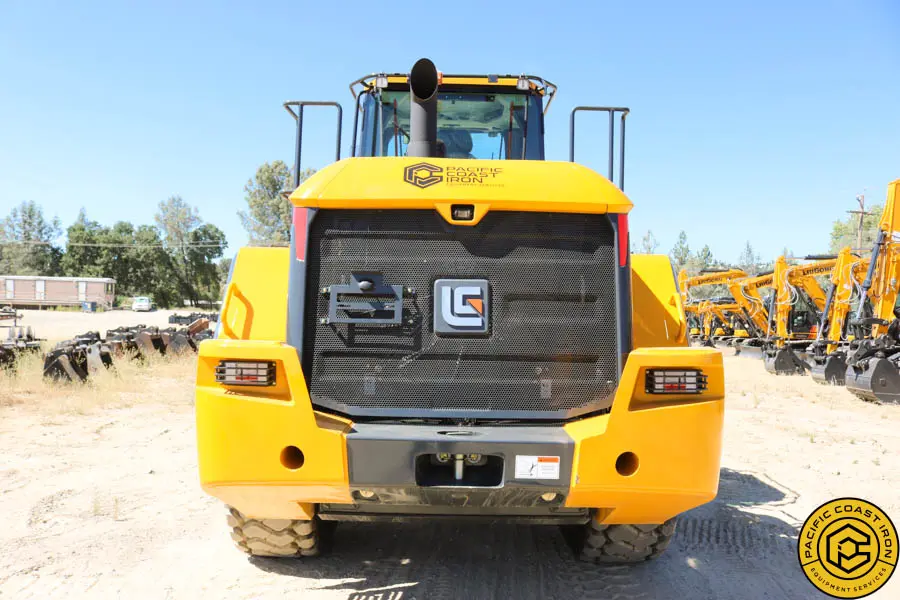

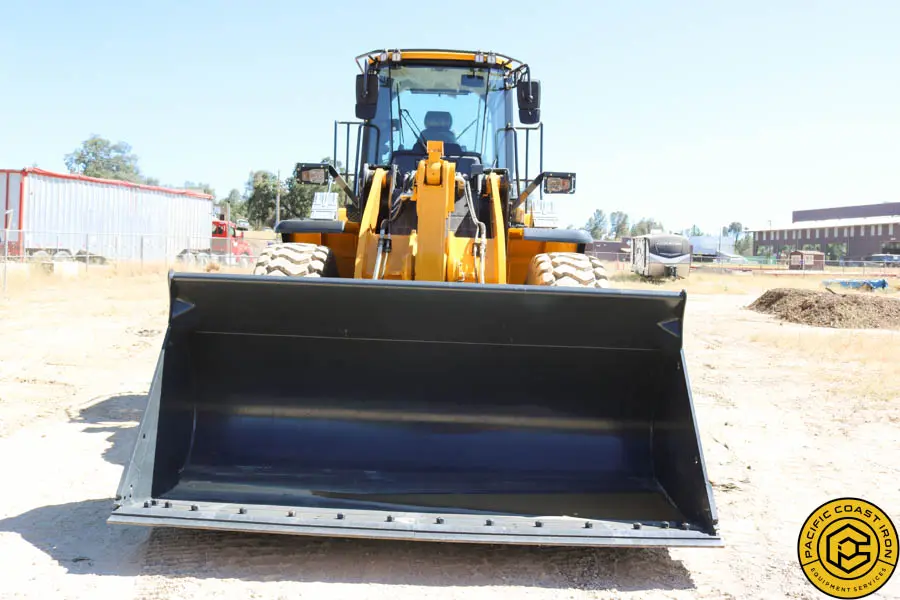

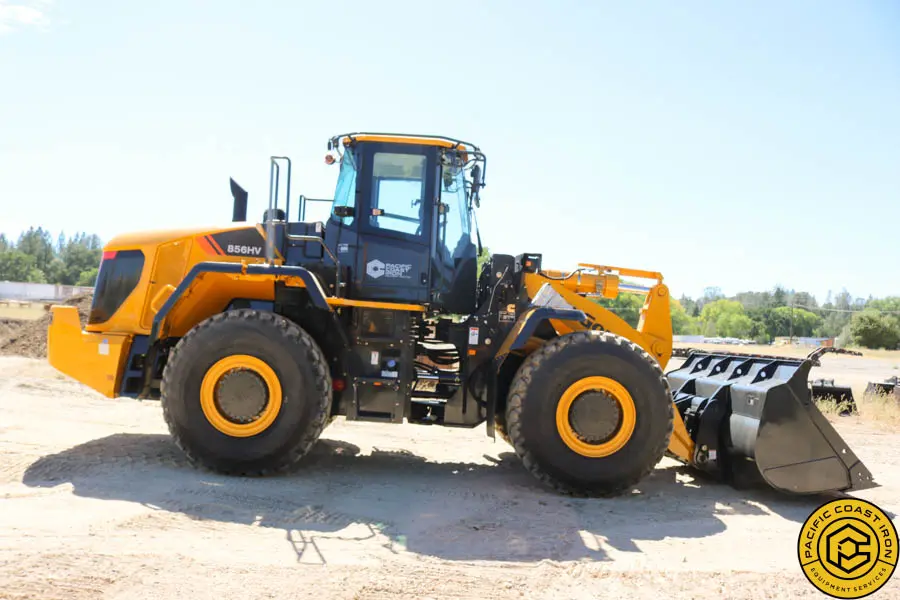

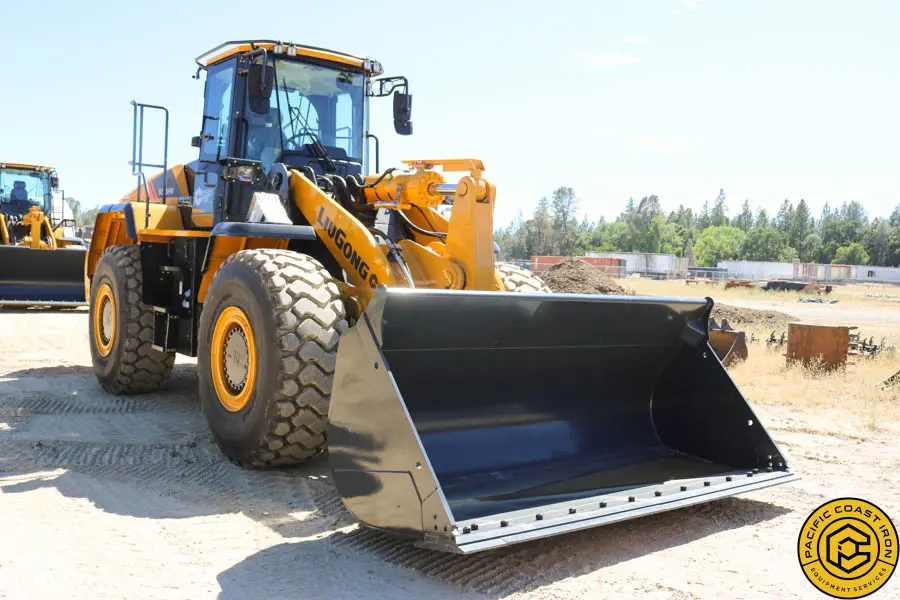

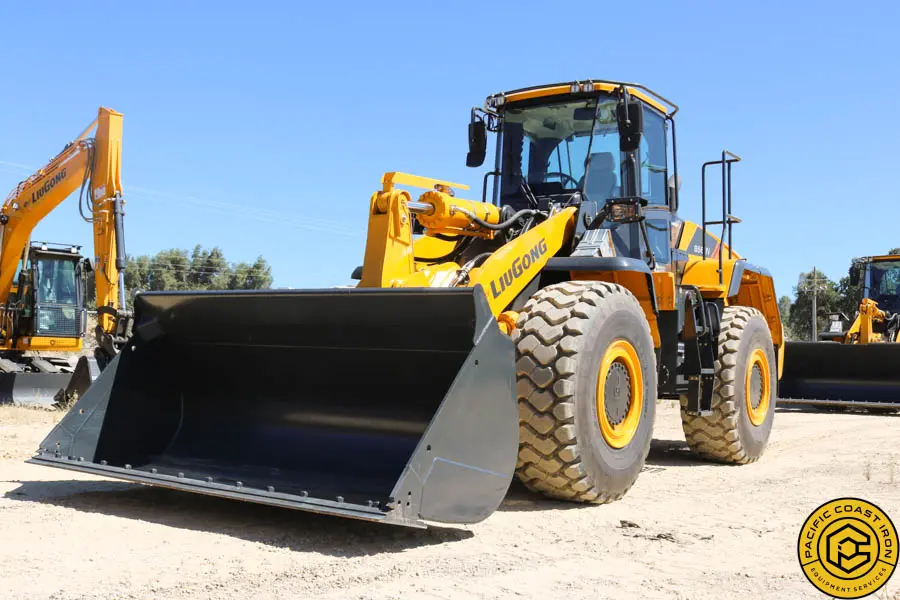

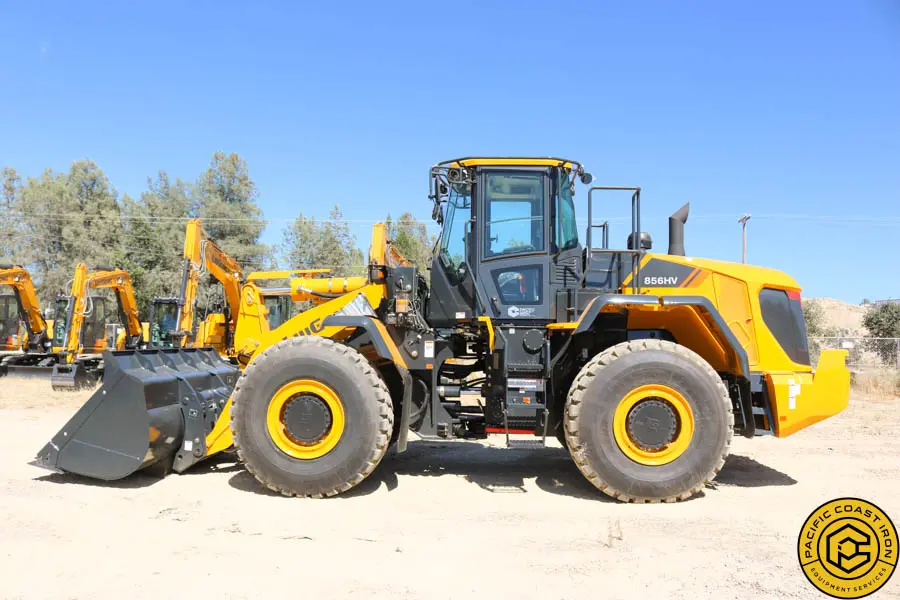

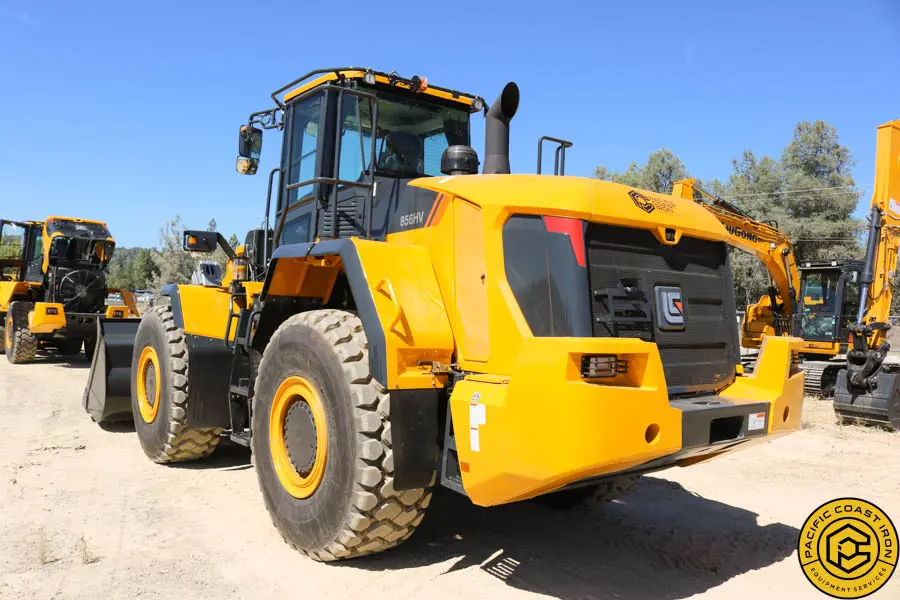

2024 LIUGONG 856HV WHEEL LOADER

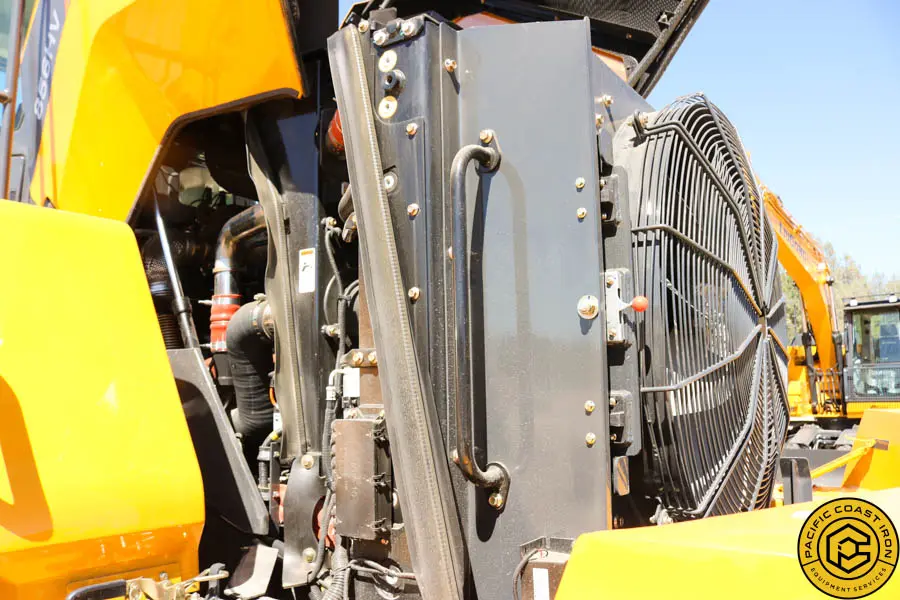

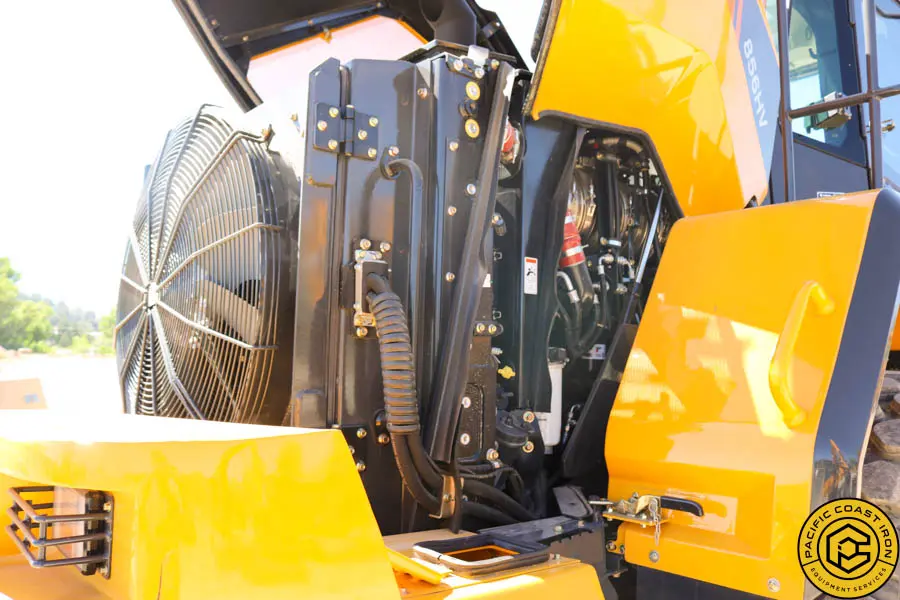

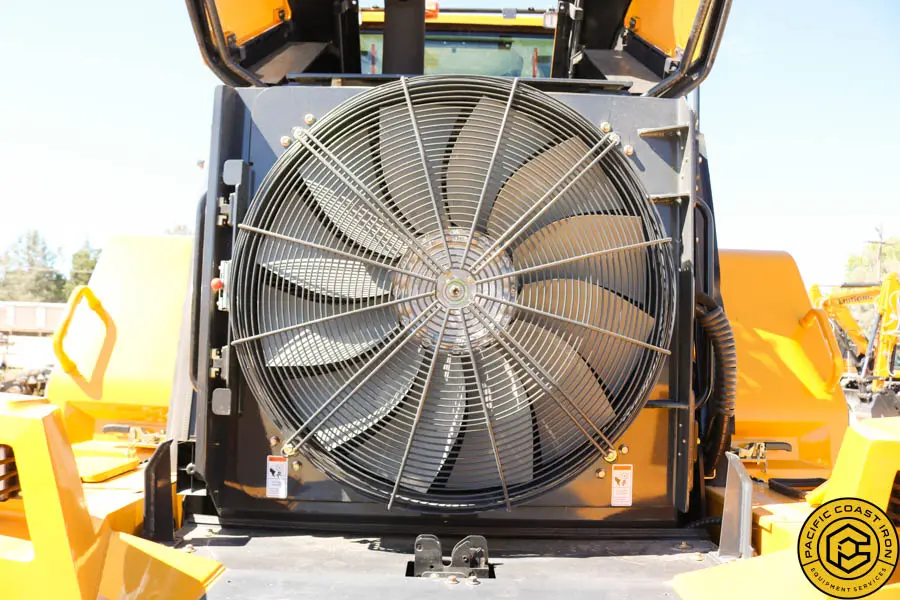

NEW WHEEL LOADER FOR SALE 2024 LIUGONG 856HV 4 YARD CLASS WHEEL LOADER FOR SALE. UNIT IS EQUIPPED WITH A TIER 4 FINAL CUMMINS ENGINE, 3RD VALVE, HYDRAULIC QUICK COUPLER, RIDE CONTROL, REVERSING FAN, AND LIUGONG 3 YEAR/4000 HR FULL MACHINE WARRANTY. FORKS ALSO AVAILBILE.
ENGINE
LOADER ARM PERFORMANCE WITH ATTACHMENT
Emissions regulation
Tier 4 Final / Stage IV
Tipping load – straight
28,219 lb (12,700 kg)
Make
Cummins
Tipping load – full turn
24,250 lb (11,000 kg)
Model
QSB6.7
Bucket breakout force
40,275 lbf (179 kN)
Max gross power
225 hp (168 kW) @ 2,100 rpm
Maximum hinge pin height
13 ft 2 in  (4,028 mm)
Max net power
215 hp (160 kW) @ 2,100 rpm
Dump clearance at full height discharge
9 ft 8 in (2,948 mm)
Peak torque
1,106 lb-ft (1,500 N-m) @ 1,400 rpm
Dump reach at full height discharge
3 ft 8 in (1,129 mm)
Displacement
409 in3  (6.7 L)
Maximum digging depth, bucket level
3 in (85 mm)
Number of cylinders
6
Bucket rollback at ground level
43°
Aspiration
Turbocharged & air-to-air intercooled
Bucket rollback at carry
48°
Bucket rollback at maximum height
58°
TRANSMISSION STANDARD
Maximum dump angle at full height
45°
Transmission type
Countershaft, power shift
BUCKET PERFORMANCE
Torque converter
Single-stage, three-element
Maximum travel speed, fwd
23.7 mph (38.1 km/h)
Bucket capacity
4.2 yd3  (3.2 m3)
Maximum travel speed, rev
14.9 mph (23.9 km/h)
DIMENSIONS
Number of speeds, fwd
4
Ground clearance
17 in (431 mm)
Number of speeds, rev
3
Wheelbase
10 ft 10 in (3,320 mm)
AXLES
Cab height
11 ft 3 in (3,450 mm)
Wheel tread
7 ft 0 in (2,150 mm)
Differential front type
Limited slip
Width over tires
9 ft 0 in (2,750 mm)
Differential rear type
Limited slip
Length with bucket down
27 ft 3 in (8,318 mm)
Axle oscillation
±12°
Turn angle, either side
38°
STEERING
Rear angle of departure
27°
Steering configuration
Articulated
Turning radius, bucket carry
22 ft 9 in (6,954 mm)
Steering pressure
2,756 psi (19 MPa)
Turning radius, outside of tire
20 in 4 in (6,205 mm)
BRAKES
Width over bucket
9 ft 10 in (2,976 mm)
Service brake type
Wet discs, two independent circuits
TIRES
Service brake actuation
Hydraulic
Tire size
23.5R25 L3 tire
Parking brake type
Manual electronic control
OPERATING WEIGHTS
Parking brake actuation
Hydraulic
Operating weight
42,540 lb (19,296 kg)
HYDRAULIC SYSTEM
SERVICE CAPACITY
Main pump type
Piston
System pressure
3,191 psi (22 MPa)
Fuel tank
79.2 (300 L)
Raise
5.7 s
Engine oil
4.7 gal (18 L)
Dump time
1.3 s
Cooling system
11.6 gal (44 L)
Float down time
3.0 s
Hydraulic system
62.3 gal (236 L)
Total cycle time
10.0 s
Transmission
11.8 gal (45 L)
Axles, each
11.6 gal (44 L)
DEF tank
5.0 gal (19 L)
