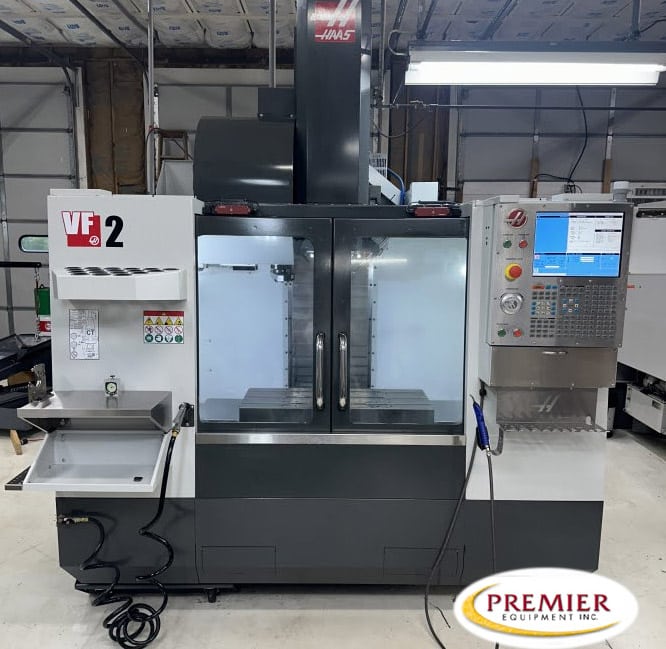

Haas VF2 CNC Mill

Haas VF2 CNC Mill CNC Vertical Machining Center Specifications (subject to buyer verification): X Axis 30 “ Y Axis 16 “ Z Axis 20 “ Spindle Nose to Table (~ max) 24 “ Spindle Nose to Table (~ min) 4 “ Table Length 36 “ Width 14 “ T-Slot Width 5/8 “ T-Slot Center Distance 4.92 “ Number of Std T-Slots 3 Max Weight on Table (evenly distributed) 3000 lb Spindle Max Rating 30 hp Max Speed 8100 rpm Max Torque 90 ft-lb @ 2000 rpm Drive System Inline Direct-Drive Taper CAT40 Type Side Mount Capacity 24 Equipped With (subject to buyer verification): Haas CNC Control Side Mount 24 ATC Chip Auger

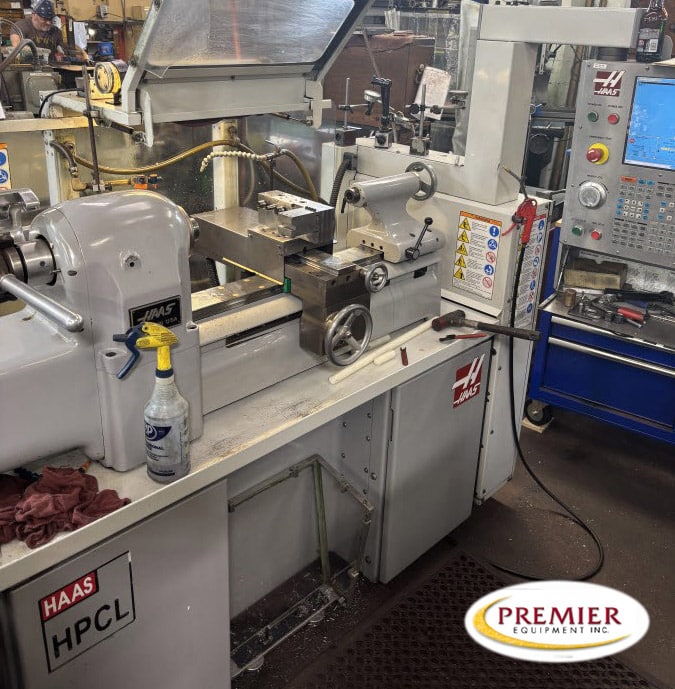

HAAS HPCL Precision CNC Tool Room Lathe Specifications Swing over bed: 14” Maximum machining length: 18” Bar Capacity: 1.06″ Power: 5 hp Max spindle speed- 3,000 R.P.M. Turning Dia: 5″ Tailstock: Yes Dimensions: 85” x 38” x 72” H Weight: 2500 Lbs. Equipped With Haas CNC Control Tailstock Collet Type Chuck Gang Style Tool Post

HAAS HPCL Precision CNC Tool Room Lathe Specifications Swing over bed: 14” Maximum machining length: 18” Bar Capacity: 1.06″ Power: 5 hp Max spindle speed- 3,000 R.P.M. Turning Dia: 5″ Tailstock: Yes Dimensions: 85” x 38” x 72” H Weight: 2500 Lbs. Equipped With Haas CNC Control Tailstock Collet Type Chuck Gang Style Tool Post

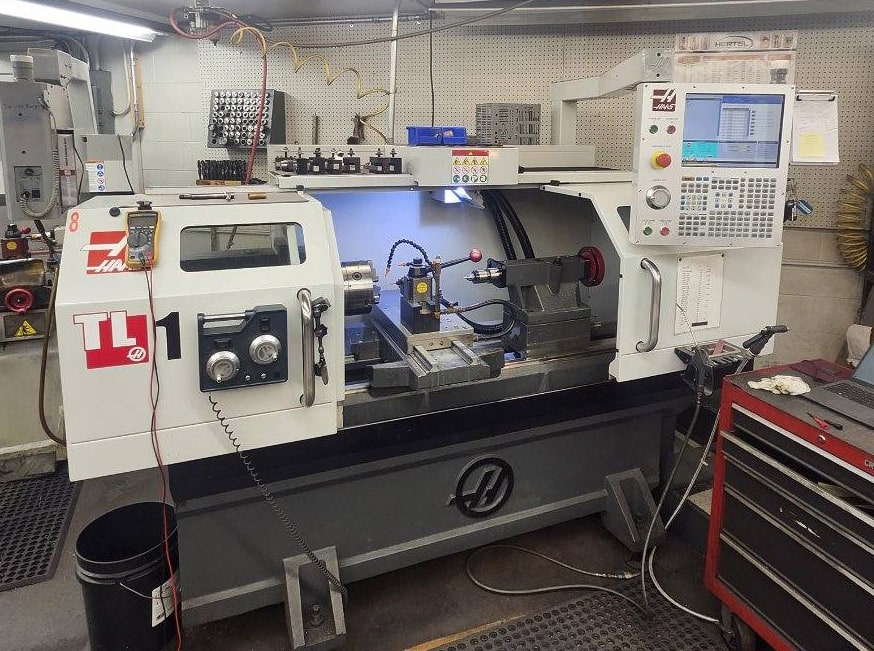

Haas TL1 CNC Tool Room Lathe Specifications (subject to buyer verification): SWING DIAMETER Over Front Apron20.0” Over Cross Slide11.0” CAPACITIES Chuck (optional)8.0” Max Cutting Diameter (varies with turret)16.0” Max Cutting Length (without workholding)30” Between Centers30” TRAVELS X Axis8.0” Z Axis30.0” FEEDRATES Rapids on X450 ipm Rapids on Z450 ipm AXIS MOTORS Max Thrust X3894 lbf Max Thrust Z1947 lbf SPINDLE Spindle Nose A2-5 Max Rating10.0 hp Max Speed 1800 rpm Max Torque108 ft-lbf @ 355 rpm Spindle Bore ø2.3” Equipped With (subject to buyer verification): Haas CNC Control 1800 RPM / 10 HP / A2-5, 2.3” Bore 8” 3-Jaw Manual Chuck, A2-5 Tailstock

Haas TL1 CNC Tool Room Lathe Specifications (subject to buyer verification): SWING DIAMETER Over Front Apron20.0” Over Cross Slide11.0” CAPACITIES Chuck (optional)8.0” Max Cutting Diameter (varies with turret)16.0” Max Cutting Length (without workholding)30” Between Centers30” TRAVELS X Axis8.0” Z Axis30.0” FEEDRATES Rapids on X450 ipm Rapids on Z450 ipm AXIS MOTORS Max Thrust X3894 lbf Max Thrust Z1947 lbf SPINDLE Spindle Nose A2-5 Max Rating10.0 hp Max Speed 1800 rpm Max Torque108 ft-lbf @ 355 rpm Spindle Bore ø2.3” Equipped With (subject to buyer verification): Haas CNC Control 1800 RPM / 10 HP / A2-5, 2.3” Bore 8” 3-Jaw Manual Chuck, A2-5 Tailstock

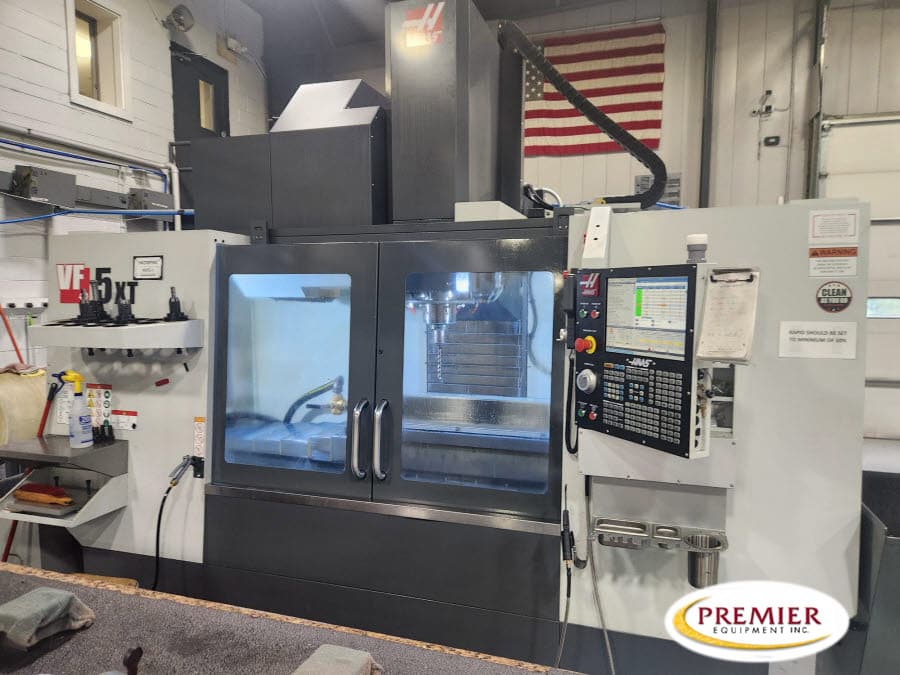

Haas VF5/50XT CNC Mill Travels X Axis: 60.00″ Y Axis: 26.00″ Z Axis: 25.00″ Spindle Nose to Table (~ max): 32.9″ Spindle Nose to Table (~ min): 7.9″ Spindle Max Rating: 30.0 hp Max Speed: 7500 rpm Max Torque: 340.0 ft-lbf @ 700 rpm Drive System: 2-Speed Gearbox Taper: 50 Table Length: 62.0″ Width: 23.0″ T-Slot Width: 0.626″ to 0.630″ T-Slot Center Distance: 3.15″ Number of Std T-Slots: 7 Max Weight on Table (evenly distributed): 4000 lb Capacity: 30+1 Haas Next Gen Control Thru Spindle Coolant Renishaw Part Probe Side Mount 30 ATC

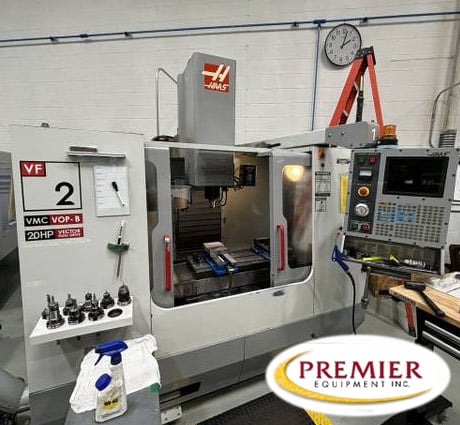

Haas VF2D CNC Mill Key Details: – Make/Model: Haas VF-2 – Year: 2002 – Travels: 30″ X, 16″ Y, 20″ Z – Spindle Speed: 7,500 RPM – Tool Changer: 20+1 – Haas Control – Includes rigid tapping, chip auger, and coolant system

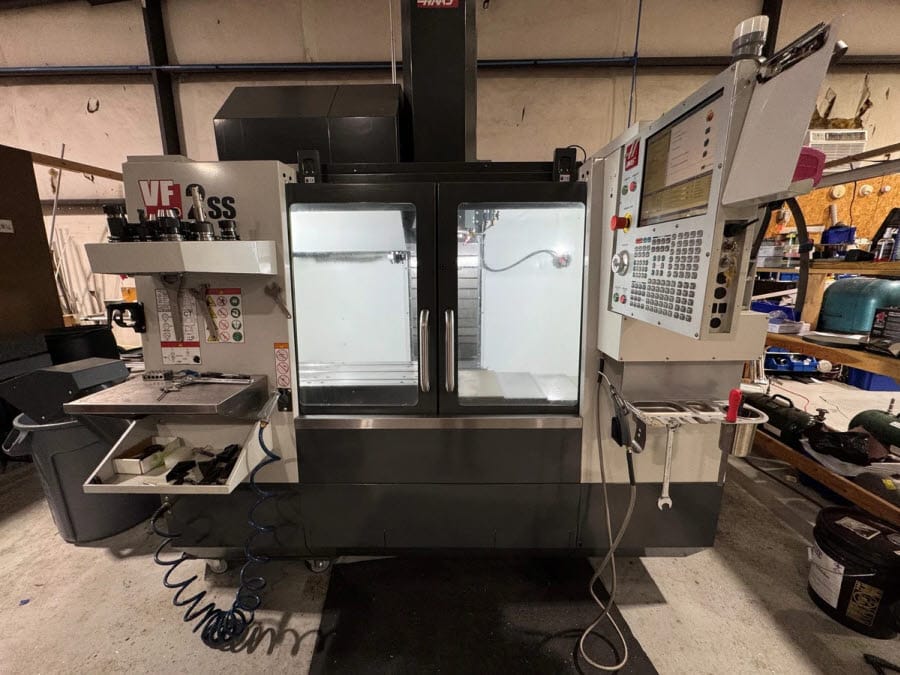

HAAS VF2SS CNC Mill SPECIFICATIONS: X TRAVEL: 30″ Y TRAVEL: 16″ Z TRAVEL: 20″ POWER: 30 hp RPM: 12,000 RPM # ATC: 24 TAPER: 40 TABLE-W: 14″ TABLE-L: 36″ Taper: 40 Capacity: 30+1 EQUIPPED WITH: Haas CNC Control Thru-Spindle Coolant Ready 4th axis wiring Chip Auger Renishaw WIPS No coolant pump.

HAAS VF2SS CNC Mill SPECIFICATIONS: X TRAVEL: 30″ Y TRAVEL: 16″ Z TRAVEL: 20″ POWER: 30 hp RPM: 12,000 RPM # ATC: 24 TAPER: 40 TABLE-W: 14″ TABLE-L: 36″ Taper: 40 Capacity: 30+1 EQUIPPED WITH: Haas CNC Control Thru-Spindle Coolant Ready 4th axis wiring Chip Auger Renishaw WIPS No coolant pump.

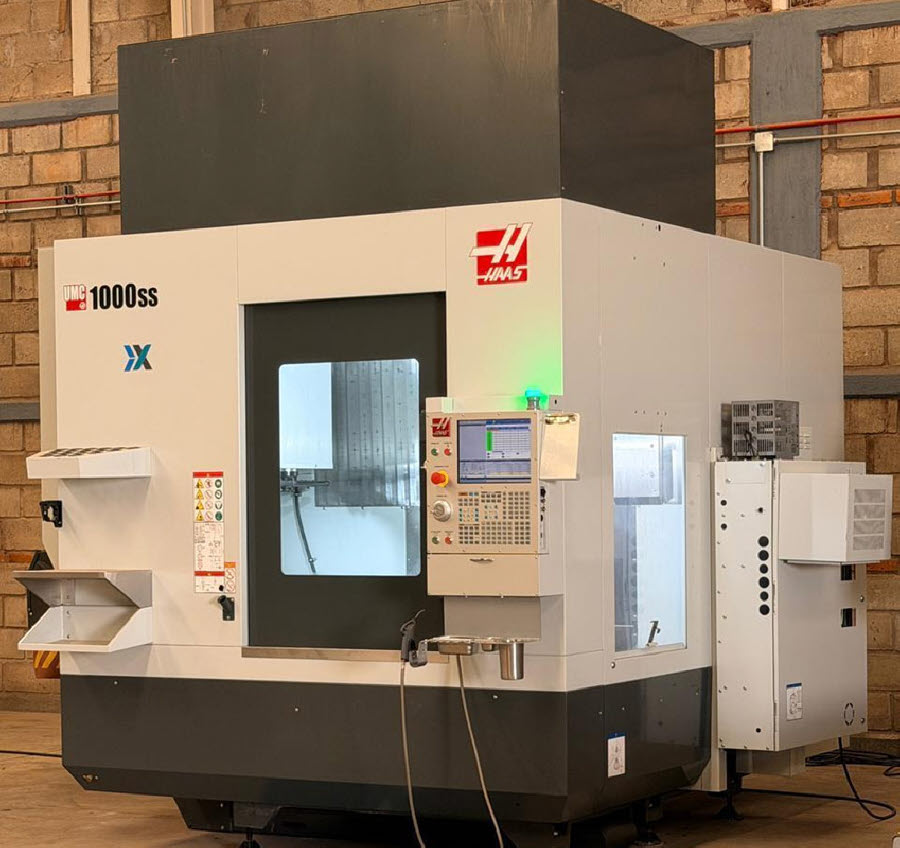

HAAS UMC1000SS 5-Axis CNC Mill

HAAS UMC1000SS 5-Axis CNC Mill SPECIFICATIONS: X: 40″ Y: 25″ Z: 25″ # AXIS: 5 POWER: 30 hp RPM: 15,000 RPM # ATC: 30 TAPER: 40 Haas CNC Control 1GB Chip Conveyor CAT40 Dynamic Work Offset & Tool Ctr Pt Ctrl Ethernet Interface Haas Connect Option 2nd Home Position High Speed Machining Media Display M-Code XL Remote Jog Handle, Touchscreen Rotary Scales Rigid Tapping 30 ATC Through Spindle Coolant @ 1000 PSI Wifi for Haas Control WIPS-R

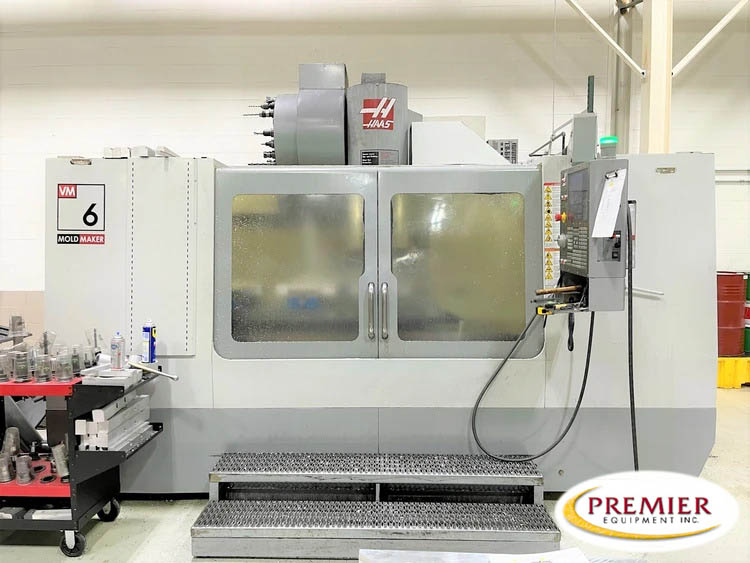

Haas VM6 CNC Mill

Haas VM6 CNC Mill size 64″ x 32″ X Travel 64″ Y Travel 32″ Z Travel 30″ Power 40 hp RPM 15,000 RPM # ATC 24 Taper CAT 40 Table-W 64″ Table-L 28″ # Axis 3 Dimensions 160” x 104” x 125” Weight 24000 4th Axis Drive 15000 RPM 40HP Vector Drive,

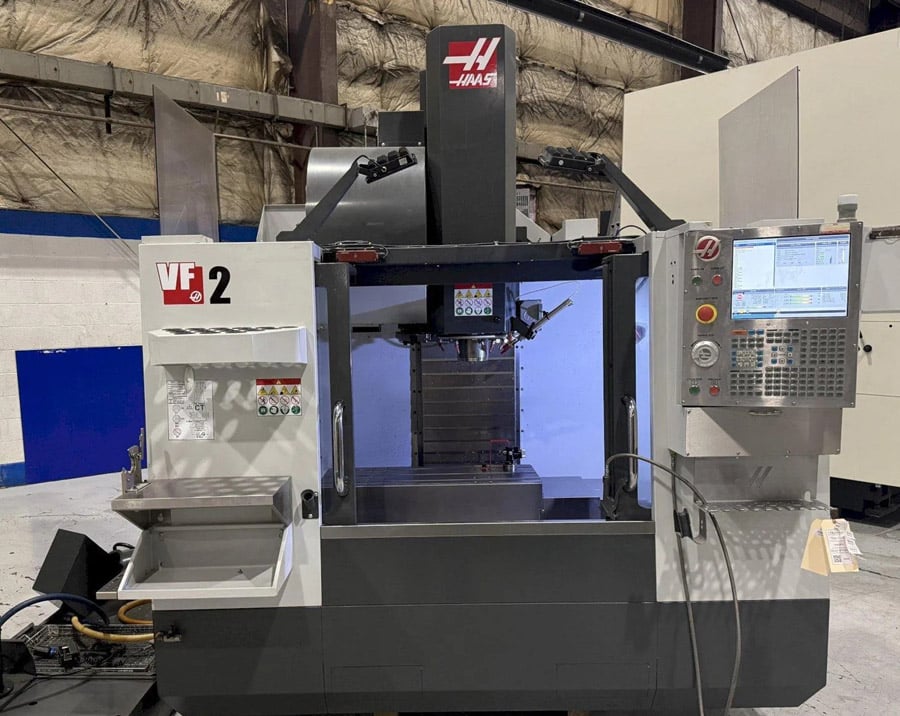

Haas VF2 CNC Mill SPECIFICATIONS # Axis: 3 Table Size : 36” x 14” Table Capacity: 3000 lb X-Axis Travel: 30 in Y-Axis Travel : 16 in Z-Axis Travel: 20 in Spindle Taper: CAT 40 Spindle Speed : 8,100 rpm Main Motor : 20 hp Tool Changer Capacity: 24 Machine Dimensions : 98” x 92” x 100” Machine Weight : 10000 lb EQUIPPED WITH – Haas CNC Control – Renishaw Probing – Coolant Tank & Pump – Chip Auger – Programmable Coolant Nozzle – Spindle Probe – Wireless Intuitive Probing System – Prepped for Coolant Thru Spindle

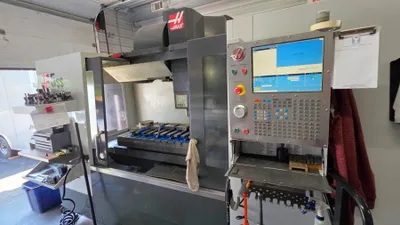

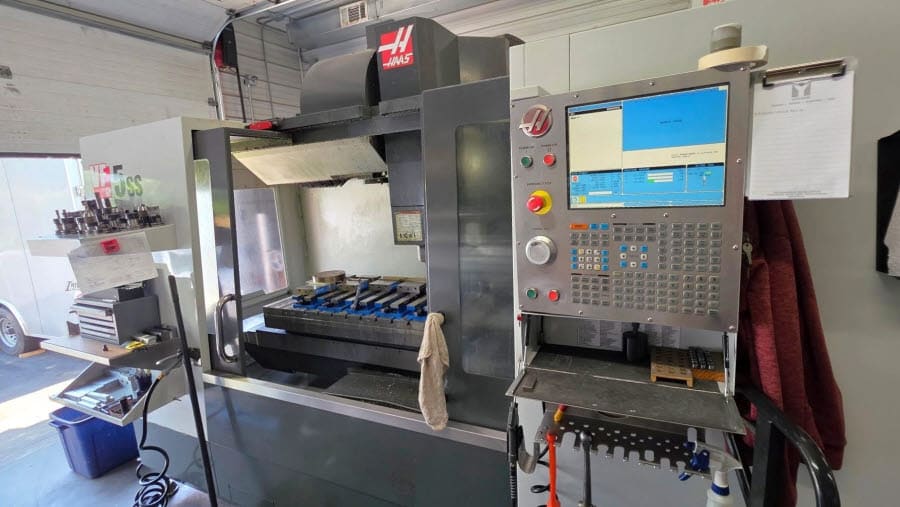

HAAS VF5SS SPECIFICATIONS: TABLE LENGTH: 52″ TABLE WIDTH: 23″ X-AXIS TRAVEL: 50″ Y-AXIS TRAVEL: 26″ Z-AXIS TRAVEL: 25″ SPINDLE SPEED: 12,000 RPM SPINDLE MOTOR: 30 hp SPINDLE TAPER: CAT 40 EQUIPPED WITH: HAAS CNC THROUGH SPINDLE COOLANT PROGRAMMABLE COOLANT RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS) CHIP AUGER ROTATION & SCALING M19 SPINDLE ORIENTATION MACROS QUICK CODE RIGID TAPPING SPINDLE LOAD MONITOR ADVANCED TOOL MANAGEMENT INTUITIVE PROGRAMMING SYSTEM

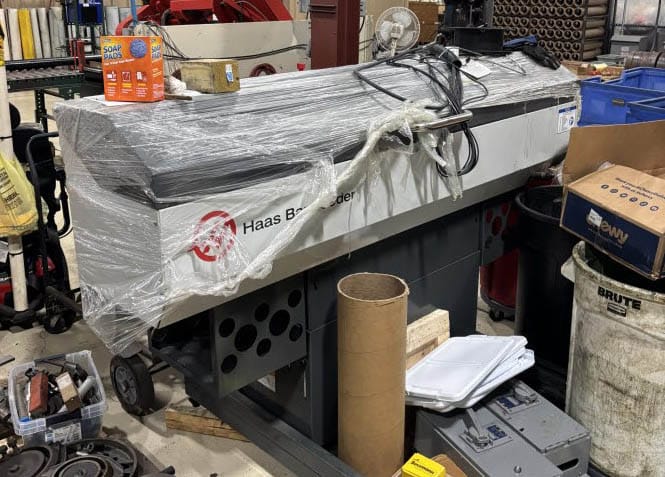

Haas Barfeeder V2 Automatic Barfeed Specifications (subject to buyer verification): BAR CAPACITIES Bar Diameter Range (varies w/lathe model)0.375” to 3.00” Bar Length Capacity48” Recommended Max Bar” Spindle48” Minimum Bar Length10” CHARGING TRAY Tray Capacity 30 EA x 1” Staging Area Width30” Max Weight of Total Bars650 lb MAX BAR WEIGHT CAPACITY Lift Arm Max Weight Limit80 lb PUSHROD Maximum Thrust Push Limit100 lbf ACCURACY Positioning Without Deadstop ± 0.010” GENERAL Machine Weight900 lb DIMENSIONS – SHIPPING Domestic Pallet 90.0” x 66.0” x 56.0” Weight1200 lb

Haas Barfeeder V2 Automatic Barfeed Specifications (subject to buyer verification): BAR CAPACITIES Bar Diameter Range (varies w/lathe model)0.375” to 3.00” Bar Length Capacity48” Recommended Max Bar” Spindle48” Minimum Bar Length10” CHARGING TRAY Tray Capacity 30 EA x 1” Staging Area Width30” Max Weight of Total Bars650 lb MAX BAR WEIGHT CAPACITY Lift Arm Max Weight Limit80 lb PUSHROD Maximum Thrust Push Limit100 lbf ACCURACY Positioning Without Deadstop ± 0.010” GENERAL Machine Weight900 lb DIMENSIONS – SHIPPING Domestic Pallet 90.0” x 66.0” x 56.0” Weight1200 lb

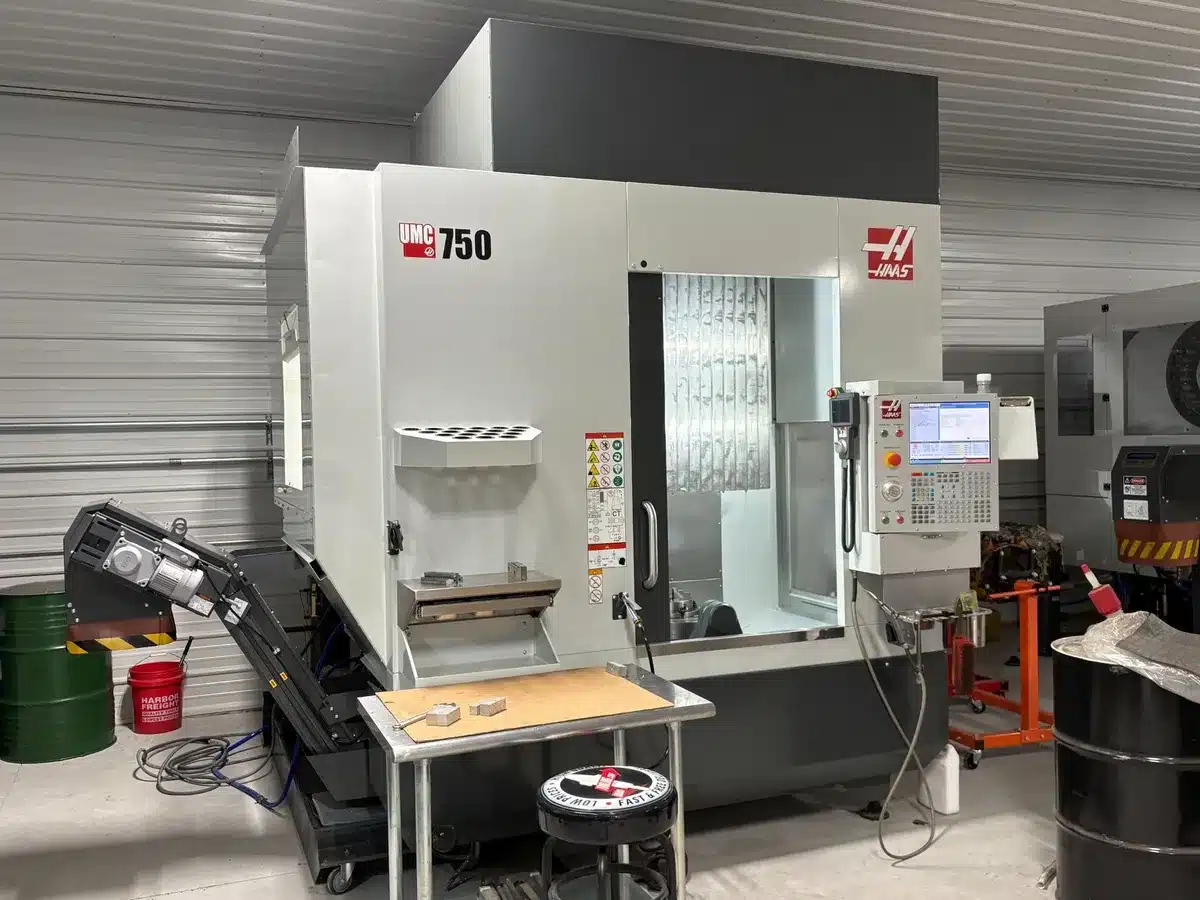

Haas UMC750 5-Axis CNC Mill SPECIFICATIONS: X-AXIS TRAVEL 30″ Y-AXIS TRAVEL 20″ Z-AXIS TRAVEL 20″ SPINDLE NOSE TO TABLE TOP 4″ – 24″ RPM 15,000 RPM # ATC 501 EQUIPPED WITH: CONTROL CNC (Haas CNC) Chip Tray Filter Kit CT-Style Tool Changer Grippers 15,000-rpm Spindle 50+1 Side-Mount Tool Changer Through-Spindle Coolant Belt-Type Chip Conveyor UMC Programmable Coolant Nozzle High-Speed Machining Standard Low-Volt Transformer Auxiliary Coolant Filter

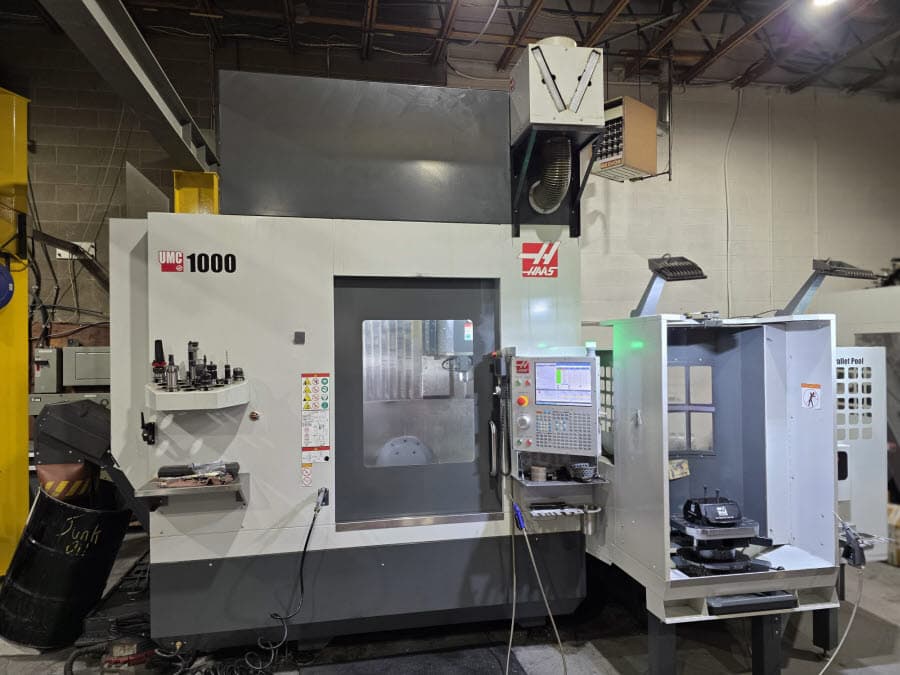

Haas UMC1000 with 10-Pallet Changer 5-Axis CNC Vertical Machining Center

Haas UMC1000 with 10-Pallet Changer 5-Axis CNC Vertical Machining Center New: 12/2021; Installed 08/2022 Specifications: Travels: X-Axis: 40″ Y-Axis: 25″ Z-Axis: 25″ B-Axis – Tilt: 120° to 35-° C-Axis – Rotation: 360° Platter Diameter: 25″ Spindle Speed: 15,000 RPM Spindle Taper: #40 Spindle Motor: 30 HP Tool Changer: 50+1 Side Mount Max Weight on Platter: 1000 Lbs Max Cutting Feed rate: 650 IPM Rapid Feed rate: 900 IPM Pallets: 10+1 Equipped With: 10-Station Pallet Pool ($115k Upgrade) – 15.75″ x 11.75″ Pallets Haas CNC Control 15,000 30 HP Spindle 50+1 Side Mount Tool Changer Wireless Intuitive Probe System 300 PSI Thru Spindle Coolant Belt-Type Chip Conveyor Programmable Coolant Nozzle 95 Gallon Coolant Tank with 1 HP Pump Dynamic Work Offsets & Tool Center Point Control Rigid Tapping M-Code Remote Jog Handle

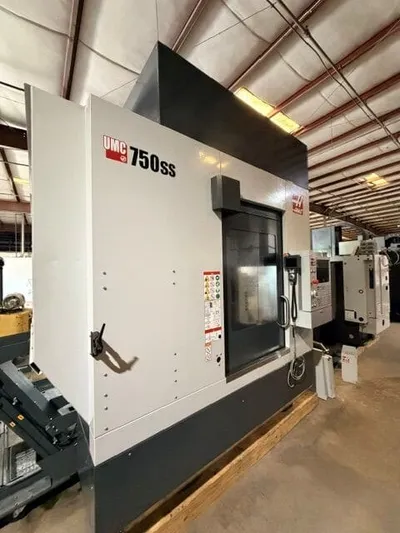

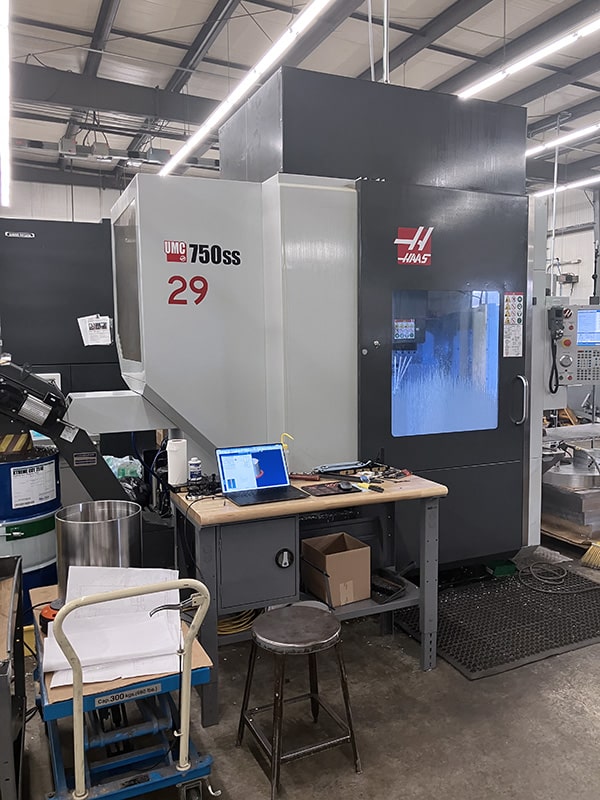

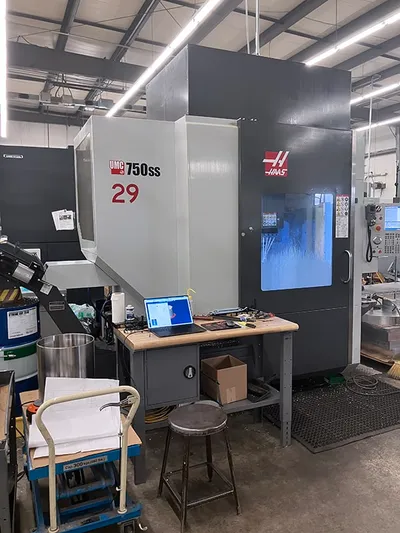

Haas UMC750SS 5-Axis CNC Mill Specification machine specification X-AXIS TRAVEL 30″ Y-AXIS TRAVEL 20″ Z-AXIS TRAVEL 20″ RAPID RATE X/Y/Z AXIS 1,200 IPM MAX TABLE LOAD 660 LBS Spindle Speed: 15,000 RPM SPINDLE MOTOR 30 HP Spindle Taper: CAT40 Big Plus MAX CUTTING 650 ipm SPINDLE NOSE TO TABLE 4″ -24″ MAX TORQUE 90 ft-lbf TABLE DIAMETER 19.7″ MAX WEIGHT ON TABLE 660 lb Option / equipped with Haas CNC Control 15,000 rpm Spindle CT40 Big Plus Spindle Taper Through Spindle Coolant (300psi) 40 Tool ATC Renishaw Probing System

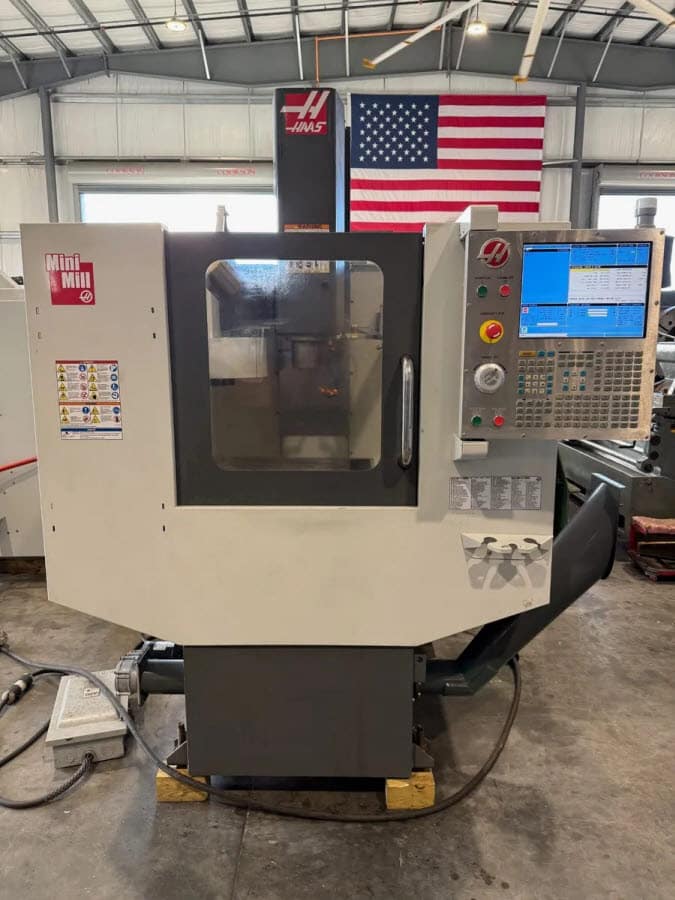

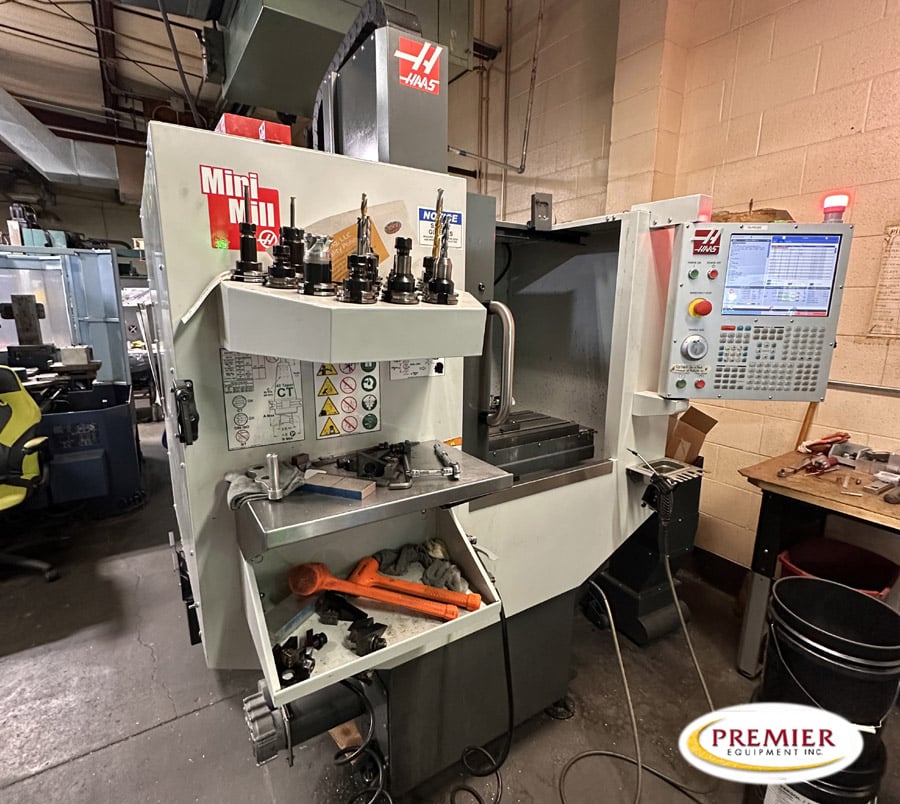

Haas Mini Mill CNC Mill

Haas Mini Mill CNC Mill Specifications (subject to buyer verification): TRAVELS X Axis 16.00 in Y Axis 14.00 in Z Axis 15.00 in SPINDLE Max Rating10.0 hp Max Speed 6,000 rpm Taper40 TABLE Length36.0 in Width12.0 in TypeCarousel Capacity10 Equipped With (subject to buyer verification): The Haas Control 10-Pocket Carousel Tool Changer 6k RPM WIPS Programmable Coolant Nozzle Chip Auger Rigid Tapping HSM – High Speed Machining M19 Spindle Orient

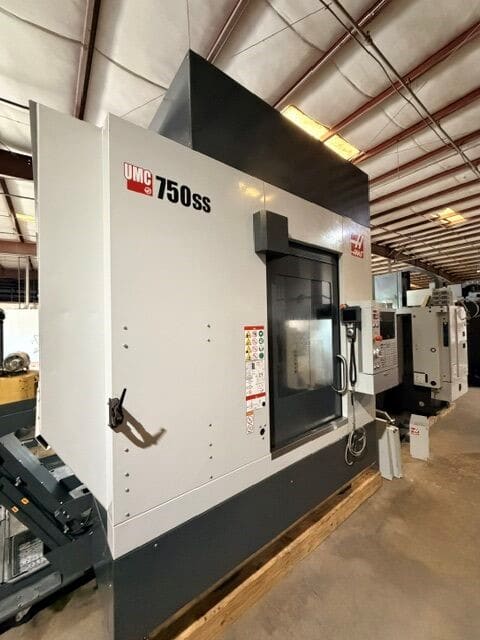

HAAS UMC750SS 5-AXIS CNC Mill Product Details: X-Axis 30″ Y-Axis 20″ Z-Axis 20″ B-Axis (Table Tilt) -35 to 110 C-Axis (Table Index) .001 Deg Table Size 24.8″ x 19.7″ Spindle Speed 12,000 RPM Spindle Taper CAT 40 Spindle Motor 30 HP Tools 50 Table Load Capacity 660 lbs. Rapid Traverse Rates 1200 IPM Max Tool Diameter 5″ / 3″ Max Tool Length 12″ Max Tool Weight 12 lbs. Machine Dimensions (L x W x H) 162″ x 113″ x 120″ Machine Weight 19,200 lbs. Spindle Nose to Table Top 4″ – 24″ Spindle Torque 90 ft. lbs. Features: • HAAS Next Generation Control • 12″ Color TFT • 5-Axis Simultaneous Contouring Capability • Integral Rotary/Tilt Trunnion Table • Through Spindle Coolant (300 psi) • 12,000 RPM Spindle Speed • High Speed 50+1 Side Mount Tool Changer • Belt-Type Chip Conveyor (Left Rear Exit) • Wireless Intuitive Probing System • Rotary Scales • Remote Jog Handle with Touchscreen Display • 95 Gallon Coolant Tank • High Speed Machining • Rigid Tapping • Top Cover • Spindle Orientation • Coordinate Rotation and Scaling • User Macro Variables • Chip Tray Filter Kit • Enclosure Exhaust • Manufacture Date September 2024

HAAS UMC750SS 5-AXIS CNC Mill Product Details: X-Axis 30″ Y-Axis 20″ Z-Axis 20″ B-Axis (Table Tilt) -35 to 110 C-Axis (Table Index) .001 Deg Table Size 24.8″ x 19.7″ Spindle Speed 12,000 RPM Spindle Taper CAT 40 Spindle Motor 30 HP Tools 50 Table Load Capacity 660 lbs. Rapid Traverse Rates 1200 IPM Max Tool Diameter 5″ / 3″ Max Tool Length 12″ Max Tool Weight 12 lbs. Machine Dimensions (L x W x H) 162″ x 113″ x 120″ Machine Weight 19,200 lbs. Spindle Nose to Table Top 4″ – 24″ Spindle Torque 90 ft. lbs. Features: • HAAS Next Generation Control • 12″ Color TFT • 5-Axis Simultaneous Contouring Capability • Integral Rotary/Tilt Trunnion Table • Through Spindle Coolant (300 psi) • 12,000 RPM Spindle Speed • High Speed 50+1 Side Mount Tool Changer • Belt-Type Chip Conveyor (Left Rear Exit) • Wireless Intuitive Probing System • Rotary Scales • Remote Jog Handle with Touchscreen Display • 95 Gallon Coolant Tank • High Speed Machining • Rigid Tapping • Top Cover • Spindle Orientation • Coordinate Rotation and Scaling • User Macro Variables • Chip Tray Filter Kit • Enclosure Exhaust • Manufacture Date September 2024

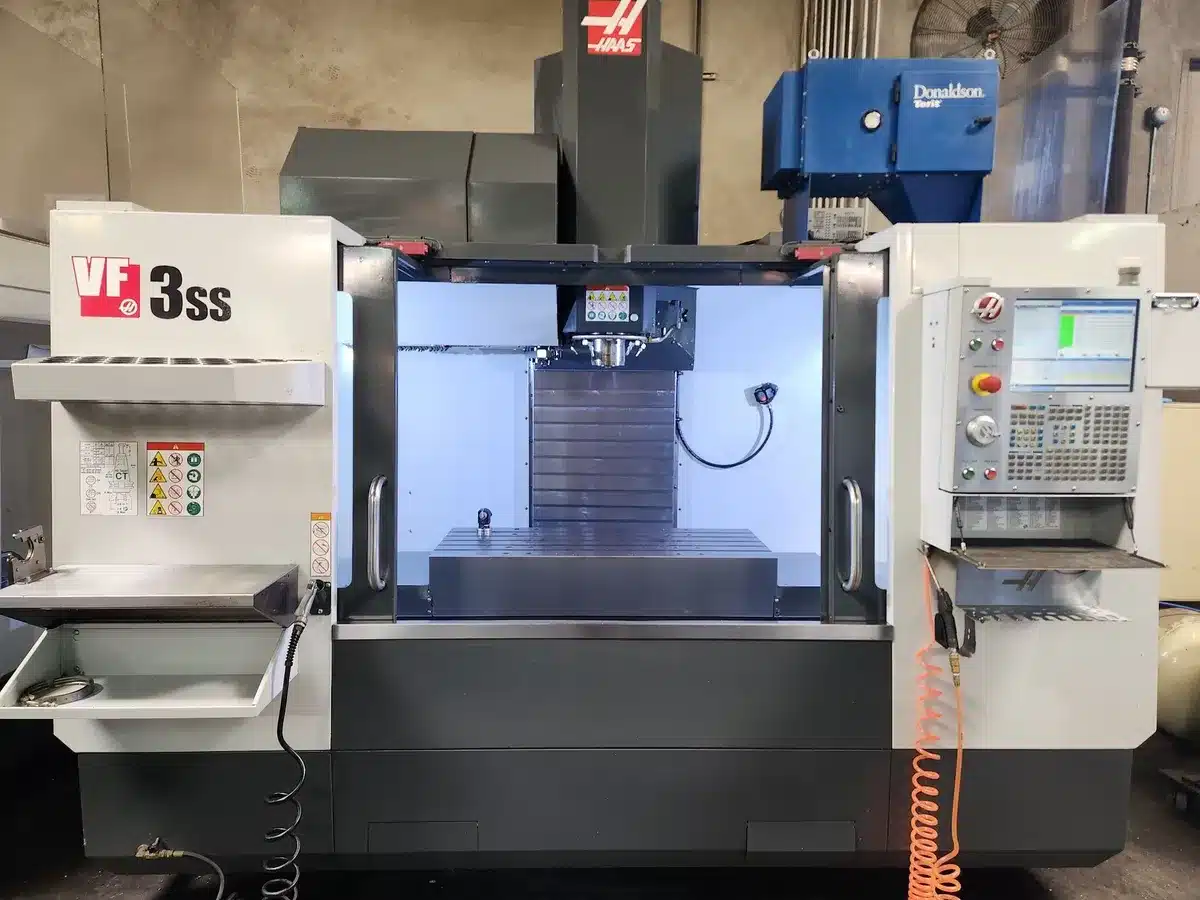

HAAS VF3SS CNC Mill SPECIFICATIONS: X 40″ Y 20″ Z 25″ POWER 30 hp RPM 12,000 RPM # ATC 30 TAPER CT 40 TABLE-W 18″ TABLE-L 48″ EQUIPPED WITH: WIRELESS PROBING SYSTEM HIGH SPEED MACHINING 4th AXIS READY MACROS COORDINATE ROTATION AND SCALING COMPENSATION TABLES 1 GB MEMORY

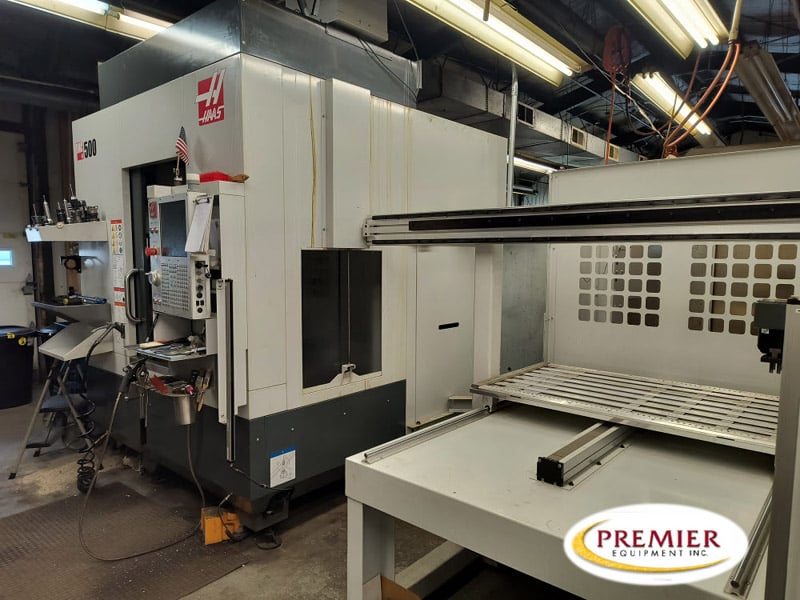

Haas UMC500 with Auto Parts Loader 5-Axis CNC Vertical Machining Center Specifications (subject to buyer verification): Travels X Axis24.00 in Y Axis16.00 in Z Axis16.00 in Spindle Nose to Platter (~ max)20.0 in Spindle Nose to Platter (~ min)4.0 in Spindle Max Speed 10,000 RPM, 30 HP / 40 Taper Drive SystemInline Direct-Drive Taper CAT40 B Axis – Tilt Travel120 ° to 35- ° Max Speed50 °/sec Torque (Continuous) 1854 ft-lbf Brake Torque 900 ft-lbf C Axis – Rotation Travel360 ° Max Speed50 °/sec Torque (Continuous) 1854 ft-lbf Brake Torque 900 ft-lbf Max Part Swing18.0 in Platter Platter Diameter15.70 in Max Weight on Platter500 lb Equipped With (subject to buyer verification): Haas Next Gen CNC Control Rigid Tapping 30_1 Side Mount Tool Changer Wireless Intuitive Probing System (WIPS) CT-Style Tool Changer Grippers Through Spindle Coolant @ 1k UMC Auto Parts Loader Belt-Type Chip Conveyor UMC

Haas UMC500 with Auto Parts Loader 5-Axis CNC Vertical Machining Center Specifications (subject to buyer verification): Travels X Axis24.00 in Y Axis16.00 in Z Axis16.00 in Spindle Nose to Platter (~ max)20.0 in Spindle Nose to Platter (~ min)4.0 in Spindle Max Speed 10,000 RPM, 30 HP / 40 Taper Drive SystemInline Direct-Drive Taper CAT40 B Axis – Tilt Travel120 ° to 35- ° Max Speed50 °/sec Torque (Continuous) 1854 ft-lbf Brake Torque 900 ft-lbf C Axis – Rotation Travel360 ° Max Speed50 °/sec Torque (Continuous) 1854 ft-lbf Brake Torque 900 ft-lbf Max Part Swing18.0 in Platter Platter Diameter15.70 in Max Weight on Platter500 lb Equipped With (subject to buyer verification): Haas Next Gen CNC Control Rigid Tapping 30_1 Side Mount Tool Changer Wireless Intuitive Probing System (WIPS) CT-Style Tool Changer Grippers Through Spindle Coolant @ 1k UMC Auto Parts Loader Belt-Type Chip Conveyor UMC

2015 HAAS MINI MILL SPECIFICATIONS: Year of manufacture- 1/2015’ Table size- 36” x 12” Number of T slots- (3) Maximum table weight- 500 Lbs. Maximum spindle speed- 6,000 R.P.M. Spindle taper- CAT-40 X axis travel- 16” Y axis travel- 14” Z axis travel- 15” Minimum / Maximum spindle nose to table- 4” / 19” X,Y,Z Rapids- 800 I.P.M. Tool changer capacity- 10 EQUIPPED WITH: HAAS CNC Control , USB Port Machine hours- Power on hours- 59,843, Cycle hours- 3,023, Cutting hours- 2,280 Control options- DNC enabled, M19 Spindle orient, Macro’s, Quick code, Pre-Orient Tap, HSM High Speed Machining, Advanced tool management, Intuitive programming system Programable coolant nozzle Machine manual Air blow off gun Coolant tank & pump Machine is wired for 460 volt / 3 phase / 60 H.Z. Machine weight- 4200 Lbs. Machine dimensions- 90” x 64” x 100” H

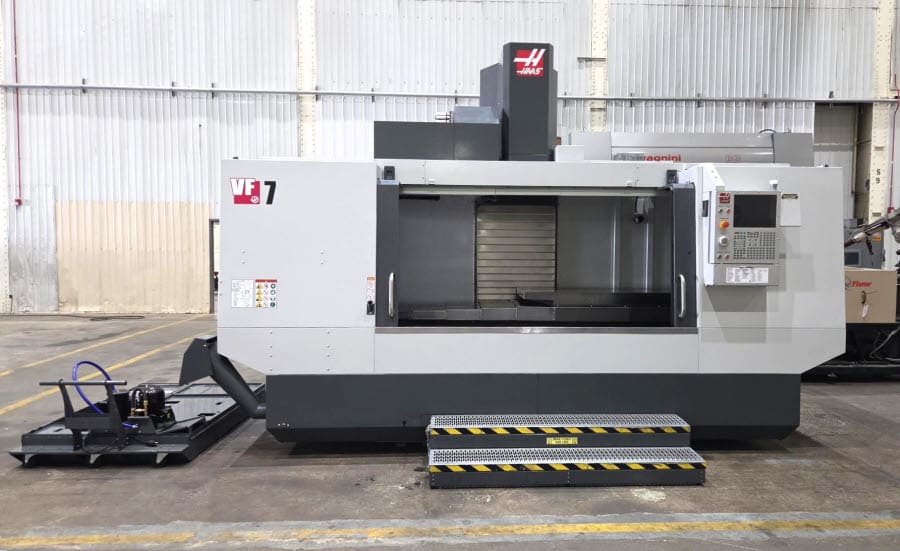

Haas VF7/40 CNC Mill SPECIFICATIONS: X-AXIS TRAVEL 84″ Y-AXIS TRAVEL 32″ Z-AXIS TRAVEL 30″ SPINDLE NOSE TO TABLE 4″-34″ MAX. CUTTING FEEDS 500 IPM RAPIDS ON X, Y, & Z AXIS 600 IPM SPINDLE: SPINDLE MOTOR, 2-SPEED GEARBOX 20 HP (OPTION) MAX. SPINDLE SPEED 10,000 RPM (OPTION) MAX TORQUE W/OPT GEARBOX 250 FT-LBF @ 450 RPM DRIVE SYSTEM INLINE DIRECT-DRIVE SPINDLE TAPER CT-40 TABLE: TABLE SIZE 84″ X 28″ MAX WEIGHT ON TABLE 4000 LBS. NUMBER OF STANDARD T-SLOTS 5 T-SLOT WIDTH 0.626″ X 0.630″ T-SLOT CENTER DISTANCE 4.92″ AUTOMATIC TOOL CHANGER: TYPE SIDE-MOUNTED ATC CAPACITY 30 + 1 MAX TOOL DIA. ADJACENT FULL 2.5″ MAX TOOL DIA, LARGE, ADJACENT EMPTY 5.0″ MAX TOOL DIA, EXTRA LARGE, ADJ EMPTY 6.0″ MAX TOOL LENGTH 16″ MAX TOOL WEIGHT 12 LBS. SHIPPING DIMENSIONS: DOMESTIC PALLET 214″ X 102″ X 128.5″ APPROX. WEIGHT 25,600 LBS. Equipped With: HAAS NEXTGEN CNC CONTROL REMOTE JOG HANDLE WITH TOUCH SCREEN WIFI CONNECTION 4TH-AXIS READY 10,000 RPM 20 HP 2-SPEED GEARED HEAD SPINDLE OPTIONS 30-POSITION SIDE-MOUNTED AUTOMATIC TOOL CHANGER CAT 40 SPINDLE TAPE BRUSHLESS 4TH AXIS DRIVE RENISHAW PROBING SYSTEM WITH PARTS PROBE AND TOOL SETTER HIGH SPEED MACHINING RIGID TAPPING CHIP AUGER PROGRAMMABLE COOLANT 300 PSI THRU SPINDLE COOLANT COOLANT TANK & PUMPS HAAS WINDOW BLAST
