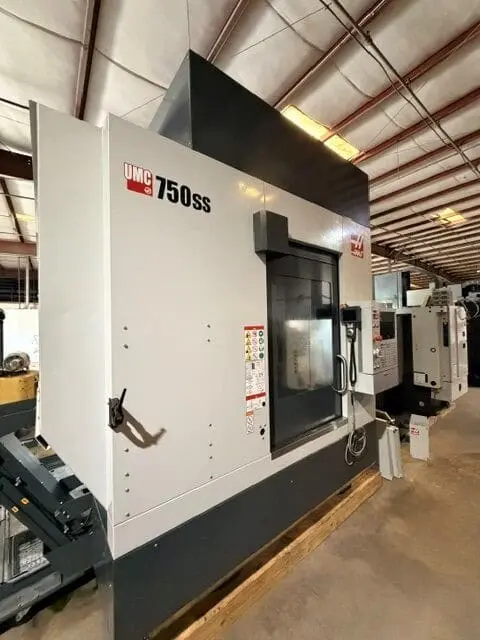

Haas UMC-750SS – 2024
Haas UMC-750SS – 2024
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Haas
Model
UMC-750SS
Hours of Usage
-
Year of Manufacture
2024
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
HAAS UMC750SS 5-AXIS CNC Mill Product Details: X-Axis 30″ Y-Axis 20″ Z-Axis 20″ B-Axis (Table Tilt) -35 to 110 C-Axis (Table Index) .001 Deg Table Size 24.8″ x 19.7″ Spindle Speed 12,000 RPM Spindle Taper CAT 40 Spindle Motor 30 HP Tools 50 Table Load Capacity 660 lbs. Rapid Traverse Rates 1200 IPM Max Tool Diameter 5″ / 3″ Max Tool Length 12″ Max Tool Weight 12 lbs. Machine Dimensions (L x W x H) 162″ x 113″ x 120″ Machine Weight 19,200 lbs. Spindle Nose to Table Top 4″ – 24″ Spindle Torque 90 ft. lbs. Features: • HAAS Next Generation Control • 12″ Color TFT • 5-Axis Simultaneous Contouring Capability • Integral Rotary/Tilt Trunnion Table • Through Spindle Coolant (300 psi) • 12,000 RPM Spindle Speed • High Speed 50+1 Side Mount Tool Changer • Belt-Type Chip Conveyor (Left Rear Exit) • Wireless Intuitive Probing System • Rotary Scales • Remote Jog Handle with Touchscreen Display • 95 Gallon Coolant Tank • High Speed Machining • Rigid Tapping • Top Cover • Spindle Orientation • Coordinate Rotation and Scaling • User Macro Variables • Chip Tray Filter Kit • Enclosure Exhaust • Manufacture Date September 2024
Control
Haas
Taper
40
Y Axis Travel
20"
Spindle Speed
12,000 RPM
X Axis Travel
30"
Z Axis Travel
20"
5 Axis
Yes
Used Cnc Brands
Haas, Haas Mill, Haas UMC
Through Spindle Coolant
Yes
Description
HAAS UMC750SS 5-AXIS CNC Mill Product Details: X-Axis 30″ Y-Axis 20″ Z-Axis 20″ B-Axis (Table Tilt) -35 to 110 C-Axis (Table Index) .001 Deg Table Size 24.8″ x 19.7″ Spindle Speed 12,000 RPM Spindle Taper CAT 40 Spindle Motor 30 HP Tools 50 Table Load Capacity 660 lbs. Rapid Traverse Rates 1200 IPM Max Tool Diameter 5″ / 3″ Max Tool Length 12″ Max Tool Weight 12 lbs. Machine Dimensions (L x W x H) 162″ x 113″ x 120″ Machine Weight 19,200 lbs. Spindle Nose to Table Top 4″ – 24″ Spindle Torque 90 ft. lbs. Features: • HAAS Next Generation Control • 12″ Color TFT • 5-Axis Simultaneous Contouring Capability • Integral Rotary/Tilt Trunnion Table • Through Spindle Coolant (300 psi) • 12,000 RPM Spindle Speed • High Speed 50+1 Side Mount Tool Changer • Belt-Type Chip Conveyor (Left Rear Exit) • Wireless Intuitive Probing System • Rotary Scales • Remote Jog Handle with Touchscreen Display • 95 Gallon Coolant Tank • High Speed Machining • Rigid Tapping • Top Cover • Spindle Orientation • Coordinate Rotation and Scaling • User Macro Variables • Chip Tray Filter Kit • Enclosure Exhaust • Manufacture Date September 2024 HAAS UMC750SS 5-AXIS CNC Mill Product Details: X-Axis 30″ Y-Axis 20″ Z-Axis 20″ B-Axis (Table Tilt) -35 to 110 C-Axis (Table Index) .001 Deg Table Size 24.8″ x 19.7″ Spindle Speed 12,000 RPM Spindle Taper CAT 40 Spindle Motor 30 HP Tools 50 Table Load Capacity 660 lbs. Rapid Traverse Rates 1200 IPM Max Tool Diameter 5″ / 3″ Max Tool Length 12″ Max Tool Weight 12 lbs. Machine Dimensions (L x W x H) 162″ x 113″ x 120″ Machine Weight 19,200 lbs. Spindle Nose to Table Top 4″ – 24″ Spindle Torque 90 ft. lbs. Features: • HAAS Next Generation Control • 12″ Color TFT • 5-Axis Simultaneous Contouring Capability • Integral Rotary/Tilt Trunnion Table • Through Spindle Coolant (300 psi) • 12,000 RPM Spindle Speed • High Speed 50+1 Side Mount Tool Changer • Belt-Type Chip Conveyor (Left Rear Exit) • Wireless Intuitive Probing System • Rotary Scales • Remote Jog Handle with Touchscreen Display • 95 Gallon Coolant Tank • High Speed Machining • Rigid Tapping • Top Cover • Spindle Orientation • Coordinate Rotation and Scaling • User Macro Variables • Chip Tray Filter Kit • Enclosure Exhaust • Manufacture Date September 2024
Get in Touch with Seller About This Product
