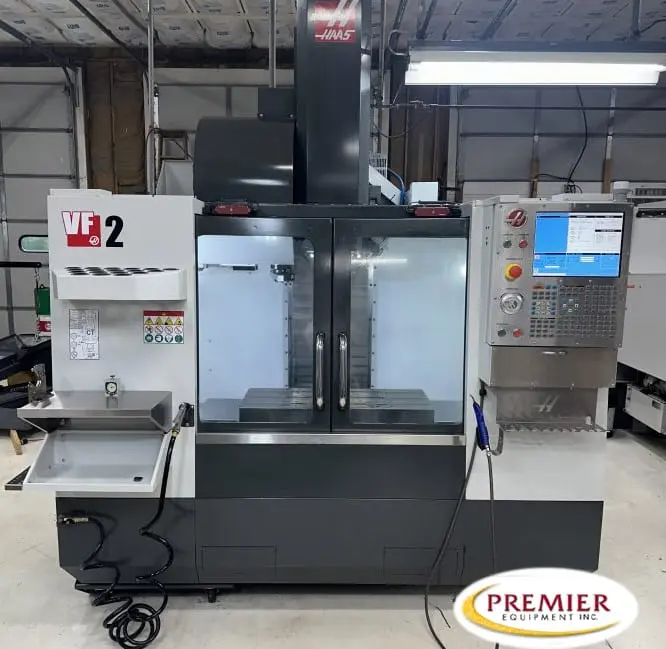

Haas VF-2 – 2016
Product Image
Product Image
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Haas
Model
VF-2
Hours of Usage
-
Year of Manufacture
2016
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

Machine Type
Haas VF2 CNC Mill
X Axis Travel
30"
Control
Haas
Z Axis Travel
20"
Used Cnc Brands
Haas
Spindle Speed
8000 RPM
Taper
40
Y Axis Travel
16"
Through Spindle Coolant
Yes
Atc Stations
24

Description

Haas VF2 CNC Mill

Haas VF2 CNC Mill CNC Vertical Machining Center Specifications (subject to buyer verification): X Axis 30 “ Y Axis 16 “ Z Axis 20 “ Spindle Nose to Table (~ max) 24 “ Spindle Nose to Table (~ min) 4 “ Table Length 36 “ Width 14 “ T-Slot Width 5/8 “ T-Slot Center Distance 4.92 “ Number of Std T-Slots 3 Max Weight on Table (evenly distributed) 3000 lb Spindle Max Rating 30 hp Max Speed 8100 rpm Max Torque 90 ft-lb @ 2000 rpm Drive System Inline Direct-Drive Taper CAT40 Type Side Mount Capacity 24 Equipped With (subject to buyer verification): Haas CNC Control Side Mount 24 ATC Chip Auger

Get in Touch with Seller About This Product

First and Last Name
Company
Email
Phone Number
Leave a Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Similar Products

See All

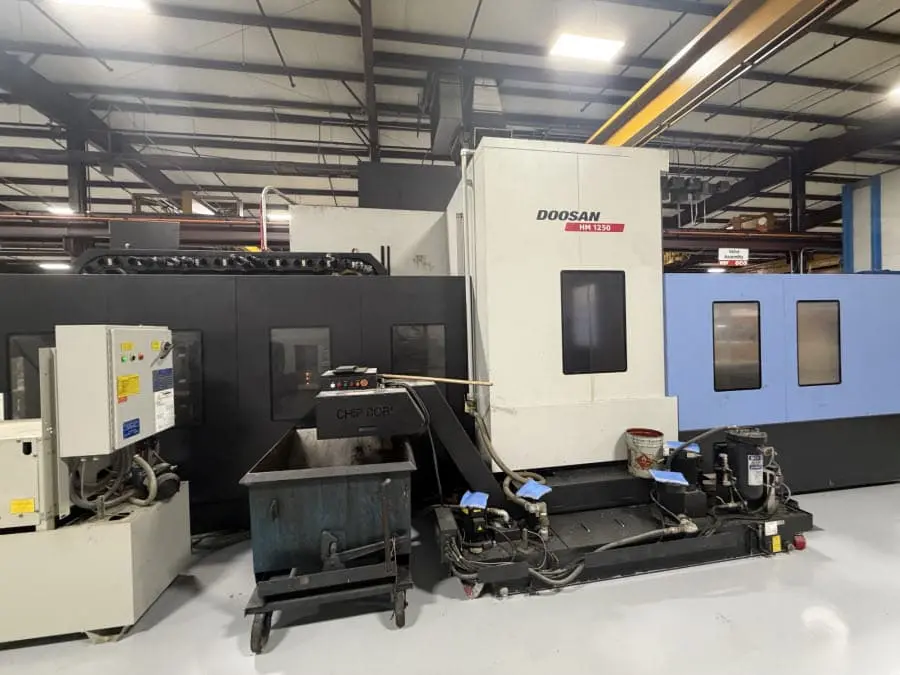

Doosan HM-1250 – 2015
Doosan HM-1250 – 2015 image
Contact
Doosan HM1250 CNC Horizontal Machining Center Pallet Size: 49.2” x 49.2” Max Table Capacity: 11,023 lbs X Axis Travel: 82.8″ Y Axis Travel: 59″ Z Axis Travel: 59″ Spindle Taper: CAT50 Spindle Speed: 6000 RPM Rapid Traverse Rates (X,Y,Z): 945 IPM Cutting Feedrate: 1 – 472 IPM Magazine Capacity: 90 ATC Main Motor: 60 HP Floor Space w/Chip Conveyor: 458″ x 229″ x 160″ Weight: 69,445 lbs Options: 1 degree Turbo chip conveyor 1,000 fix psi chip blaster OMP60 part probe and tool setter 90 tools Cat50

Doosan HM1250 CNC Horizontal Machining Center Pallet Size: 49.2” x 49.2” Max Table Capacity: 11,023 lbs X Axis Travel: 82.8″ Y Axis Travel: 59″ Z Axis Travel: 59″ Spindle Taper: CAT50 Spindle Speed: 6000 RPM Rapid Traverse Rates (X,Y,Z): 945 IPM Cutting Feedrate: 1 – 472 IPM Magazine Capacity: 90 ATC Main Motor: 60 HP Floor Space w/Chip Conveyor: 458″ x 229″ x 160″ Weight: 69,445 lbs Options: 1 degree Turbo chip conveyor 1,000 fix psi chip blaster OMP60 part probe and tool setter 90 tools Cat50
Doosan

Machining Centers

USED
2015

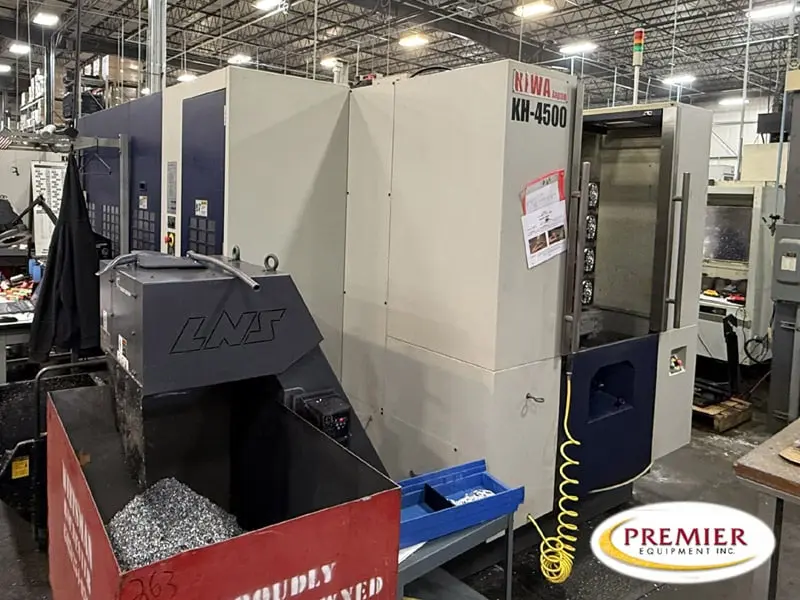

Kiwa KH-4500 – 2020
Kiwa KH-4500 – 2020 image
Contact
Kiwa KH4500 CNC Horizontal Machining Center

Kiwa KH4500 CNC Horizontal Machining Center Specifications (subject to buyer verification): Movement And Ranges • Extended X-Axis Stroke ………………………………………………………… 27.6″ • Extended Y-Axis Stroke …………………………………………………………… 29.1″ • Z-Axis Travel ………………………………………………………………………….. 26.8″ TABLE (PALLET) • Pallet Working Surface ………………………………………………………………. 19.7″ x 19.7″(500mm Upgrade) • Maximum Workpiece Size – PC2 (Dia. X H) ………………………………….. Ø 29.5 x 39.4” • Pallet (Table) Loading Capacity …………………………………………………… 1,100 lbs. • Min. Table Indexing Angle ………………………………………………………….. .001 deg. SPINDLE • Spindle Motor …………………………………………………………………………… 50 HP • Spindle Speed Range ………………………………………………………………… 150-15,000 RPM • Type of Spindle Taper Hole ………………………………………………………… 40 Taper Big Plus • Tool Storage Capacity ……………………………………………………………….. 120 Tools Equipped With (subject to buyer verification): FANUC 31i-B CNC Control 150-15,000 RPM Spindle Speed 50 HP Spindle Motor 2 Pallet Changer Chip Conveyor (LNS Premium) Coolant Chip Flow System 500mm Pallet Upgrade (Both Pallets) Chip Blaster J-30 1000 PSI HPC System AICC II 1000 Block Look Ahead Upgrade 4 Spare M-Codes Renishaw Pop-Up Style Tool Length Measurement/Breakage Detection Probe Renishaw OMP400 Spindle Probe
Kiwa

Machining Centers

USED
2020

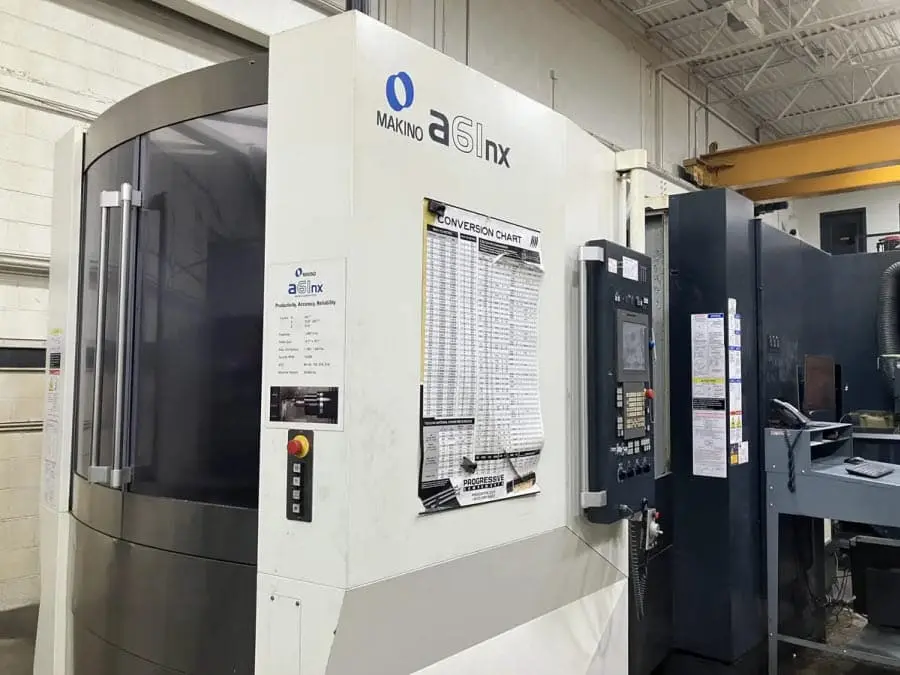

Makino A61NX – 2013
