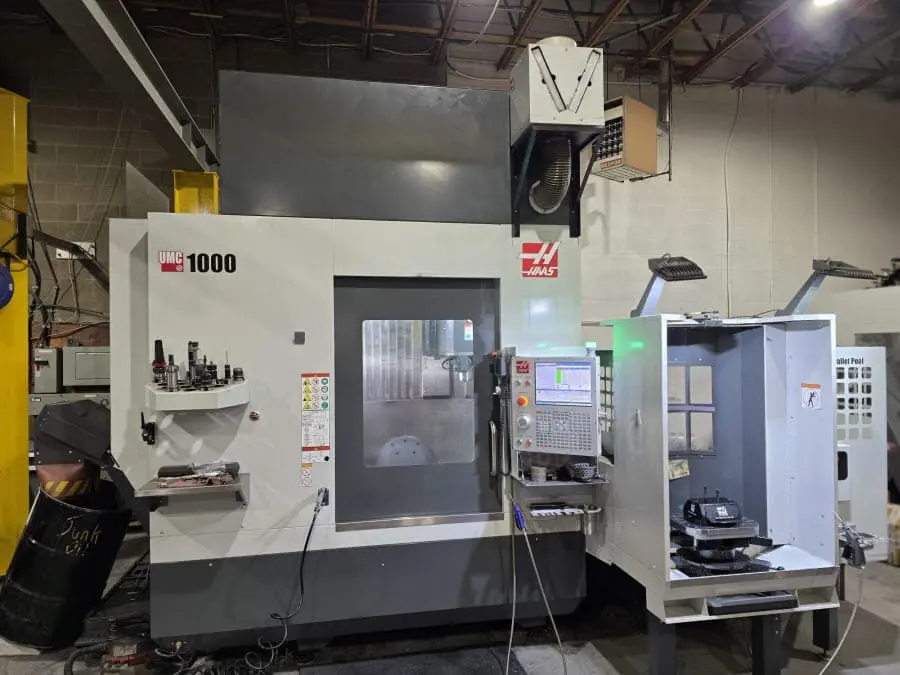

Haas UMC-1000 with Pallet Pool – 2021 (Sold)
Haas UMC-1000 with Pallet Pool – 2021 (Sold)
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Haas
Model
UMC-1000
Hours of Usage
-
Year of Manufacture
2021
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
Haas UMC1000 with 10-Pallet Changer 5-Axis CNC Vertical Machining Center
Control
Haas
Taper
40
Through Spindle Coolant
Yes
Y Axis Travel
25"
Spindle Speed
15,000 RPM
X Axis Travel
40"
Z Axis Travel
25"
5 Axis
Yes
Used Cnc Brands
Haas
Description
Haas UMC1000 with 10-Pallet Changer 5-Axis CNC Vertical Machining Center Haas UMC1000 with 10-Pallet Changer 5-Axis CNC Vertical Machining Center New: 12/2021; Installed 08/2022 Specifications: Travels: X-Axis: 40″ Y-Axis: 25″ Z-Axis: 25″ B-Axis – Tilt: 120° to 35-° C-Axis – Rotation: 360° Platter Diameter: 25″ Spindle Speed: 15,000 RPM Spindle Taper: #40 Spindle Motor: 30 HP Tool Changer: 50+1 Side Mount Max Weight on Platter: 1000 Lbs Max Cutting Feed rate: 650 IPM Rapid Feed rate: 900 IPM Pallets: 10+1 Equipped With: 10-Station Pallet Pool ($115k Upgrade) – 15.75″ x 11.75″ Pallets Haas CNC Control 15,000 30 HP Spindle 50+1 Side Mount Tool Changer Wireless Intuitive Probe System 300 PSI Thru Spindle Coolant Belt-Type Chip Conveyor Programmable Coolant Nozzle 95 Gallon Coolant Tank with 1 HP Pump Dynamic Work Offsets & Tool Center Point Control Rigid Tapping M-Code Remote Jog Handle
Get in Touch with Seller About This Product
