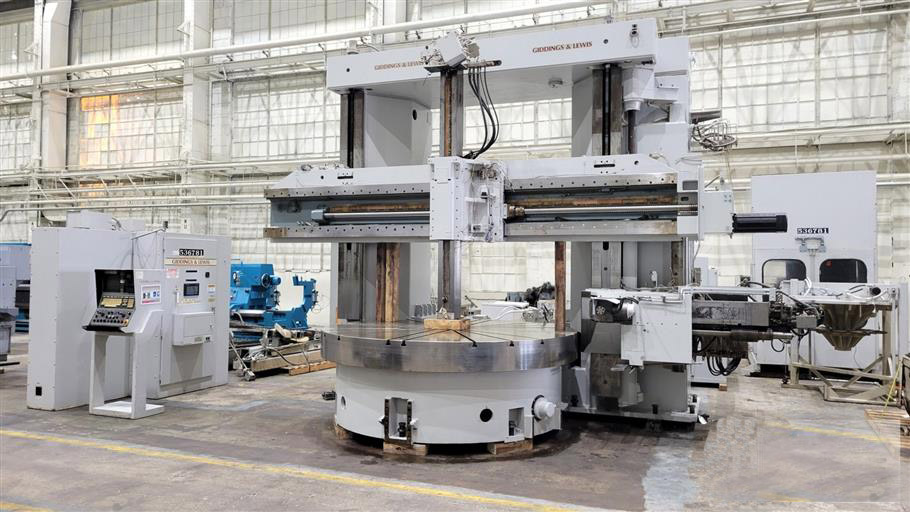

1990 Giddings & Lewis VTC-2500 108″ CNC Vertical Boring Mill w/Ram & Side Head SPECIFICATIONS: TABLE DIAMETER, T-SLOTTED 108″ MAXIMUM SWING 120″ MAXIMUM HEIGHT UNDER CROSS RAIL 72″ RAM STROKE, 12″ EXTENDED TRAVEL 62″ RAM TAPER #60 ANSI RAM CROSS SECTION 7.875″ X 7.875″ SIDE HEAD HORIZONTAL RAM TRAVEL 32″ SIDE HEAD RAM TAPER #50 ANSI SIDE HEAD RAM CROSS SECTION 7.25″ X 8.50″ TABLE SPEEDS, 2-RANGES 2.5-150 RPM TABLE DRIVE MOTOR 100 HP TABLE LOAD CAPACITY AT MAXIMUM RPM 250,000 LBS RAPID TRAVERSE RATE 150 IPM FEED RANGE .10-150 IPM BALL SCREW DIAMETER 3″ POSITIONING UNI-DIRECTION ACCURACY +/- .0008″ IN 36″ POSITIONING UNI-DIRECTION REPEATABILITY +/- .00025″ APPROXIMATE MACHINE WEIGHT 150,000 LBS EQUIPPED WITH: GIDDINGS & LEWIS 8000 4-AXIS CNC CONTROL PEDESTAL MOUNTED OPERATORS STATION 30 STATION ATC, RIGHT HAND FOR VERTICAL RAM 12 STATION ATC, RIGHT HAND FOR SIDE HEAD RAMS BUILT WITH STEEL FORGED MATERIAL HARDENED WAYS INDUCTOSYN FEEDBACK SYSTEM THREAD CUTTING PROGRAMABLE RAIL TRAVEL RAIL LEVELING DEVICE KENNEMETAL TOOL CONDITION SENSOR NUMERIPROBE PART PROBE SYSTEM NUMERIPROBE TOOL PROBE SYSTEM CROSS RAIL POWER ELEVATION AND CLAMPING WAY COVERS ON CROSS RAIL HIGH VOLUME FLOOD COOLANT COOLANT THRU CENTER OF RAM TEMPERATURE CONTROLLED COOLANT SYSTEM HARDENED WAYS CHIP CONVEYOR, 18″ WIDE WITH 54″ DISCHARGE HT. 100 HP TABLE DRIVE 460/3/60 CYCLE

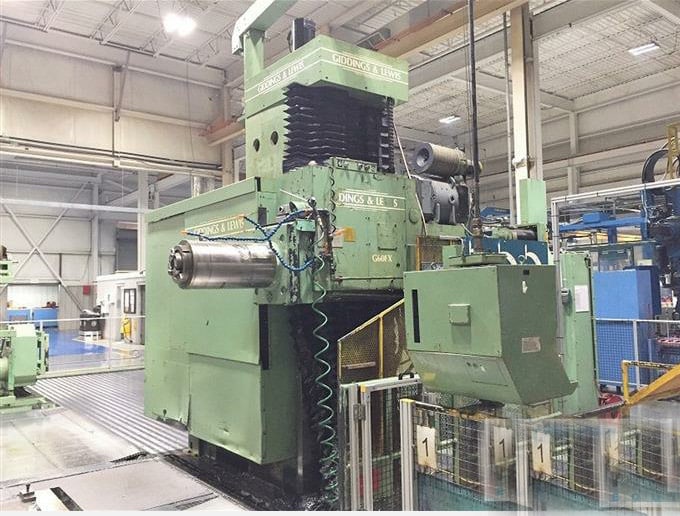

Giddings & Lewis G60FX 6″ CNC Floor Type Horizontal Boring Mill CAPACITY: SPINDLE DIAMETER 6″ SPINDLE TAPER NO.50 ANSI X-AXIS COLUMN TRAVEL 408″ Y-AXIS VERTICAL HEAD TRAVEL 91″ Z-AXIS SPINDLE TRAVEL 48″ SPINDLE DRIVE MOTOR 50 HP SPINDLE SPEED RANGE, INF.VARIABLE 12-2500 RPM TRAVERSE RATE, X-AXIS 400 IPM TRAVERSE RATE, Y-AXIS 450 IPM FEED RATES, X, Y & Z AXES 150 IPM ELECTRICS 480V 3PH 60 CYCLE EQUIPPED WITH: GIDDINGS & LEWIS 8000M-B CNC CONTROL 80 TOOL AUTOMATIC TOOL CHANGER INDEPENDENT AC ELECTRIC SERVO FEED DRIVES INFINITELY VARIABLE SPINDLE SPEEDS LUBRICOOL CHILLER UNIT FOR HEADSTOCK LUBE OIL ADJUSTABLE PENDANT MOUNTED CRT THRU-SPINDLE AND FLOOD COOLANT POWER DRAW BAR, COLLET TYPE CHIP CONVEYOR AND ELEVATOR OPERATORS PLATFORM HEAVY DUTY MEEHANITE CASTING CONSTRUCTION NON-METALLIC WAY LINERS DOUBLE MOTOR PINION DRIVE ON X-AXIS RACK SOFTWARE FOR CH-8 GIDDINGS & LEWIS CNC FACING HEAD AUTOMATIC LUBRICATION OF ALL MACHINE WAYS 50 HP SPINDLE DRIVE MOTOR

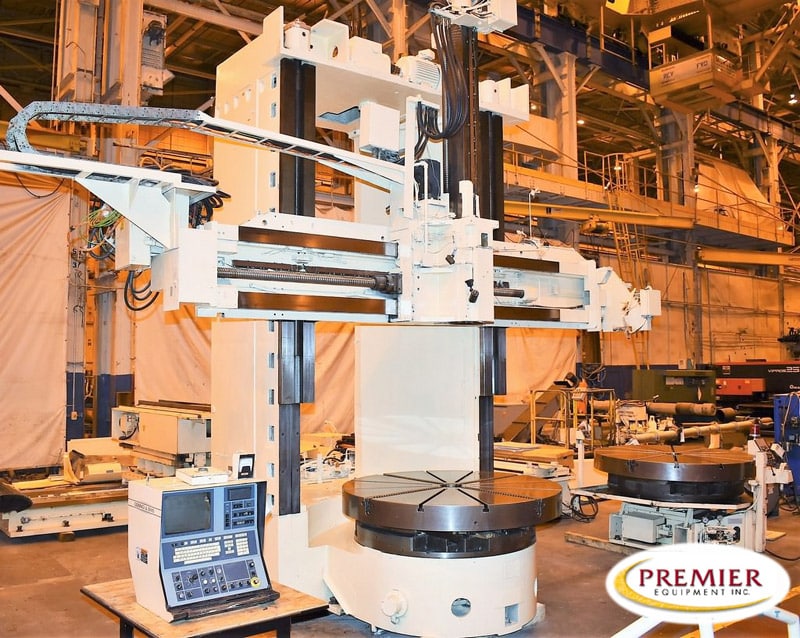

G&L 72 TABLE DIAMETER 72″ MAXIMUM TURNING DIAMETER 84″ MAXIMUM HEIGHT UNDER CROSS RAIL 96″ RAM VERTICAL TRAVEL, X-AXIS 62″ VERTICAL TRAVEL OF CROSS RAIL 54″ RAM TRAVEL, LEFT OF CENTER 54.5″ RAM TRAVEL, RIGHT OF CENTER 48.5″ RAM CROSS SECTION 7.875″ TABLE SPEEDS, INF. VARIABLE 2 RANGES TABLE SPEEDS, HIGH RANGE 9 TO 200 RPM TABLE SPEEDS, LOW RANGE 2-50 RPM RAPID TRAVERSE, RAIL HEAD X & Z AXIS 400 IPM FEED RATES, VARIABLE X & Z AXES .01 TO 150 IPM RAIL ELEVATING RATE 30 IPM EQUIPPED WITH: GIDDINGS & LEWIS 8000 CNC CONTROL 12-STATION AUTOMATIC TOOL CHANGER (2) 72″ 4-JAW INDEPENDENT MANUAL CHUCKS WITH PALLET SHUTTLE POWER DRAW BAR RAM W/#60 ANSI B5.50 TAPER ELEVATING CROSS RAIL EXTENDED COLUMN HEIGHT FLOOD COOLANT SYSTEM ADJUSTABLE CROSS RAIL WITH POWER ELEVATION AND CLAMPING HARDENED WAYS ON CROSS RAIL INDEPENDENT AC ELECTRIC SERVO FEED DRIVES 3″ DIAMETER BALL SCREWS INDUCTOSYN SCALE FEEDBACK PROGRAMMABLE RAIL HEIGHT ADJUSTMENT AUTOMATIC RAIL LEVELING NUMERIPROBE IN PROCESS GAUGING NUMERIDAPT ADAPTIVE CONTROL TOOL TIP PROBING CHIP CONVEYOR WITH ELEVATOR 75 HP MAIN MOTOR
