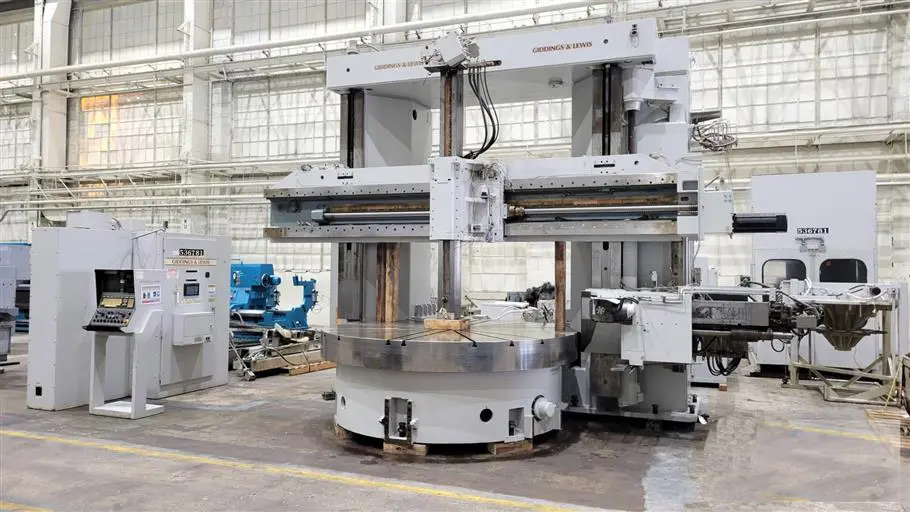

Giddings & Lewis VTC-2500 108″ CNC VBM – 1990
Giddings & Lewis VTC-2500 108″ CNC VBM – 1990
Category
Vertical Lathes
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Giddings and Lewis
Model
Giddings
Hours of Usage
-
Year of Manufacture
1990
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Used Cnc Brands
Giddings and Lewis
Table Diameter
108"
Turning Cutting Diameter
120"
Turret Stations
30
Table Speed
150 RPM
Control
Other
Milling Capability
No
Weight
150,000 LBS
Description
1990 Giddings & Lewis VTC-2500 108″ CNC Vertical Boring Mill w/Ram & Side Head SPECIFICATIONS: TABLE DIAMETER, T-SLOTTED 108″ MAXIMUM SWING 120″ MAXIMUM HEIGHT UNDER CROSS RAIL 72″ RAM STROKE, 12″ EXTENDED TRAVEL 62″ RAM TAPER #60 ANSI RAM CROSS SECTION 7.875″ X 7.875″ SIDE HEAD HORIZONTAL RAM TRAVEL 32″ SIDE HEAD RAM TAPER #50 ANSI SIDE HEAD RAM CROSS SECTION 7.25″ X 8.50″ TABLE SPEEDS, 2-RANGES 2.5-150 RPM TABLE DRIVE MOTOR 100 HP TABLE LOAD CAPACITY AT MAXIMUM RPM 250,000 LBS RAPID TRAVERSE RATE 150 IPM FEED RANGE .10-150 IPM BALL SCREW DIAMETER 3″ POSITIONING UNI-DIRECTION ACCURACY +/- .0008″ IN 36″ POSITIONING UNI-DIRECTION REPEATABILITY +/- .00025″ APPROXIMATE MACHINE WEIGHT 150,000 LBS EQUIPPED WITH: GIDDINGS & LEWIS 8000 4-AXIS CNC CONTROL PEDESTAL MOUNTED OPERATORS STATION 30 STATION ATC, RIGHT HAND FOR VERTICAL RAM 12 STATION ATC, RIGHT HAND FOR SIDE HEAD RAMS BUILT WITH STEEL FORGED MATERIAL HARDENED WAYS INDUCTOSYN FEEDBACK SYSTEM THREAD CUTTING PROGRAMABLE RAIL TRAVEL RAIL LEVELING DEVICE KENNEMETAL TOOL CONDITION SENSOR NUMERIPROBE PART PROBE SYSTEM NUMERIPROBE TOOL PROBE SYSTEM CROSS RAIL POWER ELEVATION AND CLAMPING WAY COVERS ON CROSS RAIL HIGH VOLUME FLOOD COOLANT COOLANT THRU CENTER OF RAM TEMPERATURE CONTROLLED COOLANT SYSTEM HARDENED WAYS CHIP CONVEYOR, 18″ WIDE WITH 54″ DISCHARGE HT. 100 HP TABLE DRIVE 460/3/60 CYCLE
Get in Touch with Seller About This Product
Similar Products

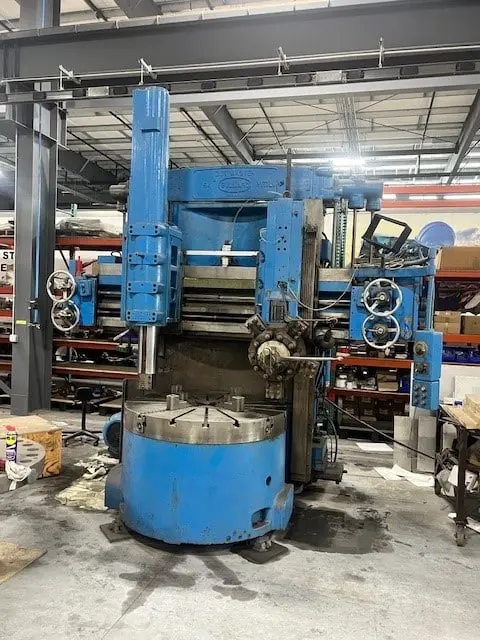

See AllBullard 54″ Cutmaster Vertical Boring Mill
Doosan
Bullard 54
Vertical Lathes
USED
Contact
54” BULLARD VERTICAL BORING MILL MODEL: 54″ CUTMASTER, SPECIFICATIONS CHUCK DIAMETER……………………54″ MAXIMUM SWING ……. 62″ MAXIMUM HEIGHT UNDER RAIL…………… 44″ SPEED RANGE (20 SPEEDS)………4.4 TO 160 RPM TABLE MOTOR……………………..30 HP FEEDS (16 FEEDS)…………………… .0026 TO .125 IPR VERTICAL TRAVEL OF TURRET…………… 30-3/8″ SWIVEL OF TURRET…………………… 30 DEG LEFT & RIGHT VERTICAL TRAVEL OF THE RAM HEAD …….. 30-1/2″ SWIVEL OF RAM …………………….. 30 DEG LEFT & RIGHT VERTICAL TRAVEL OF SIDE HEAD………… 44-1/4″ APPROXIMATE FLOOR SPACE…………….. 115″ x 136″ x 124″ HEIGHT WITH RAIL AND TURRET UP………. 152″ APPROXIMATE WEIGHT ………………… 50,000 LBS Equipped With EQUIPPED WITH: * 5-SIDED R.H. TURRET * L.H. SWIVELING RAM HEAD * 4-JAW INDEPENDANT CHUCK * 30 HORSE POWER MAIN DRIVE MOTOR 240 Volt / 3 / Phase 75 KVA TRANSFORMER FOR 480 Volt Application
Doosan
Vertical Lathes
USED
DOOSAN Puma V8300R/L VTL – 2020
Doosan
Puma V8300R/L
Vertical Lathes
USED
2020
Contact
Twin DOOSAN Puma V8300R/L CNC VERTICAL TURNING CENTER Specs Table Diameter 15″ Table Load Capacity 1918 LBS. Swing Diameter 36.2″ Maximum Turning Diameter 32.7″ Turning Height 29.5″ Spindle Nose A2 – 11 Table Speed 2000 RPM Main Motor 40/50 X – Axis Travel 19.5″ Z – Axis Travel 30.7″ Rapid Traverse X, Z 787, 787 IPM Turret Configuration 12 Machine Weight 20,723 LBS. Equipped with Doosan-Fanuc i Series CNC CONTROL 15” Hydraulic Chuck Belt Driven 40/50 HP 12 St. Turret Chip Conveyor
Doosan
Vertical Lathes
USED
2020

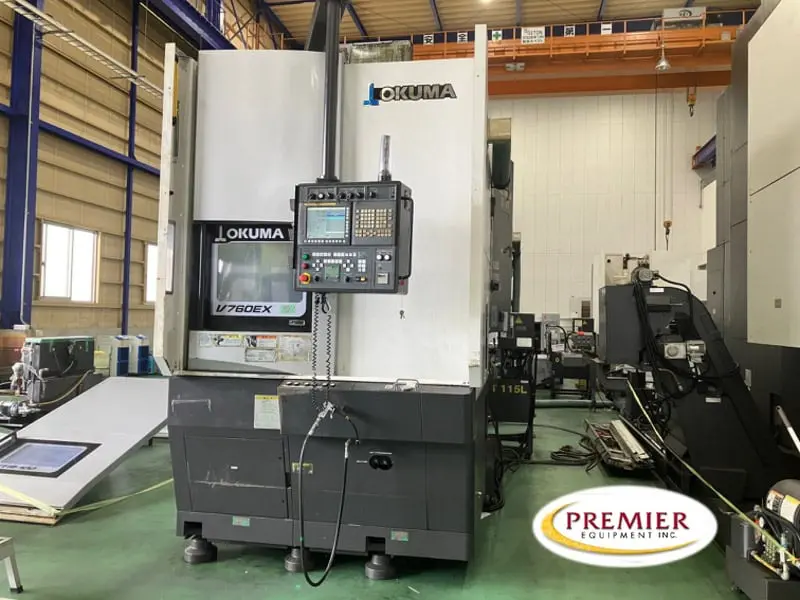

Okuma V760EX-M CNC VTL with Milling – 2017
