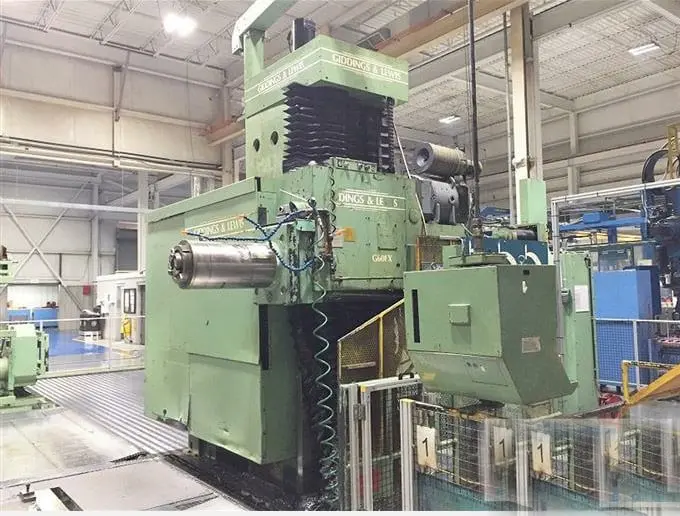

GIDDINGS & LEWIS G60-FX 6″ HBM – 1996
GIDDINGS & LEWIS G60-FX 6″ HBM – 1996
Category
Boring Mills
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Giddings and Lewis
Model
GIDDINGS
Hours of Usage
-
Year of Manufacture
1996
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Used Cnc Brands
Giddings and Lewis
Spindle Diameter
6"
Taper
50
Spindle Motor
50 HP
X Axis Travel
408"
Y Axis Travel
91"
Z Axis Travel
48"
Indexing
.001 Degree
Atc Stations
80 ATC
Control
Other
Description
Giddings & Lewis G60FX 6″ CNC Floor Type Horizontal Boring Mill CAPACITY: SPINDLE DIAMETER 6″ SPINDLE TAPER NO.50 ANSI X-AXIS COLUMN TRAVEL 408″ Y-AXIS VERTICAL HEAD TRAVEL 91″ Z-AXIS SPINDLE TRAVEL 48″ SPINDLE DRIVE MOTOR 50 HP SPINDLE SPEED RANGE, INF.VARIABLE 12-2500 RPM TRAVERSE RATE, X-AXIS 400 IPM TRAVERSE RATE, Y-AXIS 450 IPM FEED RATES, X, Y & Z AXES 150 IPM ELECTRICS 480V 3PH 60 CYCLE EQUIPPED WITH: GIDDINGS & LEWIS 8000M-B CNC CONTROL 80 TOOL AUTOMATIC TOOL CHANGER INDEPENDENT AC ELECTRIC SERVO FEED DRIVES INFINITELY VARIABLE SPINDLE SPEEDS LUBRICOOL CHILLER UNIT FOR HEADSTOCK LUBE OIL ADJUSTABLE PENDANT MOUNTED CRT THRU-SPINDLE AND FLOOD COOLANT POWER DRAW BAR, COLLET TYPE CHIP CONVEYOR AND ELEVATOR OPERATORS PLATFORM HEAVY DUTY MEEHANITE CASTING CONSTRUCTION NON-METALLIC WAY LINERS DOUBLE MOTOR PINION DRIVE ON X-AXIS RACK SOFTWARE FOR CH-8 GIDDINGS & LEWIS CNC FACING HEAD AUTOMATIC LUBRICATION OF ALL MACHINE WAYS 50 HP SPINDLE DRIVE MOTOR
Get in Touch with Seller About This Product
