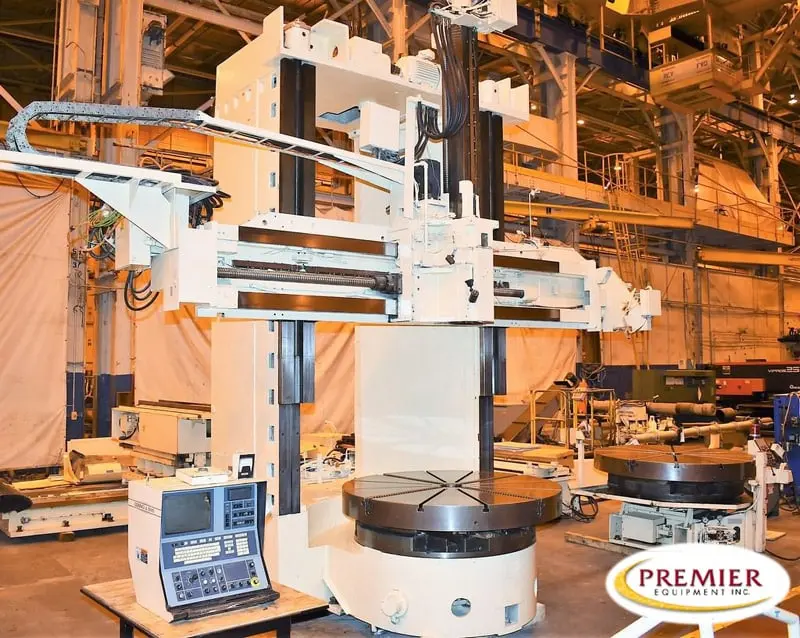

Giddings & Lewis 72” Series 514 VBM – 1998
Giddings & Lewis 72” Series 514 VBM – 1998
Category
Boring Mills
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Giddings and Lewis
Model
Giddings
Hours of Usage
-
Year of Manufacture
1998
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Model
72
Used Cnc Brands
Giddings and Lewis
Table Diameter
72"
Turning Cutting Diameter
84"
Atc Stations
12
Table Speed
200 RPM
Control
Other
Milling Capability
No
Description
G&L 72 TABLE DIAMETER 72″ MAXIMUM TURNING DIAMETER 84″ MAXIMUM HEIGHT UNDER CROSS RAIL 96″ RAM VERTICAL TRAVEL, X-AXIS 62″ VERTICAL TRAVEL OF CROSS RAIL 54″ RAM TRAVEL, LEFT OF CENTER 54.5″ RAM TRAVEL, RIGHT OF CENTER 48.5″ RAM CROSS SECTION 7.875″ TABLE SPEEDS, INF. VARIABLE 2 RANGES TABLE SPEEDS, HIGH RANGE 9 TO 200 RPM TABLE SPEEDS, LOW RANGE 2-50 RPM RAPID TRAVERSE, RAIL HEAD X & Z AXIS 400 IPM FEED RATES, VARIABLE X & Z AXES .01 TO 150 IPM RAIL ELEVATING RATE 30 IPM EQUIPPED WITH: GIDDINGS & LEWIS 8000 CNC CONTROL 12-STATION AUTOMATIC TOOL CHANGER (2) 72″ 4-JAW INDEPENDENT MANUAL CHUCKS WITH PALLET SHUTTLE POWER DRAW BAR RAM W/#60 ANSI B5.50 TAPER ELEVATING CROSS RAIL EXTENDED COLUMN HEIGHT FLOOD COOLANT SYSTEM ADJUSTABLE CROSS RAIL WITH POWER ELEVATION AND CLAMPING HARDENED WAYS ON CROSS RAIL INDEPENDENT AC ELECTRIC SERVO FEED DRIVES 3″ DIAMETER BALL SCREWS INDUCTOSYN SCALE FEEDBACK PROGRAMMABLE RAIL HEIGHT ADJUSTMENT AUTOMATIC RAIL LEVELING NUMERIPROBE IN PROCESS GAUGING NUMERIDAPT ADAPTIVE CONTROL TOOL TIP PROBING CHIP CONVEYOR WITH ELEVATOR 75 HP MAIN MOTOR
