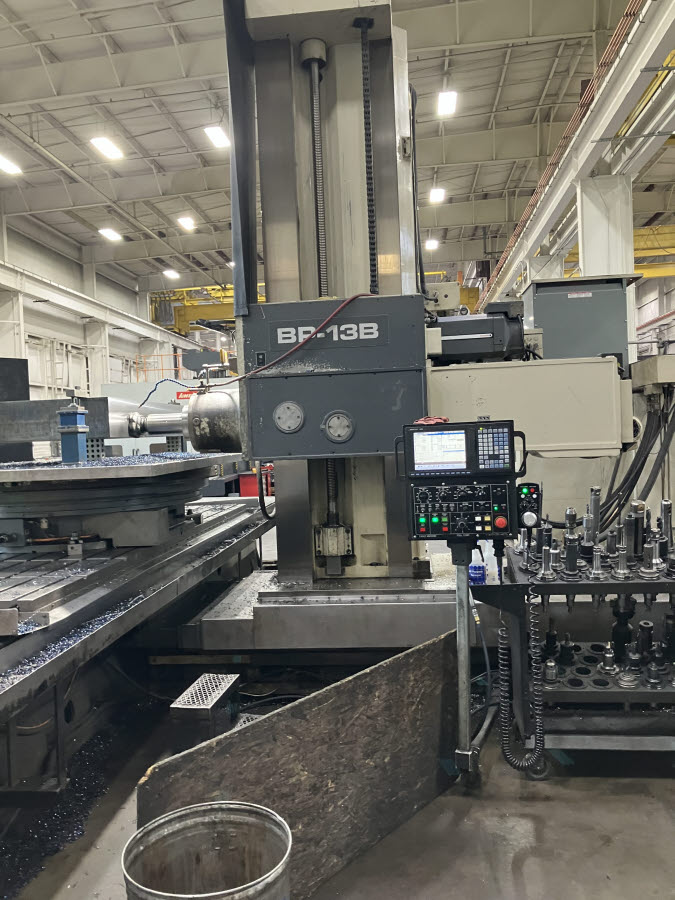

Toshiba BP-13B-P7 PLAIN TABLE TYPE CNC HORIZONTAL BORING MILL NEW-1993 Control Retrofit Yr 2019 Control……………………………: Mitsubishi 70 Series (Retrofit) Spindle Diameter……………………: 5.12″ Table Size…………………………: 60″ x 168″ X Travel…………………………..: 157″ Y Travel…………………………..: 92″ Z Travel Column In/Out………………: 60″ W Axis Spindle Travel……………….: 27″ Spindle Speeds……………………..: 2,500 RPM Spindle Taper………………………: # 50 Max. Table Load…………………….: 44,000 Lbs. Machine Weight……………………..: 65,000 Lbs. Equipped With: Mitsubishi 70 Series Control All new Mitsubishi Spindle Motor & Drives (total retrofit) Glass Scales X & Y 20gig Hard Drive High Speed Machining Telescoping Stainless Steel Way Covers Toshiba Hardened and Ground Large Flat Ways New Turcite Just Installed For Table Ways in 2004 Coolant

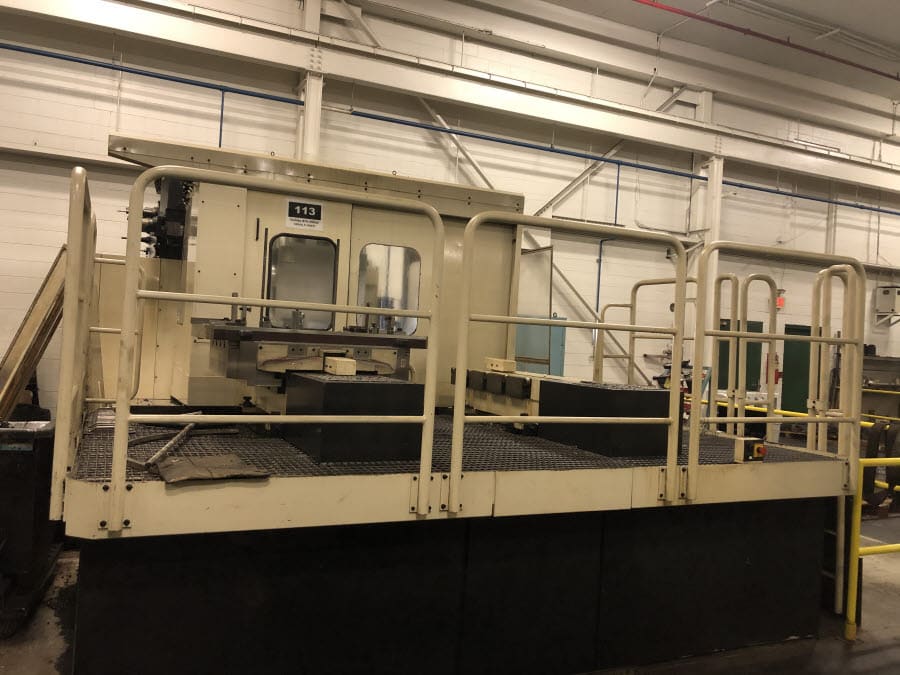

TOSHIBA BTD-200QF HORIZONTAL BORING MILL WITH (2) PALLETS ATC 40 TOOL CHANGER SPECIFICATIONS: SPINDLE DIAMETER mm(in) 200mm(7.87) SPINDLE TRAVEL mm(in) 400mm (15.7) SPINDLE TAPER CAT 50 SPINDLE SPEEDS, INFINITELY VARIABLE RPM 3000 X-AXIS TRAVEL (table cross travel) mm(in) 1000 (39.4) Y-AXIS TRAVEL (headstock vertical travel) mm(in) 1000 (39.4) Z-AXIS TRAVEL (table longitudinal travel) mm(in) 700 (27.6) W-AXIS TRAVEL (spindle extension) mm(in) 400 (15.7) MAIN MOTOR HP (20/15) AC ROTARY TABLE SIZE mm(in) 1000 x 1000 (39.4 x 39.4) PALLETS MAXIMUM TABLE LOAD LBS 6000 TABLE INDEXING ANGLE every 0.001 degrees MARPOSS PROBING SYSTEM CONTROL TOSNUC 888 COOLANT THRU SPINDLE

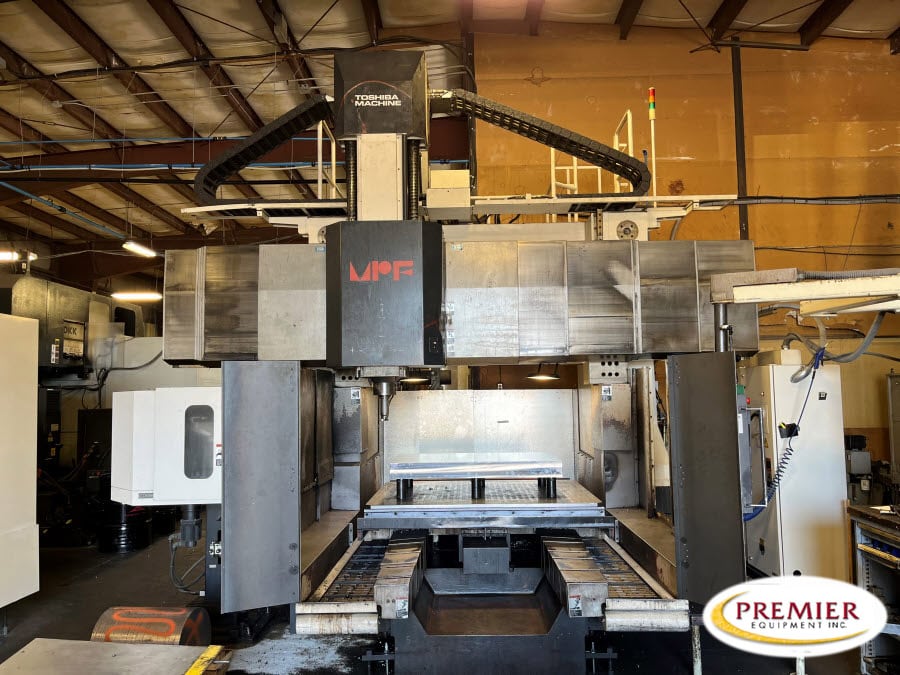

Toshiba MPF CNC Double Column Machining Center

Toshiba MPF CNC Double Column Machining Center Specifications (subject to buyer verification): Spindle Speed10,000 rpm No. of ATC Stations24 ATC X-axis 55.1” y-axis 82.68” Equipped With (subject to buyer verification): Tosnuc 888 control Thru Spindle Coolant 24 ATC 3 position hydraulically actuated cross rail
