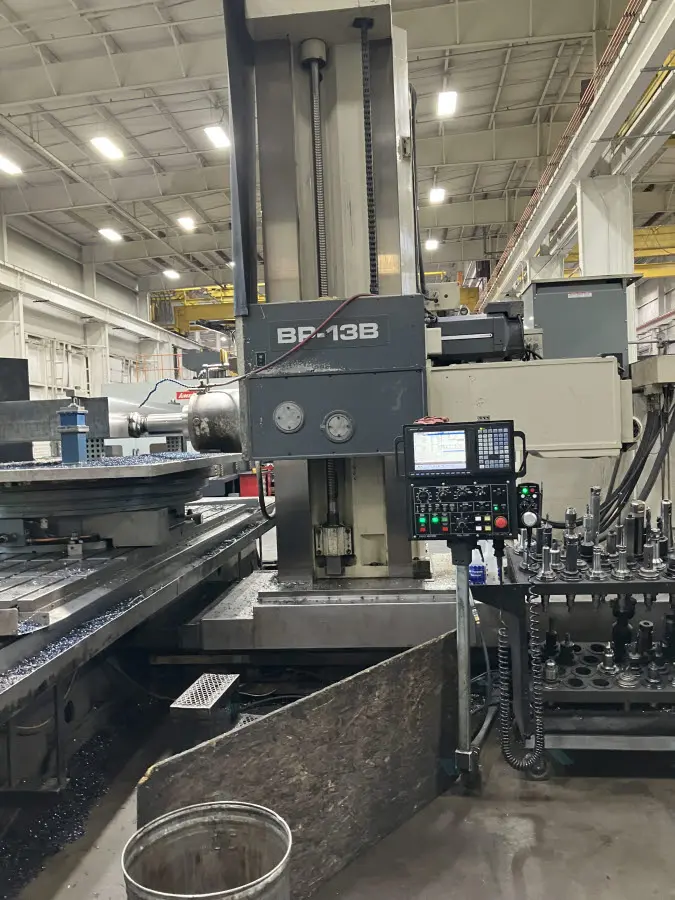

Toshiba BP-13B-P7 HBM
Toshiba BP-13B-P7 HBM
Category
Boring Mills
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Toshiba
Model
BP-13B-P7 HBM
Hours of Usage
-
Year of Manufacture
-
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Used Cnc Brands
Toshiba
Spindle Diameter
5.1"
Taper
50
Spindle Motor
30 HP
X Axis Travel
157"
Y Axis Travel
92"
Z Axis Travel
28"
Indexing
59"
Atc Stations
40 ATC
Control
Mitsubishi
Description
Toshiba BP-13B-P7 PLAIN TABLE TYPE CNC HORIZONTAL BORING MILL NEW-1993 Control Retrofit Yr 2019 Control……………………………: Mitsubishi 70 Series (Retrofit) Spindle Diameter……………………: 5.12″ Table Size…………………………: 60″ x 168″ X Travel…………………………..: 157″ Y Travel…………………………..: 92″ Z Travel Column In/Out………………: 60″ W Axis Spindle Travel……………….: 27″ Spindle Speeds……………………..: 2,500 RPM Spindle Taper………………………: # 50 Max. Table Load…………………….: 44,000 Lbs. Machine Weight……………………..: 65,000 Lbs. Equipped With: Mitsubishi 70 Series Control All new Mitsubishi Spindle Motor & Drives (total retrofit) Glass Scales X & Y 20gig Hard Drive High Speed Machining Telescoping Stainless Steel Way Covers Toshiba Hardened and Ground Large Flat Ways New Turcite Just Installed For Table Ways in 2004 Coolant
Get in Touch with Seller About This Product
Similar Products

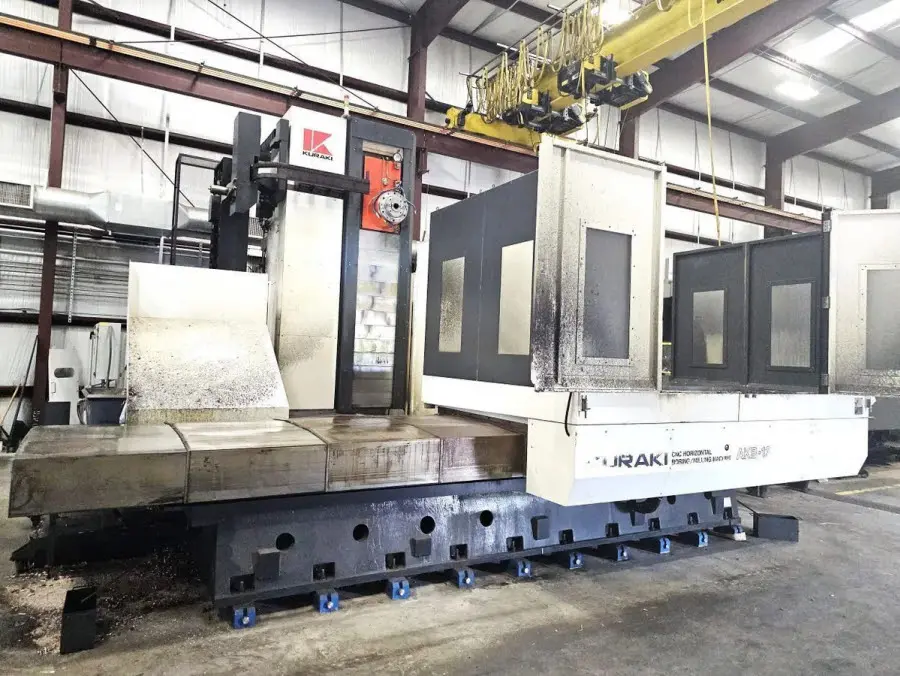

See AllKURAKI AKB-13 HBM – 2015
Kuraki
AKB-13 HBM
Boring Mills
USED
2015
Contact
KURAKI AKB13 CNC TABLE TYPE BORING Machine SPECIFICATIONS: Spindle Size 5.12″ X-Horizontal Travel of Table 118″ Y-Vertical Travel of Head 70.87″ Main Spindle Power 30 hp Spindle Speeds RPM 5- 3,000 RPM Table-W 62.99″ Table-L 70.87″ Max Loading Weight on Table 22,000 Lbs. DIMENSIONS 24 ft. x 23 ft. WEIGHT 77,000 Lbs EQUIPPED WITH: Fanuc Oi-MB CNC CONTROL Chip Blaster 1000 PSI High Pressure Thru-Spindle Coolant 60 Station Automatic Tool Changer Cogsdill ZX300-TC CAT 50 Taper Facing and Boring Tool Note: Best Available Machine & Options Subject Prior Sale! Machine Approx Weight 66,000. Lbs.
Kuraki
Boring Mills
USED
2015

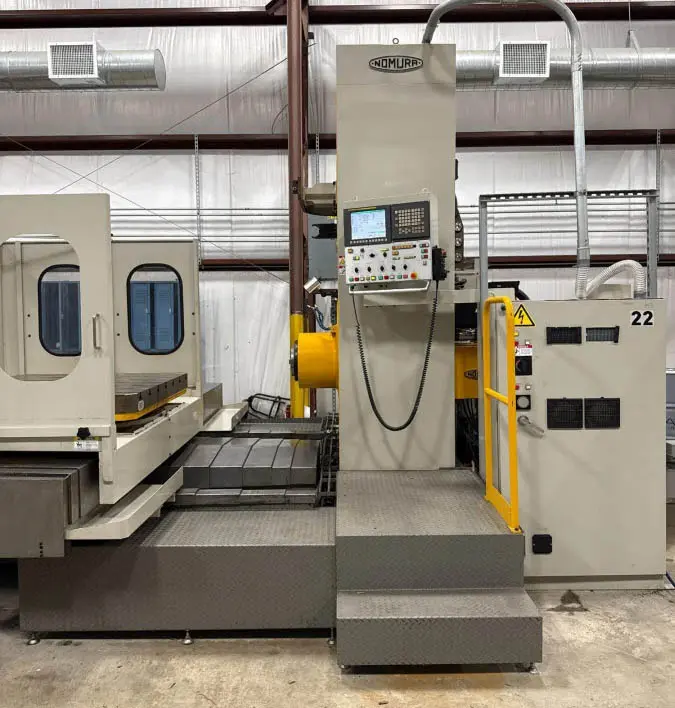

NOMURA HBA 110T-R2 HBM – 2015 (Sold)
Nomura
HBA 110T-R2
Boring Mills
USED
2015
Contact
NOMURA HBA110T-R2 CNC Table Type Horizontal Boring Mill SPECIFICATIONS: TABLE SIZE: ……………………. 45″ X 45″ TABLE CAPACITY: ………………… 6,600 LBS SPINDLE DIAMETER: ………………. 4.33″ SPINDLE TAPER: …………………. CT-50 MAX SPINDLE SPEEDS: …………….. 3000 RPM SPINDLE MOTOR: …………………. 30 HP TRAVELS – X AXIS: ………………. 51.2″ – Y AXIS: ………………. 46.3″ – Z AXIS: ………………. 34.4″ – W AXIS ……………….. 15.7″ N/C ROTARY TABLE INDEXING: ………. 0.001 DEG/360,000 POSITION MAX. CUTTING FEEDRATE: ………….. 236 IPM RAPID TRAVERSE: ………………… 472 IPM TOOL CHANGER CAPACITY: ………….. 30 TOOLS
Nomura
Boring Mills
USED
2015

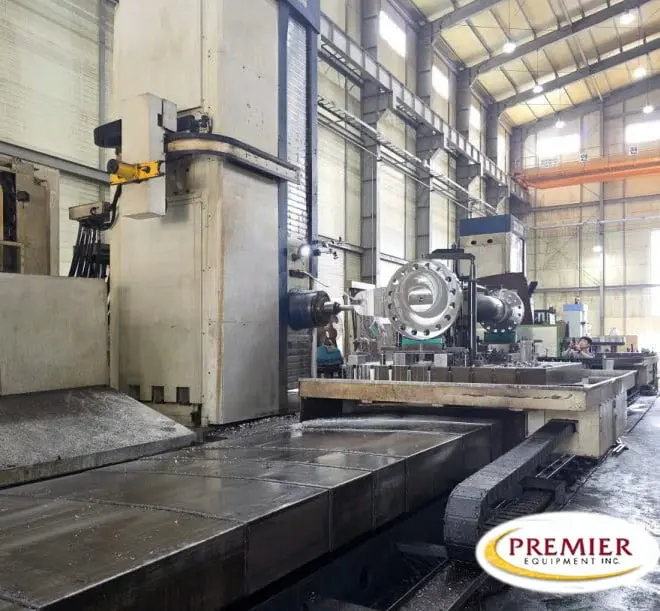

HNK HB150S HBM – 2012
HNK
HB150S HBM
Boring Mills
USED
2012
Contact
HNK HB150S 5.9″CNC table type boring machine Table : 78.7″ x 86.8″ Table Load: 20 ton Table Indexing: 0.001 degree indexing X-Axis Travel: 255″ Y-Axis Travel: 118.1″ Z-Axis Travel: 62.99″ W-Axis Travel: 27.55″ Spindle dia : 5.9″ Taper: BT 50 taper Spindle Speed: 2000 rpm Spindle Motor: 50 / 60 HP Fanuc 31i-A control Scales 60 tool ATC Chip conveyor
HNK
Boring Mills
USED
2012
