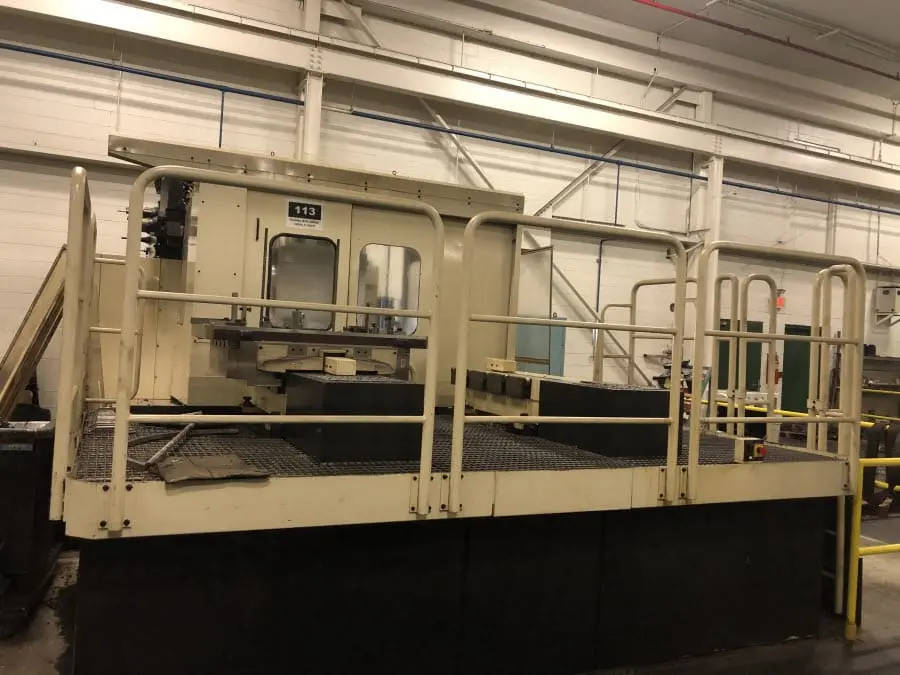

TOSHIBA BTD-200QF HBM – 1999
TOSHIBA BTD-200QF HBM – 1999
Category
Boring Mills
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Toshiba
Model
BTD-200QF HBM
Hours of Usage
-
Year of Manufacture
1999
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Used Cnc Brands
Toshiba
Spindle Diameter
7.8"
Taper
50
Spindle Motor
20 HP
X Axis Travel
39"
Y Axis Travel
39"
Z Axis Travel
28"
W Axis Travel
15.7"
Indexing
.001 Degree
Atc Stations
40 ATC
Description
TOSHIBA BTD-200QF HORIZONTAL BORING MILL WITH (2) PALLETS ATC 40 TOOL CHANGER SPECIFICATIONS: SPINDLE DIAMETER mm(in) 200mm(7.87) SPINDLE TRAVEL mm(in) 400mm (15.7) SPINDLE TAPER CAT 50 SPINDLE SPEEDS, INFINITELY VARIABLE RPM 3000 X-AXIS TRAVEL (table cross travel) mm(in) 1000 (39.4) Y-AXIS TRAVEL (headstock vertical travel) mm(in) 1000 (39.4) Z-AXIS TRAVEL (table longitudinal travel) mm(in) 700 (27.6) W-AXIS TRAVEL (spindle extension) mm(in) 400 (15.7) MAIN MOTOR HP (20/15) AC ROTARY TABLE SIZE mm(in) 1000 x 1000 (39.4 x 39.4) PALLETS MAXIMUM TABLE LOAD LBS 6000 TABLE INDEXING ANGLE every 0.001 degrees MARPOSS PROBING SYSTEM CONTROL TOSNUC 888 COOLANT THRU SPINDLE
