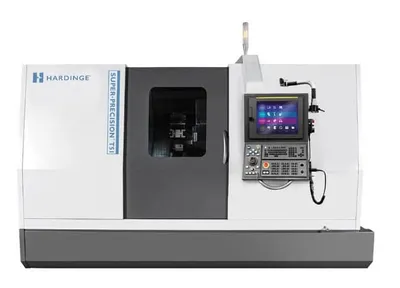

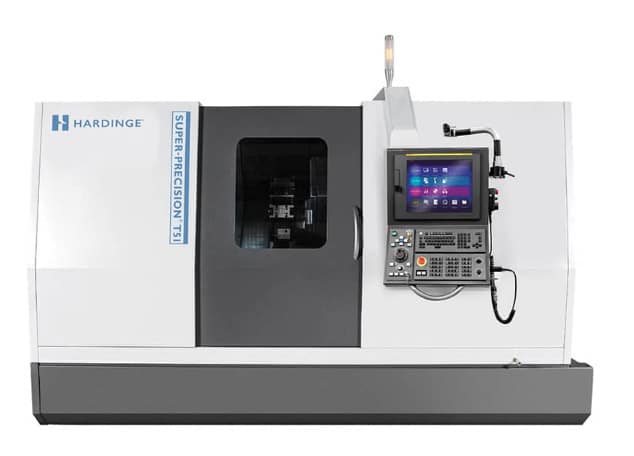

Hardinge T51SPMYT aka (T-51 Super Precision-MYT(B)) Multi-Axis CNC Turning Center

Hardinge T51SPMYT aka (T-51 Super Precision-MYT(B)) Multi-Axis CNC Turning Center Specifications (subject to buyer verification): Max Swing Over Way Covers: 29.88″ Max Machining Diameter (BMT-55) 12.35″ Max Machining Length with 8” Chuck (BMT-55): 16.85″ Max Machining Length with 20 C Collet (BMT-55): 22.47″ Max Spindle Speed: 5000 rpm Spindle Motor: 20-HP Cont. Spindle Torque: 256 Ft-Lb Spindle Nose: A2-6 Max Recommend Chuck: 8” Spindle Bore: 2.378” Bar Capacity: 2″ Turet Stations: 12-station + 1/2 station index Live Tooling Max Speed: 8,000-rpm Equipped With (subject to buyer verification): Fanuc Series 31iTB Tool Probe, Marposs (Includes Direct Measurement) Part Probe – Marposs (Includes High Speed Skip Software and Electrical) Part Program Storage 8MB

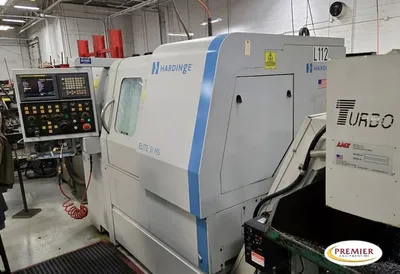

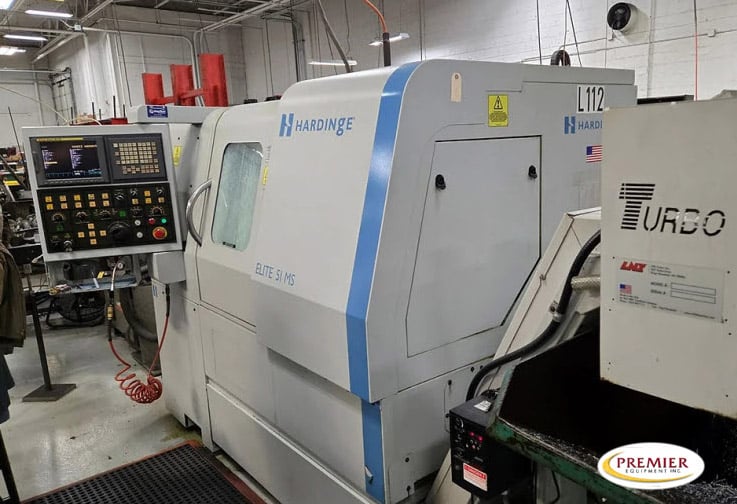

Hardinge Elite 51MS Multi-Axis CNC Turning Center

Hardinge Elite 51MS Multi-Axis CNC Turning Center Specifications (subject to buyer verification): Max Swing Over Bed 21″ Max Turning Diameter 13.4″ Max Machining Length 14″ Bar Capacity 2” Spindle Speed 1500 – 5000 RPM Spindle Bore 2.4″ Spindle Nose A2-6 Spindle Motor 15 HP Spindle Torque 70 ft. lbs. Sub-Spindle NoseA2-5 Sub-Spindle Speed6000 RPM Tools 12 (Live or Turning) (VDI Sauter Turret) Milling Motor 5 HP Milling Speed 6000 RPM Rapid Traverse Rates 1181 IPM X-Axis Travel 8.25″ Z-Axis Travel 14″ C-Axis Index .001 Degrees Turret Index (Single Step / Full) 0.1 Seconds Machine Dimensions (L x W x H) 89.7″ x 64″ x 68.7″ Machine Weight 6200 lbs. Equipped With (subject to buyer verification): GE Fanuc Series 18i-TB Sub Spindle C-Axis Milling Chip Conveyor 12’ LNS Barfeeder Flood Coolant

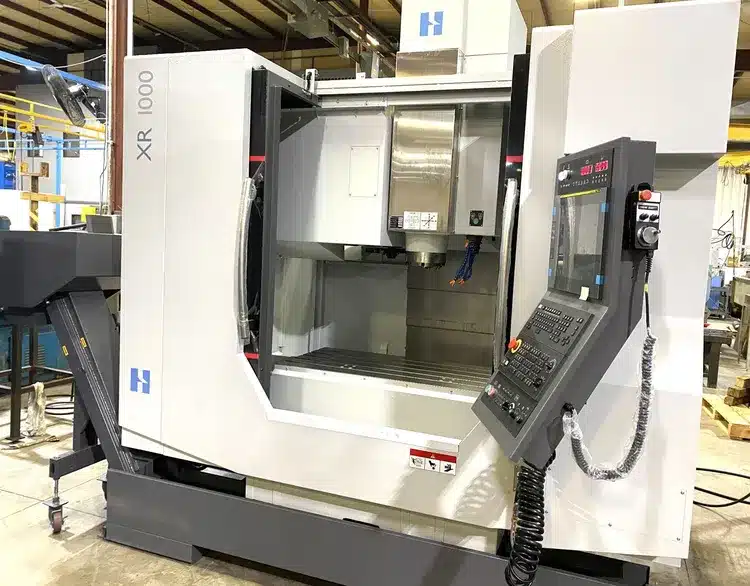

Hardinge-BRIDGEPORT XR1000 SPECIFICATIONS: Travel (X, Y, Z) 40 x 24 x 24 in 1020 x 610 x 610mm Table Working Surface 51.18 x 23.6 in 1300 x 600 mm Spindle Type CT40 BigPlus Spindle Power 30 HP 22.37 kW Spindle 12,000 RPM (DDS) ) Feedrate 787 in/min Spindle Taper No. 40 No. of Tools 30 standard; 48/60 optional CNC Control FANUC Oi-MF+ Machine Size (LxWxH) 144.21 x 120 x 40.55 in 3663 x 3048 x 1030mm FANUC 0iMF-PLUS AICC with 200 block look ahead Thermal Compensation 12K Air Oil Direct Drive Spindle Big Plus CAT 40 12,000-rpm Spindle Speed CT40 or BT40 Taper Spindles BIG-PLUS Face Taper Spindle High-Retention Draw Bar Thermal Compensation Chip Conveyor with Chip Washdown Cutter Air Blast Rigid Tapping 4th Axis Pre-Wiring 15″ LCD Color Display Programmable Data Input PCMCIA Card Slot Workpiece Coordinate System Manual Pulse Generator (Handwheel) Coordinate System Rotation Rigid Tapping Tool Life Management Tool Length compensation Background Editing Ethernet Ready/ RS232 Ready/ USB Slot Additional Workpiece Coordinate System Manual Guide i

Hardinge-BRIDGEPORT XR1000 SPECIFICATIONS: Travel (X, Y, Z) 40 x 24 x 24 in 1020 x 610 x 610mm Table Working Surface 51.18 x 23.6 in 1300 x 600 mm Spindle Type CT40 BigPlus Spindle Power 30 HP 22.37 kW Spindle 12,000 RPM (DDS) ) Feedrate 787 in/min Spindle Taper No. 40 No. of Tools 30 standard; 48/60 optional CNC Control FANUC Oi-MF+ Machine Size (LxWxH) 144.21 x 120 x 40.55 in 3663 x 3048 x 1030mm FANUC 0iMF-PLUS AICC with 200 block look ahead Thermal Compensation 12K Air Oil Direct Drive Spindle Big Plus CAT 40 12,000-rpm Spindle Speed CT40 or BT40 Taper Spindles BIG-PLUS Face Taper Spindle High-Retention Draw Bar Thermal Compensation Chip Conveyor with Chip Washdown Cutter Air Blast Rigid Tapping 4th Axis Pre-Wiring 15″ LCD Color Display Programmable Data Input PCMCIA Card Slot Workpiece Coordinate System Manual Pulse Generator (Handwheel) Coordinate System Rotation Rigid Tapping Tool Life Management Tool Length compensation Background Editing Ethernet Ready/ RS232 Ready/ USB Slot Additional Workpiece Coordinate System Manual Guide i

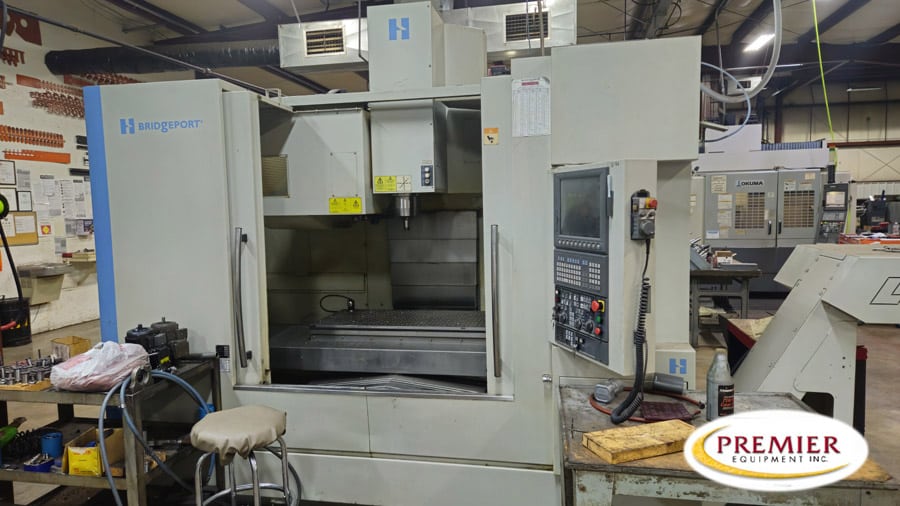

Hardinge-Bridgeport GX1000 OSP CNC Mill

Hardinge-Bridgeport GX1000 OSP CNC Mill CNC Vertical Machining Center Specifications (subject to buyer verification): Table Size57.48″ x 20.08″ Table Load Capacity1760 lbs Distance from Spindle Nose to Table Top7.09”min./ 27.17”max. X Axis Travel44.09″ Y Axis Travel20.08″ Z Axis Travel20.08″ Rapid Traverse Rates (X,Y,Z)1181 IPM Magazine Capacity30 ATC Chip-to-Chip / Tool-to-Tool Change Time4.7sec. / 1.5sec Spindle Nose#40 Spindle Speed10,000 RPM Main Motor20 HP Max. Tool Length / Weight13.78” / 17.6 lbs. Floor Space w/Chip Conveyor170″ x 113″ x 108″ Weight13,200 lbs estim. Equipped With (subject to buyer verification): OSP-P200M 30 ATC Chip Conveyor Prep for Thru Spindle Coolant

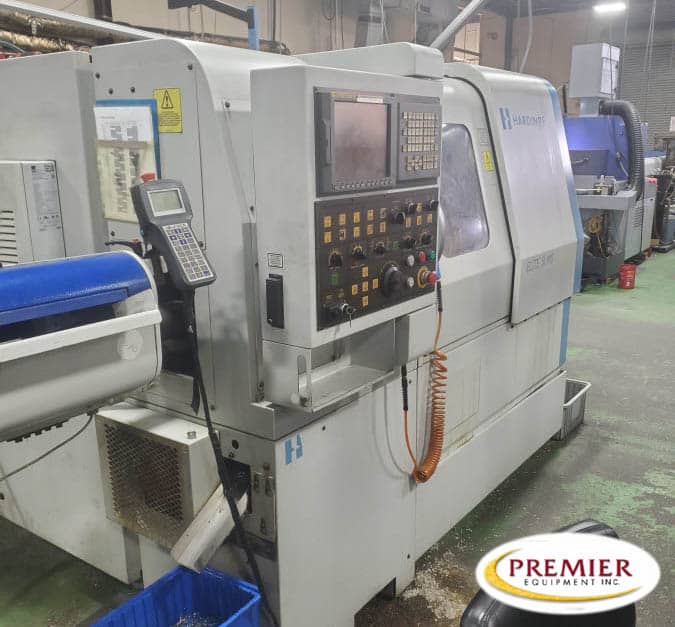

Hardinge Elite 51MS Multi-Axis CNC Turning Center

Hardinge Elite 51MS Multi-Axis CNC Turning Center Specifications (subject to buyer verification): Max Swing Over Bed 21″ Max Turning Diameter 13.4″ Max Machining Length 14″ Bar Capacity 2” Spindle Speed 1500 – 5000 RPM Spindle Bore 2.4″ Spindle Nose A2-6 Spindle Motor 15 HP Spindle Torque 70 ft. lbs. Sub-Spindle NoseA2-5 Sub-Spindle Speed6000 RPM Tools 12 (Live or Turning) (VDI Sauter Turret) Milling Motor 5 HP Milling Speed 6000 RPM Equipped With (subject to buyer verification): GE Fanuc Series 18i-TB Iemca 6’ Barfeed (2) Cross Drill Live Tools Sub Spindle Milling Glass Scales Tool Presetter Extra M Codes

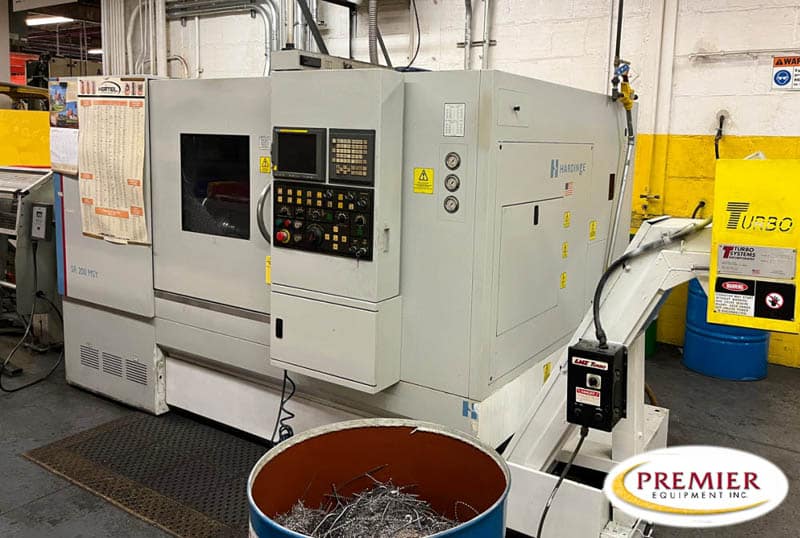

Hardinge SR200MSY Multi-Axis CNC Turning Center

Hardinge SR200MSY Multi-Axis CNC Turning Center Specifications (subject to buyer verification): SWING DIAMETER OVER WAY COVER ……. 20.44″ TURNING DIAMETER MAX ……………. 12.28″ MAX. TURNING LENGTH …………….. 20.1″ X-AXIS TRAVEL ………………….. 7.45″ Z-AXIS TRAVEL ………………….. 21.54″ Y-AXIS TRAVEL ………………….. +2.0 to -1.377” SPINDLE NOSE …………………… A2-6 SPINDLE THROUGH-HOLE ……………. 3.15″ BAR CAPACITY …………………… 2.5” SPINDLE SPEED RANGE …………….. 45 to 4500 RPM POWER RATING AT BASE SPEED ………. 30 HP RAPID TRAVERSE X/Z ……………… 1100/1500 IPM TURRET TYPE ……………………. 12 STATION ROTARY TOOL MOTOR ………………. 5HP ROTARY TOOL SPEED ………………. 8000 RPM SUBSPINDLE NOSE ………………… A2-5, 16C ROUND 16C THROUGH CAPACITY ………. 1.625″ SPINDLE SPEED RANGE …………….. 60 TO 6000 RPM POWER RATING AT BASE SPEED ………. 10 HP SUBSPINDLE TRAVEL ………………. 17.90″ APPROX. MACHINE W/CONVEYOR … 165″ x 90” x 78” APPROX. WEIGHT …………………. 15,500 LBS. Equipped With (subject to buyer verification): Hardinge GE Fanuc I Series SR Chip Conveyor LNS Sprint 565 Barfeed and Accessories Tool Presetter Sub Spindle Milling Capability Y-Axis All Available chucks and Spindle Liners Misc. Live and Static Holders

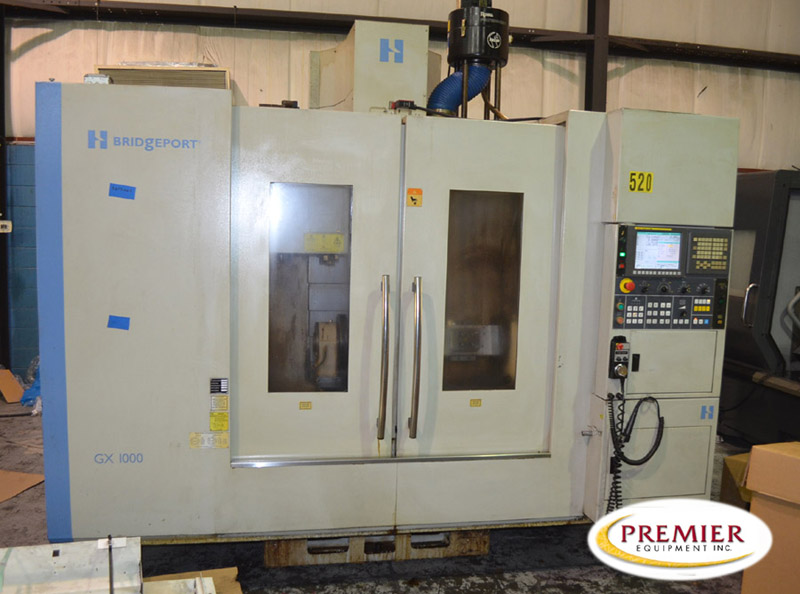

Hardinge-Bridgeport GX1000 CNC Mill

Hardinge-Bridgeport GX1000 CNC Mill CNC Vertical Machining Center Specifications (subject to buyer verification): Table Working Surface: 44.09” x 21.25” Table Load: 1,760lbs. Number of T-Slots: 3 X-Azis Travel: 40.16” Y-Axis Travel: 21.25” Z-Axis Travel: 21.25” Table surface to spindle gauge distance: 5.70”-26.97” Auto Mode (X, Y,Z Axes): 1,1417ipm Feedrate Range (X, Y, Z Axes): 472 IPM Spindle Speed: 10,000RPM Motor Power: 15/20/24.8HP Torque (S3-60%): 84ft./lbs ) Spindle Taper: No. 40, BIG PLUS® Tool Holder: CT40 or BT40 ?? Automatic Tool Changer: Swing Arm Magazine Capacity: 30 Tools Max. Tool Diameter (Adjacent Pockets): 5.9” Max. Tool Diameter (With Adjacent Pockets): 3″ Max. Tool Length: 11.81” Max. Tool Weight: 17.6lbs. Random Tool Change Time (tool to tool/c to c): 4.5 sec. Machine Dimensions: 116″ x 87″ x 107″ Weight: 12,408 lbs Equipped With (subject to buyer verification): Fanuc Series OiMD CNC Control Chip Conveyor Rotary Table Through Spindle Coolant

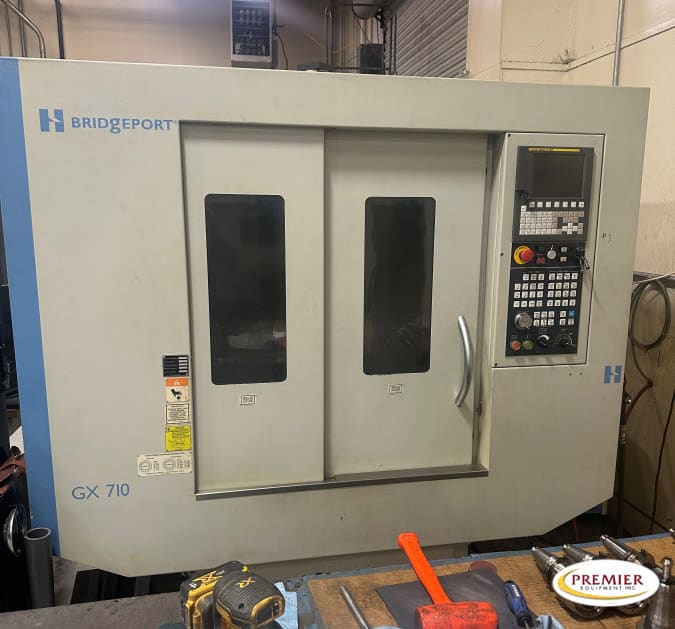

Hardinge-Bridgeport GX710 CNC Vertical Machining Center

Hardinge-Bridgeport GX710 CNC Vertical Machining Center Specifications (subject to buyer verification): – X, Y, Z Travels…………………………………………………………………….. 27.9” x 15.8” x 16.9” – Table Size……………………………………………….……………… 31.5” x 15.8” – Distance from Table Top to Spindle Nose………………………….. 5.9” – 22.8” – Horsepower………………………………………………………………………… 10/20 HP – Spindle Taper……………………………………………………………………… Cat #40 – Spindle Speed……………………………………………………………….. 10,000 RPM – Spindle Torque…………………………………….…………….……… 35 ft/lbs – Tool Changer Capacity (swing arm type)…………………………………. 20 Tools – Tool Change Time (tool to tool/chip to chip)……………………..….. 2.2/4.4 Seconds – Rapid Rates for X, Y & Z……………………………………………………….. 1417 IPM – Feedrate Range………………………………………………………… 0 – 354 IPM – Machine Size (W x D x H)…………………………………………….. 81” x 86” x 92” – Machine Weight…………………………………………………………6,420 lbs Equipped With (subject to buyer verification): Fanuc Series OiMD CNC Control
