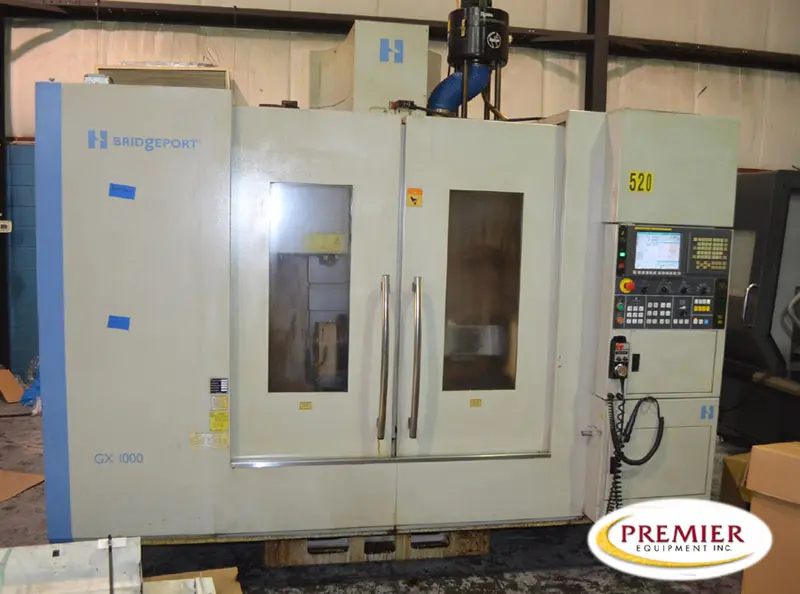

Hardinge-Bridgeport GX1000 with Rotary Table – 2013
Hardinge-Bridgeport GX1000 with Rotary Table – 2013
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Hardinge
Model
N/A
Hours of Usage
-
Year of Manufacture
2013
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
Hardinge-Bridgeport GX1000 CNC Mill
X Axis Travel
45"
Used Cnc Brands
Hardinge-Bridgeport
Y Axis Travel
20"
Spindle Speed
10,000 RPM
Taper
40
Z Axis Travel
20"
Control
OSP
Rotary Table
Yes
Through Spindle Coolant
Yes
Description
Hardinge-Bridgeport GX1000 CNC Mill Hardinge-Bridgeport GX1000 CNC Mill CNC Vertical Machining Center Specifications (subject to buyer verification): Table Working Surface: 44.09” x 21.25” Table Load: 1,760lbs. Number of T-Slots: 3 X-Azis Travel: 40.16” Y-Axis Travel: 21.25” Z-Axis Travel: 21.25” Table surface to spindle gauge distance: 5.70”-26.97” Auto Mode (X, Y,Z Axes): 1,1417ipm Feedrate Range (X, Y, Z Axes): 472 IPM Spindle Speed: 10,000RPM Motor Power: 15/20/24.8HP Torque (S3-60%): 84ft./lbs ) Spindle Taper: No. 40, BIG PLUS® Tool Holder: CT40 or BT40 ?? Automatic Tool Changer: Swing Arm Magazine Capacity: 30 Tools Max. Tool Diameter (Adjacent Pockets): 5.9” Max. Tool Diameter (With Adjacent Pockets): 3″ Max. Tool Length: 11.81” Max. Tool Weight: 17.6lbs. Random Tool Change Time (tool to tool/c to c): 4.5 sec. Machine Dimensions: 116″ x 87″ x 107″ Weight: 12,408 lbs Equipped With (subject to buyer verification): Fanuc Series OiMD CNC Control Chip Conveyor Rotary Table Through Spindle Coolant
