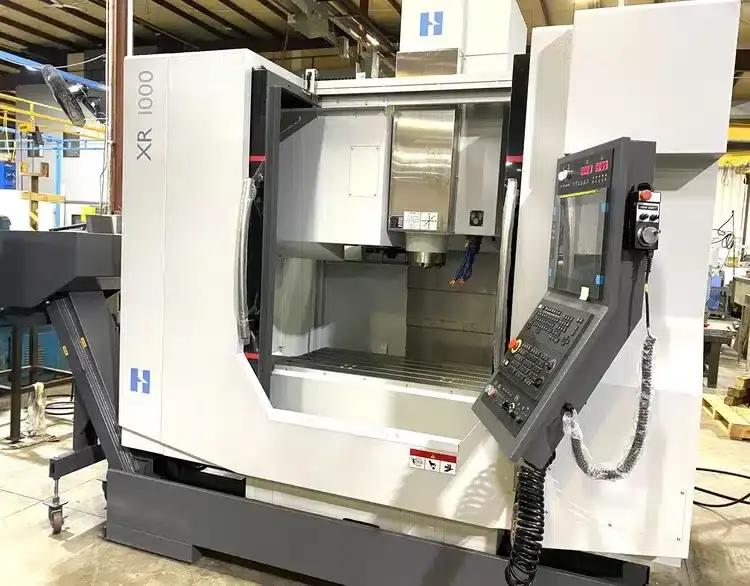

Hardinge-Bridgeport XR-1000 – 2023
Hardinge-Bridgeport XR-1000 – 2023
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Hardinge
Model
N/A
Hours of Usage
-
Year of Manufacture
2023
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
Hardinge-BRIDGEPORT XR1000 SPECIFICATIONS: Travel (X, Y, Z) 40 x 24 x 24 in 1020 x 610 x 610mm Table Working Surface 51.18 x 23.6 in 1300 x 600 mm Spindle Type CT40 BigPlus Spindle Power 30 HP 22.37 kW Spindle 12,000 RPM (DDS) ) Feedrate 787 in/min Spindle Taper No. 40 No. of Tools 30 standard; 48/60 optional CNC Control FANUC Oi-MF+ Machine Size (LxWxH) 144.21 x 120 x 40.55 in 3663 x 3048 x 1030mm FANUC 0iMF-PLUS AICC with 200 block look ahead Thermal Compensation 12K Air Oil Direct Drive Spindle Big Plus CAT 40 12,000-rpm Spindle Speed CT40 or BT40 Taper Spindles BIG-PLUS Face Taper Spindle High-Retention Draw Bar Thermal Compensation Chip Conveyor with Chip Washdown Cutter Air Blast Rigid Tapping 4th Axis Pre-Wiring 15″ LCD Color Display Programmable Data Input PCMCIA Card Slot Workpiece Coordinate System Manual Pulse Generator (Handwheel) Coordinate System Rotation Rigid Tapping Tool Life Management Tool Length compensation Background Editing Ethernet Ready/ RS232 Ready/ USB Slot Additional Workpiece Coordinate System Manual Guide i
X Axis Travel
40"
Used Cnc Brands
Hardinge-Bridgeport
Y Axis Travel
24"
Spindle Speed
12,000 RPM
Taper
40
Z Axis Travel
24"
Control
Fanuc
Spindle Speed
CT40 or BT40 Taper Spindles BIG-PLUS Face Taper Spindle High-Retention Draw Bar Thermal Compensation Chip Conveyor with Chip Washdown Cutter Air Blast Rigid Tapping 4th Axis Pre-Wiring 15″ LCD Color Display Programmable Data Input PCMCIA Card Slot Workpiece Coordinate System Manual Pulse Generator (Handwheel) Coordinate System Rotation Rigid Tapping Tool Life Management Tool Length compensation Background Editing Ethernet Ready/ RS232 Ready/ USB Slot Additional Workpiece Coordinate System Manual Guide i
Control
FANUC Oi-MF+ Machine Size (LxWxH) 144.21 x 120 x 40.55 in 3663 x 3048 x 1030mm FANUC 0iMF-PLUS AICC with 200 block look ahead Thermal Compensation 12K Air Oil Direct Drive Spindle Big Plus CAT 40 12
Description
Hardinge-BRIDGEPORT XR1000 SPECIFICATIONS: Travel (X, Y, Z) 40 x 24 x 24 in 1020 x 610 x 610mm Table Working Surface 51.18 x 23.6 in 1300 x 600 mm Spindle Type CT40 BigPlus Spindle Power 30 HP 22.37 kW Spindle 12,000 RPM (DDS) ) Feedrate 787 in/min Spindle Taper No. 40 No. of Tools 30 standard; 48/60 optional CNC Control FANUC Oi-MF+ Machine Size (LxWxH) 144.21 x 120 x 40.55 in 3663 x 3048 x 1030mm FANUC 0iMF-PLUS AICC with 200 block look ahead Thermal Compensation 12K Air Oil Direct Drive Spindle Big Plus CAT 40 12,000-rpm Spindle Speed CT40 or BT40 Taper Spindles BIG-PLUS Face Taper Spindle High-Retention Draw Bar Thermal Compensation Chip Conveyor with Chip Washdown Cutter Air Blast Rigid Tapping 4th Axis Pre-Wiring 15″ LCD Color Display Programmable Data Input PCMCIA Card Slot Workpiece Coordinate System Manual Pulse Generator (Handwheel) Coordinate System Rotation Rigid Tapping Tool Life Management Tool Length compensation Background Editing Ethernet Ready/ RS232 Ready/ USB Slot Additional Workpiece Coordinate System Manual Guide i Hardinge-BRIDGEPORT XR1000 SPECIFICATIONS: Travel (X, Y, Z) 40 x 24 x 24 in 1020 x 610 x 610mm Table Working Surface 51.18 x 23.6 in 1300 x 600 mm Spindle Type CT40 BigPlus Spindle Power 30 HP 22.37 kW Spindle 12,000 RPM (DDS) ) Feedrate 787 in/min Spindle Taper No. 40 No. of Tools 30 standard; 48/60 optional CNC Control FANUC Oi-MF+ Machine Size (LxWxH) 144.21 x 120 x 40.55 in 3663 x 3048 x 1030mm FANUC 0iMF-PLUS AICC with 200 block look ahead Thermal Compensation 12K Air Oil Direct Drive Spindle Big Plus CAT 40 12,000-rpm Spindle Speed CT40 or BT40 Taper Spindles BIG-PLUS Face Taper Spindle High-Retention Draw Bar Thermal Compensation Chip Conveyor with Chip Washdown Cutter Air Blast Rigid Tapping 4th Axis Pre-Wiring 15″ LCD Color Display Programmable Data Input PCMCIA Card Slot Workpiece Coordinate System Manual Pulse Generator (Handwheel) Coordinate System Rotation Rigid Tapping Tool Life Management Tool Length compensation Background Editing Ethernet Ready/ RS232 Ready/ USB Slot Additional Workpiece Coordinate System Manual Guide i
Get in Touch with Seller About This Product
