Fadal
Equipment Hub: Buy, Sell or Rent

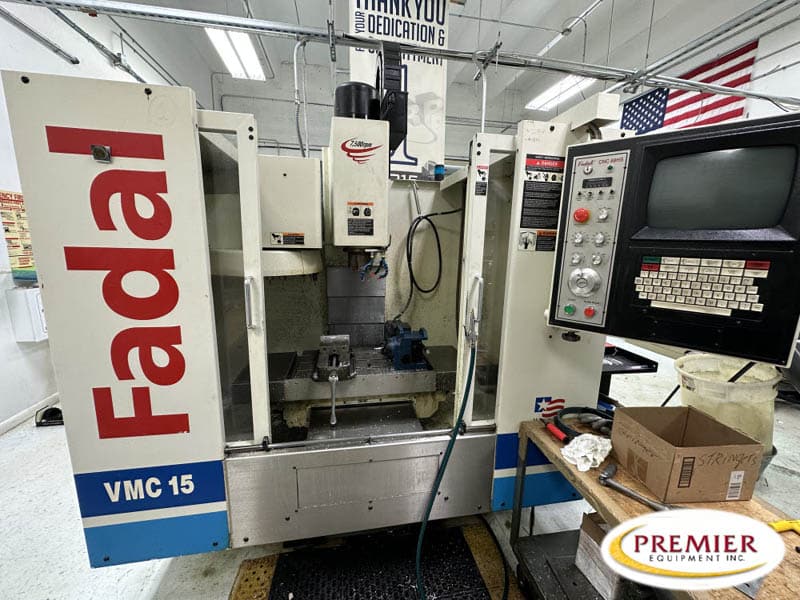

Fadal VMC15 CNC Mill

Fadal VMC15 CNC Mill Specifications (subject to buyer verification): Table Size: 29.5” x 16” Max. Weight on Table: 750 lbs. T-Slots (No. x Width x Span): 3 x .562” x 4.33” X Axis Travel: 20″ Y Axis Travel: 16″ Z Axis Travel: 20” Spindle Nose to Table: 4”-24” Spindle Center to Column Ways: 17” Cutting Feed Rate: .01” – 250” (375” @ 150%) Rapid Feed Rate: 400 IPM (X,Y,Z) Spindle Speeds: 75 to 7,500 RPM Spindle Taper: CAT #40 Horsepower: 7.5 HP Tool Capacity: 21 ATC Equipped With (subject to buyer verification): Fadal CNC88HS 4th Axis Indexer

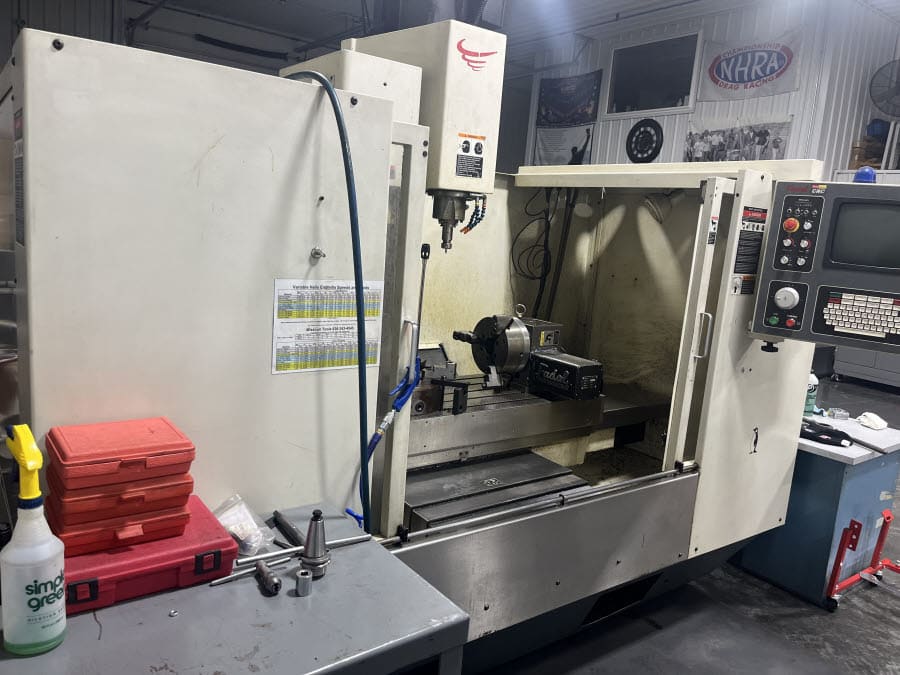

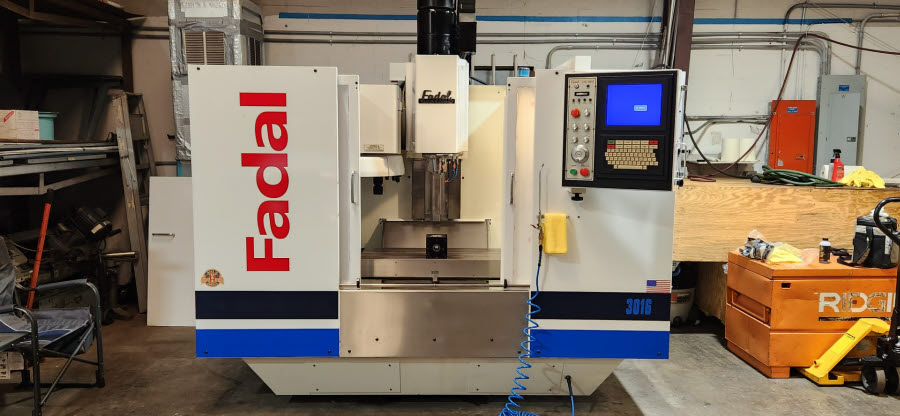

Fadal VMC3016

Fadal VMC3016 Re-Mfg in 2026 CNC Vertical Machining Center Specifications (subject to buyer verification): X Axis Travel: 30″ Y Axis Travel: 16″ Z Axis Travel: 20″ Rapid Rate Z Axis: 600 IPM Table Size: 39 x 16 Max Table Load: 1,000 LBS Spindle Speed: 10000 RPM Spindle Taper: CAT40 Tool Changer: 21 ATC Dimensions: 98x 77x 94 Weight: 8,500 LBS Equipped With (subject to buyer verification): Fadal CNC88HS HIGH SPEED Construction Cast Iron Box Way 4th axis ready LCD Flat Screen Monitor 4th axis ready for D/C rotary head A Axis air brake Cat-40 tool holder 21 station ATC External Front mount air gun LED Flood light 10k Air Seal locking drawbar spindle USB Thumb Drive Mass storage conversion upload /download/dnc T-816 Transformer 190-510 vac 3 phase surge suppressor Front door safety interlock Remanned Machine 2026

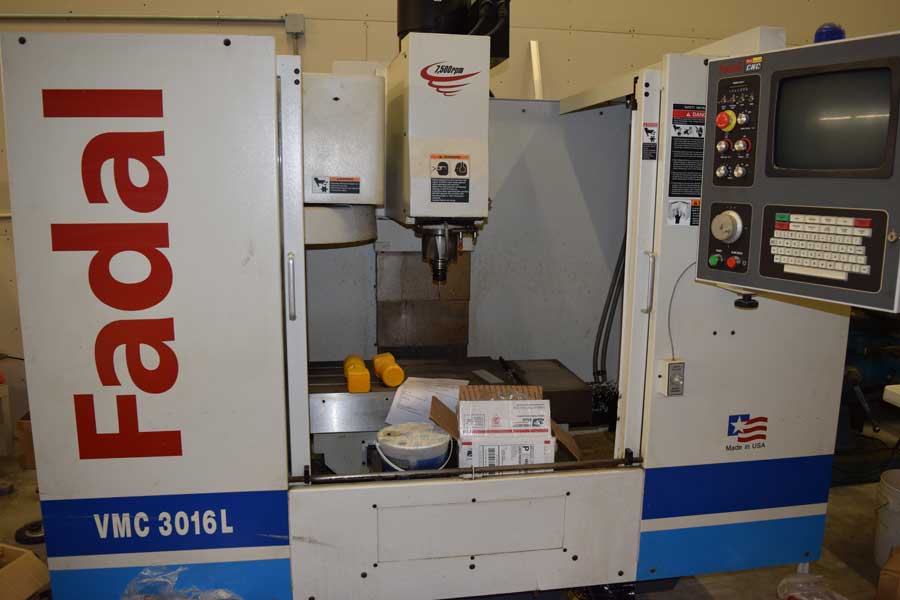

Fadal VMC-3016L for sale CNC Vertical Machining Center Specifications (subject to buyer verification): Table Size 39″ x 16″ Max Weight on Table 1000 lbs X Axis Travel 30″ Y Axis Travel 16″ Z Axis Travel 28″ Automatic Tool Changer 21 Stations Rapid Feed Rate (X&Y / Z) 700 IPM / 600 IPM Spindle Taper CAT 40 Max Tool Length / Weight 15” / 15 lbs Spindle Speeds 75-7,500 RPM Spindle Motor 15 HP Machine Dimensions 98” x 77” x 94” Machine Weight 8,300 lbs Equipped With (subject to buyer verification): MP CNC Control 4th Axis Ready

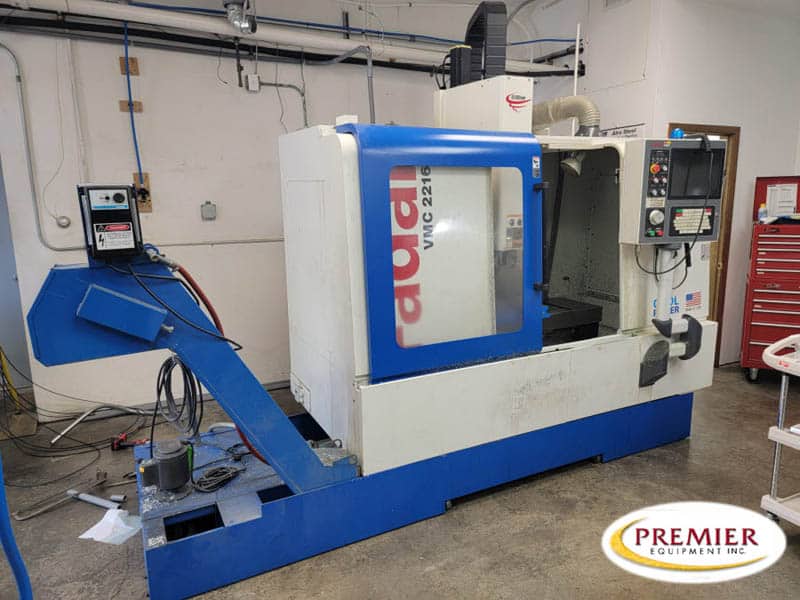

Fadal VMC2216 CNC Mill

Fadal VMC2216 CNC Mill CNC Vertical Machining Center Specifications (subject to buyer verification): Table Size39″ x 16″ X Axis Travel22″ Y Axis Travel16″ Z Axis Travel20″ Spindle Nose to Table4” – 24” Spindle Speed 75 – 10,000 RPM Main Motor15 HP Number of Tools21 ATC Spindle TaperCAT 40 Machine Dimensions98” x 77” x 94” Weight8,300 lbs Equipped With (subject to buyer verification): Fadal MP CNC Control CAT40 Rigid Tapping 10,000 RPM Spindle High Speed CPU Graphics Color Monitor Flat Panel Display Chip Conveyor

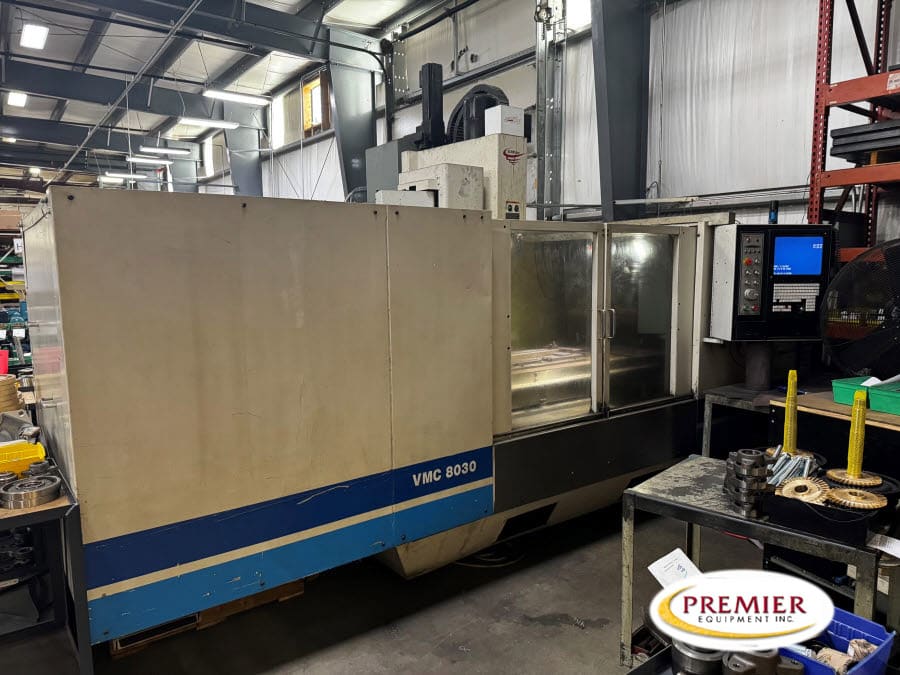

Fadal VMC8030HT Stroke: 80” (X) 30” (Y) 30” (Z) Spindle: 12k RPM Cat40 (Low and High range) Tool Magazine: 24 tool drum, random tooling Table size: 78” x 30” Height: 10’1” x Width: 8’ x Length 17’ 6” (Length can be broken down to 12’ 2” for shipping Fanuc 18i Control 3 axis box way design Coolant pump On time 73,420 Auto cut: 8,963 Op time 3,695

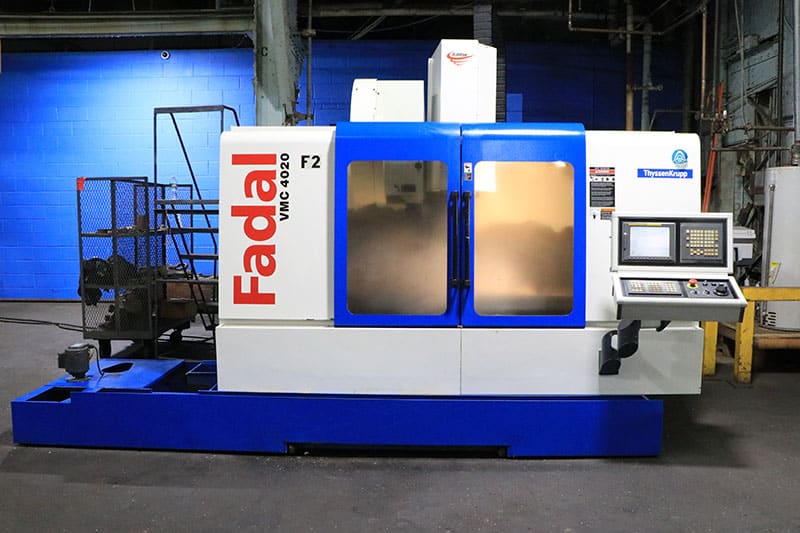

FADAL VMC4020HT CNC Mill

FADAL VMC4020HT CNC Mill VERTICAL MACHINING CENTER SPECIFICATIONS: TABLE WORKING SURFACE …………….. 20″ X 48″ FLOOR TO TABLE SURFACE ……………. 32″ T-SLOTS (# X WIDTH X SPAN) ………… 5 X .709″ X 3.75″ MAXIMUM WEIGHT ON TABLE …………… 3,641 LBS. TABLE TRAVEL, X-AXIS (LONGITUDINAL) … 40″ TABLE TRAVEL, Y-AXIS (CROSS) ………. 20″ VERTICAL COLUMN TRAVEL (Z-AXIS) ……. 20″ MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 4″/24″ SPINDLE TAPER ……………………. CAT 40 NUMBER OF TOOLS ………………….. 30 SPINDLE SPEEDS, TWO GEARED RANGES ….. 10 TO 10,000 R.P.M. SPINDLE CENTER TO COLUMN WAYS ……… 20″ SPINDLE TORQUE …………………… 220 FT./LBS. CUTTING FEED RATES, (X,Y, & Z AXES) … 0.01 TO 400 I.P.M. RAPID FEED RATE, (X & Y AXES) ……… 900 I.P.M. RAPID FEED RATE (Z-AXIS) ………….. 600 I.P.M. MAXIMUM TOOL DIAMETER …………….. 3″ …W/O ADJACENT TOOLS …………….. 6″ MAXIMUM TOOL LENGTH ………………. 15″ MAXIMUM TOOL WEIGHT ………………. 15 LBS. APPROX DIMS ……………………… 117″ x 94″ x 100″ APPROX WEIGHT ……………………. 11,000 Lbs. EQUIPPED WITH: – FANUC MODEL: 18i-MB5 CNC CONTROL HIGH SPEED CPU – 10,000 R.P.M. HIGH TORQUE SPINDLE OPTION – AUTOMATIC TOOL CHANGER (24) STATIONS – RIGID TAPPING – BOX WAYS ON ALL AXES – AC SERVO MOTORS ON ALL AXES – BIJUR AUTOMATIC LUBRICATION SYSTEM – EXTERNAL COOLANT PUMP AND TANK – 24 HORSE POWER AC DRIVE MOTOR

Fadal VMC5020A CNC Mill

Fadal VMC5020A CNC Mill CNC Vertical Machining Center Specifications (subject to buyer verification): Table Work Surface57″ x 20″ Max. Table Load3000 lbs. X Axis Travel50″ Y Axis Travel20″ Z Axis Travel20″ Spindle Nose to Table4” – 24” Spindle Center to Column20” RapidsX, Y 900 / Z 700 IPM Spindle Speed 10 – 7,500 RPM Main Motor15 HP Number of Tools21 ATC Max Tool Diameter / Without Adjacent Tool3” / 4.5” Max. Tool Weight15 lbs Spindle TaperCAT 40 Machine Dimensions116” x 87” x 114” Weight11,500 lbs Equipped With (subject to buyer verification): Fadal MP-CNC Control Fadal Rotary Table

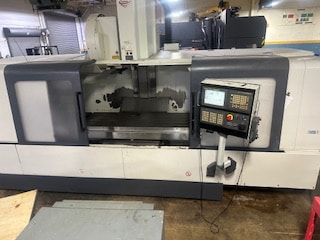

Fadal VMC8030HT CNC Mill Table Size: 82.5″ x 30″ Number of Std T-Slots: 5 T-Slot Width: 5/8″ Max Weight on Table: 3751 lbs X-Axis Travel: 80″ Y-Axis: 30″ Z-Axis: 30″ Spindle Nose to Table (Min.- Max.): 5.5″ – 35.5″ Rapid Traverse rates X, Y & Z Axis: 400 IPM Cutting Feedrate: 250 IPM Spindle Taper Size: 40 Speed Range: 10,000 RPM Spindle Power: 30 HP Equipped With Fadal CNC32MP CNC Control 4th Axis Ready Through Spindle 24 Station Automatic Tool Changer 10,000 RPM High Precision Spindle 30 HP High Torque Spindle Motor MPG Hand Wheel Control Coolant System Chiller Unit Box Way construction Rigid Tapping Telescopic way covers Original 1997 / Refurb in 2016
