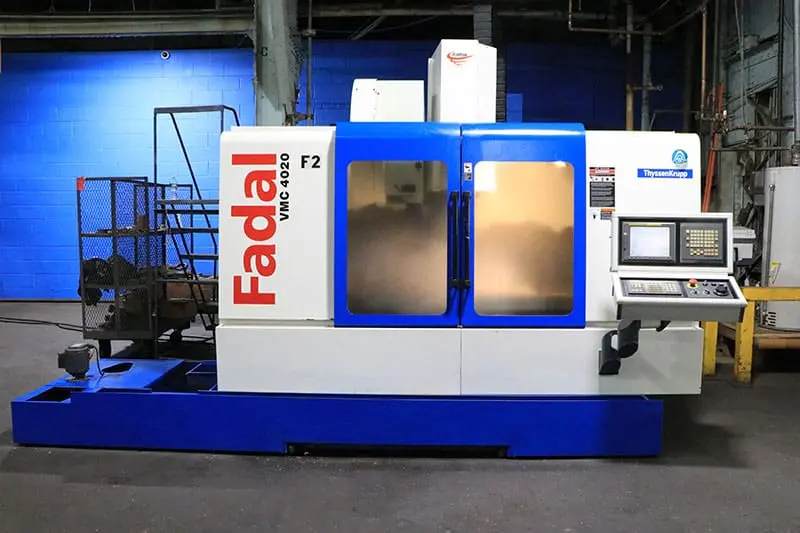

Fadal VMC-4020HT – 2004
Product Image
Product Image
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Fadal
Model
VMC-4020HT
Hours of Usage
-
Year of Manufacture
2004
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

Machine Type
FADAL VMC4020HT CNC Mill
X Axis Travel
40"
Z Axis Travel
20"
Y Axis Travel
20"
Used Cnc Brands
Fadal
Taper
40
Control
Fanuc
Spindle Speed
10,000 RPM
Spindle Nose
TO TABLE 4″/24″
Spindle Speed
S, TWO GEARED RANGES ….. 10 TO 10,000 R.P.M. SPINDLE CENTER TO COLUMN WAYS ……… 20″ SPINDLE TORQUE …………………… 220 FT./LBS. CUTTING FEED RATES, (X,Y, & Z AXES) … 0.01 TO 400 I.P.M. RAPID FEED RATE, (X & Y AXES) ……… 900 I.P.M. RAPID FEED RATE (Z-AXIS) ………….. 600 I.P.M. MAXIMUM TOOL DIAMETER …………….. 3″ …W/O ADJACENT TOOLS …………….. 6″ MAXIMUM TOOL LENGTH ………………. 15″ MAXIMUM TOOL WEIGHT ………………. 15 LBS. APPROX DIMS ……………………… 117″ x 94″ x 100″ APPROX WEIGHT ……………………. 11,000 Lbs. EQUIPPED WITH: – FANUC MODEL: 18i-MB5 CNC CONTROL HIGH SPEED CPU – 10,000 R.P.M. HIGH TORQUE SPINDLE OPTION – AUTOMATIC TOOL CHANGER (24) STATIONS – RIGID TAPPING – BOX WAYS ON ALL AXES – AC SERVO MOTORS ON ALL AXES – BIJUR AUTOMATIC LUBRICATION SYSTEM – EXTERNAL COOLANT PUMP AND TANK – 24 HORSE POWER AC DRIVE MOTOR

Description

FADAL VMC4020HT CNC Mill

FADAL VMC4020HT CNC Mill VERTICAL MACHINING CENTER SPECIFICATIONS: TABLE WORKING SURFACE …………….. 20″ X 48″ FLOOR TO TABLE SURFACE ……………. 32″ T-SLOTS (# X WIDTH X SPAN) ………… 5 X .709″ X 3.75″ MAXIMUM WEIGHT ON TABLE …………… 3,641 LBS. TABLE TRAVEL, X-AXIS (LONGITUDINAL) … 40″ TABLE TRAVEL, Y-AXIS (CROSS) ………. 20″ VERTICAL COLUMN TRAVEL (Z-AXIS) ……. 20″ MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 4″/24″ SPINDLE TAPER ……………………. CAT 40 NUMBER OF TOOLS ………………….. 30 SPINDLE SPEEDS, TWO GEARED RANGES ….. 10 TO 10,000 R.P.M. SPINDLE CENTER TO COLUMN WAYS ……… 20″ SPINDLE TORQUE …………………… 220 FT./LBS. CUTTING FEED RATES, (X,Y, & Z AXES) … 0.01 TO 400 I.P.M. RAPID FEED RATE, (X & Y AXES) ……… 900 I.P.M. RAPID FEED RATE (Z-AXIS) ………….. 600 I.P.M. MAXIMUM TOOL DIAMETER …………….. 3″ …W/O ADJACENT TOOLS …………….. 6″ MAXIMUM TOOL LENGTH ………………. 15″ MAXIMUM TOOL WEIGHT ………………. 15 LBS. APPROX DIMS ……………………… 117″ x 94″ x 100″ APPROX WEIGHT ……………………. 11,000 Lbs. EQUIPPED WITH: – FANUC MODEL: 18i-MB5 CNC CONTROL HIGH SPEED CPU – 10,000 R.P.M. HIGH TORQUE SPINDLE OPTION – AUTOMATIC TOOL CHANGER (24) STATIONS – RIGID TAPPING – BOX WAYS ON ALL AXES – AC SERVO MOTORS ON ALL AXES – BIJUR AUTOMATIC LUBRICATION SYSTEM – EXTERNAL COOLANT PUMP AND TANK – 24 HORSE POWER AC DRIVE MOTOR
