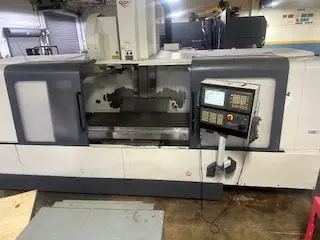

Fadal VMC-8030HT – 2007
Product Image
Product Image
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Fadal
Model
VMC-8030HT
Hours of Usage
-
Year of Manufacture
2007
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

Y Axis Travel
30"
Used Cnc Brands
Fadal
X Axis Travel
80"
Taper
40
Z Axis Travel
30"
Spindle Speed
12,000 RPM
Control
Fanuc
Control
Fanuc 18i Control 3 axis box way design Coolant pump On time 73

Description

Fadal VMC8030HT Stroke: 80” (X) 30” (Y) 30” (Z) Spindle: 12k RPM Cat40 (Low and High range) Tool Magazine: 24 tool drum, random tooling Table size: 78” x 30” Height: 10’1” x Width: 8’ x Length 17’ 6” (Length can be broken down to 12’ 2” for shipping Fanuc 18i Control 3 axis box way design Coolant pump On time 73,420 Auto cut: 8,963 Op time 3,695
