Unit features new rails. C/W Thumb, Walks and Fops. Service history to follow

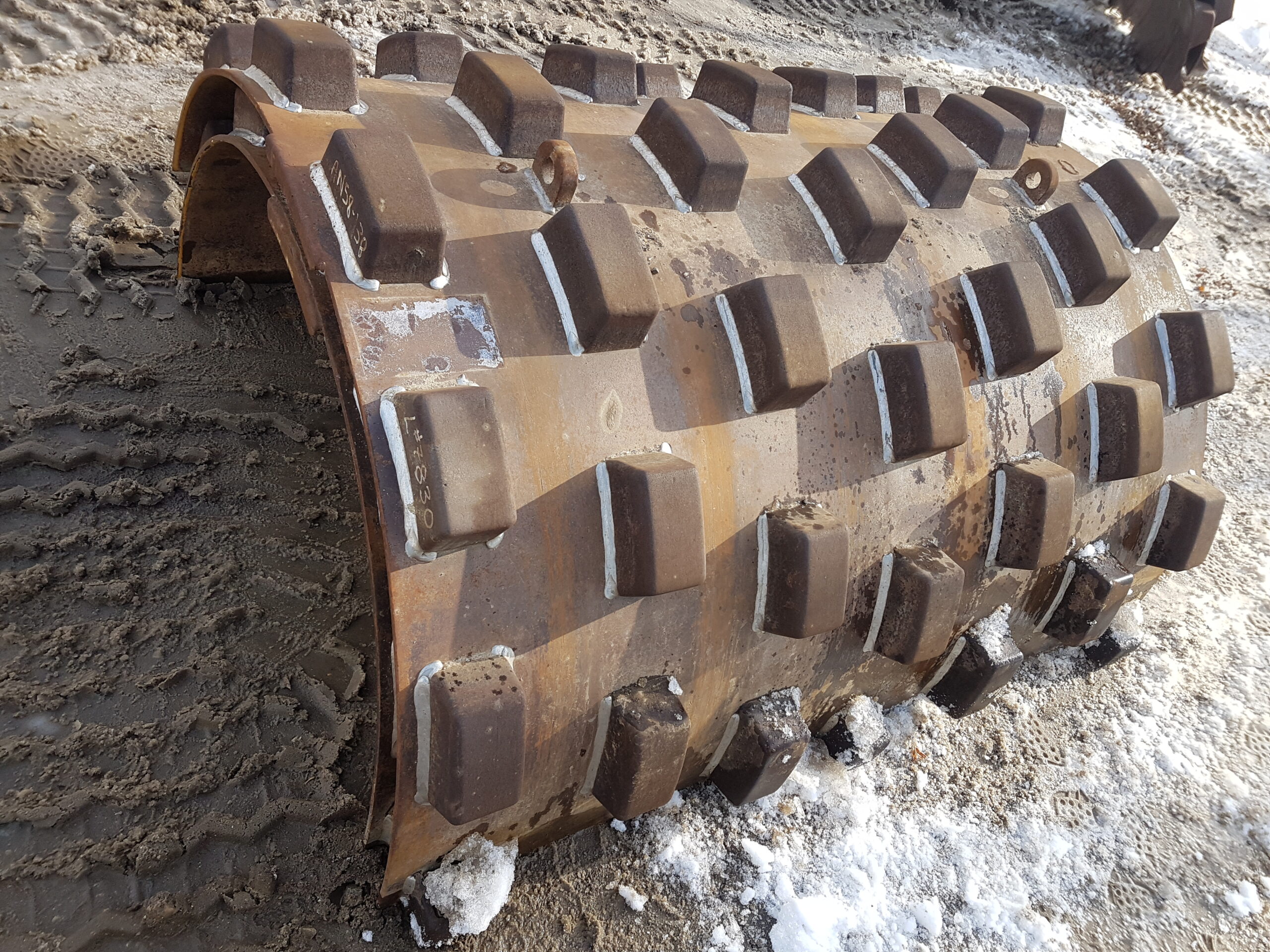

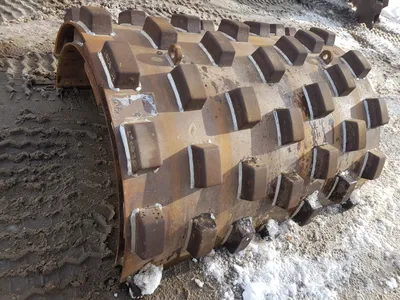

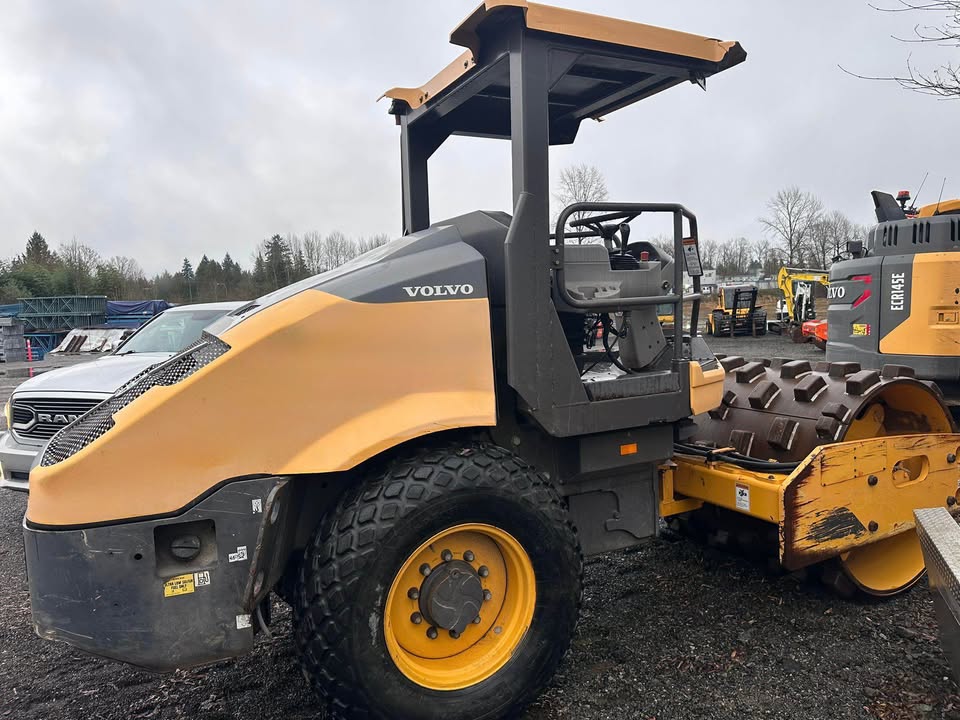

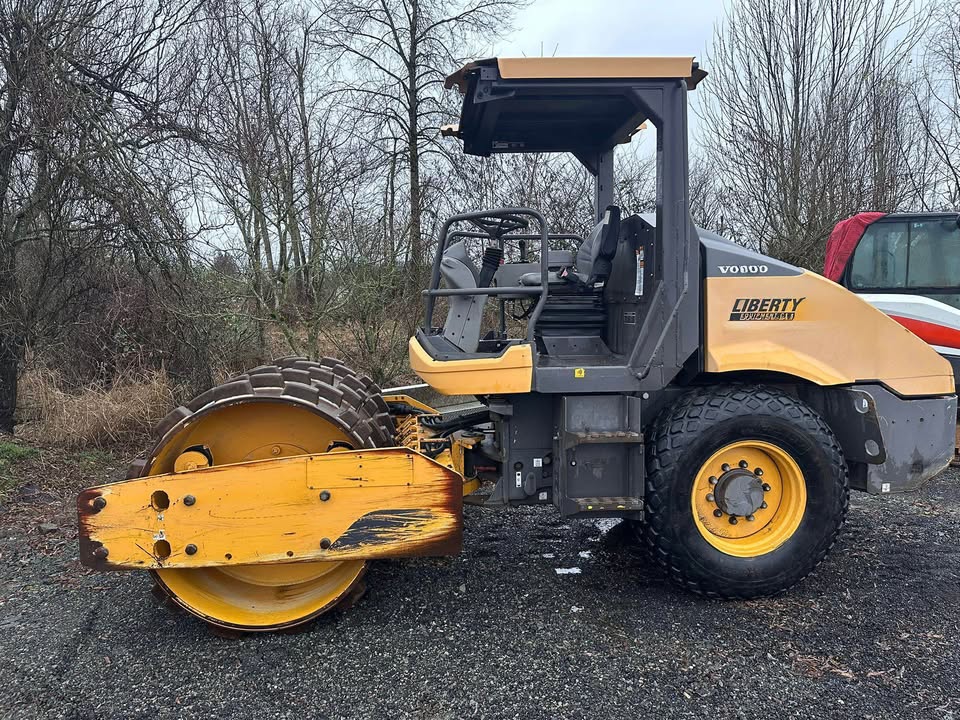

View our used Volvo 66" Padfoot, 36017 for Sale.

2005 Volvo EC140B LC excavator with 6963 hours, enclosed cab with very good AC/heat/radio, 2 buckets, aux hyd., approx 30,000lbs

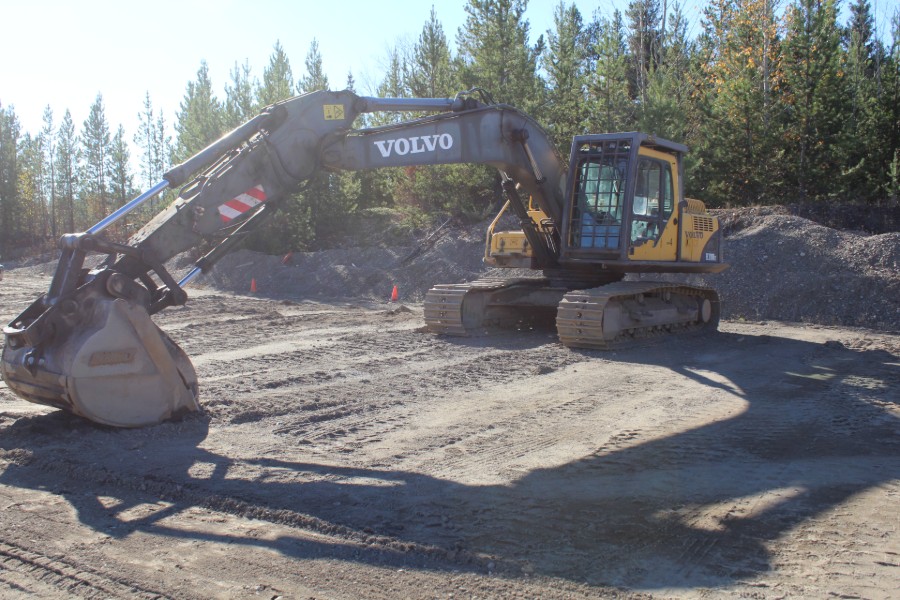

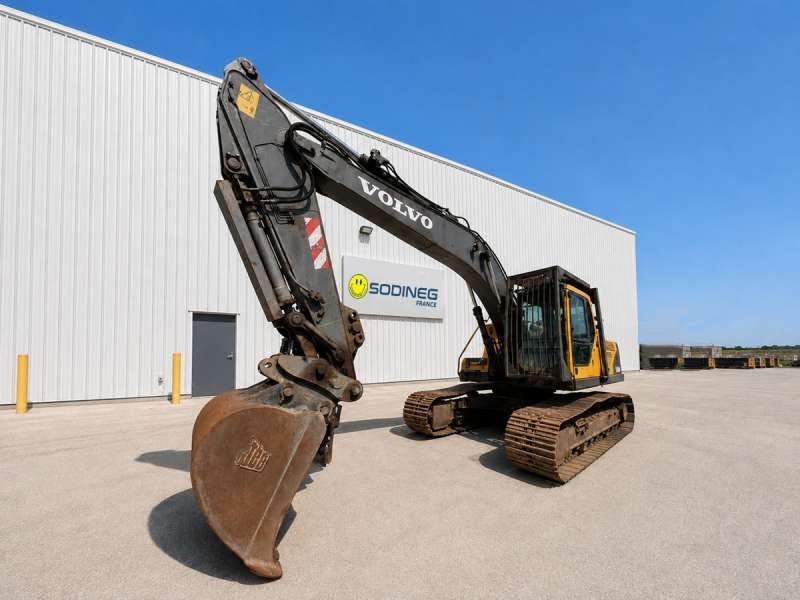

This 2006 Volvo EC210BLC crawler excavator is a 22,400 kg machine suitable for earthmoving, utility infrastructure (VRD), demolition, material handling, and site preparation tasks.
This hydraulic excavator is equipped with a monobloc boom, auxiliary hydraulic lines for operating hydraulic attachments, and various site-safety features, including cab guards, cylinder protection, and safety valves.
With an overall length of 9.65 m and a weight of 22.4 tonnes, this machine strikes an ideal balance for jobs requiring stability, strong excavation capacity, and the regular use of hydraulic attachments.
The inclusion of auxiliary hydraulic lines allows for the installation of various attachments.
It is powered by a Volvo D6DEAE2 engine delivering 119 kW (162 hp).
Find more crawler excavators at www.sodineg.com and on our mobile app.

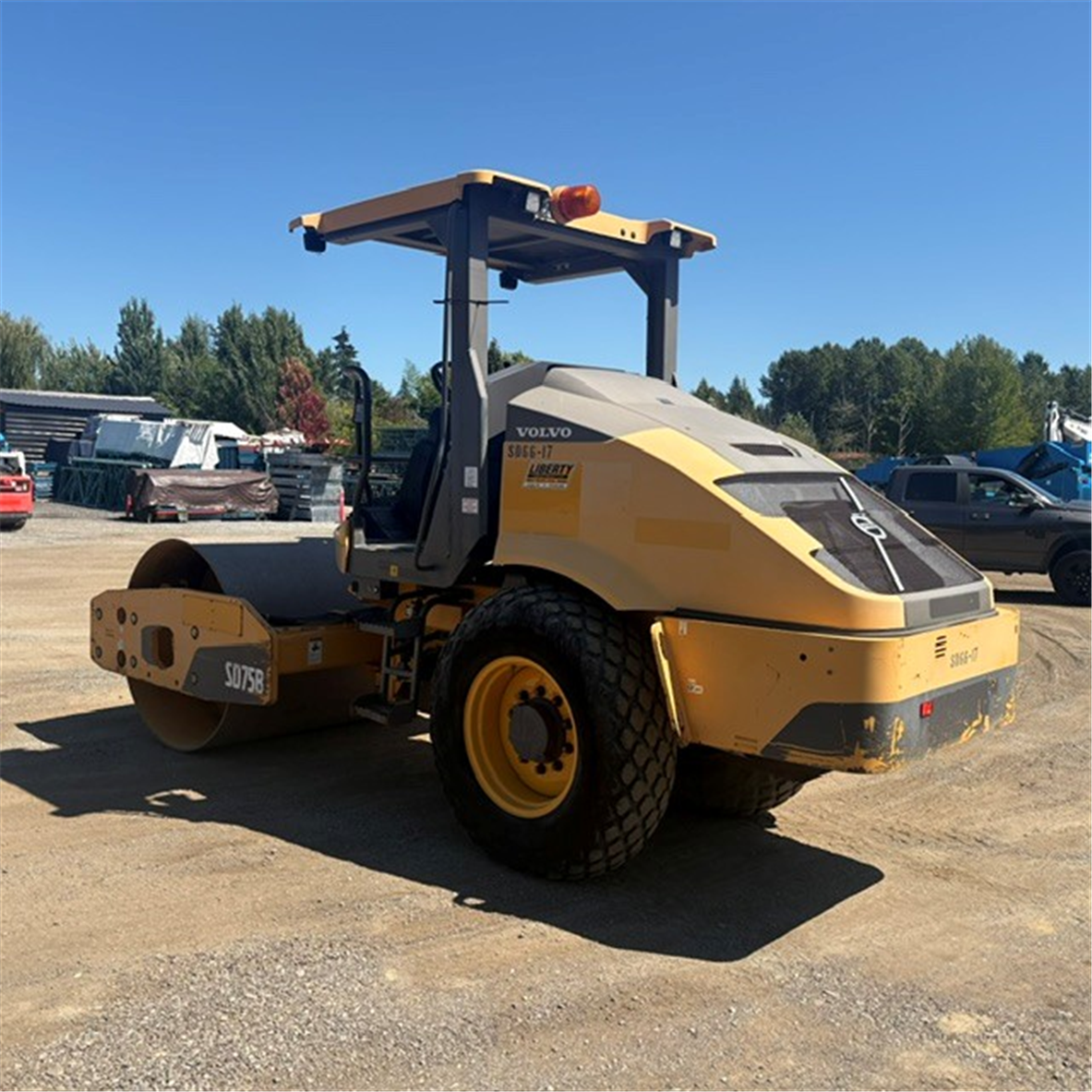

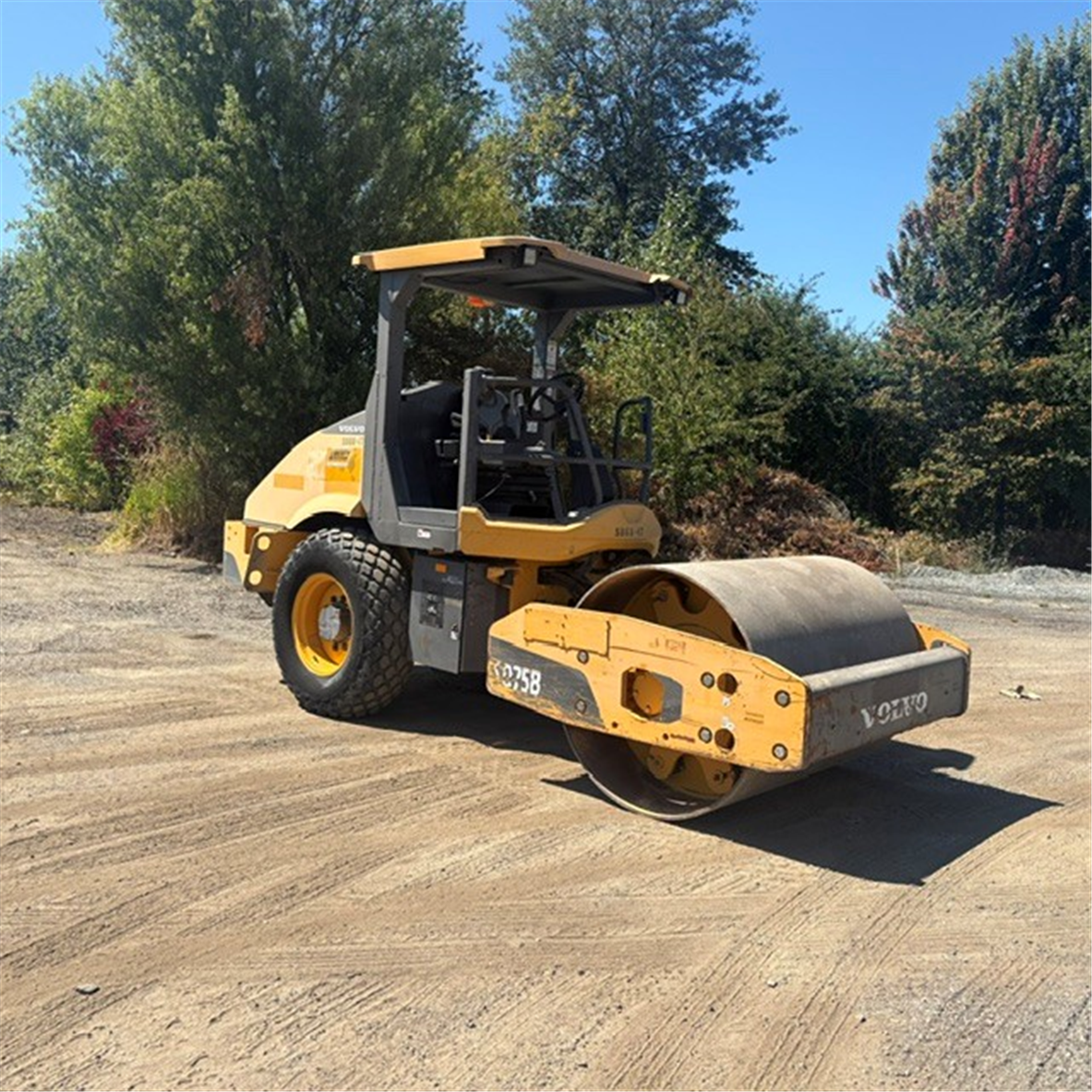

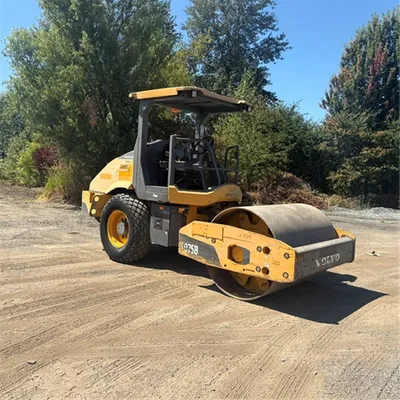

2015 Volvo SD75D Smooth Drum Roller for sale. * 66” Smooth Drum With Padfoot Shell Kit * APPX 1884 Hour’s * SUSPENSION SEAT * BACKUP ALARM *MAX OPERATING MASS Apxx 16,000LB VERY WELL MAINTAINED UNIT FINANCING/LEASING AVAILABLE.

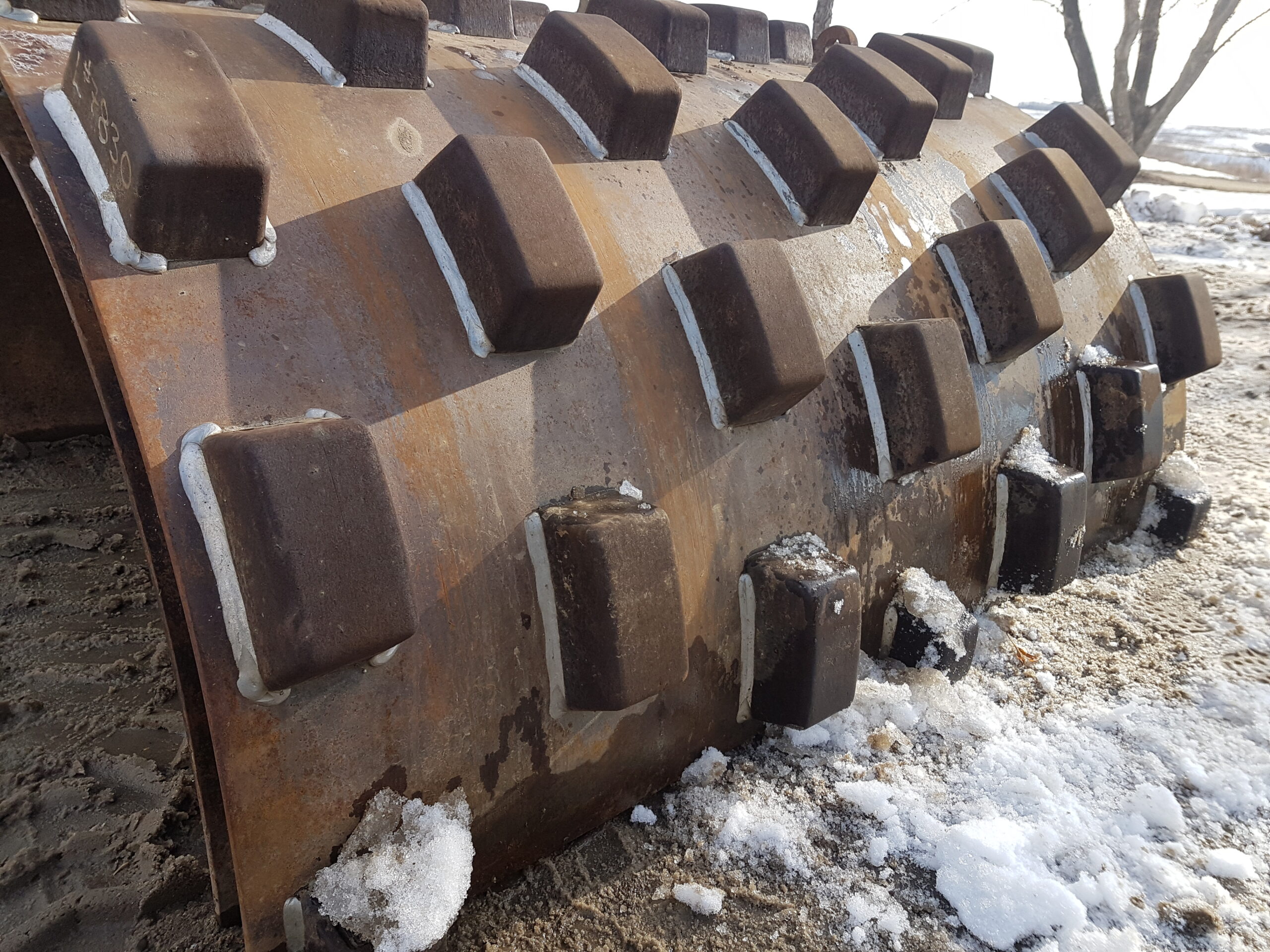

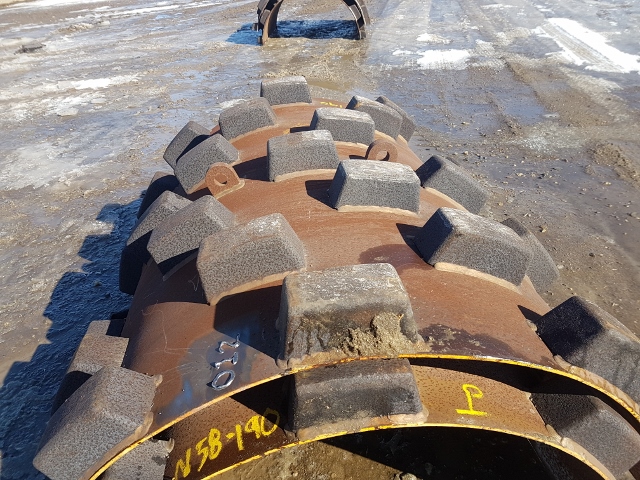

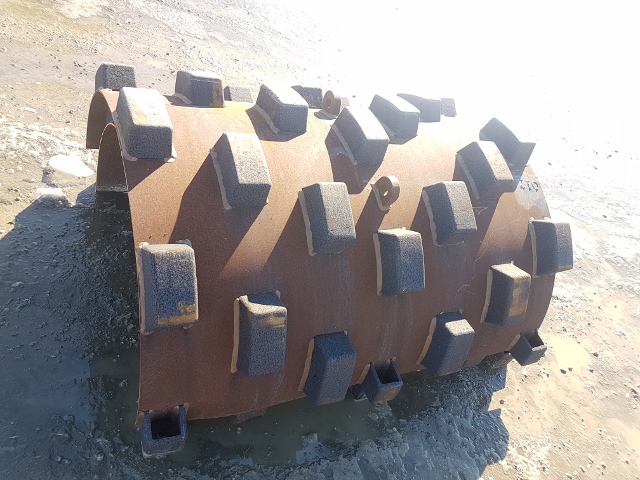

2 piece padfoot shell kit, Fits Volvo/IR, 85-90% Remaining

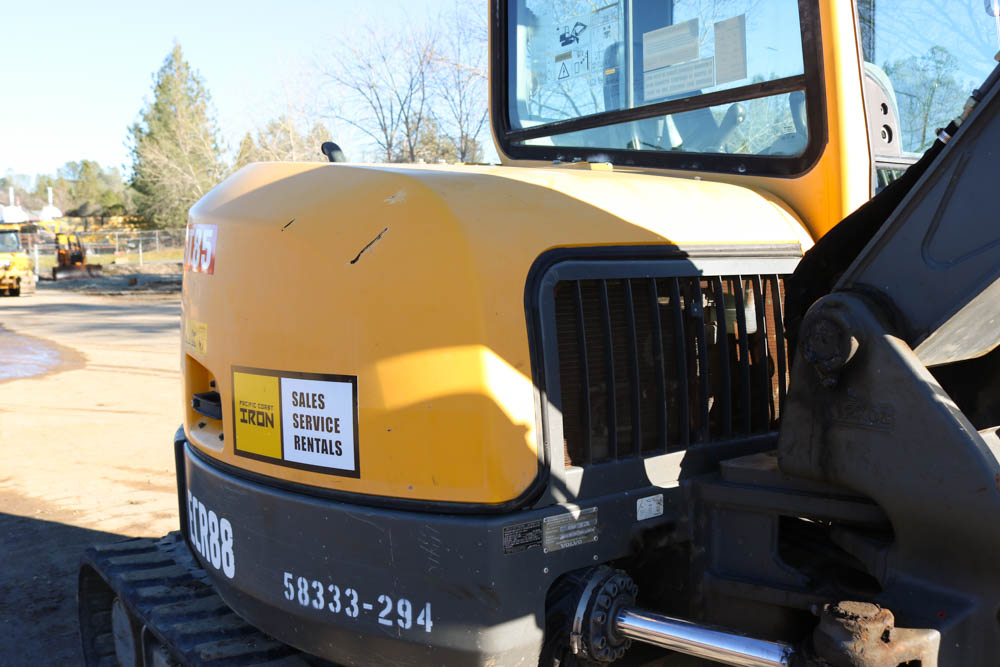

2013 VOLVO ECR88 EXCAVATOR FOR SALE
2013 VOLVO ECR 88 CRAWLER EXCAVATOR WITH ONLY 2800HRS. UNIT IS EQUIPPED WITH A KNOCK DOWN BLADE, CAB HEAT/AC, SWING BOOM, TAG Q/C, HYDRAULIC THUMB, AND A TIER 3 VOLVO ENGINE. TRACKS ARE ABOUT 70%. JUST PERFORMED A 2000HR SERVICE. READY TO GO TO WORK.
Dimensions
Boom/Stick Option (HEX) 1
A
Shipping Length of Unit
21.04 ft in
C
Shipping Height of Unit
8.8 ft in
I
Max Cutting Height
22.12 ft in
J
Max Loading Height
15.95 ft in
K
Max Reach Along Ground
22.51 ft in
L
Max Vertical Wall Digging Depth
9.49 ft in
M
Max Digging Depth
13.69 ft in
Boom/Stick Option (HEX) 2
A
Shipping Length of Unit
21.04 ft in
C
Shipping Height of Unit
8.8 ft in
I
Max Cutting Height
22.97 ft in
J
Max Loading Height
16.8 ft in
K
Max Reach Along Ground
23.76 ft in
L
Max Vertical Wall Digging Depth
10.7 ft in
M
Max Digging Depth
15 ft in
Dimensions
B
Width to Outside of Tracks
7.55 ft in
D
Length of Track on Ground
7.22 ft in
E
Ground Clearance
1.28 ft in
G
Height to Top of Cab
8.8 ft in
H
Tail Swing Radius
3.97 ft in
Undercarriage
F
Track Gauge
6.07 ft in
N
Shoe Size
17.72 in
Specifications
Engine
Number of Cylinders
4
Engine Make
2244
Engine Model
D3.4
Gross Power
59 hp
Net Power
56.8 hp
Power Measured @
2100 rpm
Displacement
202.5 cu in
Max Torque
173.3 lb ft
Torque Measured @
1400 rpm
Aspiration
Natural
Operational
Operating Weight
18040 lb
Fuel Capacity
29.1 gal
Cooling System Fluid Capacity
1.9 gal
Hydraulic System Fluid Capacity
37 gal
Engine Oil Capacity
3.1 gal
Operating Voltage
12 V
Alternator Supplied Amperage
55 amps
Hydraulic System Relief Valve Pressure
4354 psi
Hydraulic Pump Flow Capacity
46 gal/min
Swing Mechanism
Swing Speed
9.5 rpm
Undercarriage
Shoe Size
17.8 in
Number of Carrier Rollers per Side
1
Number of Track Rollers per Side
6
Ground Pressure
5.1 psi
Max Travel Speed
3.2 mph
Track Gauge
6.1 ft in
Buckets
Reference Bucket Capacity
0.3 yd3
Minimum Bucket Capacity
0.2 yd3
Maximum Bucket Capacity
0.4 yd3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1
Boom 11’7.8″ (3550mm)/Stick 5’6.9″ (1700mm)
Shipping Height of Unit
8.8 ft in
Shipping Length of Unit
21.1 ft in
Max Digging Depth
13.7 ft in
Max Reach Along Ground
22.6 ft in
Max Cutting Height
22.2 ft in
Max Loading Height
16 ft in
Max Vertical Wall Digging Depth
9.5 ft in
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2
Boom 11’7.8″ (3550mm)/Stick 6’10.7″ (2100mm)
Shipping Height of Unit
8.8 ft in
Shipping Length of Unit
21.1 ft in
Max Digging Depth
15 ft in
Max Reach Along Ground
23.8 ft in
Max Cutting Height
23 ft in
Max Loading Height
16.8 ft in
Max Vertical Wall Digging Depth
10.7 ft in
Dimensions
Width to Outside of Tracks
7.6 ft in
Height to Top of Cab
8.8 ft in
Ground Clearance
1.3 ft in
Removal Counterweight Clearance
2.5 ft in
Tail Swing Radius
4 ft in
Length of Track on Ground
7.3 ft in

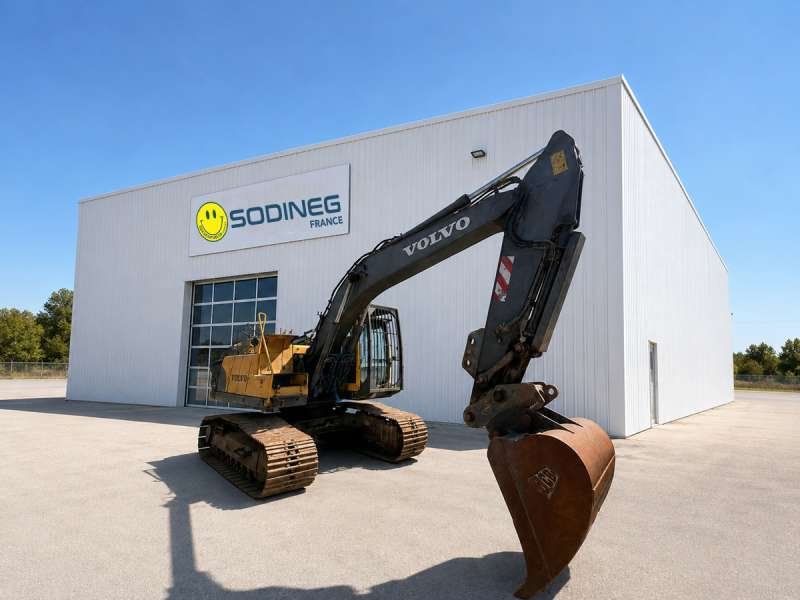

2005 Volvo EC210LC Crawler Excavator

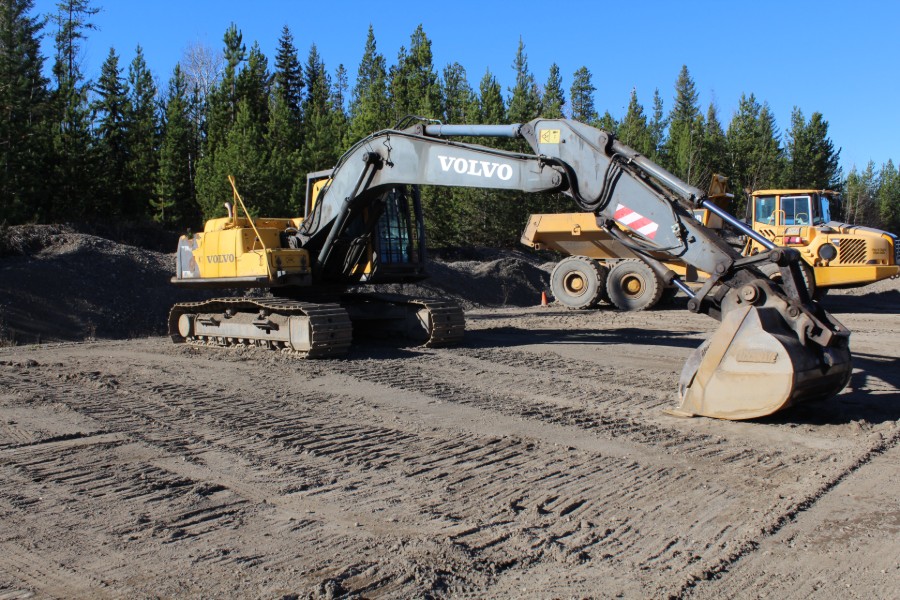

2005 VOLVO EC210B LC CRAWLER EXCAVATOR. UNIT IS EQUIPPED WITH HYDRAULIC THUMB(PROGRESSIVE), QUICK COUPLER, 36″ BUCKET, CAB HEAT/AC AND RADIO, TIER 2 VOLVO ENGINE, 70% UC, AND 32″ PADS. BRAND NEW PINS AND BUSHING INSTALLED BY VOLVO IN LAST 1,000 HOURS. EVERYTHING WORKS GREAT. UNIT IS READY TO GO TO WORK. Hours: 7,900 Location: Placerville, CA Price: 55,900 Specs A. SHIPPING LENGTH OF UNIT 32.2 ft in 9810 mm C. SHIPPING HEIGHT OF UNIT 10.3 ft in 3150 mm I. MAX CUTTING HEIGHT 29 ft in 8830 mm J. MAX LOADING HEIGHT 20 ft in 6110 mm K. MAX REACH ALONG GROUND 28.7 ft in 8740 mm L. MAX VERTICAL WALL DIGGING DEPTH 13.9 ft in 4230 mm M. MAX DIGGING DEPTH 18.5 ft in 5630 mm Dimensions B. WIDTH TO OUTSIDE OF TRACKS 9.8 ft in 2990 mm D. LENGTH OF TRACK ON GROUND 12 ft in 3660 mm E. GROUND CLEARANCE 1.5 ft in 460 mm G. HEIGHT TO TOP OF CAB 9.5 ft in 2900 mm H. TAIL SWING RADIUS 9.4 ft in 2850 mm O. COUNTERWEIGHT CLEARANCE 3.4 ft in 1025 mm Undercarriage F. TRACK GAUGE 7.8 ft in 2390 mm N. SHOE SIZE 23.6 in 600 mm Specification Engine MAKE Cummins MODEL B5.9-C GROSS POWER 160 hp 119.3 kw NET POWER 143 hp 106.6 kw POWER MEASURED @ 1900 rpm DISPLACEMENT 360 cu in 5.9 L TORQUE MEASURED @ 1500 rpm MAX TORQUE 455.8 lb ft 618 Nm ASPIRATION Turbocharged NUMBER OF CYLINDERS 6 Operational OPERATING WEIGHT 45194.8 lb 20500 kg FUEL CAPACITY 92.5 gal 350 L COOLING SYSTEM FLUID CAPACITY 7 gal 26.5 L HYDRAUILC SYSTEM FLUID CAPACITY 75.3 gal 285 L ENGINE OIL CAPACITY 6.3 gal 24 L SWING DRIVE FLUID CAPACITY 1.6 gal 6 L OPERATING VOLTAGE 24 V ALTERNATOR SUPPLIED AMPERAGE 50 amps HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4974.8 psi 34300 kPa HYDRAULIC PUMP FLOW CAPACITY 105.7 gal/min 400 L/min Swing Mechanism SWING SPEED 11.6 rpm Undercarriage NUMBER OF SHOES PER SIDE 49 SHOE SIZE 23.6 in 600 mm NUMBER OF CARRIER ROLLERS PER SIDE 2 NUMBER OF TRACK ROLLERS PER SIDE 9 MAX TRAVEL SPEED 3.4 mph 5.5 km/h TRACK GAUGE 7.8 ft in 2390 mm Buckets REFERENCE BUCKET CAPACITY 0.65 yd3 0.5 m3 MINIMUM BUCKET CAPACITY 0.65 yd3 0.5 m3 MAXIMUM BUCKET CAPACITY 1.6 yd3 1.3 m3 Boom/Stick Option (HEX) 1 BOOM/STICK OPTION (HEX) 1 Monobloc Boom 5700mm / Stick 1800mm SHIPPING HEIGHT OF UNIT 10.3 ft in 3150 mm SHIPPING LENGTH OF UNIT 32.2 ft in 9810 mm MAX DIGGING DEPTH 18.5 ft in 5630 mm MAX REACH ALONG GROUND 28.7 ft in 8740 mm MAX CUTTING HEIGHT 29 ft in 8830 mm MAX LOADING HEIGHT 20 ft in 6110 mm MAX VERTICAL WALL DIGGING DEPTH 13.9 ft in 4230 mm Boom/Stick Option (HEX) 2 BOOM/STICK OPTION (HEX) 2 Monobloc Boom 5700mm / Stick 2300mm SHIPPING HEIGHT OF UNIT 10.2 ft in 3120 mm SHIPPING LENGTH OF UNIT 32 ft in 9750 mm MAX DIGGING DEPTH 20.1 ft in 6130 mm MAX REACH ALONG GROUND 30.3 ft in 9230 mm MAX CUTTING HEIGHT 30.3 ft in 9230 mm MAX LOADING HEIGHT 21 ft in 6410 mm MAX VERTICAL WALL DIGGING DEPTH 17.6 ft in 5370 mm Boom/Stick Option (HEX) 3 BOOM/STICK OPTION (HEX) 3 Monobloc Boom 5700mm / Stick 3900mm SHIPPING HEIGHT OF UNIT 11.8 ft in 3590 mm SHIPPING LENGTH OF UNIT 31.7 ft in 9670 mm MAX DIGGING DEPTH 25.4 ft in 7730 mm MAX REACH ALONG GROUND 34.8 ft in 10610 mm MAX CUTTING HEIGHT 31.6 ft in 9620 mm MAX LOADING HEIGHT 22.4 ft in 6830 mm MAX VERTICAL WALL DIGGING DEPTH 21.6 ft in 6570 mm Boom/Stick Option (HEX) 4 BOOM/STICK OPTION (HEX) 4 2-piece Boom 5570mm / Stick 1800mm SHIPPING HEIGHT OF UNIT 10 ft in 3040 mm SHIPPING LENGTH OF UNIT 31.7 ft in 9670 mm MAX DIGGING DEPTH 17.1 ft in 5220 mm MAX REACH ALONG GROUND 28.3 ft in 8640 mm MAX CUTTING HEIGHT 32.5 ft in 9900 mm MAX LOADING HEIGHT 23 ft in 7010 mm MAX VERTICAL WALL DIG DEPTH 13.1 ft in 3990 mm Boom/Stick Option (HEX) 5 BOOM/STICK OPTION (HEX) 5 2-piece Boom 5570mm / Stick 2300mm SHIPPING HEIGHT OF UNIT 10 ft in 3040 mm SHIPPING LENGTH OF UNIT 31.5 ft in 9610 mm MAX DIGGING DEPTH 18.8 ft in 5720 mm MAX REACH ALONG GROUND 30 ft in 9130 mm MAX CUTTING HEIGHT 33.9 ft in 10330 mm MAX LOADING HEIGHT 24.3 ft in 7400 mm MAX VERTICAL WALL DIG DEPTH 15.6 ft in 4770 mm Boom/Stick Option (HEX) 6 BOOM/STICK OPTION (HEX) 6 2-piece Boom 5570mm / Stick 3900mm SHIPPING HEIGHT OF UNIT 11.9 ft in 3630 mm SHIPPING LENGTH OF UNIT 31.1 ft in 9470 mm MAX DIGGING DEPTH 23.8 ft in 7240 mm MAX REACH ALONG GROUND 34.5 ft in 10530 mm MAX CUTTING HEIGHT 36.7 ft in 11180 mm MAX LOADING HEIGHT 27.1 ft in 8270 mm MAX VERTICAL WALL DIG DEPTH 20.3 ft in 6180 mm Dimensions WIDTH TO OUTSIDE OF TRACKS 9.8 ft in 2990 mm HEIGHT TO TOP OF CAB 9.5 ft in 2900 mm GROUND CLEARANCE 1.5 ft in 460 mm COUNTERWEIGHT CLEARANCE 3.4 ft in 1025 mm TAIL SWING RADIUS 9.4 ft in 2850 mm LENGTH OF TRACK ON GROUND 12 ft in 3660 mm

Additional information available
Ready to work

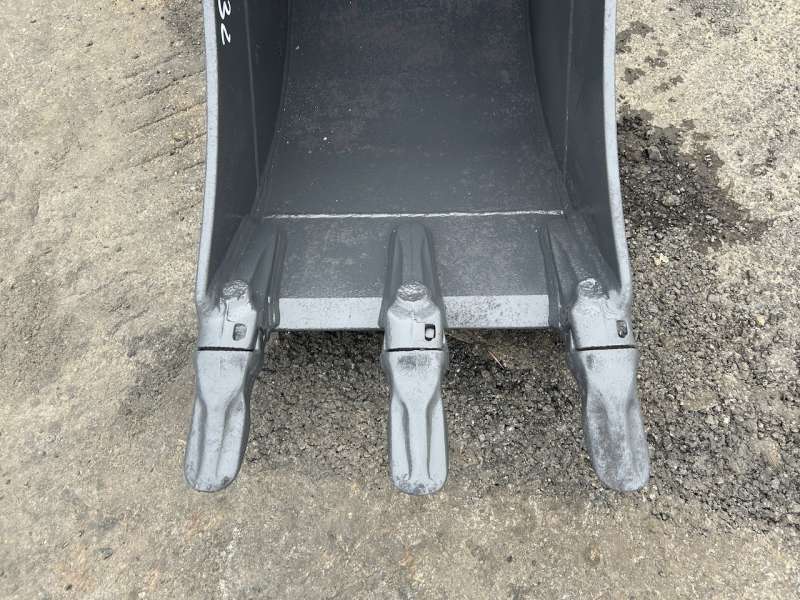

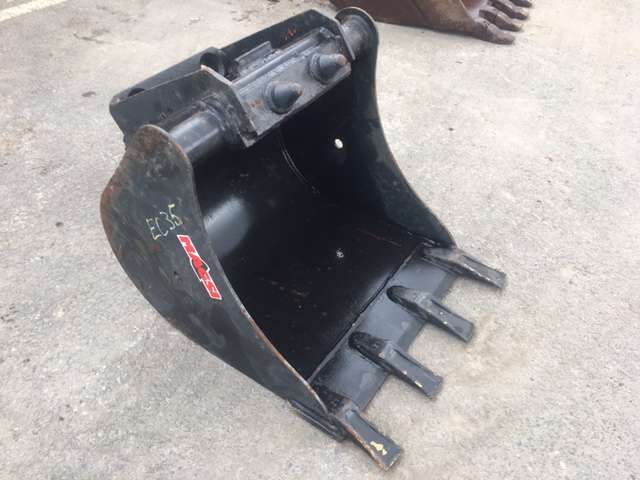

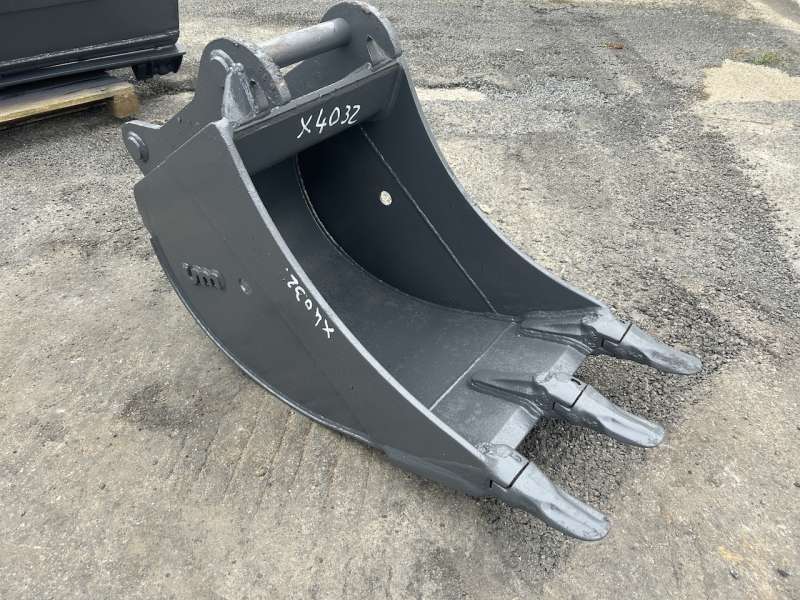

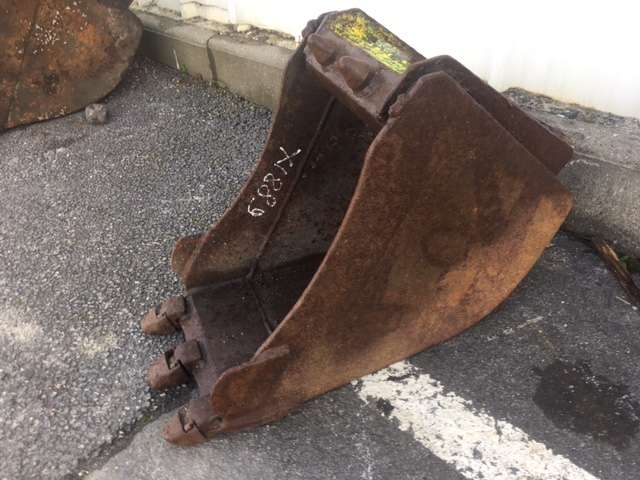

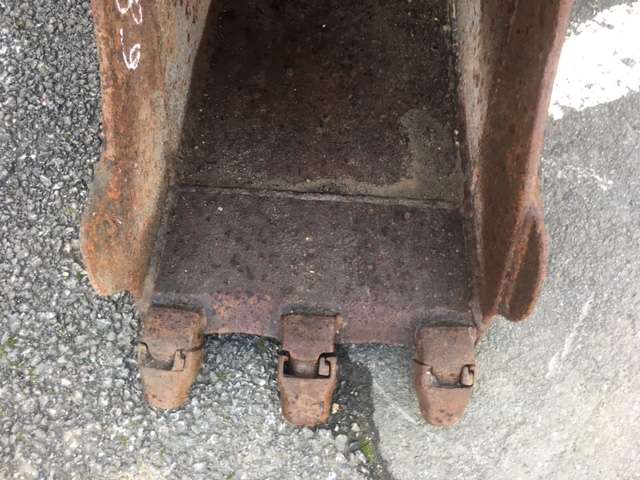

Trenching Bucket VOLVO EC35 - 350mm

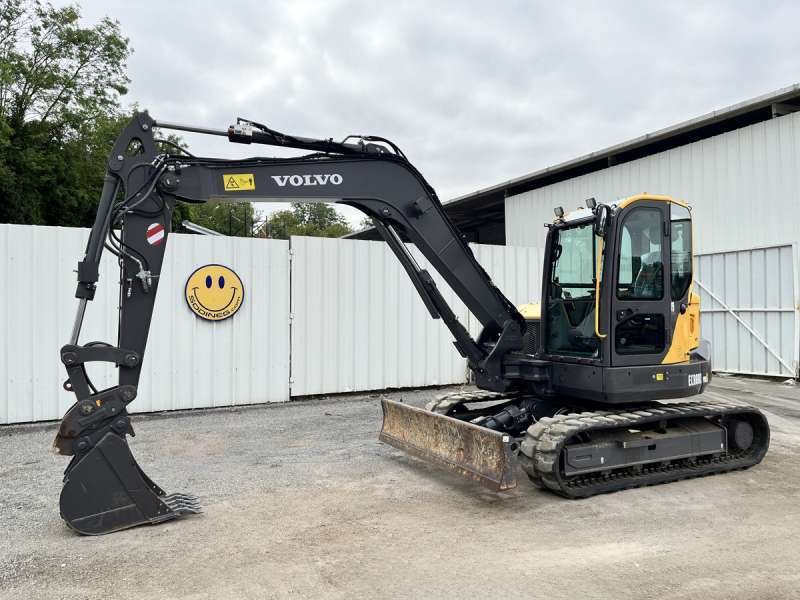

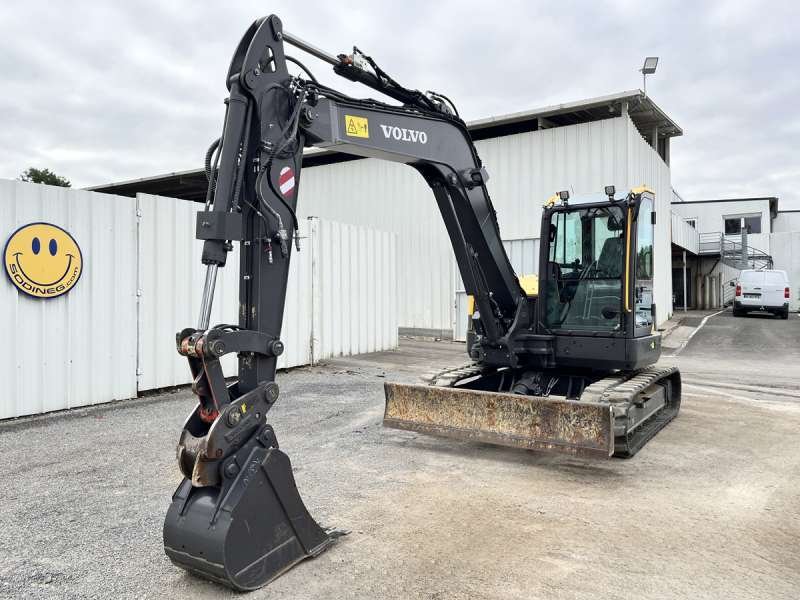

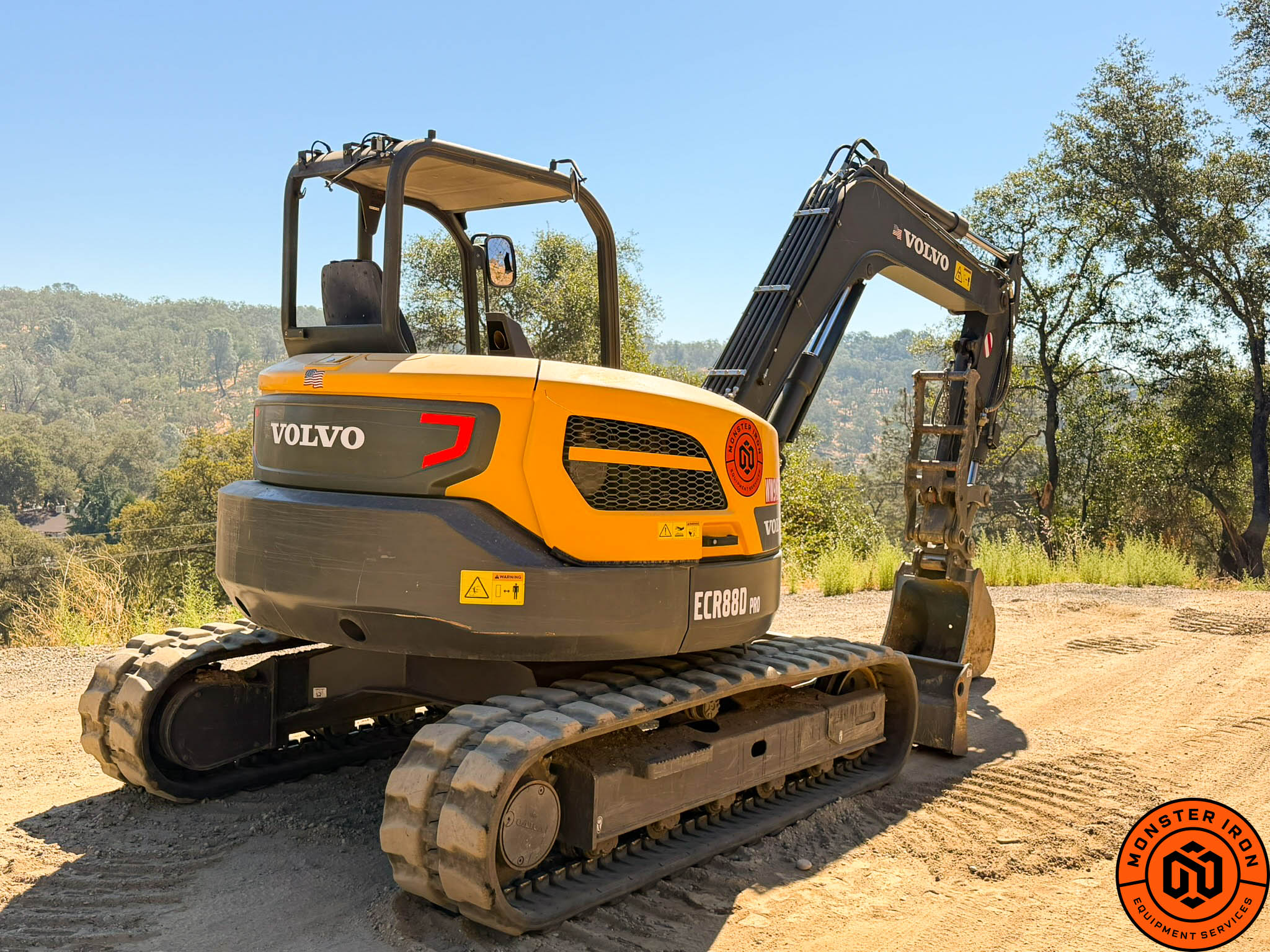

This Volvo ECR88D crawler excavator, first put into service in 2023 with just 1,572 operating hours, offers an immediately operational solution for companies specializing in earthworks, utility infrastructure (VRD), light demolition, and landscaping.
Weighing 8,752 kg and featuring a compact design and offset boom, this Volvo excavator strikes an excellent balance between stability, digging power, and maneuverability in confined work sites.
The air-conditioned cab, proportional controls, and rearview camera enhance operator comfort, movement precision, and safety during maneuvering.
The Volvo ECR88D is a compact crawler excavator designed for efficient operation in environments with limited workspace. Its dimensions—6.37 m long, 2.30 m wide, and 2.78 m high—make it well-suited for urban job sites, utility network projects, earthworks, and areas with restricted access.
The machine is equipped with a monoboom with offset capability, allowing for work right up against walls, curbs, existing utility lines, or obstacles.
The front dozer blade provides additional stability during excavation tasks.
Safety valves, combined with valve and cylinder guards, help secure lifting operations and minimize the risk of damage to exposed hydraulic components. This feature is a significant advantage for companies using the excavator for material handling or in demanding environments.
Auxiliary hydraulic lines enable the use of various hydraulic attachments.
The hydraulic quick coupler allows for easy attachment changes directly from the cab. This helps reduce downtime and boost productivity when multiple tools are required during a single job. The excavator runs on 450 mm wide rubber tracks, suitable for travel on finished surfaces, roadways, stabilized platforms, and areas requiring controlled ground pressure.
Find more crawler excavators at www.sodineg.com and on our mobile app.

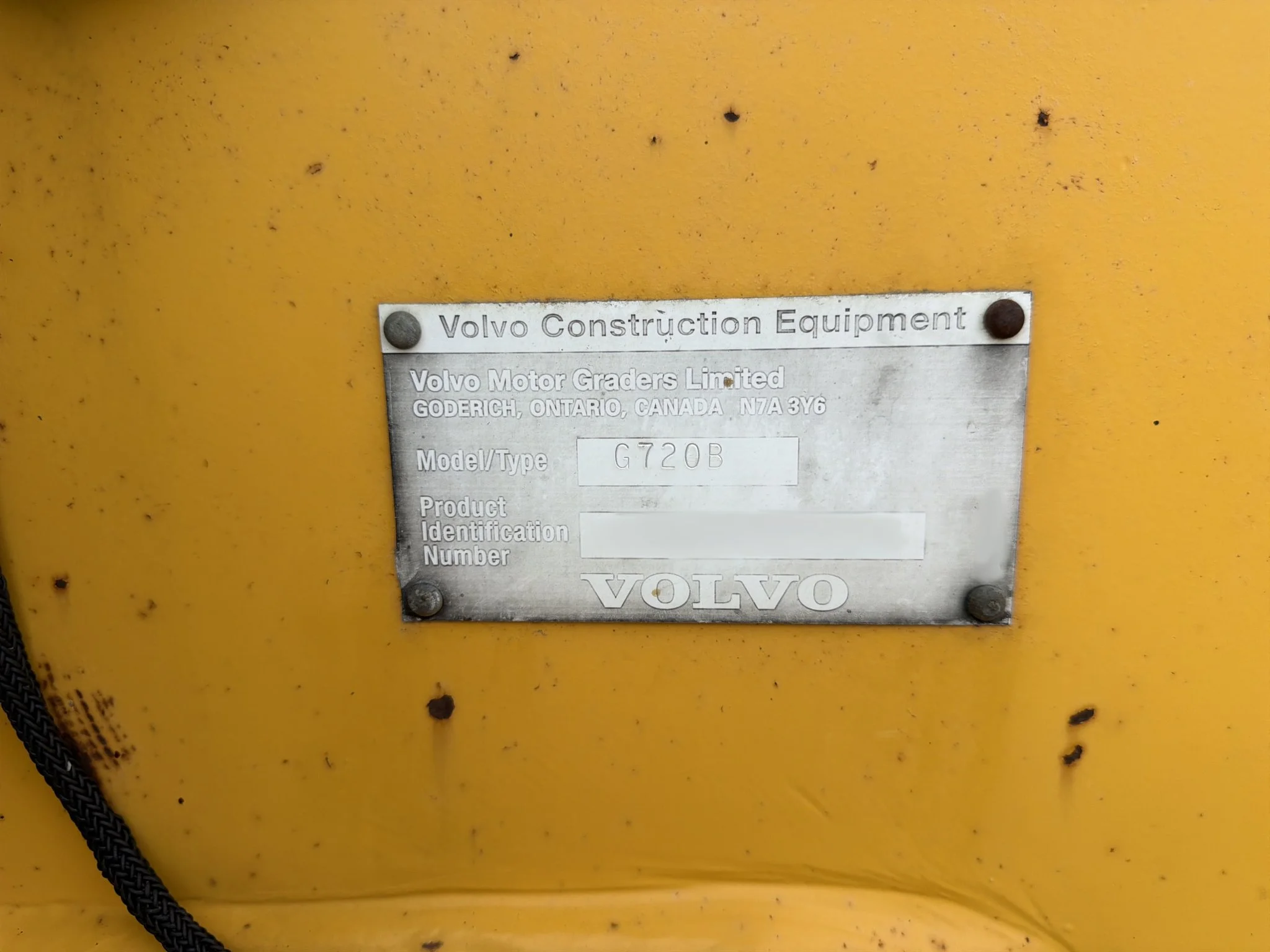

2004 Volvo G720B Motor Grader        WE SHIP DIRECT TO YOU, USA, and Worldwide!! Financing Available
        • Stock Number: 12132 CT  • Location: Near Grand Prairie  • Engine: Volvo D7DGBE2  169-210hp  • Base Weight: 34,000lb  • Hours: 6,229  • Tire Size: 17.5-25  • Length of Moldboard: 192"  • 4 Wheel Drive
• Contact us today if you need more information • JPH Equipment • Buying Made Simple • We Ship Worldwide •
• Export/Duties/Tariffs/Transport not included. Additional fees will apply for export outside of Canada
*We do not guarantee that these specifications are error-free or fully complete. The above specifications/details are provided as reference only and should be confirmed prior to purchase.*

No description.

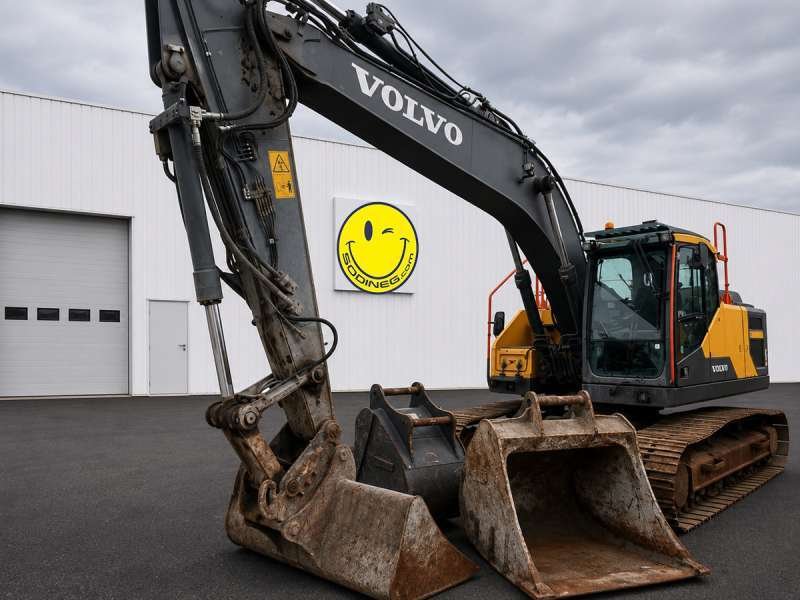

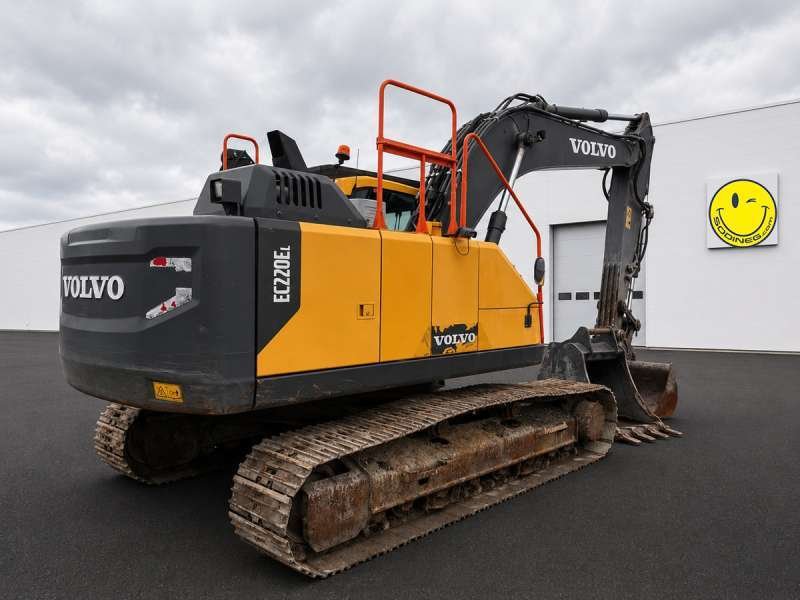

This 2020 Volvo EC220EL, with 5,925 hours on the clock, is a crawler excavator designed for earthmoving, roadworks, quarrying, utility work, loading, and light to medium demolition.

Known for its reliability and fuel efficiency, this 25.1-tonne machine offers an excellent balance of productivity, stability, and versatility on the job site.

Equipped with a 129 kW (175 hp) Volvo D6J engine, this excavator is configured for intensive professional use with several sought-after features: safety valves, additional hydraulic lines, cab protection, rear and side cameras, BMair filtration, air conditioning, and automatic lubrication.

It features a one-piece boom, particularly valued for its robustness and lifting capacity in earthmoving and heavy handling applications.

The machine is equipped with safety valves, essential for certain lifting applications and to meet job site safety requirements. The presence of a rear-view camera and a side-view camera significantly improves visibility
and reduces blind spots in traffic areas.
The BMair system with cabin filter is a real advantage in dusty environments
or for sensitive work (demolition, quarries, recycling), improving operator comfort and protection.
Automatic lubrication minimizes downtime for daily maintenance and helps protect the machine's joints.
Find more tracked excavators at www.sodineg.com and on our mobile app.

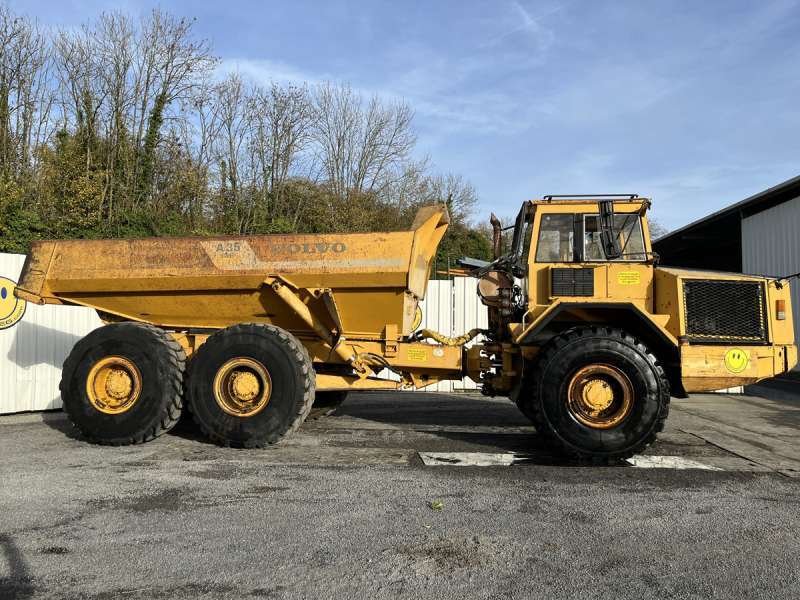

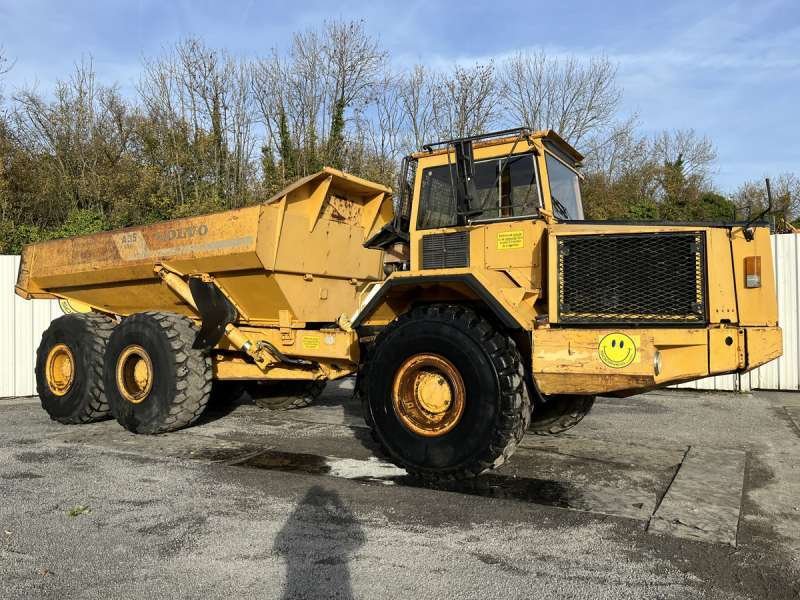

At our Neuville Saint Amand depot, you'll find this 1989 Volvo A35 6x6 dumper.
In good condition, this dumper has 13,400 hours and weighs 25,300 kg.
Its tire size is 26.5 R 25 and its width is 3.20 m.
The skip capacity is 19 m³ and its payload is 32 tons.
Its Volvo TD122GA engine delivers 240 kW (326 hp).
Find more articulated dumpers at www.sodineg.com and on our mobile app.

Comes with Clean Up Bucket PARTS ONLY Contact us for pricing on specific parts. Unit is complete.

No description.

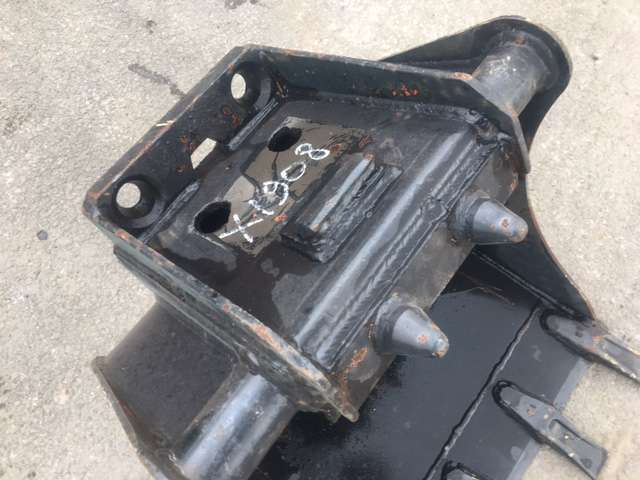

Trenching Bucket VOLVO S5 / S50 - 500mm
Available immediately

No description.

2020 VOLVO ECR88D EXCAVATOR
2020 VOLVO ECR88 EXCAVAVATOR WITH 550HRS. UNIT IS EQUIPPED WITH A TIER 4 FINAL ENGINE, HYDRAULIC COUPLER, HYDRAULIC THUMB, KNOCK-DOWN BLADE, RUBBER TRACKS, AND A SWING BOOM. THIS IS A ONE-OWNER MACHINE. VERY CLEAN AND TIGHT.
Volvo ECR88D Excavator Specifications
Engine
Specification
Value
Notes
Engine Model
Volvo D2.6H
Tier 4f / Stage V compliant diesel
Net Power
41 kW / 55 hp
ISO 9249 / SAE J1349
Gross Power
42.4 kW / 57 hp
SAE J1995
Max Torque
220 Nm / 162 ft-lbf
At 1,300 rpm
Displacement
2.62 L / 160 in³
4 cylinder
Bore x Stroke
87 × 110 mm / 3.4 × 4.3 in
Hydraulic System
System Type
Open-center, negative hydraulic system
Main Pump
Variable-displacement pump
Maximum Flow
2 × 68 + 54 L/min / 2 × 18 + 14 gal/min
Pilot Pump Flow
13 L/min / 3.4 gal/min
Implement Relief Pressure
29.4 MPa / 4,264 psi
Travel Relief Pressure
29.4 MPa / 4,264 psi
Swing Relief Pressure
24.5 MPa / 3,553 psi
Pilot Relief Pressure
3.4 MPa / 493 psi
Swing and Travel
Swing Speed
8.3 rpm
Swing Torque
22.9 kNm / 16,890 ft-lbf
Travel Speed Low
2.6 km/h / 1.6 mph
Travel Speed High
5.2 km/h / 3.2 mph
Max Drawbar Pull
65 kN / 14,613 lbf
Gradeability
35°
Service Refill Capacities
Fuel Tank
110 L / 29 gal
Hydraulic System Total
140 L / 37 gal
Hydraulic Tank
84 L / 22 gal
Engine Oil
10.2 L / 2.7 gal
Engine Coolant
9.3 L / 2.5 gal
Travel Reduction Unit
2 × 1.6 L / 2 × 0.4 gal
Undercarriage
Frame
Robust X-shaped frame
Sealed and greased track chains
Track Shoes
2 × 39
Link Pitch
154 mm / 6.1 in
Steel Shoe Width
450 / 600 mm — 17.7 / 23.6 in
Rubber Shoe Width
450 mm / 17.7 in
Bottom / Top Rollers
2 × 5 / 2 × 1
Weights and Ground Pressure
Machine Class
8.6–10.0 t / 19,010–22,050 lb
Operating Weight Range
8,752–9,376 kg / 19,300–20,671 lb
Varies by arm, track and counterweight
Counterweight Options
1,400 / 1,610 kg — 3,086 / 3,549 lb
Ground Pressure Range
30.7–41.4 kPa / 4.45–6.0 psi
Varies by configuration
Main Dimensions
Boom Length
3.55 m / 11 ft 8 in
Arm Options
1.7 m / 5 ft 7 in or 2.1 m / 6 ft 11 in
Overall Width
2,300 / 2,450 mm — 7 ft 7 in / 8 ft 0 in
Cab Height
2,715 mm / 8 ft 11 in
Tail Swing Radius
1,290 mm / 4 ft 3 in
Track Length
2,830 mm / 9 ft 3 in
Track Gauge
1,850 mm / 6 ft 1 in
Ground Clearance
405 mm / 1 ft 4 in
Without shoe grouser
Overall Length
6,370 / 6,420 mm — 20 ft 11 in / 21 ft 1 in
1.7 m / 2.1 m arm
Dozer Blade
Blade Height
470 mm / 1 ft 7 in
Blade Width
2,300 mm / 7 ft 7 in
Lifting Height
518 mm / 1 ft 8 in
Digging Depth
433 mm / 1 ft 5 in
Blade Float
Optional
Working Ranges
Max Digging Reach
6,970 / 7,350 mm — 22 ft 10 in / 24 ft 1 in
1.7 m / 2.1 m arm
Max Digging Depth
4,130 / 4,530 mm — 13 ft 7 in / 14 ft 10 in
1.7 m / 2.1 m arm
Max Cutting Height
6,790 / 7,050 mm — 22 ft 3 in / 23 ft 2 in
1.7 m / 2.1 m arm
Max Dumping Height
4,960 / 5,220 mm — 16 ft 3 in / 17 ft 2 in
1.7 m / 2.1 m arm
Min Front Swing Radius
2,560 / 2,640 mm — 8 ft 5 in / 8 ft 8 in
1.7 m / 2.1 m arm
Digging Forces
Bucket Breakout Force
Up to 57.2 kN / 12,860 lb
ISO 6015, direct-fit bucket
Arm Tearout Force
Up to 39.8 kN / 8,950 lb
ISO 6015
Bucket Rotation Angle
190°
Cab and Sound
Cab Sound Level
74 dB(A)
ISO 6396
External Sound Level
98 dB(A)
ISO 6395 / EU Noise Directive
A/C Refrigerant
R134a
If equipped
Features and Benefits
Compact Radius Excavator Performance
Volvo ECR88D compact excavator delivers strong performance in the 8.6–10.0 metric ton class.
Short tail swing design helps the machine work efficiently in confined areas.
Heavy counterweight and strong undercarriage improve stability and lifting performance.
Hydraulics and Attachment Versatility
Open-center hydraulic system is matched to the engine and components for smooth control and fast response.
Optional auxiliary hydraulics support a wide range of attachments.
Available hydraulic piping supports breaker, shear, slope, rotator, grapple and quick coupler applications.
Fuel Efficiency and Engine Management
Volvo Tier 4f / Stage V engine is designed for strong output with low fuel consumption.
ECO mode helps provide working performance while saving fuel.
Auto idle reduces engine speed when controls are inactive.
Optional auto engine shutdown helps lower fuel costs, noise and maintenance.
Operator Comfort and Visibility
Purpose-designed Volvo cab provides excellent all-around visibility with slim cab pillars and large windows.
Low in-cab sound level supports comfortable operation.
Available cab, Care Cab, heater, air conditioning, upgraded seats and radio options.
Durability and Serviceability
Single pivot pin design increases support between the main frame and front equipment.
Durable X-shaped undercarriage improves stability and machine life.
Ground-level service access and grouped filters make regular maintenance easier.
MATRIS and VCADS Pro support machine monitoring, diagnostics and programming.
Specifications are based on Volvo Construction Equipment product guide Ref. No. 20062440_A, English-22, dated 2023.12. Equipment specifications and options may vary by machine configuration and market.
