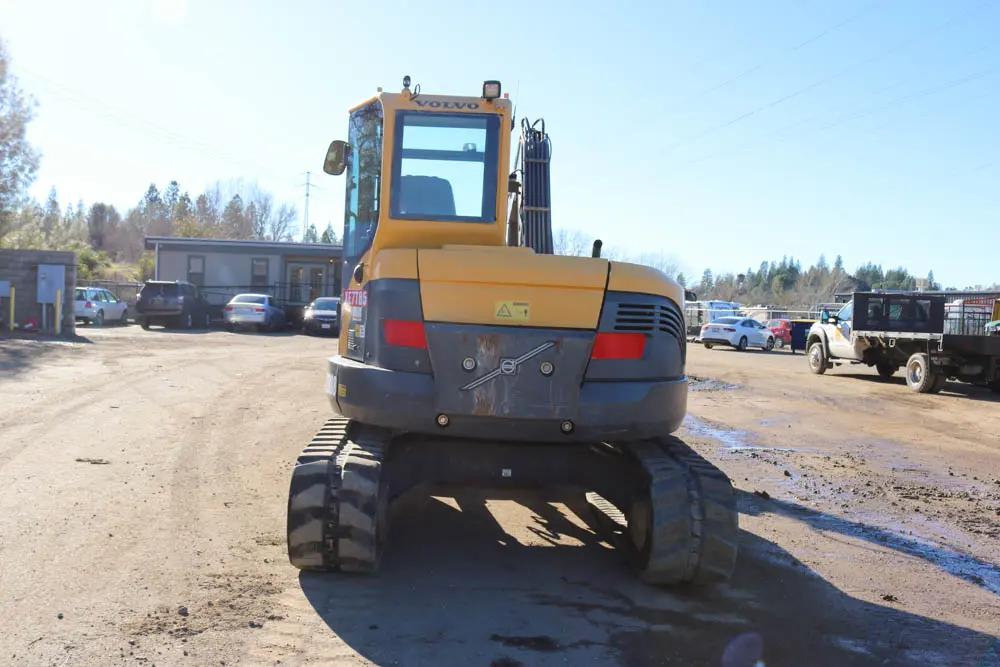

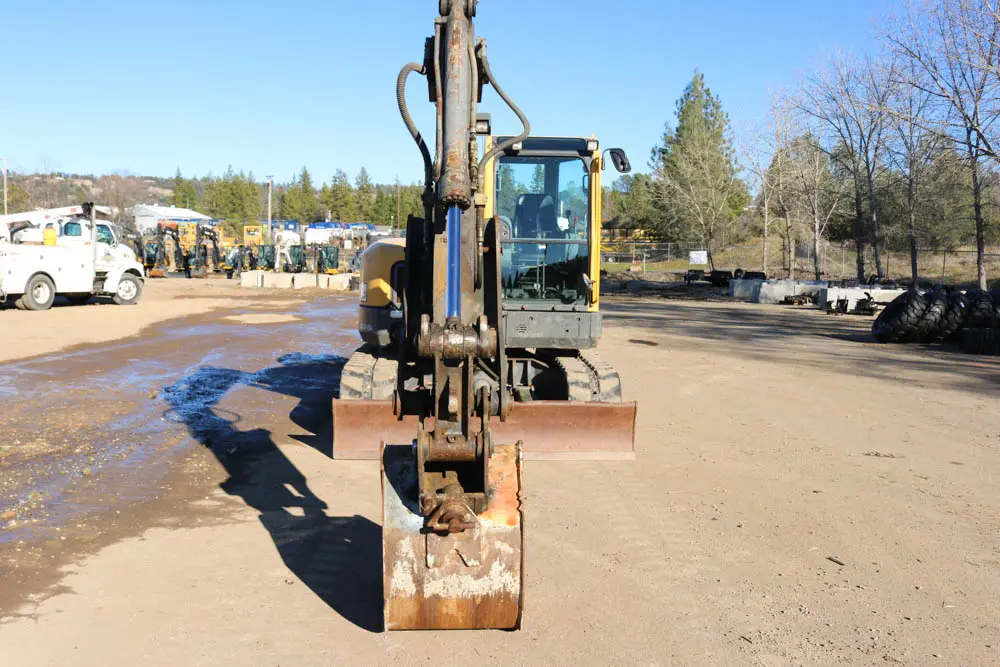

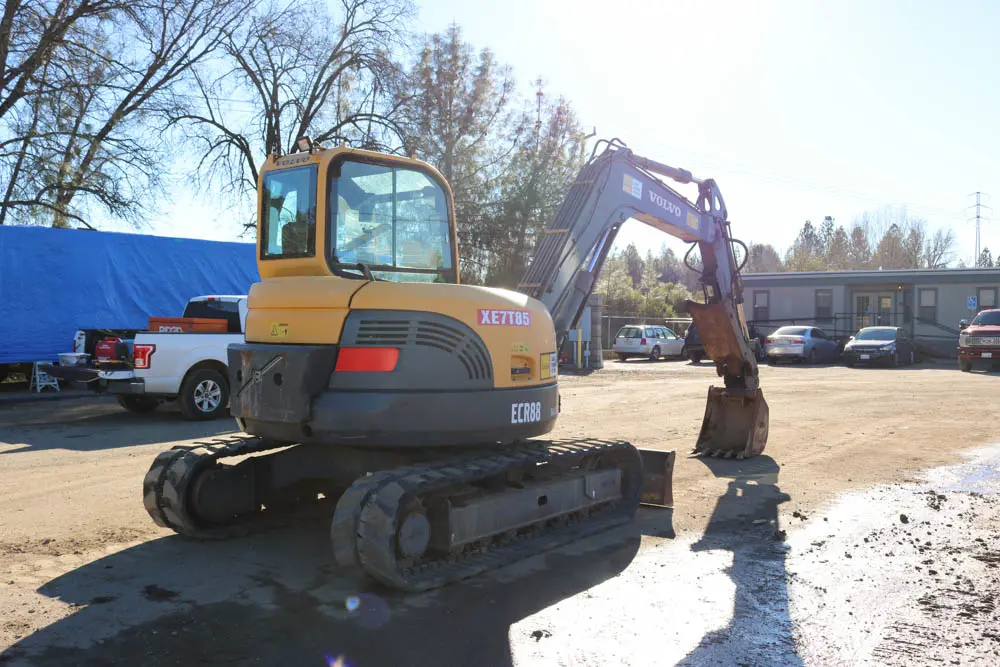

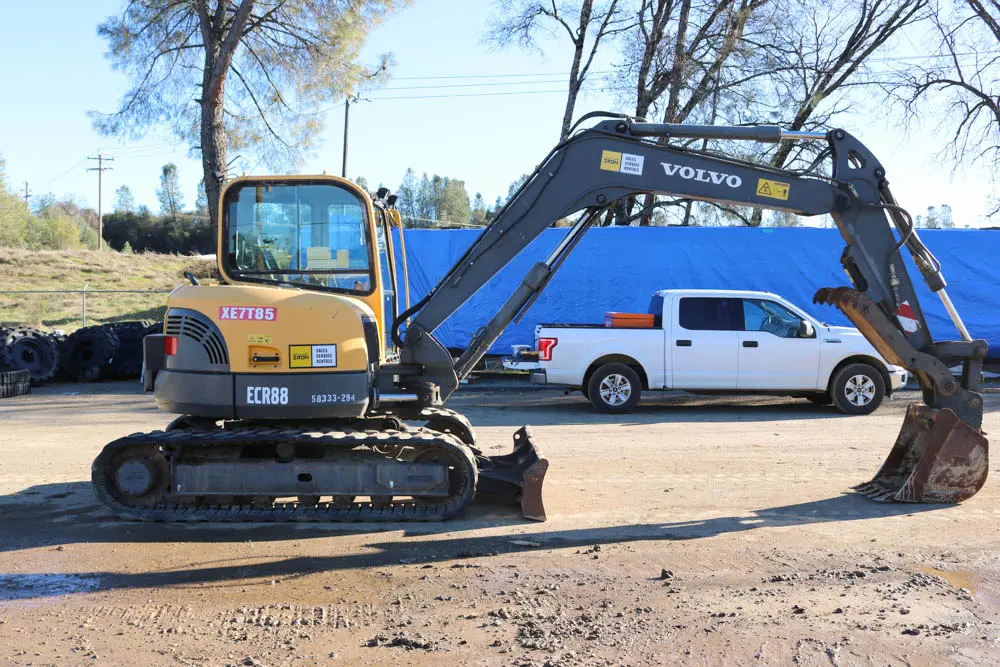

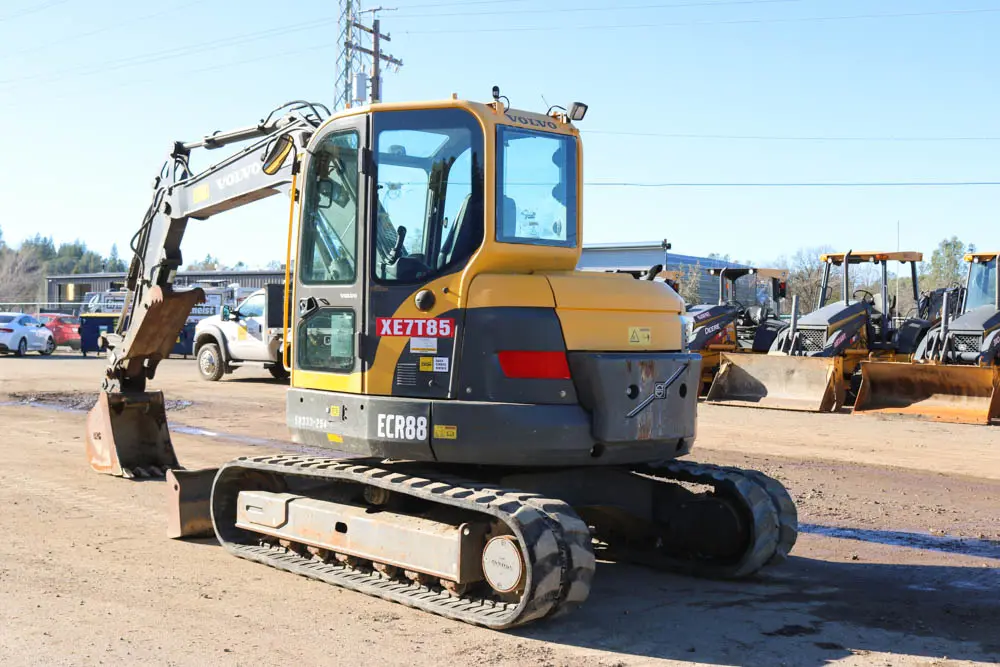

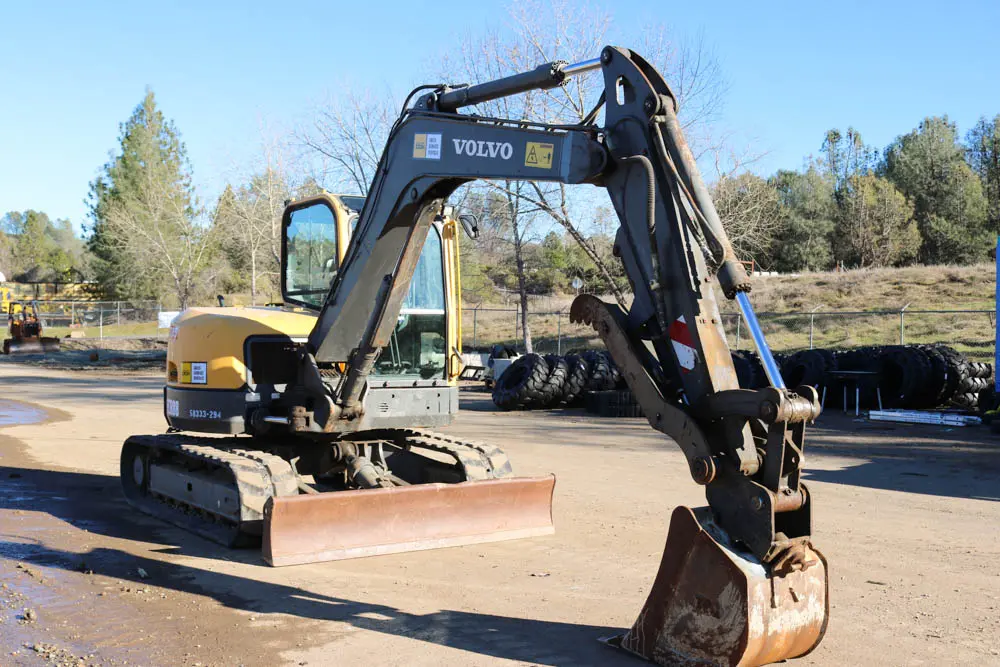

2013 VOLVO ECR88 EXCAVATOR FOR SALE

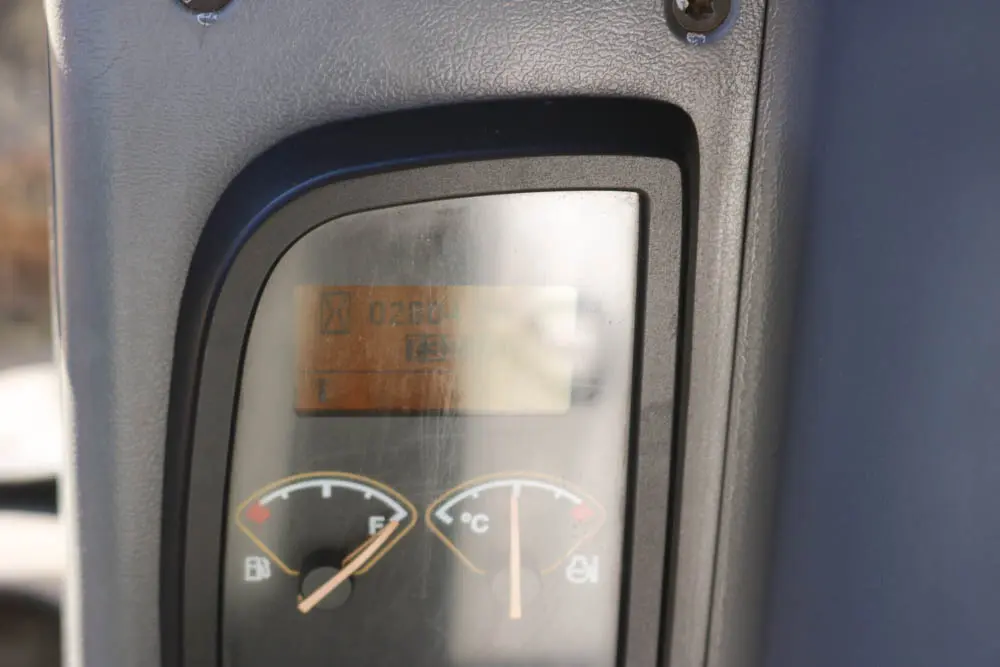

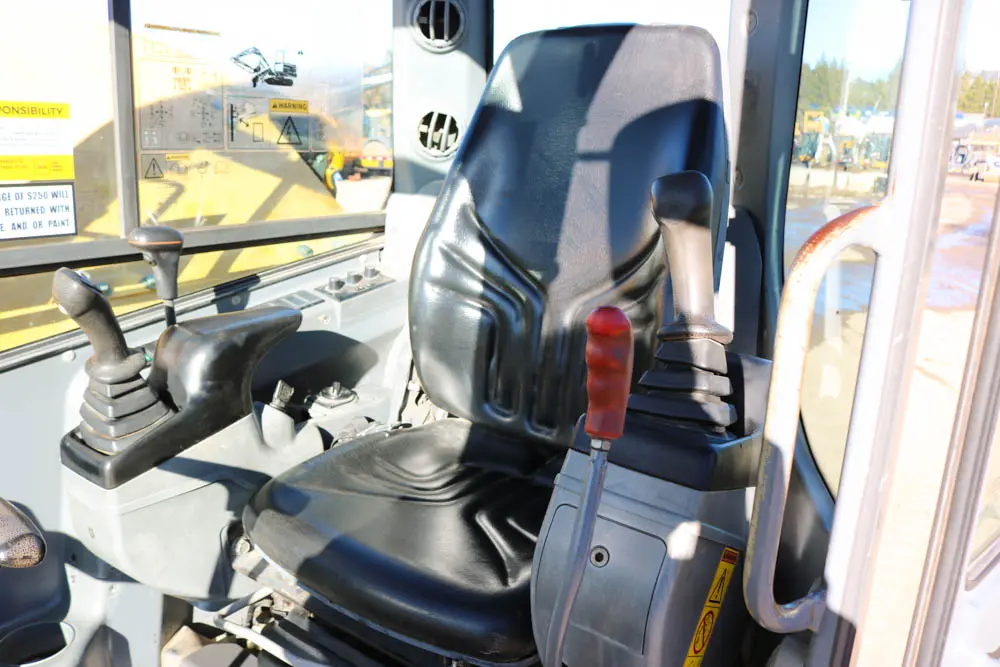

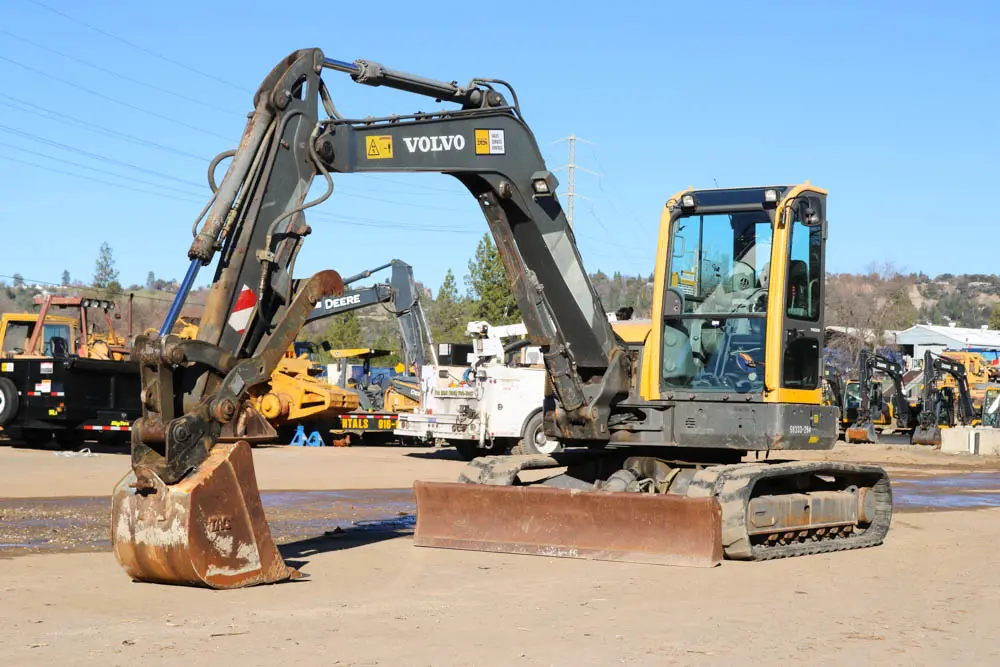

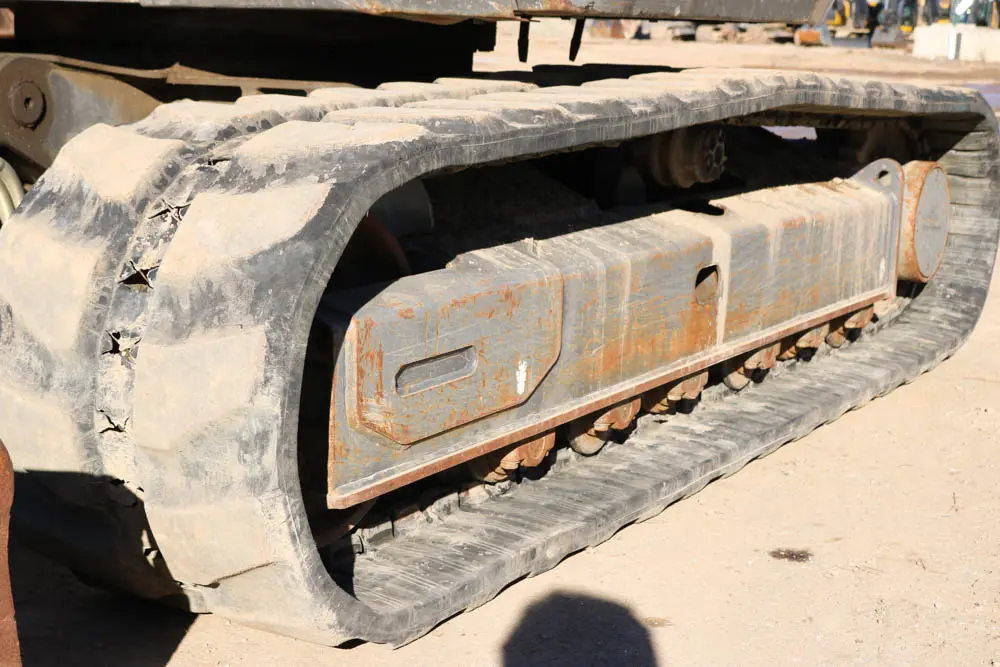

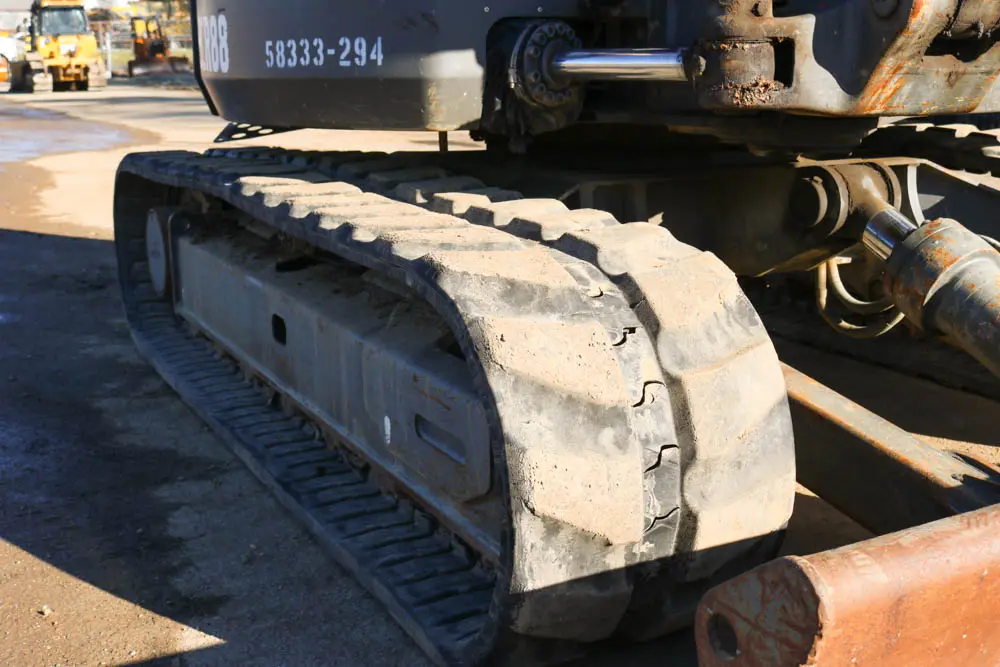

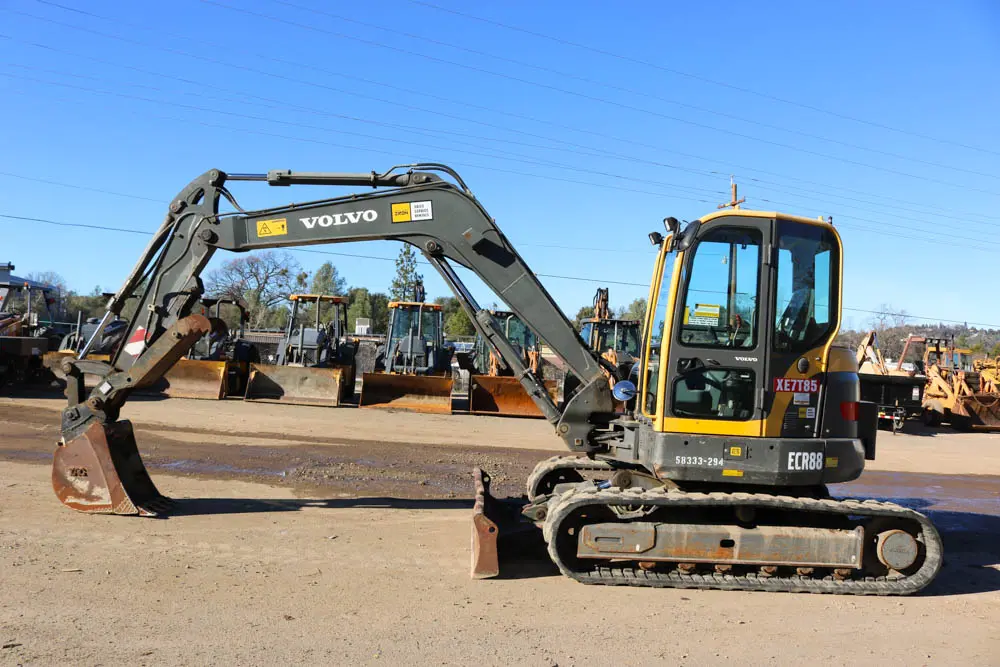

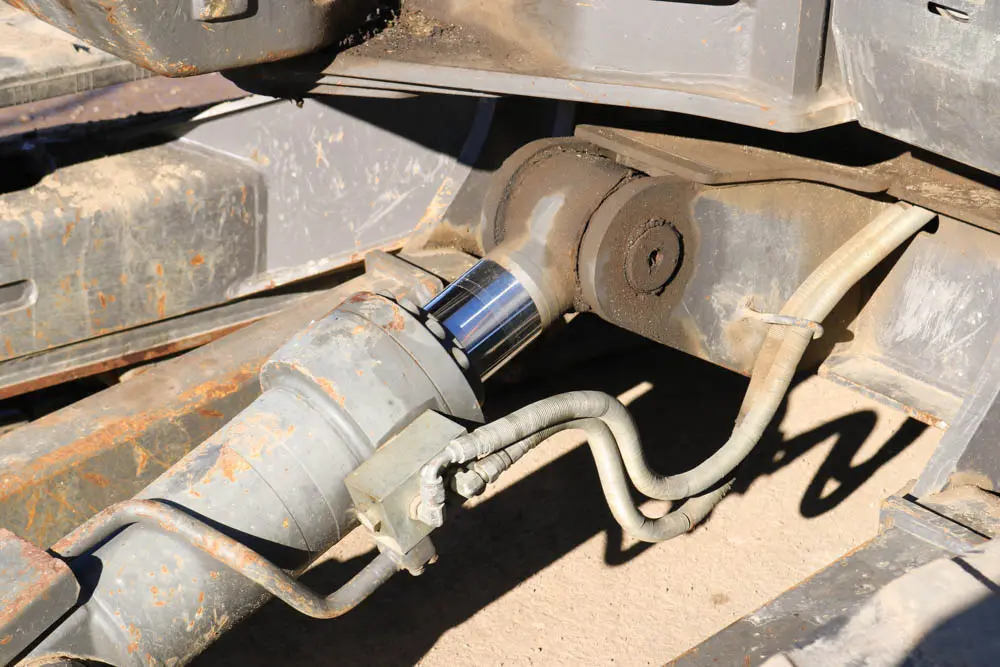

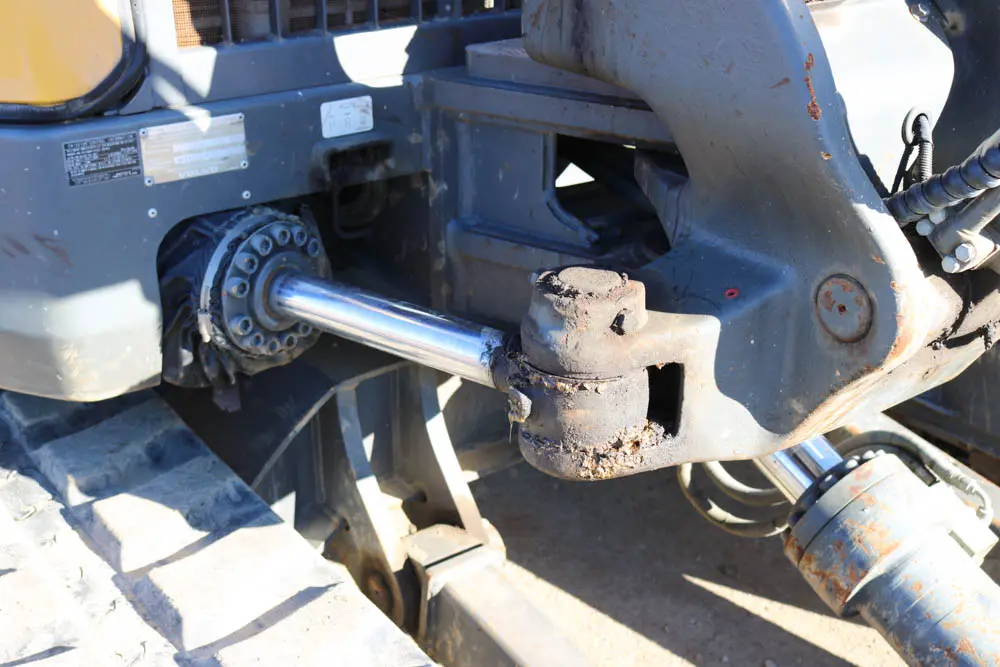

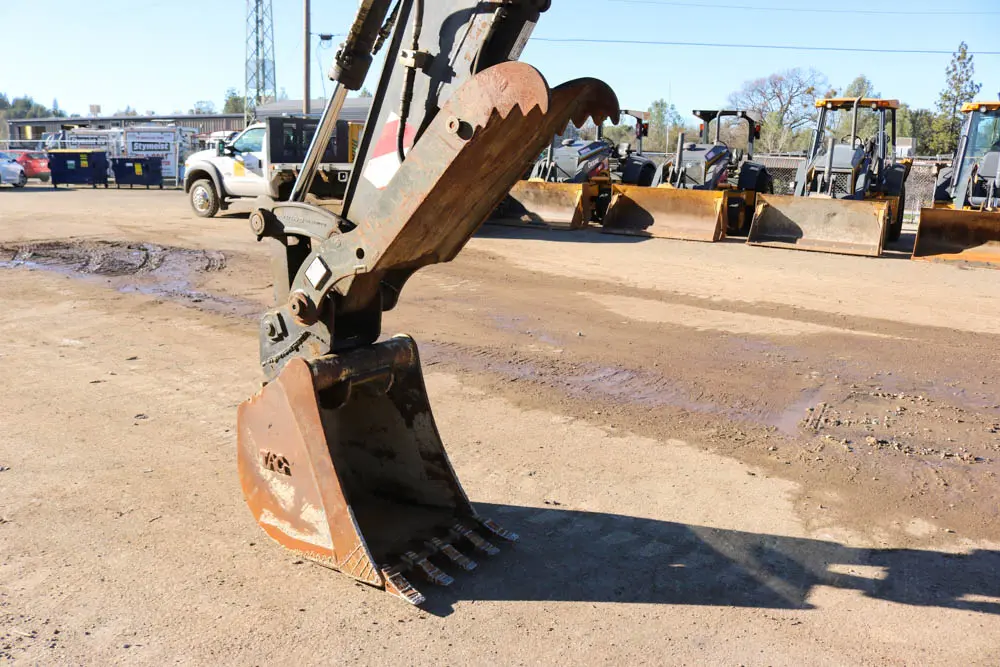

2013 VOLVO ECR 88 CRAWLER EXCAVATOR WITH ONLY 2800HRS. UNIT IS EQUIPPED WITH A KNOCK DOWN BLADE, CAB HEAT/AC, SWING BOOM, TAG Q/C, HYDRAULIC THUMB, AND A TIER 3 VOLVO ENGINE. TRACKS ARE ABOUT 70%. JUST PERFORMED A 2000HR SERVICE. READY TO GO TO WORK.
Dimensions
Boom/Stick Option (HEX) 1
A
Shipping Length of Unit
21.04 ft in
C
Shipping Height of Unit
8.8 ft in
I
Max Cutting Height
22.12 ft in
J
Max Loading Height
15.95 ft in
K
Max Reach Along Ground
22.51 ft in
L
Max Vertical Wall Digging Depth
9.49 ft in
M
Max Digging Depth
13.69 ft in
Boom/Stick Option (HEX) 2
A
Shipping Length of Unit
21.04 ft in
C
Shipping Height of Unit
8.8 ft in
I
Max Cutting Height
22.97 ft in
J
Max Loading Height
16.8 ft in
K
Max Reach Along Ground
23.76 ft in
L
Max Vertical Wall Digging Depth
10.7 ft in
M
Max Digging Depth
15 ft in
Dimensions
B
Width to Outside of Tracks
7.55 ft in
D
Length of Track on Ground
7.22 ft in
E
Ground Clearance
1.28 ft in
G
Height to Top of Cab
8.8 ft in
H
Tail Swing Radius
3.97 ft in
Undercarriage
F
Track Gauge
6.07 ft in
N
Shoe Size
17.72 in
Specifications

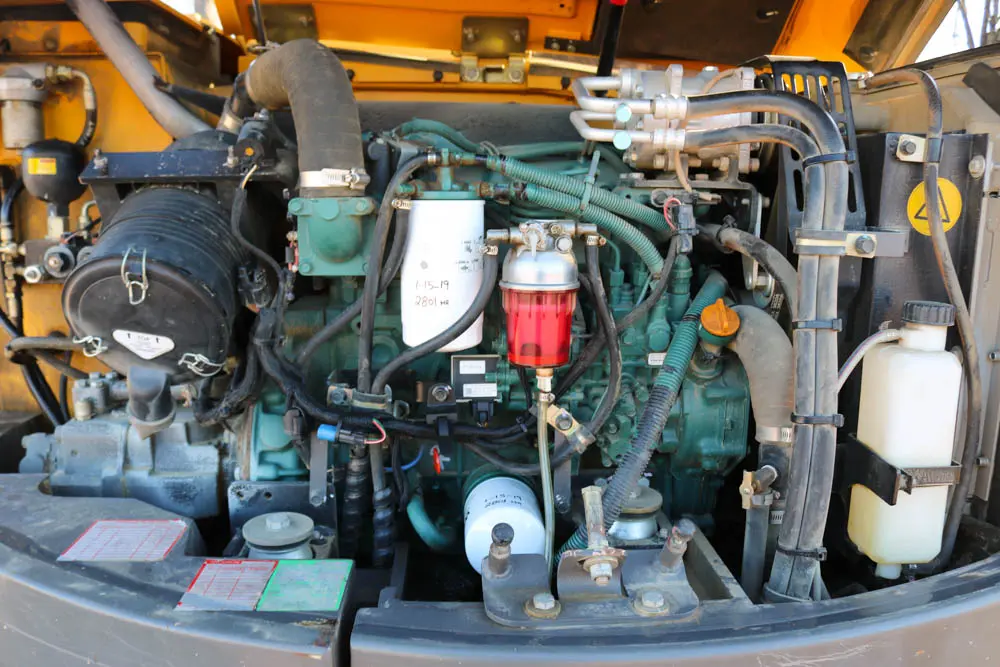

Engine
Number of Cylinders
4
Engine Make
2244
Engine Model
D3.4
Gross Power
59 hp
Net Power
56.8 hp
Power Measured @
2100 rpm
Displacement
202.5 cu in
Max Torque
173.3 lb ft
Torque Measured @
1400 rpm
Aspiration
Natural
Operational
Operating Weight
18040 lb
Fuel Capacity
29.1 gal
Cooling System Fluid Capacity
1.9 gal
Hydraulic System Fluid Capacity
37 gal
Engine Oil Capacity
3.1 gal
Operating Voltage
12 V
Alternator Supplied Amperage
55 amps
Hydraulic System Relief Valve Pressure
4354 psi
Hydraulic Pump Flow Capacity
46 gal/min
Swing Mechanism
Swing Speed
9.5 rpm
Undercarriage
Shoe Size
17.8 in
Number of Carrier Rollers per Side
1
Number of Track Rollers per Side
6
Ground Pressure
5.1 psi
Max Travel Speed
3.2 mph
Track Gauge
6.1 ft in
Buckets
Reference Bucket Capacity
0.3 yd3
Minimum Bucket Capacity
0.2 yd3
Maximum Bucket Capacity
0.4 yd3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1
Boom 11’7.8″ (3550mm)/Stick 5’6.9″ (1700mm)
Shipping Height of Unit
8.8 ft in
Shipping Length of Unit
21.1 ft in
Max Digging Depth
13.7 ft in
Max Reach Along Ground
22.6 ft in
Max Cutting Height
22.2 ft in
Max Loading Height
16 ft in
Max Vertical Wall Digging Depth
9.5 ft in
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2
Boom 11’7.8″ (3550mm)/Stick 6’10.7″ (2100mm)
Shipping Height of Unit
8.8 ft in
Shipping Length of Unit
21.1 ft in
Max Digging Depth
15 ft in
Max Reach Along Ground
23.8 ft in
Max Cutting Height
23 ft in
Max Loading Height
16.8 ft in
Max Vertical Wall Digging Depth
10.7 ft in
Dimensions
Width to Outside of Tracks
7.6 ft in
Height to Top of Cab
8.8 ft in
Ground Clearance
1.3 ft in
Removal Counterweight Clearance
2.5 ft in
Tail Swing Radius
4 ft in
Length of Track on Ground
7.3 ft in
