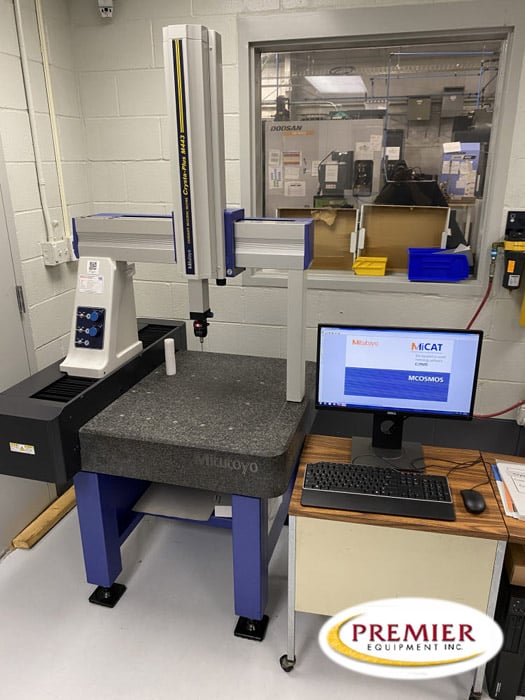

Mitutoyo Crysta Plus M443 CMM

Mitutoyo Crysta Plus M443 CMM Specifications (subject to buyer verification): Measuring Range X-Axis: 15.75” Y-Axis: 15.75” Z-Axis: 11.81” Measuring Table Material: Granite Working Area24.56” x 31.69” Workpiece Max Height: 18.90” Max Weight: 396 lbs Physical Dimensions of Unit WxDxH: 38.62” x 41.22” x 77.44” Weight: 903 lbs Equipped With (subject to buyer verification): CRT-PM443 w/Stand PCI2HY Board Air Dryer Bretford Model 3517-GMQ Adjustable Work Center Master Ball Dia 20mm MH20i Probe Package Purchased New in 2017

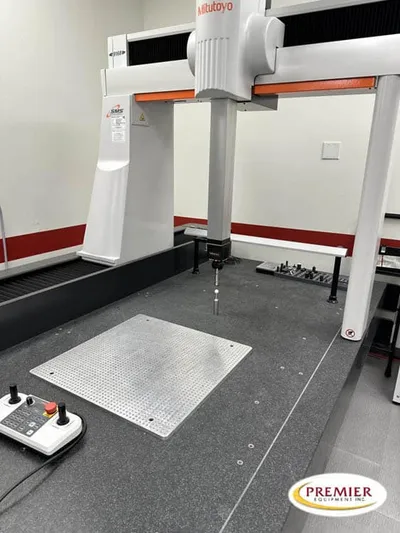

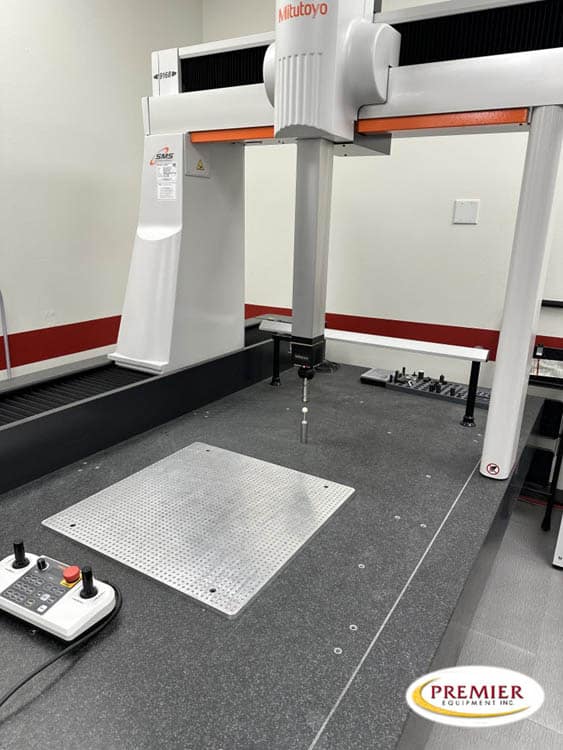

Mitutoyo CRYSTA-Apex V9168 CNC coordinate measuring machine (CMM) Specification: 8 X-axis travel: 900 mm (35.43″) Y-axis travel: 1,600 mm (62.99″) Z-axis travel: 800 mm (31.49″) Resolution: 0.0001 mm (0.1 µm / 4 µin) Maximum workpiece height: ~1,000 mm Maximum workpiece mass: 1,500 kg (3,307 lb) Table size: 1,080 × 2,320 mm (42.51″ x 91.33″) Maximum combined drive speed: 519 mm/s Maximum measuring speed: 3 mm/s on the Z800 version Maximum combined acceleration: 1,732 mm/s² Guide system: Air bearings on all axes Scale: Linear encoders Air pressure: 0.4 MPa / ~58 psi Typical probe: TP20?? Machine weight: approx 6600 lbs

Mitutoyo CRYSTA-Apex V9168 CNC coordinate measuring machine (CMM) Specification: 8 X-axis travel: 900 mm (35.43″) Y-axis travel: 1,600 mm (62.99″) Z-axis travel: 800 mm (31.49″) Resolution: 0.0001 mm (0.1 µm / 4 µin) Maximum workpiece height: ~1,000 mm Maximum workpiece mass: 1,500 kg (3,307 lb) Table size: 1,080 × 2,320 mm (42.51″ x 91.33″) Maximum combined drive speed: 519 mm/s Maximum measuring speed: 3 mm/s on the Z800 version Maximum combined acceleration: 1,732 mm/s² Guide system: Air bearings on all axes Scale: Linear encoders Air pressure: 0.4 MPa / ~58 psi Typical probe: TP20?? Machine weight: approx 6600 lbs

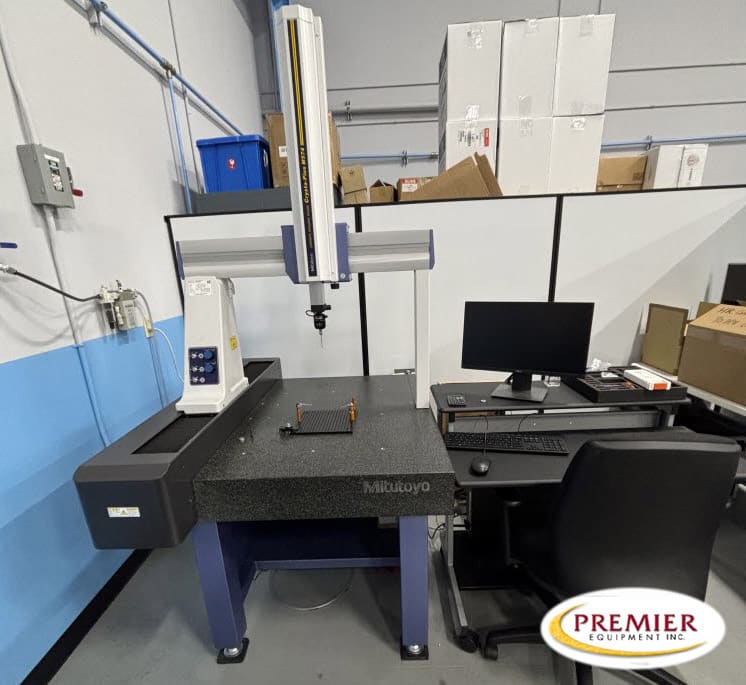

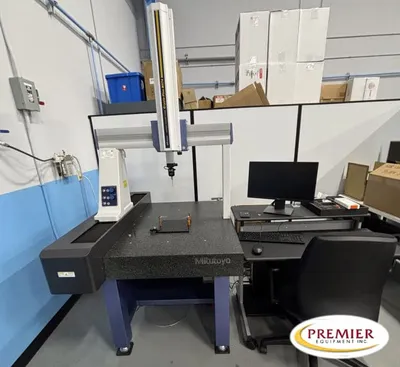

Mitutoyo Crysta Plus M574 Manual CMM Specifications (subject to buyer verification): Measuring Range X-axis: 19.69″ (500mm) Y-axis: 27.56” (700mm) Z-axis: 15.75″ (400mm) Length standard: Reflective linear encoder Resolution: .00002″ (0.0005mm) Measuring Table Material: Granite Working area: 25.12″ x 45.67″ (638mm x 1160mm) Tapped inserts: M8 x 1.25 (for clamping work-piece) Workpiece Max height: 20.08″ (510mm) Max. weight: 396lbs. (180kg) Dimensions Width: 42.60″ (1082mm) Depth: 57.40″ (1458mm) Height: 89.96″ (2285mm) Machine weight: 1,267lbs. (575kg) Equipped With (subject to buyer verification): One-touch Air Clamp • Touch Signal Disable Switch • Air Balanced Z-Axis Ram • Precision Air Bearings on all Axes • Glass Scale Linear Encoders (0.5 micron resolution) • Integral Machine & Part Temperature Compensation System (OPTION) • Integral Filter System with Pressure Regulator & Valve • Membrane Air Dryer with Pre-Filter and Regulator Air Dryer / Membrane Style Ceramic Master Ball Computer Operator Station Mitutoyo MCOSMOS M1 V4.2 Software System CMM Computer System / Dell Precision T5810 Renishaw MH20i Probe System

Mitutoyo Crysta Plus M574 Manual CMM Specifications (subject to buyer verification): Measuring Range X-axis: 19.69″ (500mm) Y-axis: 27.56” (700mm) Z-axis: 15.75″ (400mm) Length standard: Reflective linear encoder Resolution: .00002″ (0.0005mm) Measuring Table Material: Granite Working area: 25.12″ x 45.67″ (638mm x 1160mm) Tapped inserts: M8 x 1.25 (for clamping work-piece) Workpiece Max height: 20.08″ (510mm) Max. weight: 396lbs. (180kg) Dimensions Width: 42.60″ (1082mm) Depth: 57.40″ (1458mm) Height: 89.96″ (2285mm) Machine weight: 1,267lbs. (575kg) Equipped With (subject to buyer verification): One-touch Air Clamp • Touch Signal Disable Switch • Air Balanced Z-Axis Ram • Precision Air Bearings on all Axes • Glass Scale Linear Encoders (0.5 micron resolution) • Integral Machine & Part Temperature Compensation System (OPTION) • Integral Filter System with Pressure Regulator & Valve • Membrane Air Dryer with Pre-Filter and Regulator Air Dryer / Membrane Style Ceramic Master Ball Computer Operator Station Mitutoyo MCOSMOS M1 V4.2 Software System CMM Computer System / Dell Precision T5810 Renishaw MH20i Probe System
