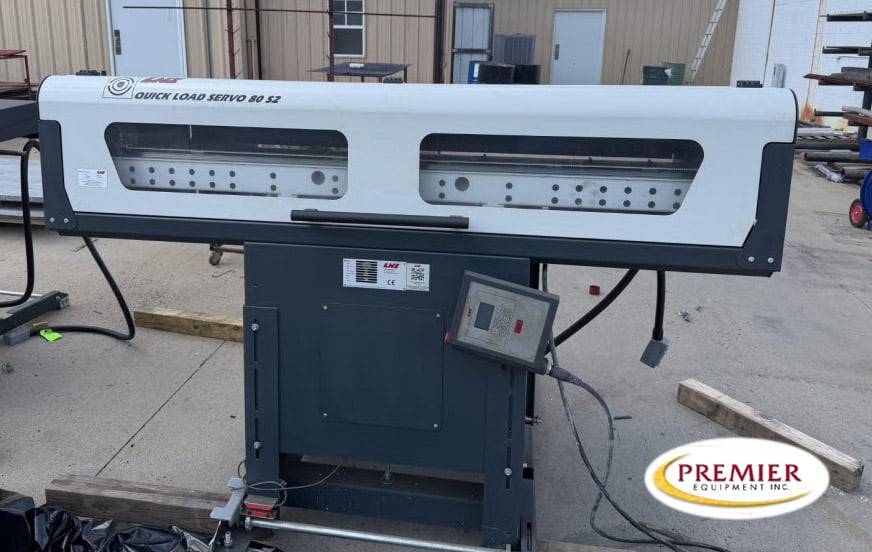

LNS Quick Load Servo 80 S2 Barfeed

LNS Quick Load Servo 80 S2 Barfeed Specifications (subject to buyer verification): Diameter ø 1/4 – 3-1/8” (6-80 mm) Bar length (limited to headstock length) 14” – 63” (350 – 1600 mm) Loading system Side load rack Loading capacity 26” (650 mm) Loading Front/rear Headstock type Fixed X or Z axis retraction 23” (600 mm) Diameter set up 10 sec (automatic) Total changeover 2 min (for pusher) Motor Servo Drive Notched belt Parts library 500 parts program storage Equipped With (subject to buyer verification): Automatic diameter changing system with linear motors and LNS servo motor technology Centerline and bar loading fingers adjust automatically as the new bar diameter is entered in the prompting remote HMI No manual adjustments are required reducing changeover time to a minimum Special Notes per LNS: Please remember that the maximum length of bar to be run is the length of the headstock plus the length of the work holding. A spindle liner will be required for every diameter of bar stock to be run. Also, please remember that if there is a gap over 7” between the back of the sheet metal of the lathe and the back of the spindle of the lathe, then 6” extensions on your Steel Spindle liners and an Extended Coolant Collector is required.

Specifications (subject to buyer verification): Filtration: Dual Bag Volume: 30 gpm Pressure: 1000 psi Outlets: 3 Tank: 126 gal Equipped With (subject to buyer verification): Control

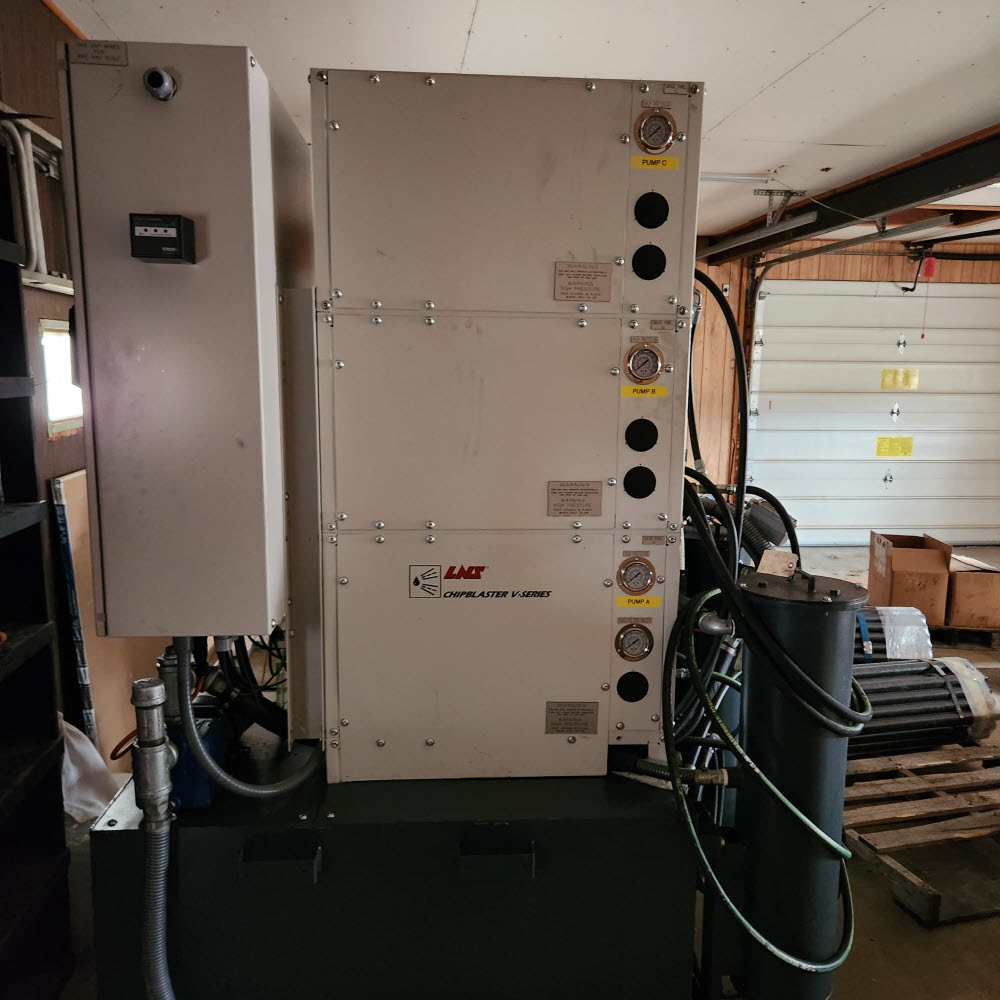

LNS ChipBlaster V3-120H High Pressure Coolant System – 2023 Specifications (subject to buyer verification): Filtration: Dual Bag Volume: 30 gpm Pressure: 1000 psi Outlets: 3 Tank: 126 gal Equipped With (subject to buyer verification): Control

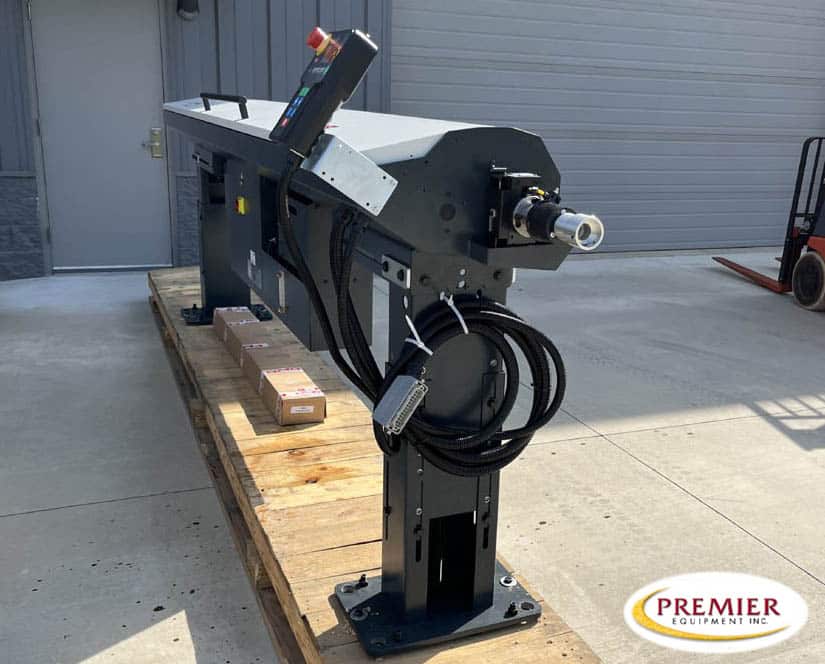

LNS GT 326-E 8’ Automatic Barfeed / GT-326E Specifications (subject to buyer verification): Bar diameter range, mm 3 ~ 23mm (26mm with bar prep.) .1” – .9” (1.02” with bar prep) Magazine capacity, 10.6” Machine weight, 1400 lbs Overall length, 132” Overall width, 20” Maximum bar length, 103” Air pressure 5~7 bar (90~100 PSI) Hand Held Pendant Control

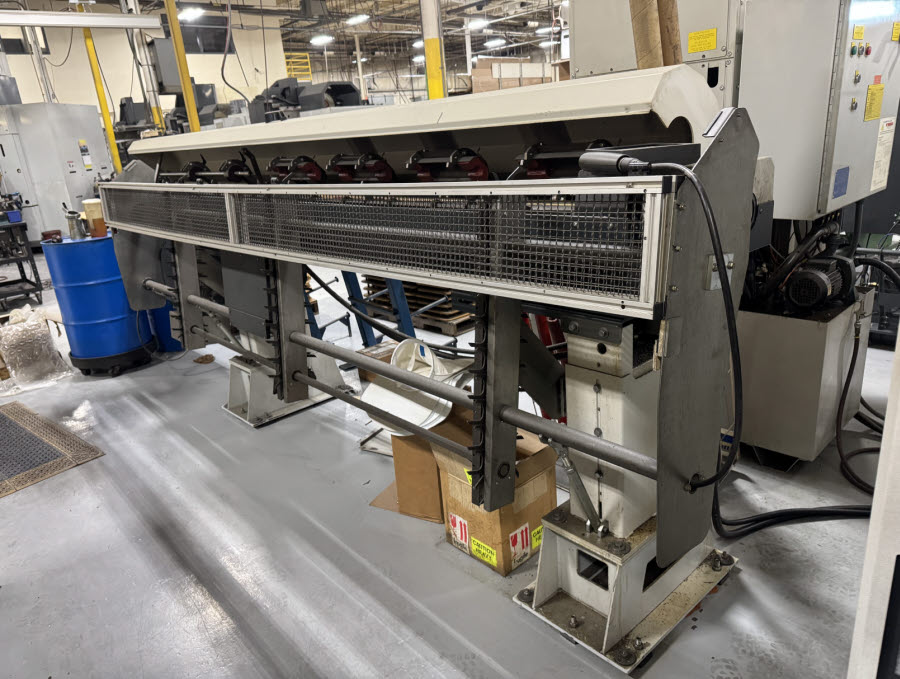

LNS Sprint 552 Mag Barfeed

LNS Sprint 552 Mag Barfeed Specifications (subject to buyer verification): Max. Bar Diameter ………… 52mm (2″) Min. Diameter ……………. 5mm Min/Max. Bar Length ………. 1500mm/3800mm 59″/149″ Loading Cycle ……………. 30 – 40 Sec. Approx. Weight …………… 3,000 lbs

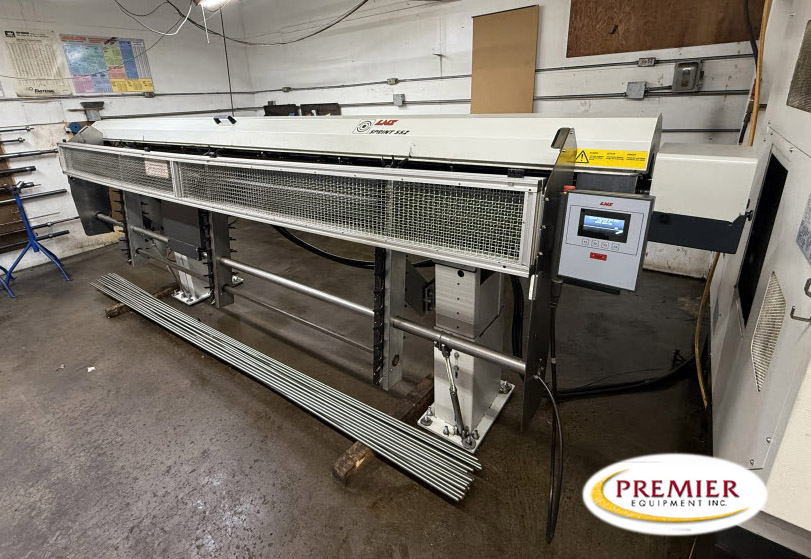

LNS Sprint 552 Mag Barfeed

LNS Sprint 552 Mag Barfeed Specifications (subject to buyer verification): Max. Bar Diameter ………… 52mm (2″) Min. Diameter ……………. 5mm Min/Max. Bar Length ………. 1500mm/3800mm 59″/149″ Loading Cycle ……………. 30 – 40 Sec. Approx. Weight …………… 3,000 lbs

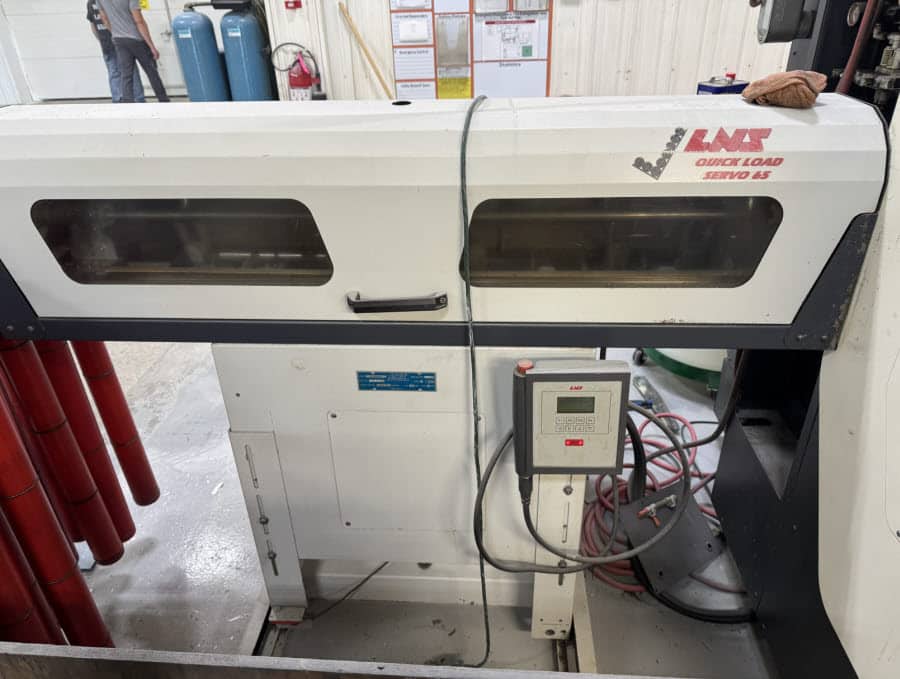

LNS Quick Load Servo 65 Automatic Barfeed

LNS Quick Load Servo 65 Automatic Barfeed Specifications (subject to buyer verification): Minimum/Maximum Barstock Diameter: 1/4″ to 2-5/8″ (Restricted by spindle or chuck thru-hole capacity) Minimum/Maximum Barstock Length: 14″ to 51″ (Restricted to bar length contained within machine) Bar Magazine Storage Tray Length: 23″ STANDARD FEATURES: Easy Setup by: – Z or X Axis Retract System Permitting Barfeed to be moved up to 23″ for Spindle Access. – Icon Remote Prompting Control for Easy Operations. – Automatic Torque and Feed Rate Adjustment by Bar Dia. – Barstock Load and Positioning by Servo Drive With or Without Turret Stop. – Automatic Bar Centerline Adjustment by Remote Control.
