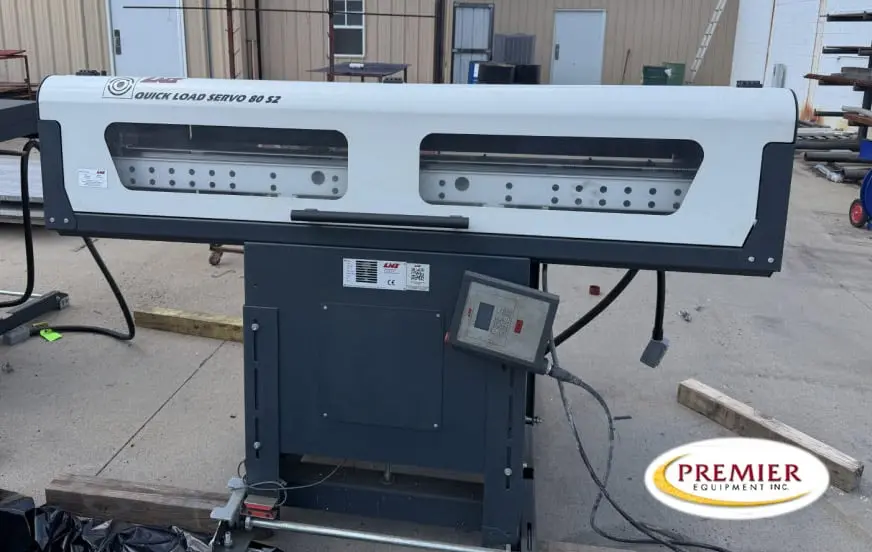

LNS Quick Load Servo 80 S2 Barfeed – 2022 (Sold)
LNS Quick Load Servo 80 S2 Barfeed – 2022 (Sold)
Category
Bar Feeders/Loaders
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
LNS
Model
Quick Load
Hours of Usage
-
Year of Manufacture
2022
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
LNS Quick Load Servo 80 S2 Barfeed
Used Cnc Brands
LNS
Status
Sold
Description
LNS Quick Load Servo 80 S2 Barfeed LNS Quick Load Servo 80 S2 Barfeed Specifications (subject to buyer verification): Diameter ø 1/4 – 3-1/8” (6-80 mm) Bar length (limited to headstock length) 14” – 63” (350 – 1600 mm) Loading system Side load rack Loading capacity 26” (650 mm) Loading Front/rear Headstock type Fixed X or Z axis retraction 23” (600 mm) Diameter set up 10 sec (automatic) Total changeover 2 min (for pusher) Motor Servo Drive Notched belt Parts library 500 parts program storage Equipped With (subject to buyer verification): Automatic diameter changing system with linear motors and LNS servo motor technology Centerline and bar loading fingers adjust automatically as the new bar diameter is entered in the prompting remote HMI No manual adjustments are required reducing changeover time to a minimum Special Notes per LNS: Please remember that the maximum length of bar to be run is the length of the headstock plus the length of the work holding. A spindle liner will be required for every diameter of bar stock to be run. Also, please remember that if there is a gap over 7” between the back of the sheet metal of the lathe and the back of the spindle of the lathe, then 6” extensions on your Steel Spindle liners and an Extended Coolant Collector is required.
